BCM5221KPB Ethernet PHY: Features, Block Diagram, Applications and Datasheet

If you're working with 10/100 Mbps Ethernet connections, the BCM5221KPB gives you a reliable and efficient solution for both twisted-pair and fiber networks. In this guide, you’ll learn what the BCM5221KPB is, how it works inside, and how to power and use it effectively. You’ll also see its key features, specs, applications, and how it compares with similar parts. By the end, you’ll understand exactly why and where to use this PHY in your designs.

Catalog

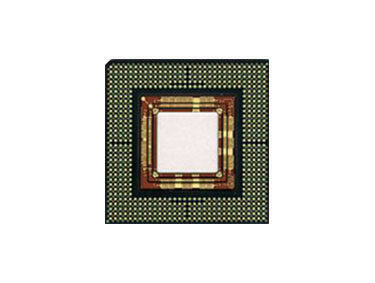

What is the BCM5221KPB?

The BCM5221KPB is a single-channel 10/100 Mbps Ethernet physical layer transceiver (PHY) developed by Broadcom, designed for efficient data transmission over twisted-pair or fiber media. Belonging to the BCM5221 family, it integrates advanced mixed-signal technology in a compact package, offering reliable operation across industrial temperature ranges. This family is known for its low-power architecture and compatibility with standard Ethernet interfaces, making it a well-established choice in networking designs.

Looking for BCM5221KPB? Contact us to check current stock, lead time, and pricing.

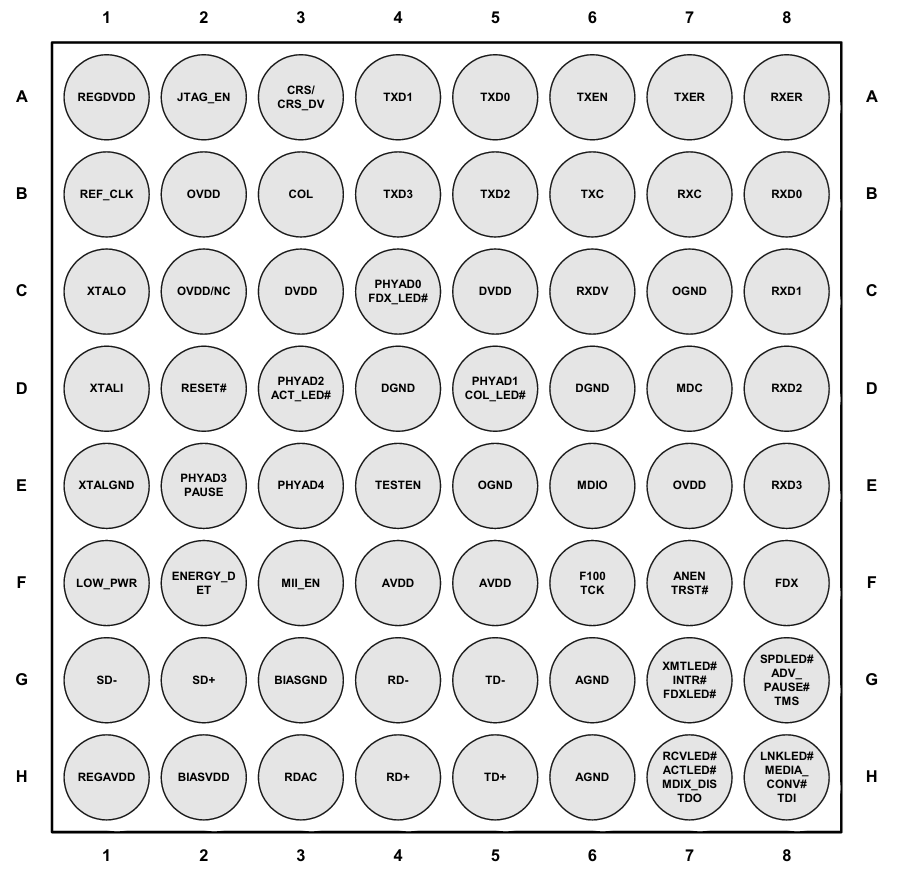

BCM5221KPB Ballout Diagram

Row–Col	Signal Name	Function Description
A1	REGDVDD	Regulated power supply input
A2	JTAG_EN	Enables JTAG test interface
A3	CRS/CRS_DV	Carrier Sense / Data Valid signal for MII
A4	TXD1	Transmit data bit 1
A5	TXD0	Transmit data bit 0
A6	TXEN	Transmit enable signal
A7	TXER	Transmit error indicator
A8	RXER	Receive error indicator
B1	REF_CLK	Reference clock input
B2	OVDD	Output voltage power supply
B3	COL	Collision detect (MII)
B4	TXD3	Transmit data bit 3
B5	TXD2	Transmit data bit 2
B6	TXC	Transmit clock (MII)
B7	RXC	Receive clock (MII)
B8	RXD0	Receive data bit 0
C1	XTALO	Crystal oscillator output
C2	OVDD/NC	Output supply or not connected
C3	DVDD	Digital core power supply
C4	PHYAD0 / FDX_LED#	PHY address bit 0 / Full-duplex LED (active low)
C5	DVDD	Digital core power supply
C6	RXDV	Receive data valid
C7	OGND	Output ground
C8	RXD1	Receive data bit 1
D1	XTALI	Crystal oscillator input
D2	RESET#	Active-low reset
D3	PHYAD2 / ACT_LED#	PHY address bit 2 / Activity LED (active low)
D4	DGND	Digital ground
D5	PHYAD1 / COL_LED#	PHY address bit 1 / Collision LED (active low)
D6	DGND	Digital ground
D7	MDC	Management Data Clock
D8	RXD2	Receive data bit 2
E1	XTALGND	Crystal ground
E2	PHYAD3 / PAUSE	PHY address bit 3 / PAUSE input
E3	PHYAD4	PHY address bit 4
E4	TESTEN	Test enable pin
E5	OGND	Output ground
E6	MDIO	Management Data I/O
E7	OVDD	Output voltage power supply
E8	RXD3	Receive data bit 3
F1	LOW_PWR	Low power mode enable
F2	ENERGY_DET	Energy detect signal
F3	MII_EN	MII interface enable
F4	AVDD	Analog power supply
F5	AVDD	Analog power supply
F6	F100 TCK	100 Mbps test clock
F7	ANEN TRST#	Auto-negotiation enable / JTAG reset (active low)
F8	FDX	Full-duplex mode indicator
G1	SD–	Differential pair input (negative)
G2	SD+	Differential pair input (positive)
G3	BIASGND	Bias ground
G4	RD–	Receive differential pair (negative)
G5	TD–	Transmit differential pair (negative)
G6	AGND	Analog ground
G7	XMTLED# / INTR# / FDXLED#	Transmit LED (active low) / Interrupt / Full-duplex LED (active low)
G8	SPDLED# / ADV_PAUSE# / TMS	Speed LED (active low) / Advertised pause / JTAG TMS
H1	REGAVDD	Regulated analog power supply
H2	BIASVDD	Bias voltage supply
H3	RDAC	Receive DAC pin
H4	RD+	Receive differential pair (positive)
H5	TD+	Transmit differential pair (positive)
H6	AGND	Analog ground
H7	RCVLED# / ACTLED# / MDIX_DIS / TDO	Receive LED / Activity LED / MDIX disable / JTAG TDO
H8	LNKLED# / MEDIA_CONV# / TDI	Link LED / Media converter mode / JTAG TDI

BCM5221KPB Features

• 10/100BASE-TX and 100BASE-FX Capability

BCM5221KPB supports IEEE 802.3u compliant 10BASE-T and 100BASE-TX Ethernet over twisted-pair (UTP) copper cabling. It also supports 100BASE-FX operation when used with external fiber-optic components, enabling seamless media conversion between copper and fiber without additional logic.

• Single-Port, Low-Power PHY

The device integrates a single transmit and receive channel, making it ideal for compact, single-port Ethernet applications. It operates from a 2.5 V or 3.3 V supply and consumes less than 275 mW under typical conditions, helping to reduce system power consumption.

• Integrated Voltage Regulator

BCM5221KPB includes an on-chip regulator that allows operation from a single supply voltage. This simplifies power-supply design and reduces the number of external components required on the PCB.

• Advanced Power Management

The PHY incorporates energy detection circuits that automatically power down the device when no signal is present on the cable. It can periodically wake up at user-defined intervals, minimizing energy consumption during idle periods without losing link functionality.

• Auto-MDIX Functionality

It features Broadcom’s Auto-MDIX technology, which automatically detects and corrects for straight-through or crossover cables. This eliminates the need for manual cable selection and simplifies network installation and maintenance.

• Cable Diagnostics and Monitoring

The device provides built-in diagnostics to estimate cable length and indicate noise levels. These capabilities are accessible via internal registers, enabling system to implement cable integrity monitoring and optimize network performance.

• Industrial Temperature Range

BCM5221KPB supports a wide operating temperature range from –40 °C to +85 °C. This makes it suitable for both commercial and industrial applications that require stable performance in harsh environments.

• IEEE 802.3u Compliance with MII/RMII

The transceiver is fully compliant with the IEEE 802.3u Fast Ethernet standard, supporting both MII and RMII interfaces. This allows flexible connectivity to a wide range of Ethernet MAC controllers in embedded and networking applications.

• JTAG Boundary-Scan Support

The chip includes IEEE 1149.1 JTAG boundary-scan test features, which facilitate board-level testing and diagnostics. This improves manufacturing yield and simplifies debugging during development and production.

• Robust Design with CESD Protection

BCM5221KPB is designed with enhanced immunity to charged electrostatic discharge (CESD) and transients, ensuring reliable operation in electrically noisy environments. This robustness is valuable in industrial or outdoor networking installations.

• Backward Compatibility with BCM5201

BCM5221KPB is layout-compatible with the older BCM5201 generation, allowing easy upgrades in existing designs. This compatibility helps reduce redesign effort and speeds up migration to lower-power PHY technology.

• High Integration Level

The device integrates the equalizer, ADC, PLL, line driver, encoder/decoder, and support circuits on a single chip. This minimizes the external component count, lowers BOM cost, and simplifies PCB layout.

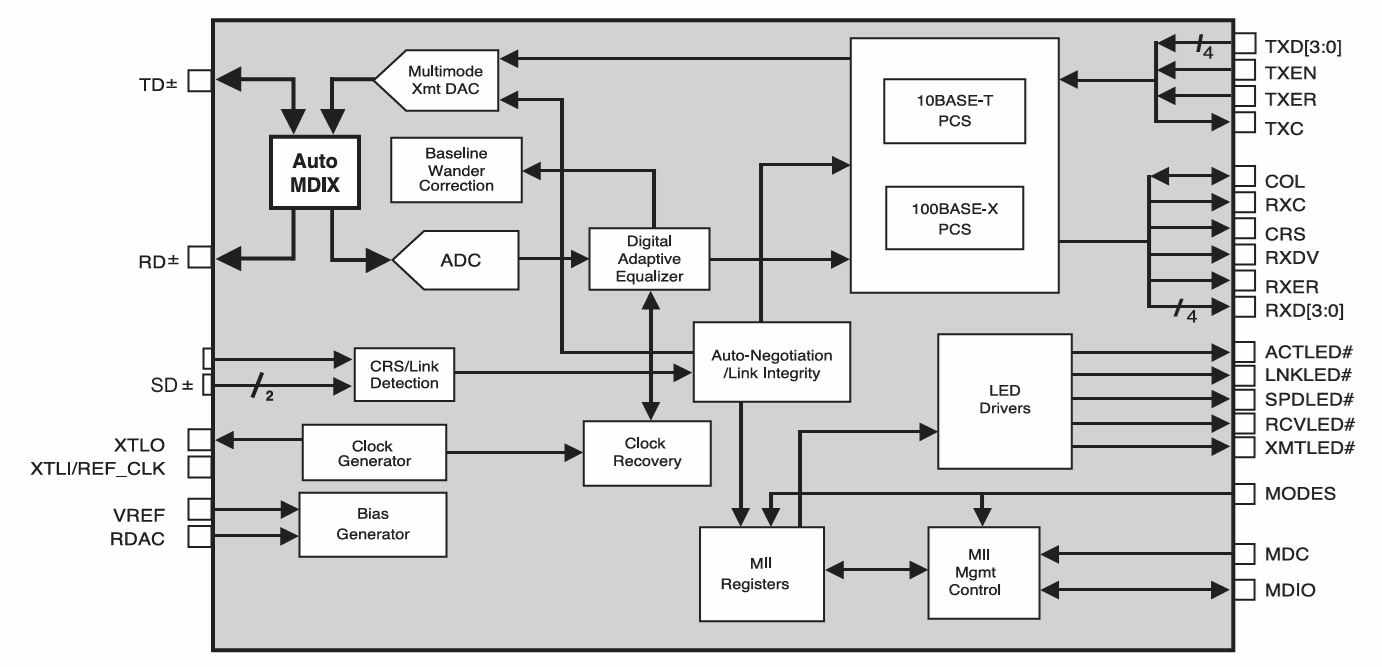

BCM5221 Block Diagram

The BCM5221 block diagram illustrates the internal functional architecture of the PHY, showing how analog line signals are converted into digital data and managed within the device. On the left, the differential line interfaces (TD±, RD±, SD±) pass through circuits such as Auto-MDIX, ADC, Digital Adaptive Equalizer, and clock recovery blocks, which ensure accurate signal detection and compensation for cable effects. These processed signals are then handled by the 10BASE-T and 100BASE-X PCS cores and linked to the MII interface, which connects directly to the host MAC for data transmission and reception. Additional modules like auto-negotiation, LED drivers, and MII management control enable seamless network configuration, status indication, and control, making this block diagram important for understanding how the BCM5221KPB ensures reliable, standards-compliant Ethernet communication in networking products.

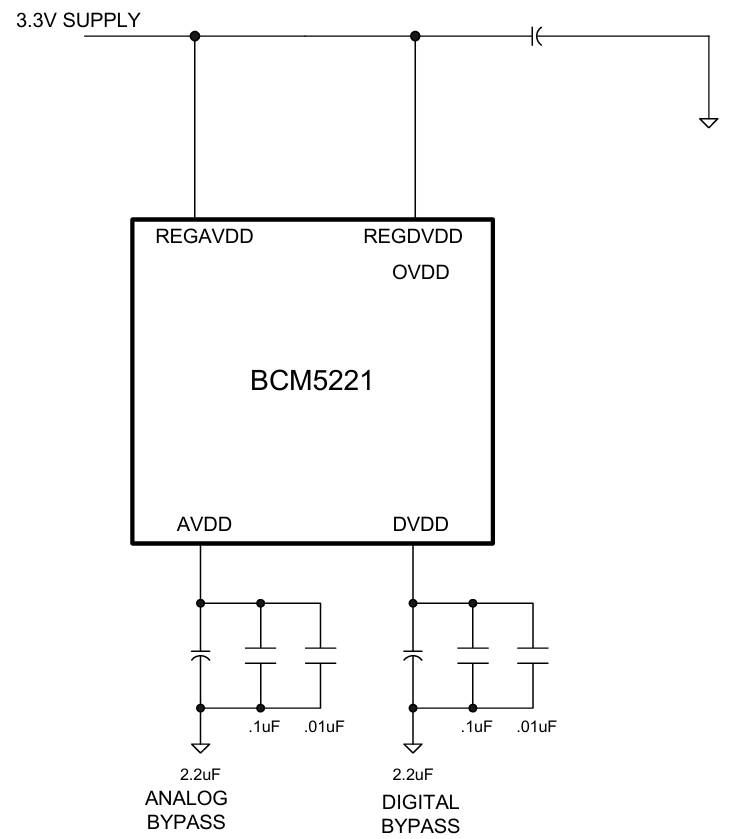

BCM5221 Power Connections

The BCM5221 power connection diagram shows how the device’s internal analog and digital sections are properly powered and decoupled to ensure stable operation. A single 3.3 V supply feeds the REGAVDD and REGDVDD pins, which in turn provide regulated voltages to the AVDD and DVDD domains inside the chip. Multiple bypass capacitors (2.2 µF, 0.1 µF, and 0.01 µF) are placed close to the analog and digital power pins to filter noise across different frequency ranges, improving signal integrity. This power arrangement is important to maintain clean analog performance, minimize digital switching noise, and ensure reliable high-speed Ethernet communication in the BCM5221KPB.

BCM5221KPB Specifications

Type	Parameter
Manufacturer	Avago Technologies/Broadcom
Packaging	Tray
Part Status	Obsolete
Type	Transceiver
Protocol	Ethernet
Number of Drivers/Receivers	1/1
Voltage – Supply	2.5 V ~ 3.3 V
Operating Temperature	–40 °C ~ 85 °C

BCM5221KPB Applications

1. PCMCIA and CardBus Network Interface Cards

BCM5221KPB is ideal for use in PCMCIA and CardBus network interface cards, where compact size and low power consumption are important. Its single-port PHY design and integrated voltage regulator reduce the external component count, allowing slimmer network card designs. The built-in Auto-MDIX and low-power modes enhance performance while minimizing board complexity.

2. LAN-on-Motherboard Integrated Ethernet Ports

The device is commonly integrated into LAN-on-motherboard (LOM) solutions for desktop PCs and embedded systems. Its compliance with IEEE 802.3u standards and support for both MII and RMII interfaces make it easy to connect directly to Ethernet MAC controllers. This enables reliable, high-speed network connectivity without the need for external transceiver modules.

3. IP Phones (VoIP Phones)

BCM5221KPB provides stable and energy-efficient Ethernet connectivity for IP and VoIP phones. Its low power consumption and intelligent power-down features are useful for reducing energy usage in always-on communication devices. Auto-MDIX support simplifies installation, allowing these phones to operate seamlessly in various network configurations.

4. Cable Modems

The transceiver is well-suited for cable modems that require dependable 10/100 Mbps Ethernet interfaces for home or commercial broadband access. Its small footprint and low power usage make it easy to integrate into compact modem designs. With cable diagnostics and noise indication features, it helps ensure stable network performance in environments with varying cable quality.

5. Set-Top Boxes and Print Servers

BCM5221KPB is frequently used in set-top boxes and print servers, where space efficiency and stable Ethernet connectivity are needed. Its single-chip design reduces PCB complexity while delivering reliable Fast Ethernet performance. This allows OEMs to build compact devices with built-in networking capability without increasing production costs.

6. Wireless Access Points and Embedded Telecom Equipment

The PHY is also deployed in wireless access points and embedded telecom systems that require wired uplink connections. Its industrial temperature range and robust CESD protection ensure stable operation even in challenging network environments. With flexible interface support and intelligent power features, it integrates smoothly into both consumer-grade and carrier-grade networking equipment.

BCM5221KPB Similar Parts

Specification	BCM5221KPB	BCM5221A3KPTG	BCM5221A4KPTGT	BCM5221A4KPTG	BCM5222KPF	BCM5221A4KMLG
Manufacturer	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom
PHY Channels	1	1	1	1	2	1
Ethernet Standard	10/100BASE-TX/FX	10/100BASE-TX/FX	10/100BASE-TX/FX	10/100BASE-TX/FX	10/100BASE-TX	10/100BASE-TX/FX
Interface	MII / RMII	MII / RMII	MII / RMII	MII / RMII	MII / RMII	MII / RMII
Package Type	BGA-64	TQFP-64	TQFP-64 (Tape & Reel)	TQFP-64	TQFP-80	LQFP / MLF
Power Supply	2.5 V / 3.3 V	2.5 V / 3.3 V	2.5 V / 3.3 V	2.5 V / 3.3 V	2.5 V / 3.3 V	2.5 V / 3.3 V
Power Consumption (Typ.)	< 275 mW	< 275 mW	< 275 mW	< 275 mW	Slightly higher (dual)	< 275 mW
Auto-MDIX Support	Yes	Yes	Yes	Yes	Yes	Yes
Port Count / Application	Single, standard PHY	Single, standard PHY	Single, production packaging	Single, standard PHY	Dual-port for multi-port designs	Single, alternate packaging
Use Case	General Ethernet transceiver	Board-mount PHY, early rev	High-volume SMT assembly	Standard PHY variant	Switches, routers, dual-port NIC	Alternate form factor / layout compatibility

BCM5221KPB Advantages and Disadvantages

Advantages

• Low power consumption with intelligent energy-saving modes

• Single-supply operation simplifies power design

• High tolerance to temperature, voltage variation, and CESD

• Auto-MDIX and diagnostics improve network reliability

• Proven, mature DSP-based PHY architecture

Disadvantages

• Limited to 10/100 Mbps, no Gigabit support

• Single-port design not ideal for multi-port systems

• Older generation with fewer modern PHY features

• Higher active power than newer ultra-low-power PHYs

• Obsolete status may affect long-term availability

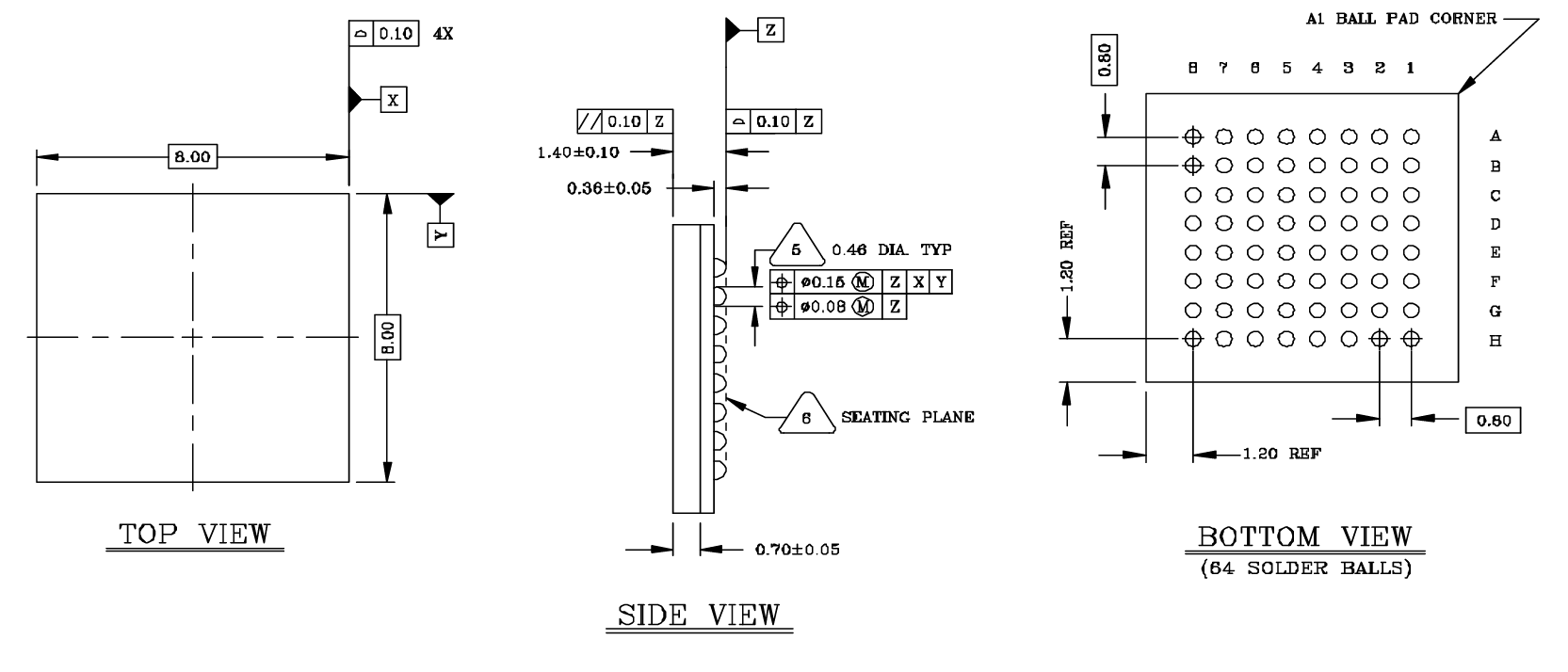

BCM5221KPB Packaging Dimensions

Parameter	Symbol	Min	Typ	Max	Description
Package body size	A × B	7.9	8	8.1	Overall length and width of the BGA package
Package height	Z	1.3	1.4	1.5	Total height including solder balls
Ball pitch	P	–	0.8	–	Center-to-center distance between adjacent solder balls
Ball diameter	D	0.41	0.46	0.51	Diameter of individual solder balls
Ball height	H	0.31	0.36	0.41	Height of solder balls from seating plane
Standoff height	S	0.65	0.7	0.75	Distance from seating plane to package body
Ball grid array	–	–	8 × 8	–	Total ball matrix arrangement (64 balls)
Ball pad corner	–	–	A1	–	Pin 1 (A1) corner reference marker
Edge to first row	E	–	1.2	–	Distance from package edge to first row of balls
Ball layout orientation	–	–	Bottom View	–	Ball numbering follows A1 corner orientation

BCM5221KPB Manufacturer

The BCM5221KPB is manufactured by Broadcom Limited, a leading global semiconductor company known for designing and supplying a wide range of wired and wireless communication solutions. Broadcom specializes in high-performance networking, broadband, and connectivity components used in data centers, telecommunications, and consumer electronics. With a long history of producing reliable Ethernet PHY transceivers, Broadcom has established itself as a trusted manufacturer for industrial and commercial networking applications.

Conclusion

The BCM5221KPB delivers a strong balance of low power consumption, flexible media support, robust design, and proven DSP-based performance for 10/100 Mbps Ethernet applications. Its integrated voltage regulator, Auto-MDIX functionality, cable diagnostics, and wide temperature tolerance make it versatile for diverse environments. With support for MII/RMII interfaces and backward compatibility with earlier PHY generations, it simplifies system design and upgrades. Although it lacks Gigabit support and represents an older generation, its reliability and integration features keep it relevant for many embedded and networking solutions.

Datasheet PDF

BCM5221KPB Datasheets:

BCM5221 Product Brief.pdf
