BJT vs MOSFET: Key Differences, Working Principles, Types, and Applications

This guide talks about two common parts used in electronics: BJT and MOSFET. It explains what they are, how they work, and the different types of each. It also shows where they are used, like in amplifiers, switches, and digital devices. You’ll also learn the good and bad sides of both, so you can decide which one is better for your circuit.

Catalog

What is a BJT and MOSFET?

What is a BJT?

A Bipolar Junction Transistor (BJT) is a core semiconductor device used in both analog and digital electronics. It replaced vacuum tubes in early electronics, helping make circuits smaller, faster, and more efficient. BJTs come in two forms based on how the internal layers of semiconductor material are arranged and doped. It works by using a small input current at the base to control a much larger current between the collector and emitter. This makes the BJT a current-controlled device and useful for amplifying weak electrical signals. In NPN BJTs, electrons carry the current, which gives these devices higher speed and better efficiency compared to PNP types, where holes are the main carriers. Because of their predictable behavior and ability to handle linear signal changes, BJTs are often used in analog circuits like audio amplifiers and low-noise signal paths.

Figure 2. Bipolar Junction Transistors (BJTs)

What is a MOSFET?

A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a voltage-controlled switch widely used in modern electronics. Unlike BJTs, which need a steady current at the input, a MOSFET only requires a voltage at the gate to control the current between the source and drain. The gate is electrically insulated from the channel by a thin oxide layer, which allows the device to operate with very low input current. This insulation gives MOSFETs high input impedance and helps reduce power use, especially when the device is not switching. MOSFETs come in N-channel and P-channel types and can operate in either enhancement mode (normally off) or depletion mode (normally on). Because of their fast switching speed, low power loss, and compatibility with logic circuits, they are important in microprocessors, digital systems, and efficient power converters.

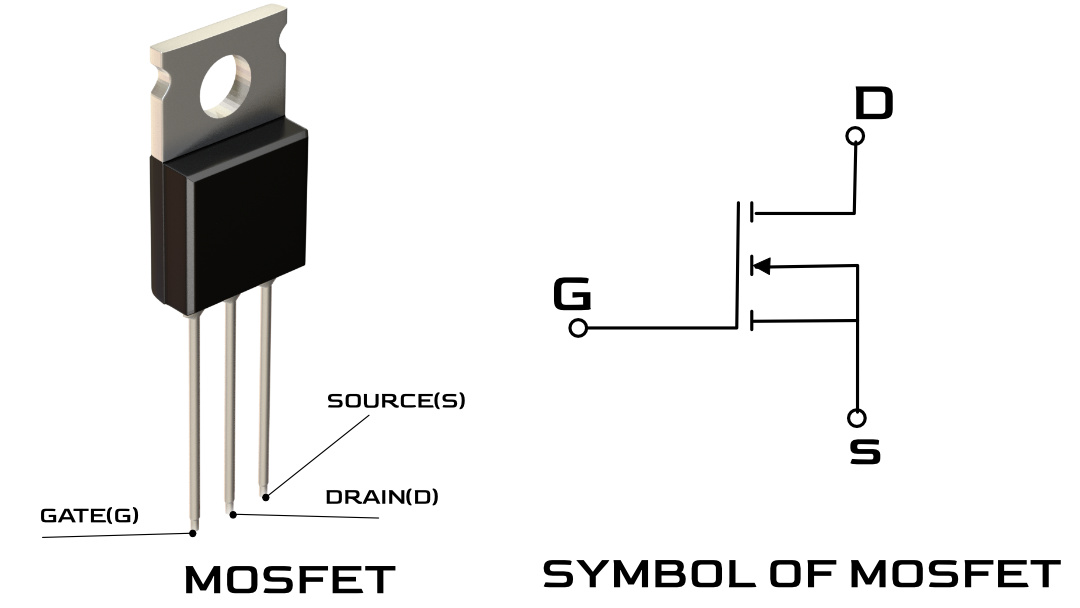

Figure 3. Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs)

How BJT and MOSFET Work?

How BJTs Work?

A Bipolar Junction Transistor (BJT) works by using a small current at the base to control a much larger current flowing from the collector to the emitter. In an NPN transistor, when a small forward voltage is applied between the base and emitter, electrons are injected from the emitter into the base. Because the base is thin and lightly doped, only a few electrons recombine there; most are swept into the collector due to the reverse-biased collector-base junction. This creates a strong collector current. The transistor acts as a current amplifier, where a small base current (I_B) controls a much larger collector current (I_C). The relationship between them is defined by the current gain β, where

The emitter current (I_E) is the total current leaving the transistor and is the sum of the base and collector currents:

Figure 4. Working Principle of a Bipolar Junction Transistor

How MOSFETs Work?

A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) operates by controlling the flow of current between two terminals (source and drain) using an electric field generated by the gate terminal.

In an N-channel enhancement-mode MOSFET, the device is normally off when no gate voltage is applied. When a positive voltage is applied to the gate, it creates an electric field that attracts electrons toward the channel region in the p-type substrate. These electrons form an inversion layer, creating a conductive channel between the source and drain. Current can then flow when a voltage is applied between these two terminals.

The thin oxide layer between the gate and the substrate acts like the dielectric in a capacitor. It electrically insulates the gate, so virtually no current flows into the gate itself. This minimizes power consumption and makes the device energy efficient.

To turn off the MOSFET, the gate voltage is removed or made zero, causing the channel to disappear and stopping current flow. P-channel MOSFETs function similarly but require a negative gate voltage to form a channel for current flow.

The switching speed of the MOSFET depends on how quickly the gate capacitance can be charged or discharged. However, once the device is fully on or off, it consumes almost no power, making it ideal for use in digital logic circuits and high-speed switching applications.

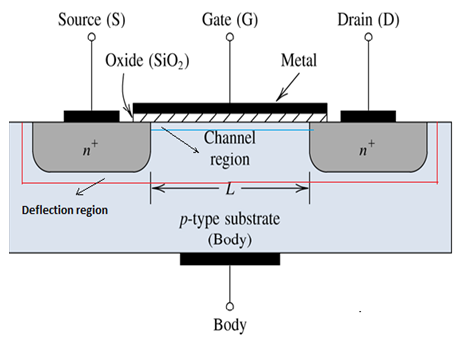

Figure 5. Working Principle of a MOSFET

Types of BJT and MOSFET

Types of Bipolar Junction Transistors (BJTs)

Figure 6. BJT Types

• NPN Transistor

An NPN transistor is made up of two n-type semiconductor layers separated by a thin p-type base. When a forward bias is applied to the base-emitter junction, electrons flow from the emitter into the base. Most of these electrons are swept into the collector, generating a strong current flow. NPN transistors are widely used due to the high mobility of electrons, which allows for faster switching and better performance in many electronic applications.

• PNP Transistor

A PNP transistor has an inverted structure compared to an NPN: two p-type layers with an n-type base in between. When the emitter-base junction is forward-biased, holes move from the emitter into the base and are then collected by the collector. Because holes move more slowly than electrons, PNP transistors typically have lower current gain and slower switching speeds. Despite this, they are important in complementary circuit designs and are often used for applications like low-side switching.

MOSFET Types and Operating Modes

Figure 7. MOSFET Types

• Enhancement Mode MOSFETs

These transistors are normally off and require a gate voltage to turn on. N-channel enhancement-mode MOSFETs are switched on by applying a positive voltage to the gate terminal. These are highly efficient devices known for their fast switching speeds and low on-resistance, making them ideal for use in power-switching applications, switching regulators, motor controllers, and digital logic circuits. P-channel enhancement-mode MOSFETs, on the other hand, require a negative gate voltage to turn on. Although they tend to have slower switching speeds and higher resistance than their N-channel counterparts, they are great in CMOS (Complementary Metal-Oxide-Semiconductor) designs. In these systems, P- and N-channel MOSFETs work together to create logic gates that consume virtually no power when idle, which is important for battery-powered and low-power electronics.

• Depletion Mode MOSFETs

These are normally on and require a gate voltage to turn off. N-channel depletion-mode MOSFETs conduct current by default and can be switched off by applying a negative gate voltage. These are useful in applications such as analog circuits, constant current sources, or fail-safe designs where an "always-on" behavior is desirable. P-channel depletion-mode MOSFETs operate similarly but require a positive gate voltage to switch off. While less commonly used, they serve important roles in specific analog or protective circuit designs where predictable default conduction is needed.

Strengths and Weaknesses of BJT and MOSFET

Strengths and Weaknesses of BJTs

Strengths	Weaknesses
High linearity and consistent gain for analog circuits	Requires constant base current, increasing power consumption
Responds well to small input currents (ideal for audio preamps, sensor inputs)	Low input impedance, making it hard to interface with high-impedance sources
Moderate current output with simple control	Prone to thermal runaway without proper cooling
Generally more affordable than MOSFETs	Slower switching speed compared to MOSFETs, limiting use in fast digital applications
Excellent for low-noise analog applications like radio frequency and instrumentation amplifiers	Limited input voltage swing, especially in low-voltage systems
Easier to bias and stabilize in linear mode with proper design	Gain (β) varies widely between devices and with temperature, requiring tighter circuit tolerance or feedback design
Strong performance in push-pull and Class AB amplifier stages	Not as scalable as MOSFETs in modern integrated circuits or very high-density VLSI designs
Preferred in discrete transistor designs where simplicity and analog precision are prioritized	Larger physical size and less efficient in high-power switching unless carefully designed with heat sinking and biasing

Strengths and Weaknesses of MOSFETs

Strengths	Weaknesses
Very high input impedance; needs almost no current to control	Easily damaged by static electricity (ESD)
Easy to connect with digital logic circuits	Needs protection circuits to prevent gate damage
Low on-resistance helps reduce power loss	Gate must charge and discharge, which slows down switching at high speed
Great for low-power and energy-saving devices	Less efficient at very high frequencies without special design
Works well in fast switching applications like power supplies and converters	Needs careful gate voltage control; too high can damage the device
Used in CPUs, GPUs, and portable electronics due to small size and low power	Not reliable in high-radiation or extreme environments unless special versions are used
Available in both N-channel and P-channel types for balanced logic design (CMOS)	Can be more expensive than BJTs in simple, low-power analog uses
Fast and efficient switching reduces heat in circuits	Can show distortion in precision analog circuits unless compensated

Applications of BJT and MOSFET

Analog Circuits

In circuits that work with signals (like sound), BJTs are often used because they give good signal quality and gain. You’ll find them in things like audio amplifiers and voltage regulators. MOSFETs are also used here, especially when high input resistance or fast switching is needed, such as in analog switches or some voltage regulators.

Switching Circuits

Both BJTs and MOSFETs can be used to turn things on and off in a circuit. BJTs are good for slower switches that need gain like in motor controllers or simple relays. MOSFETs are better for fast and efficient switching, like in motor speed controllers, digital timers, or power supply circuits.

Signal Processing

When a circuit needs to handle small, precise signals like from sensors or in filters, BJTs are often chosen because they’re stable and give consistent performance. MOSFETs can also be used here, especially in digital systems, but BJTs are better when accuracy is important.

Digital Circuits

MOSFETs are the main building blocks of digital electronics. They’re used in things like computer chips, memory, and logic gates because they use very little power and work fast. BJTs used to be common in older digital systems but are now mostly replaced by MOSFETs.

High-Frequency Circuits

For very fast signals, like in radios or wireless systems, both types can be used. BJTs work well up to a few hundred megahertz, making them great for radio amplifiers. High-speed MOSFETs, like GaN or LDMOS types, are used in modern high-frequency systems like radar or communication devices because they switch quickly and don’t waste much energy.

Power Circuits

In circuits that control a lot of power, MOSFETs are usually chosen for lower-voltage systems like battery chargers, LED lights, and small power converters, they’re efficient and stay cool. BJTs, or their stronger versions like IGBTs, are still used in heavy-duty systems like motor drives and industrial machines where they can handle big currents and voltages.

Differences Between BJT and MOSFET

Property	Bipolar Junction Transistor (BJT)	Metal Oxide Semiconductor Field Effect Transistor (MOSFET)
Classification	Two types: NPN and PNP	Two types: Enhancement-mode (n-channel, p-channel) and Depletion-mode (n-channel, p-channel)
Terminals	Base, Emitter, Collector	Gate, Source, Drain
Transistor Type	Bipolar transistor	Unipolar transistor
Charge Carriers	Both electrons and holes	Either electrons or holes
Control Method	Current-controlled device	Voltage-controlled device
Switching Speed	Up to ~100 kHz	Up to ~300 kHz
Input Impedance	Low	High
Output Impedance	Low	Medium
Temperature Coefficient & Paralleling	Negative coefficient; limited parallel use	Positive coefficient; easy to parallel
Power Consumption	Higher (due to current control)	Lower (due to voltage control)
Second Breakdown Limit	Has a second breakdown limit	No second breakdown; defined safe operating area
Thermal Stability	Lower thermal stability	Better thermal stability
Power Dissipation in Switching	Typically dissipates more power	More efficient in switching; lower dissipation

Conclusion

BJTs and MOSFETs are both used to control the flow of electricity, but they do it in different ways. BJTs use a small current to control a larger one, so they are great for amplifying signals, like in speakers or radios. MOSFETs use voltage instead of current and are better for fast switching and saving power, which makes them common in computers and battery-powered devices. Each has its strengths, BJTs are better for clean signal control, and MOSFETs are better for fast, low-energy switching. Choosing the right one depends on what your circuit needs: power, speed, signal quality, or energy savings.
