CBB61 Capacitor: Functions, Features and Applications

This article delves into the capacitors, components in electronics that store and manage electrical energy. It begins by exploring various capacitor types, including electrolytic, ceramic, and film, each suited for different electronic environments and demands. The narrative then transitions into a detailed examination of CBB61 capacitors, emphasizing their impact on household appliances and their functional efficiency. It also discusses construction insights, the lifespan of fan capacitors, and the specific roles of CBB60 capacitors.

Catalog

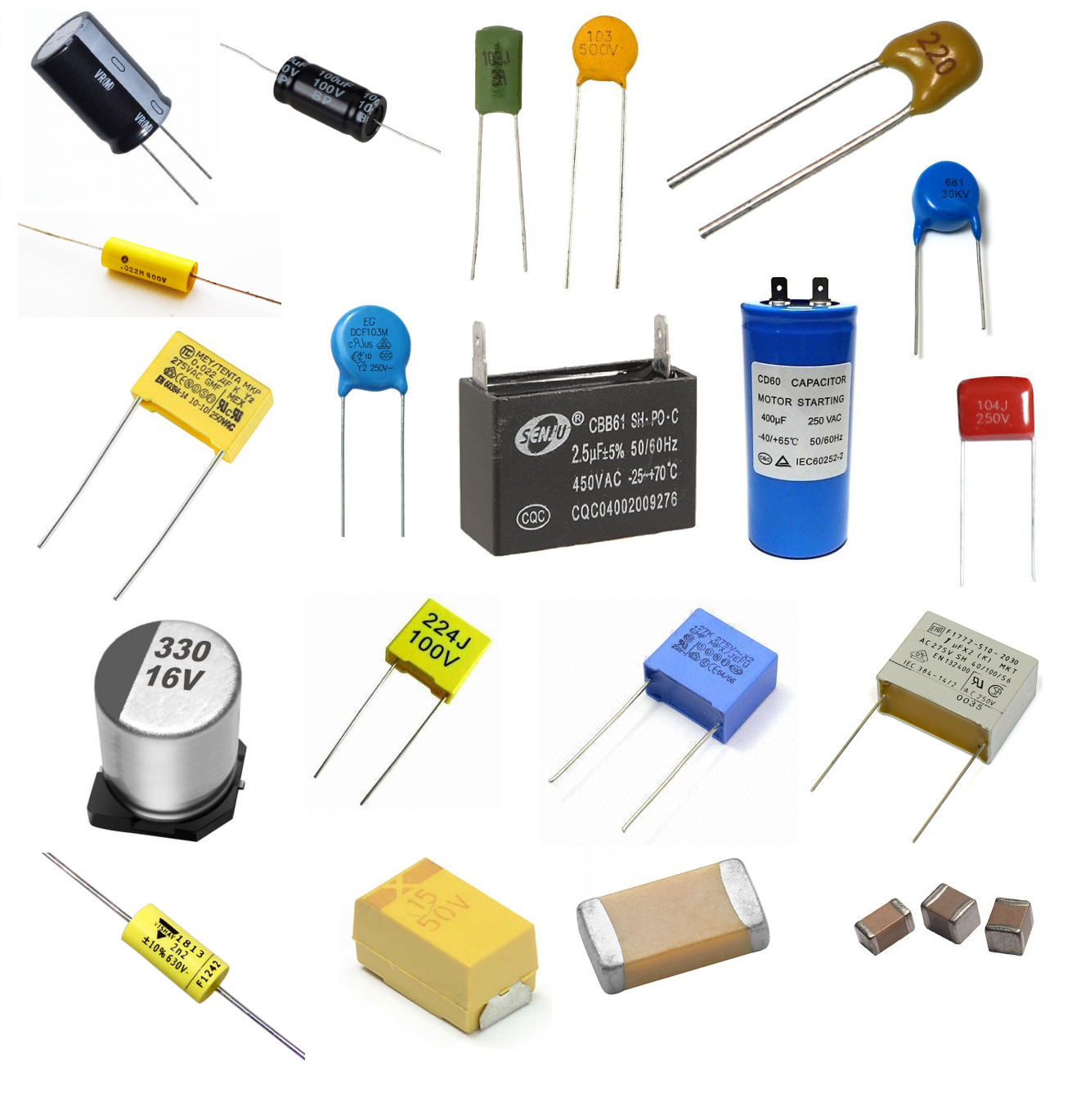

Exploring Capacitors in Electronics

Capacitors consist of two metal plates separated by a dielectric, creating a playground for electrons when voltage is applied. This electron traffic results in a charge imbalance, weaving energy into an electric field. The choice and thickness of the dielectric are important as they dictate how much energy the capacitor can tuck away.

Electrolytic capacitors hold a special place due to their remarkable charge storage capacity, making them appealing in setups that demand high capacitance. They have a delicate relationship with temperature changes, which can sway their performance.

Ceramic capacitors shine in high-frequency by offering excellent thermal steadiness. They ensure consistent performance despite temperature swings, making them appealing for circuits designed for stringent conditions. Their reliability suits them well for RF circuits and timing tasks, where precision remains non-negotiable.

Film capacitors are treasured for their low noise and unwavering accuracy. They often find their niche in scenarios needing minimal signal disruption and precise capacitance. Their construction buffers against environmental impacts, securing stable behavior. These qualities make them a favorite in specialized applications like audio gear and precision filtering.

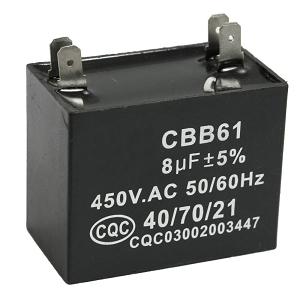

What is CBB61 Capacitors?

CBB61 capacitors influence the performance of various large household appliances like fans and air conditioners, operating efficiently within a 50Hz to 60Hz frequency range. Their design supports appliance efficiency and affects energy consumption through their low loss rates.

The impact of CBB61 capacitors on operational efficiency is remarkable. They stabilize electrical currents, fostering smooth and reliable motor operations in fans and air conditioners. This not only extends the lifespan of appliances but also keeps operational expenses down. For regions prone to power fluctuations, their ability to prevent potential appliance damages is valued.

Constructed from metallized polypropylene film, CBB61 capacitors are known for their dielectric stability and thermal resistance. This choice of material elevates their reliability and safety across different environmental conditions. It's understood that the selection of high-quality components can influence appliance longevity and performance.

The primary use of CBB61 capacitors is in single-phase AC motors in both household and industrial settings. They enhance the initial and ongoing operations of motors as start and run capacitors.

CBB61 Capacitors Construction

CBB61 capacitors are crafted with precision, featuring aluminum foils layered with either a plastic or paper film. These configurations are intricately designed to enhance both efficiency and dependability. The integration of metalized layers is a calculated enhancement, improving thermal capabilities. This ensures the capacitor remains effective, even in challenging scenarios. Alternating current (AC) passing through these capacitors generates an electric field, facilitating energy storage. This process is influenced by elements such as capacitance and voltage. A higher capacitance translates to increased energy retention capacity. Meanwhile, matching the voltage rating with the application promotes safe and effective operation.

Lifespan of Fan Capacitors

The lifespan of fan capacitors spans around 20 years, though this can considerably fluctuate. Several elements contribute to this variation. The intrinsic quality of the capacitor plays a major role, using superior materials often correlates with extended durability. However, temperature shifts and humidity levels, deeply affect this lifespan, creating a dance with the elements that can shorten expectancy.

Prolonged usage tends to hasten a capacitor’s decline. Fans operating under harsh conditions, like dusty or corrosive surroundings, may deteriorate more swiftly. This is evident in regions with high humidity or temperature extremes, where capacitors face additional strain. Such environments shows the delicate balance required to sustain peak performance as time ebbs on.

Engaging in regular upkeep can naturally extend the life of fan capacitors. By diligently inspecting for signs of corrosion, dust buildup, and general wear, many common failures can be circumvented. Establishing a consistent maintenance routine often results in noticeable improvements, enriching both the effectiveness and longevity of the capacitor.

Functional Focus of CBB60 Capacitors

The CBB60 capacitors come into being by the layering of aluminum foil and paper separators, soaked with a special electrolyte. This unique construction ensures smooth acceleration by stabilizing torque and voltage. They balance the electrical field, minimizing interference. But despite enhancing motor functions, they primarily serve as run capacitors, not as starting components.

Start capacitors momentarily deliver a high voltage kick to jumpstart motors, giving that require push for initial motion. On the other hand, run capacitors like the CBB60 sustain motor efficiency with ongoing phase shifts, facilitating prolonged operation. Grasping this distinction aids in choosing the right capacitor for distinct motor needs.

The choice of capacitor can make a substantial difference in motor performance and lifespan. For example, switching a misapplied start capacitor for a CBB60 can boost efficiency and decrease interference in varied settings. Incorporating CBB60 capacitors into a system offers more than just stable motor function. Appreciate their role in maintaining electrical field stability and enhancing system reliability, positioning them as a preferred option in many industrial setups. Their ability to harmonize system performance adds great value to motor operations.

Identifying Faulty Capacitors

Fan capacitors, though sturdy, can succumb to failure, potentially causing severe system disruptions or damage. Regular, inspections serve to prevent such outcomes. Recognizing signs of failure, such as bulging, leakage, or an unusual humming sound, holds great needed for maintenance.

Physical inspection might reveal symptoms like swelling or leaking fluid, suggesting internal component issues that could lead to overheating and breakdown. Changes in system performance, such as inconsistent airflow or unusual noises, may also indicate capacitor problems. Detecting these symptoms early can avert complete system outages. Routine checks have shown to reduce downtime and repair expenses. This foresight facilitates component replacement before total failure, and ensuring system efficiency and longevity.

Consistent upkeep incorporates visual inspections, electrical testing, and thermal imaging. These measures are effective in identifying failing capacitors and averting potential problems. Implementing such practices supports smooth system operation and extends component life. Modern diagnostic tools provide more accurate insights into capacitor health. Techniques such as infrared thermography function in identifying overheating issues before failure occurs. Incorporating these technologies into routine maintenance enhances early fault detection.

Recognizing Burning Odors

A noticeable burning odor from electronic devices often reflects a malfunctioning capacitor distress. Capacitors, responsible for storing and releasing electricity, affect circuit behavior greatly. Their failure can escalate into overheating, manifesting as a distinctive burnt smell.

Once this odor is detected, promptly disconnecting the device from its power source to avoid dangers like electrical fires. Prioritizing safety means avoiding repairs without the correct proficiency. Evaluating the need to replace the malfunctioning component should be considered. Capacitors that emit burnt odors or display visible damage are usually candidates for replacement. Selecting capacitors with suitable voltage ratings can help ensure that the device functions efficiently, minimizing overheating risks.

Melted Motor Case Analysis

A melted or compromised motor case often reflects excessive heat exposure, due to undue motor strain. This scenario demands swift intervention to avert potential damage escalation. Heat buildup might originate from several sources: inadequate air circulation, running equipment beyond its intended duration, or electrical mishaps that overheat wiring.

To tackle overheating, one should evaluate the motor's operating environment and usage habits. Ensuring sufficient airflow and observing operational guidelines can lessen potential threats. Routine maintenance, including checks for electrical irregularities such as defective wiring, serves as a preventive measure. When melting signs appear, the motor case requires immediate replacement to prevent further issues. Proactive steps, like scheduled lubrication and thorough inspections, contribute to enhanced operational life and efficiency.

Fan Startup Issues and Solutions

When a fan hesitates at the start or moves sluggishly, it might be grappling with capacitor issues. This modest component holds energy, ready to lend the fan the surge it needs. If it falters, looking into a replacement becomes a consideration. A fan that struggles to gain speed or emits a humming without spinning could be signaling capacitor trouble. Timely diagnosis in these moments can ward off potential electrical complications.

Swapping out a faulty capacitor can breathe new life into a fan's activity. Prolonging the issue might increase motor tension, impacting the fan's longevity. Follow these steps:

• Disconnect power

• Discharge the capacitor safely

• Replace with a matching component

• Refer to the manufacturer's instructions for specifics.

Regular maintenance checks can catch capacitor wear early, cutting down on unexpected fan downtime. Both residential and commercial environments benefit from routine inspections. Focusing on preventative care and swift response can extend the life and reliability of fans. These measures not only boost performance but also support energy efficiency.

Frequently Asked Questions [FAQ]

1. What are the applications of a CBB61 capacitor?

CBB61 capacitors enhance the efficiency and performance of single-phase motor systems found in devices like fans and washing machines. They facilitate smooth motor startup and reliable AC system operations, leading to energy savings. These capacitors are built to endure power fluctuations and diverse environmental conditions, making them adaptable and dependable for various household and industrial uses. Their application results in smoother motor function, decreased wear and tear, and prolonged appliance life.

2. What is the expected lifespan of a fan capacitor?

A fan capacitor lasts around 20 years. However, its lifespan can be influenced by environmental factors, material quality, and usage frequency. High temperatures, humidity, or inconsistent voltages may cause earlier failure. Choosing capacitors with quality materials and ensuring maintenance can extend their lifespan, improving appliance performance over time.

3. Is the CBB60 capacitor used for running or starting motors?

CBB60 capacitors serve dual purposes in motor applications, handling both running and starting tasks. They provide torque and boost motor efficiency. With self-healing properties, these capacitors manage electrical loads effectively, making them a reliable choice where endurance is valued.

4. What functions does a CBB61 capacitor serve?

CBB61 capacitors are utilized in AC motors to ensure consistent and efficient operation. Made with polypropylene film, they resist electrical and mechanical stress, showcasing durability in challenging environments. Their role in stabilizing motor performance is good for both household and industrial applications, where reliability and energy efficiency are sought. This sturdy design reduces operational noise and extends motor life, offering clear advantages in everyday appliance use.
