CSR8675 Premium Single-Chip: Comprehensive Datasheet, Key Features, and Specifications

In the world of high-performance audio, the CSR8675 chip from Qualcomm stands as a powerful single-chip solution tailored for premium wireless audio applications. Equipped with advanced technologies like aptX, aptX HD, Active Noise Cancellation, and Qualcomm True Wireless Stereo, it raises the bar for audio clarity, fidelity, and your experience. With its feature-rich design, CSR8675 empowers you to innovate, crafting devices that deliver immersive, high-quality sound across diverse environments. This article dives into the unique capabilities of the CSR8675, exploring how it enhances the listening experience, facilitates seamless connectivity, and brings advanced audio to devices ranging from wireless earphones to gaming headphones. The CSR8675 offers a blend of performance and versatility that resonates deeply with the pursuit of superior audio quality.

Catalog

Analysis of CSR8675

The CSR8675 chip stands out for its impressive ability to deliver high-quality wireless audio. It incorporates cutting-edge technologies like aptX and aptX HD to offer high-definition sound that appeals to those seeking exceptional audio clarity. The inclusion of aptX ensures minimal latency and lip-sync delays, enhancing multimedia experiences. In high-end audio devices, this chip consistently maintains sound clarity and depth, even without wires.

By integrating Active Noise Cancellation (ANC), the CSR8675 creates an enriched and quieter auditory atmosphere. The ANC algorithm effectively filters out ambient noise, proving advantageous in consistently noisy environments such as airplanes or urban areas. It dynamically adjusts to noise levels, fostering an uninterrupted auditory experience. Actual applications highlight that proficient ANC reduces interruptions and sharpens audio distinctions, significantly boosting your satisfaction.

The integration of Qualcomm True Wireless Stereo (TWS) technology in the CSR8675 facilitates effortless connectivity between earbuds, eliminating the need for wires. TWS significantly enhances the ergonomic design and the convenience of audio devices. By ensuring a steady link between earbuds, it augments listening comfort and versatility. Practical use cases emphasize TWS's capability to retain synchronization and reliability, even in complex wireless scenarios, guaranteeing consistent audio delivery.

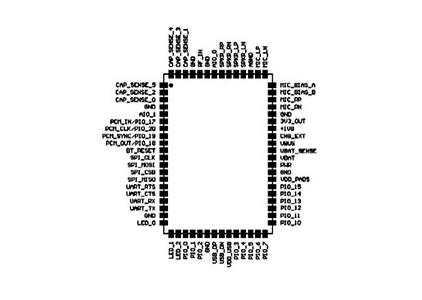

Pin Configuration

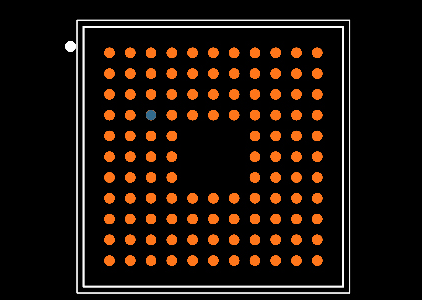

CSR8675 Footprint

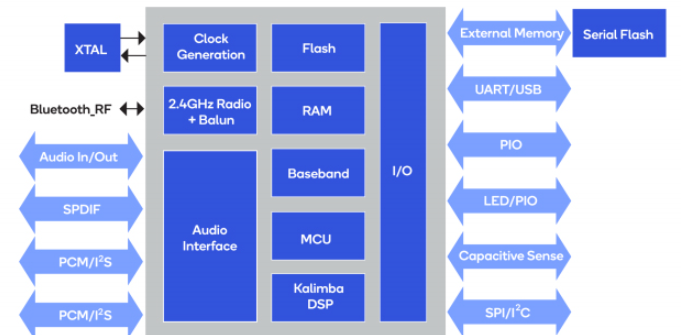

Block Diagram

Specifications of CSR8675

Here is the technical information for the Qualcomm CSR8675C-IBBH-R organized in a table format.

Type	Parameter
Factory Lead Time	18 Weeks
Package / Case	112-VFBGA
Surface Mount	YES
Number of Pins	112
Packaging	Tape & Reel (TR)
Series	BlueCore®
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Type	TxRx + MCU
Voltage - Supply	3.3V
Terminal Position	BOTTOM
Terminal Form	BALL
Frequency	2.4GHz
JESD-30 Code	X-PBGA-B
Memory Size	16MB Flash
Protocol	Bluetooth v4.2
Power - Output	10dBm
RF Family/Standard	Bluetooth
Serial Interfaces	I2S
Sensitivity (dBm)	-90 dBm
GPIO	2
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

Features

Feature	Description
Bluetooth Version	4.2 compliant
Kalimba DSP	120 MHz programmable DSP with integrated multipoint A2DP and HFP audio applications
Audio Codecs	Supports aptX, aptX Low Latency, aptX HD, MP3, AAC, and SBC
Noise Cancellation	2-mic Qualcomm® cVc™ 8th Generation with wideband speech
Audio Tuning Suite	Audio enhancements with two 5-band EQs
GAIA V2	Associated Android & iOS example apps for enhanced connectivity with mobile devices
Link Layer Topology	Supports enhanced multi-device co-existence
TrueWireless™ Stereo	Qualcomm TrueWireless™ Stereo for wireless audio
I2S Ports	Two I2S ports for enhanced audio connectivity with external components
Apple Compatibility	Supports Apple MFi1 & Apple ANCS for enhanced communication with iOS devices
meloD™ Audio Processing	Qualcomm® meloD™ technology for stereo widening
Third-Party Solution Compatibility	Compatible with third-party solutions available through selected eXtension Program members

Applications of CSR8675

Premium Wireless Earphones

The CSR8675 chip excels in high-end wireless earphones, offering enriched audio fidelity and stable wireless connections. It crafts soundscapes that captivate audiophiles yearning for exceptional audio quality. With its ability to handle high-resolution audio, every note resonates with clarity and impact. Integrating CSR8675 into earphones requires exact design strategies, achieving a delicate balance between efficiency and performance. You can explore diverse configurations to extend battery life while maintaining sound clarity. This integration process emphasizes the cyclical nature of testing and consumer insights. CSR8675's seamless connectivity substantially elevates your enjoyment, ensuring uninterrupted listening experiences. The chip's ability to minimize Bluetooth latency significantly benefits those immersed in streaming or calls.

Advanced Headsets

Headsets gain a tremendous advantage from CSR8675’s sophisticated noise-cancellation technology. By harnessing its digital signal processing prowess, these headsets effectively curtail ambient noise levels, greatly enhancing experiences in bustling environments. CSR8675 enables dynamic noise cancellation that adapts to varying soundscapes in time, a feature highly valued and requires concentration in diverse settings. Emphasizing personalization, these headsets allow you to tailor sound profiles and controls to their liking. Comfort extends beyond physical aspects, culminating in an intuitive interface.

Gaming Headphones

In gaming, responsive audio systems are pivotal for heightened gameplay. CSR8675 is central to gaming headphones, delivering low-latency audio and immersive 3D effects that enrich the gaming environment. In competitive gaming, accurate sound cues are decisive. CSR8675 ensures precise audio prompts, enabling you to respond instinctively. This performance advantage often sways outcomes in professional gaming arenas. Its integration across various platforms promotes smooth device transitions, offering a cohesive audio experience as you toggle between consoles and PCs.

Broader Audio Applications

CSR8675’s versatility extends to a myriad of audio devices, from smart speakers to vehicle audio systems. In smart home settings, it facilitates superior audio streaming with efficient power use, basic for always-on devices. Within the automotive world, CSR8675 enhances in-car audio, offering you clear, powerful sound. Its robust connectivity ensures consistent performance even in challenging environments.

Insights into the Manufacturer

Qualcomm leads the way in mobile tech innovation, creating advanced solutions that power devices worldwide—from smartphones to automotive systems. This is fueled not just by technical skill but by a visionary commitment to smarter connectivity.

The company's work in wireless tech has redefined industries by improving data speeds and connectivity. This progress has transformed sectors like healthcare and logistics, enhancing data processing and operational efficiency.

Qualcomm's breakthroughs in computing offer devices superior processing power, enriching your experiences and opening new doors in AI. These advancements allow for seamless interactions, making complex tasks more accessible. By promoting IoT, Qualcomm emphasizes its dedication to wide-ranging connectivity, affecting everyday life and industry. This network enhances functionality and aids in resource sustainability through smarter use.

Frequently Asked Questions [FAQ]

1. Does CSR8675 support Ldac?

The CSR8675 is designed to accommodate LDAC, which allows for the transmission of high-resolution audio via Bluetooth. This appeals greatly to those who cherish the freedom of wireless audio without sacrificing the sound quality associated with wired setups. Exploring the distinctions of LDAC's ability to deliver an exceptional auditory experience involves intricately balancing the codec's capabilities with Bluetooth's bandwidth, necessitating advanced hardware found in models like CSR8675.

2. What is the difference between csr8670 and 8675?

Several features differentiate the CSR8675 from the CSR8670 two I2S signal outputs, two additional GPIOs, and a 120 MHz Kalimba DSP, upgraded from the 80 MHz variant. These enhancements allow for increased processing efficiency, significantly impacting applications that rely heavily on Active Noise Cancellation (ANC). You can often harness these improvements to maximize device interoperability, elevating your experience to a delightful level.
