Cathode Ray Oscilloscope (CRO): Working, Types, and Applications

This guide explains what a Cathode Ray Oscilloscope (CRO) is and how it helps you see electrical signals as they change over time. It shows how a CRO works on the inside. You’ll learn how the CRO turns invisible signals into visible waveforms that move across the screen. The guide also talks about the different ways a CRO can be used, the modes it can operate in, the types available, and how CROs are used in different applications.

Catalog

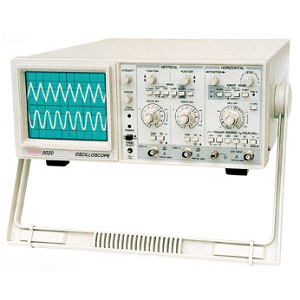

What is a CRO?

A Cathode Ray Oscilloscope, or CRO, is an electronic tool that allows you to view electrical signals as they change over time. It displays these changes as a moving line or curve on a screen, making invisible voltage variations easy to study. CROs are used to analyze properties such as signal strength, frequency, phase shift, and noise. The screen displays time along the horizontal axis and voltage along the vertical axis. When a voltage signal is applied, the resulting waveform reflects how that signal behaves moment by moment. This helps detect faults, analyze timing between parts of a circuit, or verify whether a design is functioning correctly.

Because CROs can respond quickly and display even rapid changes in signals, they are useful in tasks like tuning radio circuits, inspecting power supplies, and analyzing fast pulses. You can adjust sensitivity and timing controls to zoom in on specific parts of a signal or to fit longer waveforms on the screen. The device’s speed, simplicity, and accuracy have kept it relevant in labs, classrooms, and repair shops for decades.

CRO Block Diagram

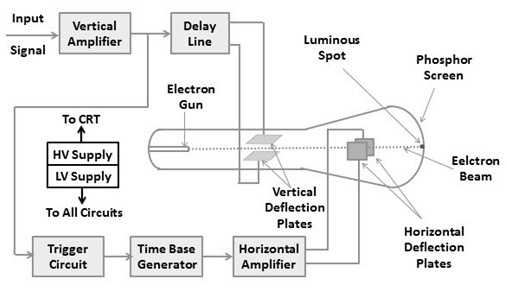

Figure 2. CRO Block Diagram

This diagram shows how a Cathode Ray Oscilloscope (CRO) works and what’s inside it. First, the input signal goes into the vertical amplifier, which makes the signal stronger so it can be shown clearly. Then it goes through a delay line. This delay gives the CRO enough time to start moving the beam across the screen before the signal shows up, so you can see the beginning of the waveform. An electron gun, powered by both high and low voltage, creates and aims a beam of electrons. This beam travels through a vacuum tube and hits the screen, which glows where the beam hits it.

The vertical deflection plates move the beam up and down depending on the voltage of the signal. At the same time, the horizontal deflection plates move the beam from left to right over time. This creates the wave shape on the screen. The trigger circuit makes sure the beam movement starts at the same point in the signal every time, so the picture stays steady. The time base generator creates a rising voltage that moves the beam horizontally, and the horizontal amplifier strengthens this voltage for the deflection plates.

Construction of CRO

Figure 3. Construction of the CRO

The main part of the CRO is the Cathode Ray Tube (CRT), which creates and controls a beam of electrons to draw the signal. Let’s look at the different parts that make this work.

Cathode Ray Tube (CRT)

The Cathode Ray Tube is the most important part of the CRO. It does two main jobs: it processes the signal and shows it on a screen. Inside the CRT, there is no air (it’s a vacuum), which helps the electrons move freely. An electron gun at one end creates a thin beam of electrons. This beam travels through the tube and hits a screen on the other side. Wherever the beam hits, the screen lights up. There are metal plates inside that move the beam up, down, left, or right. This lets the CRO draw wave shapes on the screen. The CRT is built carefully so the shapes you see on the screen match the real signal, without distortion.

Electron Gun

The electron gun creates and controls the electron beam. It has several parts. A filament (like in a light bulb) gets hot when a small electric current passes through it. This heats the cathode, which then releases tiny particles called electrons. A control grid sits next to the cathode. It controls how many electrons are allowed through, which changes how bright the beam is. Then, the focusing and accelerating anodes speed up the electrons and pull them into a tight beam. All these parts must be adjusted carefully. Even small changes in voltage can affect the shape or clarity of the picture on the screen.

Deflection Plates

Inside the CRT, there are two pairs of metal plates. The Y-plates move the beam up and down. They react to the input signal (the thing you’re measuring). The X-plates move the beam side to side. They usually get a steady timing signal. As the beam moves, it traces the shape of the signal on the screen. Because of this setup, you can see how the signal changes over time. The plates are designed to respond evenly, so the display stays accurate.

Fluorescent Screen

At the end of the tube is a screen coated with phosphor, a material that glows when hit by electrons. This glow is what you see as a trace or bright spot on the screen. The screen can glow green or blue, depending on the type of phosphor used. It's slightly curved to reduce image distortion and make it easier to see from different angles. The beam’s strength and the type of coating affect how bright and sharp the image looks.

Glass Envelope

All the CRT parts are enclosed in a strong glass shell. This keeps air out and maintains the vacuum, which is needed for the electrons to travel without interference. The inner walls are covered with a thin layer of conductive coating (like graphite) that helps guide unused electrons safely away and keeps the beam stable. If this vacuum seal breaks, the CRT stops working properly and can't be fixed.

How the CRO Works?

Figure 4. Working of CRO

The working of a Cathode Ray Oscilloscope revolves around generating and controlling an electron beam to visually display electrical signals. Inside the CRT (Cathode Ray Tube), a heated cathode emits electrons, which are then accelerated by accelerating anodes and shaped into a narrow beam using focusing elements. This beam is directed toward a phosphor-coated screen, where it creates a visible spot when it strikes. The vertical movement of this beam is controlled by the vertical deflection plates, which receive the input signal through the vertical amplifier.

As the signal varies, the voltage on these plates changes, causing the beam to deflect up and down accordingly. At the same time, the horizontal deflection plates are driven by a voltage ramp from the sawtooth sweep generator, which is amplified by the horizontal amplifier, causing the beam to move from left to right at a constant rate. This creates a time base, allowing the CRO to display how the input signal changes over time. A sync amplifier ensures that the sweep starts at a consistent point in each signal cycle, stabilizing the waveform on the screen. Additional circuits such as the blanking circuit prevent unwanted traces during the return sweep. Altogether, this setup allows the CRO to convert electrical signals into a visual waveform for analysis.

CRO Modes of Operation

A Cathode Ray Oscilloscope (CRO) can work in different modes to help with different kinds of signal measurements. Each mode has a special use depending on what you want to see or measure.

• Y-T Mode (Voltage vs. Time)

This is the most commonly used mode on a CRO. It shows how the voltage of a signal changes over time. The vertical line (Y-axis) shows voltage, and the horizontal line (X-axis) shows time. It’s helpful for viewing things like sound waves, electronic pulses, or any signal that changes with time.

• X-Y Mode

In this mode, the CRO draws one signal against another. Instead of time on the X-axis, it uses another voltage signal. This is useful for comparing two signals at the same time. For example, if two signals are out of sync (or out of phase), this mode shows that clearly. It can also create interesting shapes called Lissajous patterns, which help you study the relationship between the two signals.

• Dual-Trace Mode

This mode lets you see two waveforms on the screen at the same time. This is helpful if you want to compare signals, like the input and output of a circuit. The CRO does this either by switching quickly between two channels (so fast it looks like both are always on) or by using two separate electron beams (in dual-beam CROs). This way, you can check how two parts of a system behave at once.

• Sweep Mode

Sweep mode refers to how the CRO controls the left-to-right movement of the display, which is the time base. The sweep moves the beam across the screen at a steady rate, so you can see how a signal changes over time. You can adjust the sweep speed to zoom in or out on a signal. You can also set a trigger, so the wave starts at the same point each time, giving you a steady, clear picture instead of a jumping or drifting one.

Types of CRO

Several types of CROs exist to match different technical requirements:

Analog CRO

An Analog Cathode Ray Oscilloscope (CRO) is the traditional type of oscilloscope that uses analog electronic components to display waveforms. When a signal is applied, it is shown directly on the screen without any delay. This makes the analog CRO very fast and ideal for observing signals that change continuously and quickly, such as those in audio or radio circuits. The waveforms are displayed as smooth, continuous lines. However, one major limitation of analog CROs is that they cannot store or save the waveforms. Once a signal disappears, it’s gone from the screen and cannot be reviewed. Because of this, analog CROs are not suitable for capturing rare or short-lived signals that happen quickly and don’t repeat.

Digital Storage Oscilloscope (DSO)

A Digital Storage Oscilloscope, often called a DSO, is a modern type of CRO that converts analog signals into digital data using a special component called an analog-to-digital converter. Once the signal is in digital form, the DSO can store it in memory, display it on the screen, and allow to pause, replay, or zoom in on the signal for detailed analysis. This feature makes the DSO useful for capturing short, rare, or one-time signal events that an analog CRO would miss. DSOs also usually come with advanced features like automatic measurements, cursors for precise readings, and options to connect to computers or USB drives for saving data. Because of their storage and analysis capabilities, DSOs are widely used in both education and industry for a wide range of applications.

Mixed Signal Oscilloscope (MSO)

A Mixed Signal Oscilloscope, or MSO, is a type of digital oscilloscope that can handle both analog and digital signals at the same time. It combines the features of a Digital Storage Oscilloscope with extra channels that are designed to read digital signals, which are usually in the form of binary values either ON or OFF, 1 or 0. This makes MSOs very useful for analyzing systems that include both types of signals, such as microcontrollers, digital logic circuits, and FPGAs. With an MSO, you can view analog waveforms alongside digital signals on the same screen, making it easier to see how different parts of a system are interacting. For example, you could check when a digital control signal turns ON and observe how the analog part of the circuit responds. This makes the MSO a powerful tool for working with modern electronic systems that mix analog and digital technology.

Advantages and Disadvantages of CRO

Advantages	Disadvantages
Real-time waveform display	Bulky design due to CRT, making them large and heavy
High bandwidth allows accurate tracking of fast signals	No built-in storage or automation, manual interpretation required
Provides precise measurements of amplitude, time, and frequency	Steeper learning curve, requires understanding of various controls
Supports dual-trace and multi-channel viewing	High internal voltages pose safety risks, especially during high-voltage testing
Durable construction, especially CRT versions can last for decades	Maintenance and repairs are complex due to vacuum tube components

Applications

Here are some common ways they are used:

• Broadcasting

CROs are very useful in radio and TV broadcasting. They help check the strength and quality of signals in AM and FM radio, as well as in video systems. By looking at the waveforms on the screen, they can make sure the signals are clear and working properly. If something is wrong, the CRO can help find and fix the problem quickly.

• Power Electronics

In power electronics, CROs help study how circuits behave when turning on and off, or when the power changes suddenly. These sudden changes are called "transients." CROs can show how fast or slow a switch works, and whether control systems are working the right way. This is very important when designing systems like inverters or power supplies.

• Scientific Research

In science labs, CROs are used during experiments to look at electrical signals. For example, they might be used to check how waves behave in circuits, or to study things like magnetic or sound waves. This helps understand how different systems react under different conditions. The CRO makes invisible signals easy to see and study.

• Automotive and Avionics

CROs also help in vehicles and aircraft. Many use them to look at signals from sensors, ignition systems, or control units. If a car engine or airplane system is not working correctly, the CRO can show where the signal is breaking down. This makes it easier to find and fix problems quickly and safely.

• Medical Devices

Many use CROs in medical machines like ECGs (which show heartbeats) and EMGs (which show muscle activity). The CRO shows the patterns of electrical signals in the body, helping with diagnosis and making sure the machines are working right. This is very important for patient care and safety.

Conclusion

The CRO is a helpful tool that lets you see how electrical signals change over time by drawing waveforms on a screen. It uses an electron beam and special plates inside a vacuum tube to make the signal visible. Each part of the CRO, from the amplifier to the trigger and screen, works together to show the signal clearly. Different modes let you view signals in different ways, and you can choose between basic analog models or advanced digital types. Even though it has some limits, the CRO is still used today because it is fast, accurate, and useful for checking circuits, solving problems, and testing systems in many fields.
