Comprehensive Guide to SN6505BDBVR Transformer Driver

The SN6505BDBVR is more than just a transformer driver; it represents a cornerstone of modern isolated power supply design. With its robust specifications and innovative features, it addresses the challenges of achieving high efficiency, low noise, and reliable performance in compact electronics. This article digs into the SN6505BDBVR's technical parameters, pin configuration, and practical applications, offering a comprehensive guide for you aiming to harness its capabilities. By exploring actual use cases, alternatives, and operational insights, this article equips you with the knowledge to optimize your designs and ensure seamless integration.

Catalog

Pinout

CAD Model

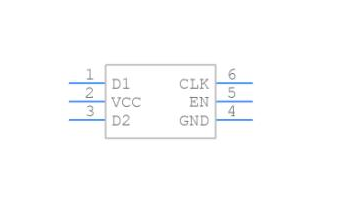

Symbol

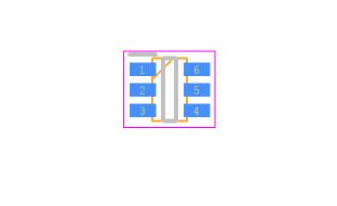

Footprint

3D Model

Overview of SN6505BDBVR

The SN6505BDBVR embodies a transformative leap in transformer driver technology, recognized for its capability to effectively reduce noise and manage electromagnetic disturbances. These attributes make it exceptionally fitted for use in compact isolated power supply settings. Its sophisticated design supports low-profile, center-tapped transformers that operate efficiently when driven by a DC voltage ranging from 2.25 V to 5 V.

In today's electronic landscape, the pursuit of smaller and more efficient power supply solutions is intensifying. The SN6505BDBVR plays a key role in this progression, delivering resolutions that accommodate the delicate balance between high performance and limited space. Its capacity to function under low voltage not only aids in conserving energy but significantly contributes to the increased efficiency of compact electronic systems. As observed by you, the integration of such components into intricate circuits is straightforward, requiring minimal customization and facilitating easy practical implementation.

The primary function of the device is bolstered by a set of technical features that enhance both efficiency and dependability. With its ability to minimize EMI, the SN6505BDBVR ensures the provision of clean and dependable power, which holds particular value for delicate electronic segments. You can highlight that the robust nature of the SN6505BDBVR contributes to fewer complications during diagnostic and maintenance work, ultimately extending the lifespan and reliability of systems that benefit from its implementation.

Applications

The versatile capabilities of this component find application across various domains, notably in systems necessitating isolated power supplies. These systems encompass interfaces such as CAN, RS-485, RS-422, RS-232, SPI, and I2C. Isolation aids in avoiding ground loops and preserving data integrity across disparate system segments—an element often prioritized in engineering solutions due to its potential impact on performance and reliability.

Low-Noise Power Supply Solutions

This component proves to be mostly useful in environments requiring minimal noise, including isolated USB power supplies. In the terrain of precision electronic systems, low-noise attributes are active to prevent data corruption and measurement inaccuracies. High-tech production environments frequently depend on these traits to sustain optimal performance without disruptions.

Process and Telecom Control

Telecommunications and industrial process control applications reap substantial benefits from cohesive power supply solutions. These solutions elevate stability and reliability amidst diverse conditions, surpassing traditional techniques. A deep comprehension of power dynamics unlocks improvements in these sectors, fostering stronger and more flexible communication and control frameworks.

Radio and Distributed Power Supplies

In the dynamic field of radio distribution and associated power supplies, innovative solutions are required to tackle interference and power stability challenges. The incorporation of supportive components that nurture uninterrupted operation can propel notable progress in radio systems' efficiency and coverage. With skilled design, subtle gains in signal clarity become evident through strategic component selection.

Medical and Scientific Instruments

Within the world of medical and precision instruments, achieving high accuracy while ensuring safety is the ultimate. Here, isolated supplies attached to the instruments are dominant in protecting both the devices and their operators. The artful balance between performance and safety is a testament to successful instrument design and usage in this sector.

Low-Noise Filament Supply Efficiency

In scenarios involving low-noise filament supplies, the component plays a major role in diminishing unwanted interference, thus keeping the end application's integrity intact. In these contexts, even minute adjustments can significantly influence overall performance—an insight often drawn from extensive hands-on application experience.

Substitutes

• SN6505BDBVT

• SN6505BQDBVRQ1

• MAX253EUA-T

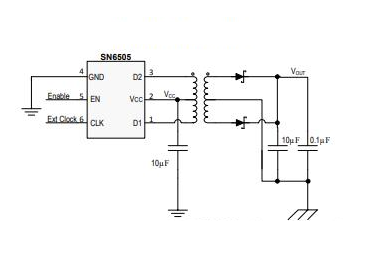

Schematic

Operational Examination of SN6505BDBVR

The SN6505 is crafted to utilize the push-pull topology for driving isolated DC/DC converters with adeptness. This configuration serves to optimize power transmission and control electrical noise, a factor of consequence in fine-tuned applications. By incorporating a meticulously calibrated oscillator and gate-drive circuit, the device is capable of generating two complementary output signals. These signals become basic to the alternating operation of two transistors, promoting synchronization and reducing the risk of overlap-related complications, a subtle but profound technological achievement.

Dominant to the SN6505's operation is its oscillator, a key component that establishes the basic operational parameters of the device. Coupled with a frequency divider, this element impacts the timing and synchronization of gate signals. This duo not only enhances effectiveness across varied load conditions but also supports stability under fluctuating system demands. In actual applications, dependable oscillator performance ensures that devices powered by SN6505 remain resilient across diverse environmental conditions, reflecting a deeper understanding of engineering reliability under stress.

The SN6505 integrates an advanced break-before-make logic to prevent transistor overlap, a typical challenge in power management. This mechanism guarantees that one transistor is fully switched off before the activation of the other, thereby diminishing occurrences of short circuits and reducing component strain. In practical contexts, such a feature promotes the durability and efficiency of power systems, encapsulating the insight that foresight in design protects against potential complications, resulting in more enduring and dependable products.

Function Block Diagram

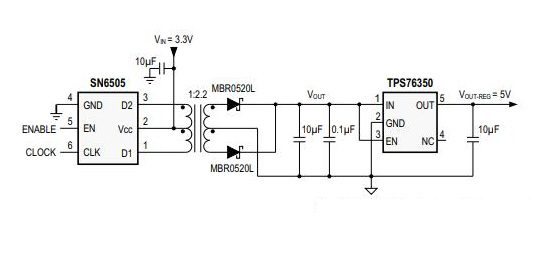

Example Circuit Diagram

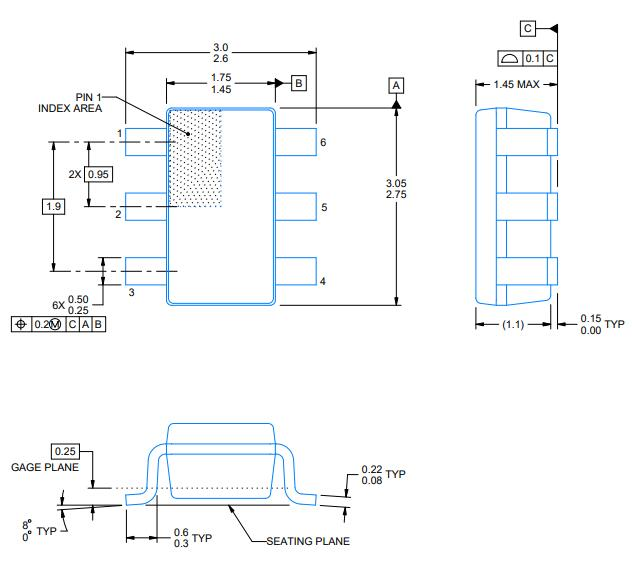

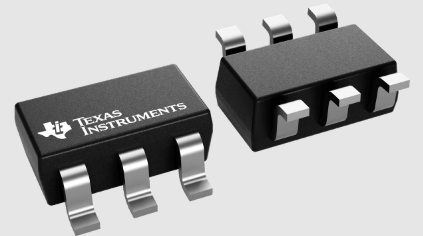

Package

Technical Specifications

Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Number of Pins	6
Switching Frequency	424 kHz
Operating Temperature	-55°C ~ 125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Applications	Transformer Driver
Voltage - Supply	2.25V ~ 5.5V
Terminal Position	Dual
Terminal Form	Gull Wing
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	0.95mm
Base Part Number	SN6505
Number of Outputs	1
Output Voltage	16V
Output Type	Adjustable
Max Output Current	1A
Operating Supply Voltage	5.5V
Operating Supply Current	1.56mA
Nominal Supply Current	1.56mA
Output Current	1A
Min Input Voltage	2.2V
Max Input Voltage	5.5V
Interface IC Type	Interface Circuit
Max Junction Temperature (Tj)	150°C
Ambient Temperature Range High	125°C
Height	1.45mm
Length	2.9mm
Width	1.6mm
Thickness	1.2mm
RoHS Status	RoHS3 Compliant
Lead Free	Lead Free

Comparable Parts

Part Number	SN6505BDBVR	MIC2009A-1YM6-TR	MIC2005-0.8YM6-TR	LMR12010XMK/NOPB	MIC2009A-2YM6-TR
Manufacturer	Texas Instruments	Microchip Technology	Microchip Technology	Texas Instruments	Microchip Technology
Package / Case	SOT-23-6	SOT-23-6	SOT-23-6 Thin, TSOT-23-6	SOT-23-6	SOT-23-6
Number of Pins	6	6	6	6	6
Max Output Current	1A	800 mA	1A	900 mA	900 mA
Output Current	1A	-	-	-	-
Min Input Voltage	2.2 V	2.5 V	2.5 V	2.5 V	2.5 V
Max Input Voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Output Voltage	16 V	6 V	17 V	-	-
Number of Outputs	1	1	1	1	1
