Comprehensive Guide to the 2N2222A NPN Transistor

The 2N2222A NPN transistor stands out as a cornerstone in the world of modern electronics, famous for its versatility, reliability, and wide-ranging applications. From its adeptness in handling moderate voltages and currents to its seamless integration into various circuits, the 2N2222A has earned its place as a preferred choice for you. This article digs into its key features, pin configuration, operational distinctions, and practical applications, offering a comprehensive guide to understanding its role in amplifying signals, managing switching tasks, and driving innovation in electronic design.

Catalog

Overview of the 2N2222A NPN Transistor

The world of modern electronics owes much to the versatile 2N2222A NPN transistor, which serves as a cornerstone in roles as a switch or amplifier. By digging into its operational mechanism, one observes the serious importance of grounding its base appropriately to maintain the open states of the collector and emitter. The transistor transitions to a closed state upon receiving a base voltage signal, showcasing its amplification range from 110 to 800. This wide gain range highlights its adaptability, while its capacity to handle up to 800mA through its collector emphasizes its robust energy-handling abilities. For optimal performance, it is used to ensure the base current remains below 5mA for effective biasing.

When operating in the saturation region, the 2N2222A enables substantial current flow, managing up to 800mA between the collector and emitter, with a typical collector-emitter voltage drop of around 200mV and a base-emitter voltage of approximately 900mV. These specifications make it ideal for powering moderate loads, achieving a balance between high performance and efficient power usage. In applications where energy efficiency is paramount, these features make the 2N2222A a practical and reliable choice.

Conversely, the absence of base current drives the transistor into the cut-off region, marked by a base-emitter voltage close to 660mV. This transition is required to prevent unintended current flow, reinforcing the transistor’s reliability in digital logic circuits where precise on-off control is grave.

Pinout and Configuration Details

Pin No.	Pin Name	Description
1	Emitter	Current drains out through emitter
2	Base	Controls the biasing of the transistor
3	Collector	Current flows in through the collector

2N2222A Transistor's Attributes and Specifications

Specifications

Parameter	Specification
Type	NPN BJT
Collector-Emitter Voltage (Vce)	40V
Collector-Base Voltage (Vcb)	75V
Emitter-Base Voltage (Veb)	6V
Collector Current (Ic)	800mA
Power Dissipation (Pd)	500mW
Gain (hFE)	100-300
Transition Frequency (fT)	250 MHz
Package	TO-18 (metal can)

Attributes

Feature	Description
High Speed	Suitable for high-frequency applications.
Low Saturation Voltage	Efficient in switching applications.
Robust Design	Can handle relatively high currents for its size.
Wide Availability	Popular and widely available component.
Versatile Use	Applicable in both linear and switching applications.

Equivalent and Substitute Transistors

Equivalent Transistors

• 2N2907 (PNP)

• 2N3904(PNP)

• 2N3906 (PNP)

• S9014

• 2N4403

• MPS2222

• PN2222

• KN2222

• KTN2222

Substitute Transistors

• BC549

• BC639

• BC547

• 2N2369

• 2N3055

• 2N3904

• 2N3906

• 2SC520

Absolute Maximum Ratings of 2N2222A

Ratings	Symbol	All Types	Unit
Collector-Emitter Voltage	VCEO	50	Vdc
Collector-Base Voltage	VCBO​	75	Vdc
Emitter-Base Voltage	VEBO	-6.0	Vdc
Collector Current	IC	800	mAdc
Total Power Dissipation @ TA=25∘C	PT	0.5 0.65 0.65	W
- 2N2221A, L; 2N2222A, L (1)
- 2N2221AUA; 2N2222AUA (2)
- 2N2221AUB; 2N2222AUB (1)
Operating & Storage Junction Temperature Range	Top, Tstg	-65 to200	∘C

Integrating the Versatile 2N2222A Transistor

The 2N2222A transistor serves as a versatile element within electronic circuits, adeptly functioning as both a switch and an amplifier. Its integration hinges significantly on how well it is incorporated into the circuit design. Dominant to this integration is the base resistor, which governs the current flowing through the base, ensuring seamless operation while safeguarding the transistor from potential damage.

The electrical characteristics of the base resistor can be precisely determined using the formula:

RB = BE/IB

In this equation, V_BE denotes the base-emitter voltage, typically around 0.7V for silicon-based transistors. The meticulous calculation of R_B not only stabilizes the transistor's function but also enhances operational efficiency and fidelity to its specified performance limits.

To demonstrate the practical application, consider employing the 2N2222A in driving a motor that demands 500mA from a 12V source. This scenario highlights the transistor's ability to manage specific current loads effectively while functioning within its designated specifications. Calculating the appropriate base resistor is instrumental in facilitating motor operation without breaching the current rating of the transistor.

Applications

The 2N2222A transistor finds utility in a wide array of electronic ventures, leveraging its role as a complex component. In the world of audio and radio frequency amplification, it shines by adeptly boosting low-power signals with appreciable sound fidelity and minimal distortion, fostering trust in environments where signal clarity is dominant.

Amplification in Audio and RF Systems

Within audio frameworks, the 2N2222A excels in augmenting sound quality and volume, a pursuit driven by the desire for unparalleled auditory purity. Similarly, its presence in radio frequency environments aids in maintaining consistent communication through deft signal management. You can meticulously calibrate circuits to balance gain with noise reduction, embodying their role in sophisticated electronic systems.

Switching Operations

Beyond amplification, this transistor adeptly manages switching functions, controlling components such as LEDs and relays with robust performance. Its ability to transition smoothly between states emphasizes its reliability in precision-dependent tasks. In projects like automated lighting, the 2N2222A facilitates steady operation, reflecting a mastery of both timing and functionality intricacies.

Oscillators and Timing Circuits

The 2N2222A's ingenuity extends to oscillators and timing devices, where it helps craft periodic waveforms useful in a myriad of electronics. It plays a remarkable role in setting the oscillation frequency and stability, a cornerstone in developing communication devices dependent on precise timing. By thoughtfully integrating into oscillatory configurations, it ensures optimal frequency outputs.

Signal Processing Enhancements

In signal processing, this transistor is employed to refine electrical signals, enhancing their utility. Its adept deployment supports clearer data exchange, highlighting its adaptability and the sophisticated techniques you harness to boost signal fidelity and reliability.

Educational Tools and DIY Endeavors

The 2N2222A is a favored choice for educational pursuits and DIY projects, owing to its accessibility and straightforward application. You can gain practical insights, utilizing it to build projects from basic to advanced levels. It bridges complex electronic concepts with hands-on activities, fostering an innovative learning atmosphere where theory meets practice.

Packaging and Qualities of the 2N2222A Transistor

The TO-18 metallic casing of the 2N2222A boosts its mechanical durability, enhancing its ability to handle thermal dissipation. This blend plays a role in maintaining stable performance under varying operational scenarios.

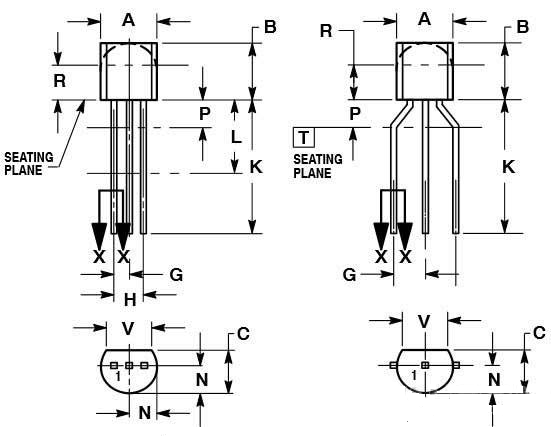

2D-Model and Dimensions

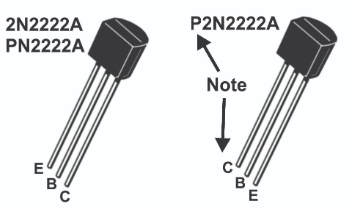

2N2222A vs. 2N2222

Though both share design principles, the 2N2222A distinguishes itself by managing increased voltage and frequency, thus enhancing efficiency in rapid switching tasks and higher voltage needs. Such improvements typically lead to reliable circuit performance, especially in sophisticated electronics where ordinary transistors might fall short.

2N2222A vs. 2N3904

Built for higher current applications, the 2N2222A is preferred in scenarios with greater power demands. Conversely, the 2N3904 shines in power-sensitive contexts, focusing more on conserving energy while still offering commendable power dissipation. This variation is used when designing devices sensitive to power efficiency, as the choice of transistor can significantly affect the longevity and functionality of the electronic product.

Pros and Cons

Pros

The 2N2222A transistor garners appreciation for its exceptional speed and broad accessibility. Its impressive versatility allows it to function smoothly in a multitude of applications, including switching and amplification, spanning several technical domains. Its design facilitates harmonious integration into an array of circuits, making it approachable for you. The reliability it offers can bolster project efficiency by minimizing time devoted to problem-solving. Additionally, its affordability ensures its presence remains prominent in educational projects and prototypes, demonstrating its lasting relevance. This commonality in learning environments further bolsters its acceptance and sparks creativity.

Cons

Although the 2N2222A exhibits a broad range of applications, it is inherently constrained to operating in low-power environments, specifically for tasks requiring currents under 800mA. Consequently, it proves inadequate for high-power applications, necessitating the use of transistors capable of handling higher currents for demanding operations. Practical examples often illustrate the importance of careful selection based on power needs to avert circuit malfunctions. While this limitation encourages users to explore alternative solutions, it inadvertently promotes a refined understanding of power management and component selection—paving the way for more insightful and thoughtful electronic designs.

Conclusion

The 2N2222A transistor exemplifies the perfect balance between simplicity and performance, making it a key component in countless electronic designs. Its ability to handle moderate power requirements with reliability and efficiency has cemented its status as a go-to choice for both professional and educational projects. Whether amplifying signals, driving loads, or enabling precision switching, the 2N2222A continues to empower you to push the boundaries of creativity and innovation. By mastering its attributes and integration, one can unlock its full potential, fostering advancements in electronic systems while building a solid foundation in circuit design.
