Comprehensive Guide to the CR2032 Battery: Features, Specifications, Applications, and Replacements

The CR2032 battery is a small but powerful coin-shaped battery used in many everyday devices. It is reliable, long-lasting, and provides steady power, making it perfect for things like watches, remote controls, medical devices, and smart home gadgets. This guide explains what makes the CR2032 special, its features, different types, and replacements. It will help you understand everything you need to know about the CR2032.

Catalog

What is a CR2032 Battery?

The CR2032 battery is a small yet powerful coin cell battery designed to provide reliable and long-lasting power for various electronic devices. Measuring 20mm in diameter and 3.2mm in thickness, this battery is ideal for compact devices that require a stable energy source without frequent replacements. Its lithium manganese dioxide (Li-MnO₂) composition allows it to maintain a steady voltage of approximately 3 volts throughout its lifespan. This characteristic is beneficial for low-drain applications, such as wristwatches, key fobs, remote controls, medical instruments, and calculators.

One of the standout features of the CR2032 is its extended shelf life, which allows it to retain its charge for years when stored properly. It also operates effectively across a broad temperature range (-20°C to +70°C), making it suitable for environments with varying conditions, such as outdoor electronic devices or medical facilities with strict temperature controls. From an operational perspective, the CR2032 is widely preferred for its ease of integration and replacement. Due to its standardized size, you can install it effortlessly in a wide range of devices. Its predictable performance, long lifespan, and minimal maintenance requirements make it a popular choice in both personal and industrial applications.

Technical Specifications of the CR2032 Battery

Figure 2. CR2032 Specs and Dimensions

Specification	Details
Voltage	3V (nominal)
Capacity	Typically between 210–220 mAh
Dimensions	20 mm (diameter) × 3.2 mm (thickness)
Weight	Approximately 3 grams
Chemistry	Lithium Manganese Dioxide (Li-MnO₂)
Shelf Life	Over 5 years (under optimal storage conditions)
Operating Temperature Range	-30°C to +60°C

Features of the CR2032 Battery

Compact and Lightweight Design

The CR2032 battery is designed to be extremely small and lightweight. With a diameter of 20mm and a thickness of only 3.2mm, it can fit into ultra-thin electronic gadgets without adding bulk. Many modern wearable devices, including fitness trackers and smart rings, rely on the CR2032 due to its unobtrusive design. Its lightweight nature ensures that devices remain portable and easy to carry for handheld and pocket-sized electronics. The small form factor allows to design sleeker and more streamlined products without compromising battery performance. Because of its standardized dimensions, the CR2032 is interchangeable across multiple devices, adding to its convenience. This combination of compactness and efficiency makes it one of the most widely used coin cell batteries in various industries.

High Energy Density

Despite its small size, the CR2032 battery is packed with a high energy density, allowing it to power devices for extended periods without requiring frequent replacements. Energy density refers to the amount of energy stored in a given volume, and the CR2032 excels in this regard compared to other coin cell batteries. It is capable of delivering a consistent and reliable power output over its lifespan for applications that require long-lasting performance. Because of its high energy efficiency, it is commonly used in medical devices such as glucose meters, which require reliable power for accurate readings. Many wireless accessories, including Bluetooth trackers and small remote controls, also depend on this battery due to its ability to sustain performance over time. Compared to traditional alkaline button cells, the CR2032 offers longer runtime, reducing the need for frequent battery changes. This extended energy storage capacity makes it an ideal choice for devices that remain in standby mode for long durations but still require immediate functionality when activated. The high energy density of the CR2032 contributes to its widespread use in security sensors and backup memory systems.

Consistent Voltage Output

One of the key advantages of the CR2032 battery is its ability to provide a stable 3V power supply throughout its lifespan. A consistent voltage output is good for electronic devices, as fluctuations can lead to malfunctions, reduced efficiency, or even permanent damage. This stability ensures that digital devices such as computer motherboards and calculators operate smoothly without sudden power drops. Many precision-based gadgets, including digital thermometers and blood pressure monitors, rely on the CR2032's steady voltage to deliver accurate readings. Unlike some batteries that experience a sharp voltage decline as they discharge, the CR2032 maintains a relatively uniform output until it nears depletion. This makes it useful for applications like CMOS memory in computers, where a sudden voltage drop could lead to data loss. The predictable performance of the CR2032 reduces the need for premature battery replacements, enhancing overall device longevity. With its dependable voltage regulation, this battery remains a trusted power source for a variety of electronic applications.

Extended Shelf Life and Temperature Resilience

The CR2032 battery is known for its impressive shelf life, often retaining its charge for over five years when stored under optimal conditions. This extended lifespan makes it ideal for backup power applications, such as BIOS memory in computers and emergency medical devices. Unlike some batteries that degrade quickly, the CR2032 remains functional even after prolonged storage, ensuring readiness when needed. In addition to its longevity, this battery performs well across a broad temperature range, making it suitable for both indoor and outdoor use. It operates efficiently in cold environments for devices such as outdoor sensors and automotive key fobs used in winter conditions. Similarly, it can withstand higher temperatures without performance degradation, making it a reliable choice for applications in warm climates. The battery's resilience to environmental factors reduces the likelihood of premature failure.

Leak-Resistant Construction

Modern CR2032 batteries are engineered with a leak-resistant design to protect electronic devices from potential damage. Battery leakage occurs when internal chemicals escape due to corrosion or defects, which can severely harm delicate components. The CR2032 incorporates advanced sealing technology to minimize this risk, ensuring safe operation in various devices. This feature is beneficial for high-precision gadgets such as hearing aids, where any leakage could lead to costly repairs or malfunctions. The improved construction also reduces the chances of swelling, which can occur in poorly made batteries under extreme conditions. As a result, the CR2032 is a preferred choice for long-term use in essential electronics such as pacemakers and implanted medical devices. With its leak-resistant properties, their sensitive gadgets will remain protected, even after prolonged battery usage.

Easy Availability and Environmental Considerations

The CR2032 battery is widely available due to its popularity, making it easy to find replacements in most electronics and convenience stores. It is manufactured by multiple brands, ensuring consistent supply and compatibility across devices. Battery recycling initiatives have been introduced in many countries, allowing to return used batteries to designated drop-off locations for proper disposal. These efforts contribute to minimizing electronic waste while promoting responsible consumption. As awareness about environmental impact grows, the CR2032 remains a widely used battery with increasing emphasis on sustainability and eco-conscious production.

User-Friendly Installation and Maintenance

The CR2032 is designed for easy installation, allowing to replace the battery quickly without requiring special tools. Many devices that use this battery, feature simple compartments that enable hassle-free replacement. Because of its standardized dimensions, you do not need to worry about finding a specific brand or model for compatibility. This convenience is valuable working with medical instruments or computing devices that require frequent battery changes. Additionally, its long lifespan reduces the need for constant maintenance, making it a low-effort power solution for many applications. You can store spare CR2032 batteries for years without worrying about degradation, ensuring they are always prepared for a replacement. With its user-friendly installation and minimal maintenance requirements, the CR2032 is a practical choice for a wide range of electronic applications.

Types of CR2032 Lithium Batteries

Different variations of the CR2032 battery are available to suit specific applications. Below are the most common types:

Standard CR2032

The standard CR2032 battery is the most widely used version, commonly found in small electronic devices. It is a single-use, non-rechargeable lithium coin cell that provides reliable and consistent power output. They operate at a stable voltage of 3V, ensuring compatibility with a wide range of devices. With a typical capacity of around 220 mAh, they can power low-drain electronics for an extended period. Due to their long shelf life, they remain functional even after years of storage. They are also relatively inexpensive and readily available in stores and online. While they provide consistent energy, their biggest limitation is that they must be replaced once depleted. This makes them ideal for applications where replacing the battery infrequently is acceptable, such as in devices with low power consumption.

Rechargeable CR2032 (LiR2032)

The rechargeable version, known as the LiR2032, is designed for repeated use and can be recharged multiple times. Unlike the standard CR2032, which is disposable, this variant supports up to 1,000 charge cycles, depending on usage conditions. It operates at a slightly different voltage, typically around 3.6V instead of 3V, which may require device compatibility verification. Though it has a lower overall capacity than non-rechargeable models, it provides long-term cost savings and reduces environmental waste. The rechargeable nature of this battery makes it ideal for applications where frequent replacements would be inconvenient. It is commonly used in specialized electronics, wearable devices, and certain medical instruments. While its lifespan per charge is shorter than a disposable CR2032, the ability to recharge offsets this drawback. One must ensure they have the appropriate charging equipment to safely recharge the battery without overloading it. Due to its sustainable nature, this battery type is a preferred choice for those looking to reduce their carbon footprint.

Lithium Manganese Dioxide (Li-MnO₂) CR2032

The lithium manganese dioxide CR2032, often abbreviated as Li-MnO₂, is known for its high energy density and extended shelf life. This type of CR2032 is optimized for high-drain devices that require a stable and prolonged energy supply. It delivers a consistent voltage of 3V and offers a higher capacity than standard lithium coin cells. The enhanced energy output makes it suitable for advanced electronic systems, such as medical equipment and security devices. Its long storage life allows it to remain functional for up to a decade without power loss. These batteries are designed to withstand extreme temperatures, making them ideal for outdoor or industrial applications. Due to their reliability, they are commonly found in heart rate monitors, glucose meters, and precision measuring instruments. The use of lithium manganese dioxide chemistry provides improved safety and resistance to leakage.

Lithium-Ion (Li-ion) CR2032

The lithium-ion CR2032 is a less common variant that incorporates rechargeable lithium-ion technology. Unlike traditional lithium coin cells, it offers a different voltage profile, often operating at 3.7V instead of the standard 3V. This voltage difference means that it is not directly interchangeable with standard CR2032 batteries and requires careful device compatibility checks. It is primarily used in specialized applications where rechargeable functionality is necessary. These batteries are often found in advanced electronics, smart sensors, and custom-built circuits. Due to their lithium-ion chemistry, they have a longer overall lifespan in terms of recharge cycles compared to LiR2032 models. However, they also require dedicated charging equipment to ensure safe recharging without overheating or overcharging. Their enhanced energy efficiency makes them attractive for applications requiring frequent power replenishment. While they are not as widely available as other CR2032 variants, they serve a niche market that benefits from their rechargeable nature.

CR2032 Battery Equivalents and Replacements

Here's a comparison table summarizing the similarities and differences among CR2032 battery equivalents and replacements:

Battery Model	Voltage	Capacity (mAh)	Chemistry	Thickness (mm)	Rechargeable	Differences	Applications
CR2032	3.0V	225 mAh	Lithium Manganese Dioxide (Li-MnO₂)	3.2 mm	No	Standard coin cell battery	Watches, key fobs, calculators, PC motherboards (CMOS backup), toys, etc.
DL2032	3.0V	240 mAh	Li-MnO₂	3.2 mm	No	Duracell-branded equivalent	Same as CR2032 – fully interchangeable
ECR2032	3.0V	235 mAh	Li-MnO₂	3.2 mm	No	Energizer-branded equivalent	Same as CR2032 – watches, remotes, medical devices, etc.
BR2032	3.0V	190 mAh	Lithium Carbon Monofluoride (Li-CFx)	3.2 mm	No	Better high-temperature performance	Memory/CMOS backup, calculators, industrial sensors, medical monitors
KCR2032	3.0V	220–225 mAh	Li-MnO₂	3.2 mm	No	Generic equivalent from various manufacturers	Same as CR2032 (Kodak’s equivalent)
CR2025	3.0V	165–170 mAh	Li-MnO₂	2.5 mm	No	Thinner, may work if the device allows	Slimmer devices like fitness trackers, key fobs, wristwatches, calculators
CR2016	3.0V	90 mAh	Li-MnO₂	1.6 mm	No	Even thinner, limited compatibility	Ultra-slim watches, calculators, remote controls, keyless entry fobs
LiR2032	3.6V	40 mAh	Lithium-ion	3.2 mm	Yes	Rechargeable but higher voltage, may not be compatible with all devices	Niche uses: wearable devices, Bluetooth trackers, rechargeable key fobs

Components of the CR2032 Battery

A CR2032 battery has several key parts that work together to produce and maintain power. These parts are designed for efficiency and safety. Its small size and reliable performance make it a popular choice for many small electronic devices. Here’s a simple breakdown of its main components and their functions.

Anode (Negative Electrode)

The anode in a CR2032 battery is made of lithium metal, a highly reactive material known for its excellent energy density. During discharge, lithium atoms in the anode release electrons, which travel through an external circuit to power a device. At the same time, lithium ions migrate through the electrolyte toward the cathode. This movement of electrons and ions is what generates the electrical current used by electronic devices. Lithium is chosen for its ability to provide a high voltage output while maintaining a lightweight structure. Since lithium is highly reactive, the anode is carefully engineered to minimize the risk of short circuits or unwanted chemical reactions. The anode’s design also ensures long shelf life by reducing self-discharge over time.

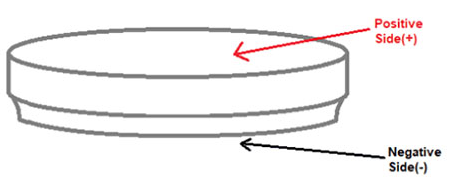

Figure 3. CR2032 Battery Components

Cathode (Positive Electrode)

The cathode in a CR2032 battery is composed of manganese dioxide (MnO₂), which serves as the main electron acceptor during discharge. When the battery is in use, manganese dioxide facilitates the reduction reaction, allowing lithium ions from the anode to combine with it. This process helps sustain the flow of electrical energy needed to power a device. The use of manganese dioxide is advantageous because it is chemically stable, cost-effective, and provides a consistent voltage output. The structure of the cathode is optimized to enhance conductivity and maximize energy storage. Manganese dioxide is chosen for its non-toxic properties, making the battery safer for widespread use. Over time, as the cathode's active material is gradually depleted, the battery’s voltage drops, signaling the end of its usable life.

Electrolyte

The electrolyte in a CR2032 battery is a lithium salt solution, typically composed of lithium perchlorate (LiClO₄) or lithium hexafluorophosphate (LiPF₆) dissolved in an organic solvent. This liquid or gel-like substance facilitates the movement of lithium ions between the anode and cathode during battery operation. Without the electrolyte, the chemical reactions that produce electrical energy would not occur efficiently. It must be highly conductive while also being stable to prevent unwanted side reactions. The electrolyte's formulation is designed to minimize evaporation and degradation, ensuring the battery remains functional over extended periods. Because lithium-based electrolytes are sensitive to moisture, they are sealed within the battery casing to prevent exposure to air. Safety additives are sometimes included to reduce the risk of overheating or leakage. A well-balanced electrolyte is great for maintaining battery performance, longevity, and reliability.

Separator

The separator is a thin, porous membrane positioned between the anode and cathode to prevent direct physical contact while allowing lithium ions to pass through. If the anode and cathode were to touch directly, it would result in a short circuit, potentially causing the battery to overheat or fail. The material used for the separator is typically a microporous polymer, such as polyethylene or polypropylene, which is chemically stable and resistant to high temperatures. It plays a role in ensuring the controlled flow of lithium ions, which helps maintain steady battery performance. The separator is engineered to be extremely thin to conserve space while still being durable enough to withstand mechanical stress. In some cases, it includes a shutdown mechanism that blocks ion flow if the battery overheats, serving as an additional safety measure. Advanced separator designs contribute to improved energy efficiency by reducing internal resistance within the battery. Proper separator function is important for prolonging the overall lifespan of the CR2032 battery.

Outer Casing

The outer casing of a CR2032 battery is made of stainless steel, which provides a strong and corrosion-resistant shell to protect the internal components. This casing is need for maintaining the integrity of the battery, preventing leaks, and shielding the delicate chemical components from external environmental factors. The stainless steel construction helps withstand mechanical pressure, making the battery durable enough for use in a variety of applications. It also acts as part of the battery’s electrical circuit, with the casing often serving as the positive terminal. A tightly sealed design prevents moisture or oxygen from entering, which could otherwise degrade the battery’s performance. The outer casing is also designed to prevent accidental short circuits by ensuring the anode and cathode remain properly insulated. Some CR2032 batteries include additional safety features, such as pressure-relief vents, to prevent excessive internal pressure buildup. Overall, the casing ensures the battery remains safe, reliable, and functional throughout its intended lifespan.

How a CR2032 Battery Works?

A CR2032 battery is a small and round power source, works by converting chemical energy into electrical energy through a process called an electrochemical reaction. Inside the battery, there are two key parts: the anode (negative side) and the cathode (positive side). These two parts interact with a special substance called an electrolyte, which helps move energy through the battery. When the battery is placed inside a device, it creates a complete electrical circuit. This allows electrons to flow from the anode to the cathode through the device, generating electricity. At the same time, lithium ions inside the battery move through the electrolyte from the anode to the cathode to keep the charge balanced. This smooth flow of energy is what powers the device, making it function properly.

As the battery continues to work, more lithium ions and electrons move, keeping the device powered. The CR2032 battery is designed to provide a steady and reliable flow of energy for a long time. Because it uses lithium, which is a highly efficient material, the battery can last for months or even years before it runs out of power. This makes it ideal for small devices that need a stable energy supply. Over time, the lithium inside the battery gets used up. When there are no more lithium ions left to move between the anode and cathode, the battery can no longer produce electricity. This means the battery is depleted and needs to be replaced. Since CR2032 batteries are not rechargeable, they must be disposed of properly and replaced with a new one when they stop working. The way a CR2032 battery works is simple but effective. By allowing electrons and lithium ions to move in a controlled way, it provides a continuous energy supply to small electronic devices.

How to Install a CR2032 Battery?

Replacing a CR2032 battery is a simple process, but following proper steps ensures the device functions optimally and prevents potential damage. Below is a detailed guide to help you install a CR2032 battery correctly.

Step 1: Find the Battery Compartment

Look for the battery compartment on the back or bottom of the device. It may have a small cover that is held by a screw, latch, or snap-fit design. If you are unsure, check the user manual for instructions. Make sure you have the right tools, like a small screwdriver, if needed. Be gentle when handling the cover to avoid breaking it.

Step 2: Remove the Old Battery

Carefully open the battery compartment using a screwdriver or by releasing the latch. If there is a battery inside, slide it out gently with your fingers or a plastic tool. Avoid using metal tools to prevent short circuits or damage. Try not to touch the battery terminals directly, as skin oils can affect how it works. Set the old battery aside for proper disposal according to local recycling rules.

Step 3: Insert the New Battery

Look for the positive (+) and negative (-) markings in the battery compartment. Make sure the new battery’s positive side faces the correct direction. Place the battery into the holder carefully so it fits snugly. If the battery feels loose, adjust it slightly to ensure good contact. Double-check that it is sitting flat and securely inside the compartment.

Step 4: Close the Compartment

Press the battery gently to confirm it is secure and will not move. Put the cover back in place and fasten it with the screw or latch. Make sure the cover is completely closed to keep the battery safe. If the cover does not fit properly, check if the battery is inserted correctly. Avoid forcing the cover shut, as this could damage the compartment.

Step 5: Test the Device

Turn on the device to see if it works properly. If it does not turn on, remove the battery and check its position. Make sure the battery is making full contact with the metal connectors. Try using a new battery if the device still does not work. Once everything is working, your installation is complete.

Advantages and Disadvantages of the CR2032 Battery

Advantages of a CR2032 Battery

• Compact and Lightweight: These batteries are designed to be small and lightweight, making them ideal for compact electronic devices such as watches, remote controls, medical instruments, and other portable gadgets. Their minimal size allows for seamless integration into devices where space is limited.

• High Energy Density: With a high energy-to-weight ratio, these batteries provide extended operational life for devices without requiring frequent replacements. This makes them useful for applications where changing batteries frequently is inconvenient or impractical, such as in hearing aids or sensors.

• Stable 3V Output: A consistent 3V output ensures reliable device performance by preventing voltage fluctuations that could otherwise affect functionality. This stability is best for precision electronics that require a steady power supply to operate efficiently.

• Long Shelf Life (5+ Years): These batteries can retain their charge for over five years when stored properly, reducing the need for frequent replacements. This long shelf life is beneficial for emergency devices, backup power supplies, and infrequently used equipment.

• Leak-Resistant and Mercury-Free: Designed with advanced leak-resistant technology, these batteries minimize the risk of damage to devices due to leakage. Additionally, being mercury-free makes them a safer and more environmentally friendly choice, reducing hazardous waste and potential health risks associated with toxic heavy metals.

Disadvantages of a CR2032 Battery

• Limited Capacity for High-Drain Devices: While suitable for low-power applications, these batteries lack the capacity to effectively power high-drain devices such as digital cameras, motorized toys, or certain medical devices. For such applications, alternatives like lithium-ion or alkaline batteries may be more appropriate.

• Non-Rechargeable Versions Contribute to Battery Waste: Many of these batteries are single-use and non-rechargeable, leading to increased battery waste over time. Disposing of them improperly can contribute to environmental pollution, making recycling and proper disposal need for minimizing their ecological impact.

• Higher Long-Term Cost: Although these batteries offer reliable performance, their single-use nature makes them more expensive in the long run compared to rechargeable alternatives. Devices that require frequent battery changes may be more cost-effective when powered by rechargeable lithium-ion or nickel-metal hydride (NiMH) batteries.

Applications of the CR2032 Battery

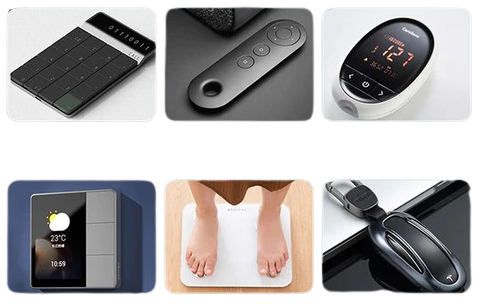

Figure 4. Example Uses of CR2032 Battery

The CR2032 battery is a widely used coin-cell battery known for its compact size, long shelf life, and reliable performance. Due to its stable voltage and lightweight design, it powers a variety of electronic devices across different industries. Below are some of the most common uses of the CR2032 battery across different industries.

Timekeeping Devices

The CR2032 battery is widely used in timekeeping devices because it provides consistent power for a long time. Many wristwatches use this battery to keep accurate time without needing frequent replacements. It is also found in small desk clocks and wall clocks, helping them run smoothly for years. Another common use is in computer motherboards, where it powers the CMOS chip, which stores system settings like time and date even when the computer is turned off. Some travel alarm clocks also use CR2032 batteries because they are compact and easy to carry. The battery’s long shelf life makes it a great choice for backup power in timekeeping devices. Since timekeeping gadgets need constant power, the CR2032 is ideal for ensuring they function correctly.

Consumer Electronics

Many small electronic devices rely on the CR2032 battery for power due to its compact size and reliability. Remote controls for car key fobs, garage doors, and some television models commonly use this battery. It is also found in calculators, especially thin and portable ones. Some electronic toys and novelty gadgets require CR2032 batteries to operate lights, sounds, or simple movements. Certain fitness trackers and pedometers use these batteries because they are lightweight and last a long time. Some digital cameras and small LED flashlights also use this type of battery for backup power. The CR2032 battery helps these devices function smoothly without frequent replacements.

Medical Instruments

Medical devices need reliable power sources, and the CR2032 battery is often used in many health-related gadgets. One of the most common uses is in glucose monitors, which help people with diabetes check their blood sugar levels. Many digital thermometers use this battery to provide accurate temperature readings. It is also found in heart rate monitors and fitness devices that track vital signs. Some small hearing aids use CR2032 batteries because they provide steady power without making the device too heavy. Many portable medical sensors, such as pulse oximeters, also rely on this battery. The battery’s reliability is important in medical instruments, as these devices often monitor health conditions.

Security Systems

Security devices often need long-lasting and dependable batteries, making the CR2032 a common choice. Many keyless entry systems, such as car key fobs and smart locks, use this battery for secure access. It is also found in remote-controlled garage doors and RFID-based access cards used in office buildings. Some home security alarms, motion sensors, and wireless doorbells operate using CR2032 batteries. This battery is preferred for security devices because it provides stable power for long periods without needing frequent replacements. Many tracking devices and personal safety alarms also use this battery for their compact design. Because security systems need to work reliably at all times, the CR2032 battery is a trusted power source.

IoT and Smart Home Devices

The CR2032 battery is commonly found in Internet of Things (IoT) devices, which include smart home gadgets and wireless sensors. Many temperature, motion, and humidity sensors use this battery to provide real-time data for home automation. Smart buttons, which allow to control appliances with a single press, also rely on CR2032 power. Some small remote-controlled LED lights use these batteries for convenience and energy efficiency. Wearable technology, such as fitness trackers and smart rings, often includes CR2032 batteries because they are lightweight and long-lasting. Some smart tags and tracking devices use this battery to help locate lost items like keys or wallets.

Conclusion

The CR2032 battery is a trusted power source for many small electronics because it lasts long, delivers steady power, and is easy to find. Its small size and high energy make it useful in timekeeping devices, security systems, and smart gadgets. By knowing its features, how to install it, and what alternatives are available, you can make better choices when using or replacing this battery. Simple, reliable, and widely used, the CR2032 remains an important part of modern electronics.
