Crankshaft Position Sensor Guide for Car Owners

You rely on many sensors every time your car runs, and the crankshaft position sensor is one of the key ones working quietly in the background. It keeps track of how the engine rotates so timing stays accurate and power delivery feels smooth. When this sensor works properly, starting feels normal, acceleration responds as expected, and the engine runs evenly. Understanding how it works, the different types used, and what happens when it fails helps you make sense of engine behavior without getting lost in technical language.

Catalog

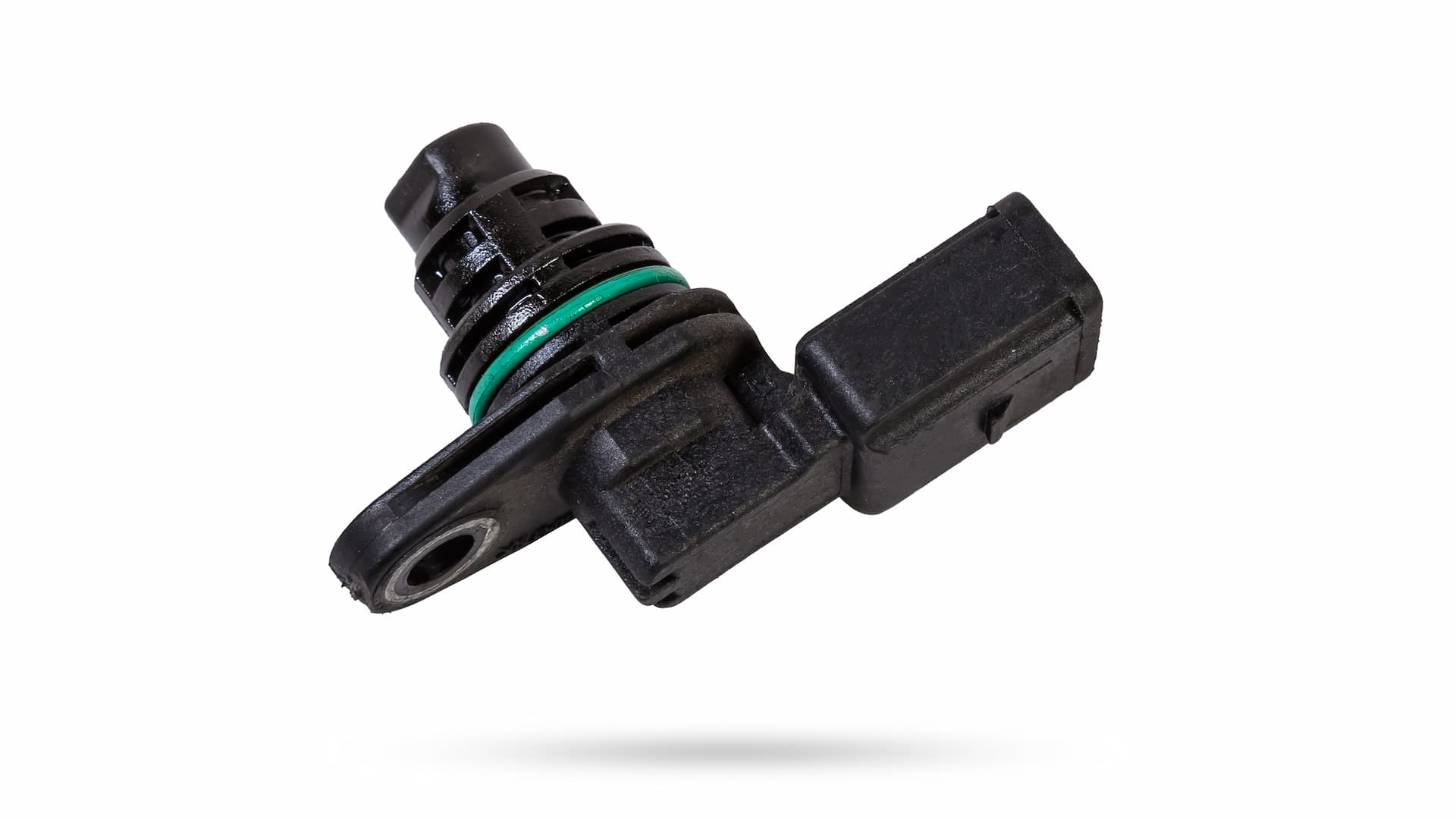

Figure 1. Crankshaft Position Sensor

What Is a Crankshaft Position Sensor

A crankshaft position sensor is an electronic sensor used in internal combustion engines to detect the position and rotational speed of the crankshaft. It is mounted close to the crankshaft so it can sense its movement directly as the engine operates.

As the crankshaft turns, the sensor generates an electrical signal that reflects both its position and speed. This signal provides a precise representation of the crankshaft’s motion at any moment during engine operation, forming a reliable reference for the engine sensing system.

The crankshaft position sensor is classified as a primary engine input sensor because it measures fundamental engine motion. Its function is limited to detecting and reporting crankshaft movement, supplying accurate position and speed data that serve as a baseline reference within the engine system.

Working Principle of Crankshaft Position Sensor

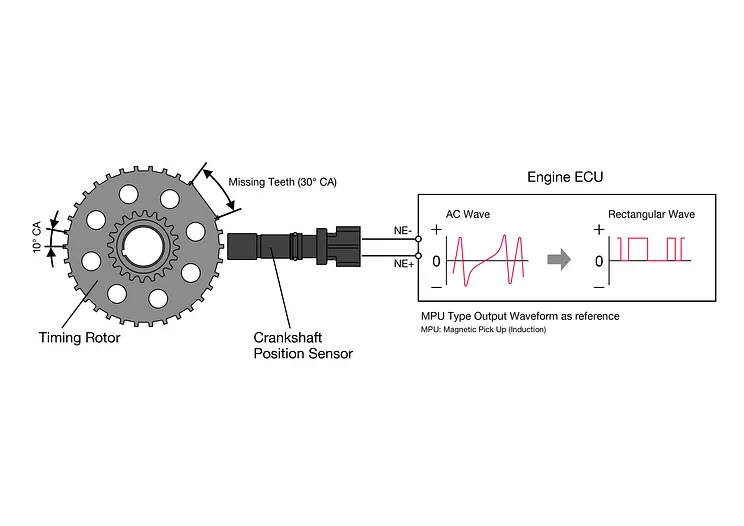

Figure 2. Crankshaft Position Sensor Working Principle

The crankshaft position sensor detects the rotational movement of the crankshaft and converts this motion into an electrical signal. It is mounted close to a timing rotor attached to the crankshaft, allowing it to sense changes as the rotor teeth pass by during rotation.

These changes create a repeating signal pattern that represents the crankshaft’s speed and angular position. A fixed reference point, formed by a missing or differently spaced tooth on the rotor, identifies a specific position within each rotation. This reference enables accurate tracking of crankshaft movement as rotation continues.

The engine control unit uses this signal as a timing reference. By measuring the spacing and frequency of the pulses, it determines engine speed and establishes precise ignition and fuel injection timing. The same signal also allows monitoring of rotation consistency, where small speed variations between cycles indicate differences in combustion behavior, supporting stable engine operation.

Types of Crankshaft Position Sensors

Hall Effect Crankshaft Position Sensor

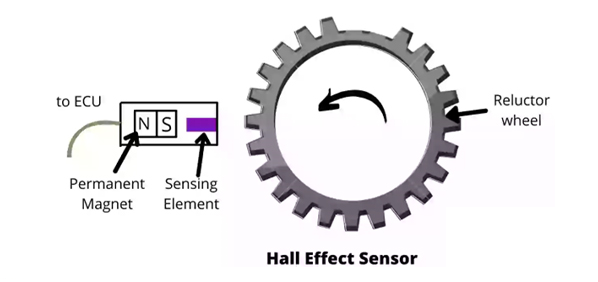

Figure 3. Hall Effect Crankshaft Position Sensor

The Hall effect crankshaft position sensor operates using a magnetic field and a solid-state sensing element. It contains a permanent magnet and an electronic sensing component that requires an external power supply from the vehicle. As a toothed rotor attached to the crankshaft passes the sensor, changes in the magnetic field are detected by the sensing element.

These changes are converted into a digital signal with clearly defined voltage levels. Because the signal remains consistent across a wide range of speeds, accurate position information is available even at low rotational speeds, such as during engine starting. This characteristic makes Hall effect sensors suitable for engines that require stable and precise position signals.

Magnetoelectric Crankshaft Position Sensor

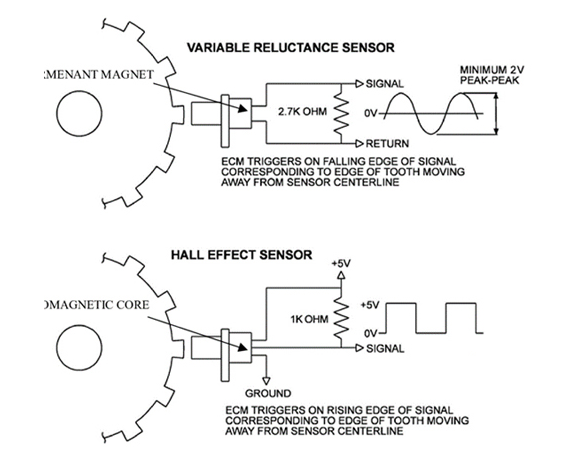

Figure 4. Magnetoelectric Crankshaft Position Sensor

The magnetoelectric crankshaft position sensor, often referred to as a variable reluctance sensor, produces its signal through electromagnetic induction. It consists of a permanent magnet and a coil wound around a magnetic core and operates without an external power supply.

As the rotor teeth move past the sensor, changes in the magnetic field induce an alternating voltage signal in the coil. The signal strength varies with crankshaft speed, increasing as rotational speed rises. Due to its simple structure and self-powered operation, this sensor type is commonly used in engine systems where design simplicity is a key consideration.

Symptoms of a Bad Crankshaft Position Sensor

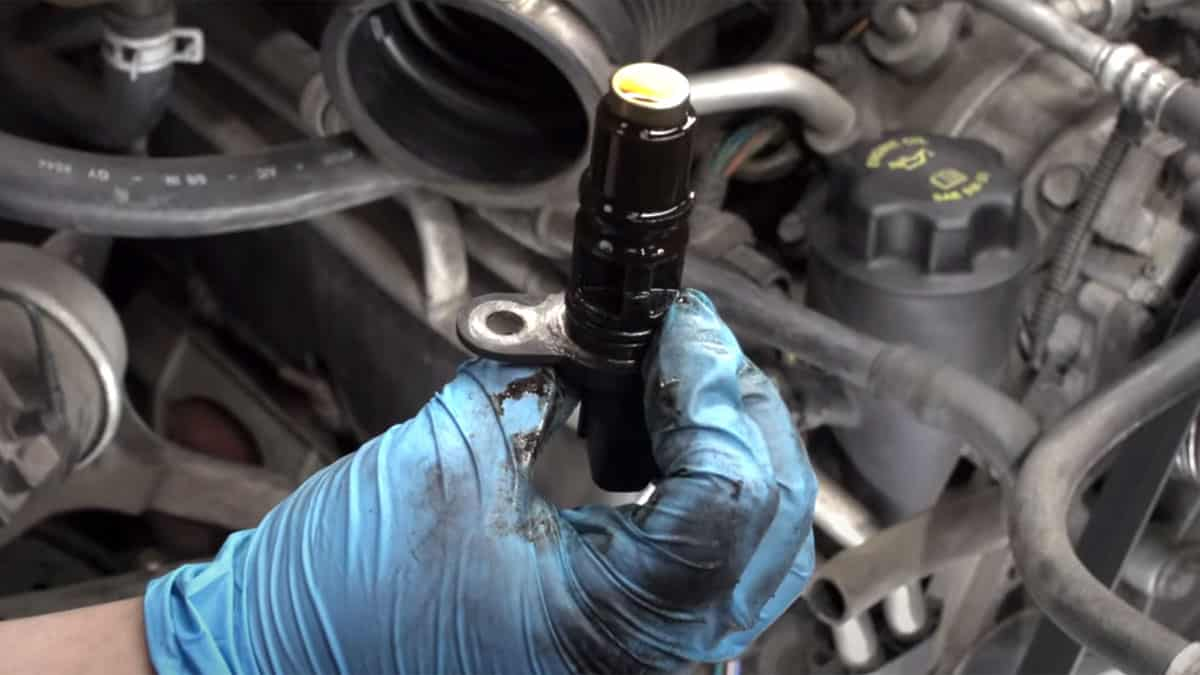

Figure 5. Bad Crankshaft Position Sensor

When a crankshaft position sensor fails or produces incorrect signals, the engine control system no longer receives accurate information about crankshaft movement. This loss of reliable timing data disrupts normal engine operation and leads to noticeable changes in how the vehicle behaves.

One of the most common symptoms is difficulty starting the engine or a complete no-start condition. Without a dependable position signal, the engine control unit cannot set proper ignition and fuel timing, which prevents normal starting.

Engine stalling during operation is another frequent sign. The engine may shut off unexpectedly while idling or driving when the control system loses its crankshaft reference. In some cases, the engine may restart after a short pause, only for the stalling to return.

A failing sensor can also cause unstable idle and rough engine operation. Inconsistent signals disrupt combustion timing, leading to vibration, uneven engine speed, or hesitation, especially at low speeds or under light driving conditions.

Reduced engine power and poor acceleration may also occur. When timing adjustments are no longer accurate, engine response becomes sluggish and overall performance declines, reflecting the importance of a stable crankshaft position signal for smooth engine operation.

Causes of Crankshaft Position Sensor Failure

Crankshaft position sensors operate in demanding engine environments, which makes gradual wear unavoidable over time. Thermal stress is a common factor, as constant exposure to high temperatures and repeated heating and cooling cycles can weaken internal components and insulation.

Engine vibration also contributes to failure. Continuous mechanical movement can loosen internal connections or create small structural defects within the sensor housing, affecting signal stability.

Oil contamination is another frequent cause. Leaking engine oil can reach the sensor body or connector, where it may interfere with electrical conductivity or damage sensitive internal elements.

Problems with wiring and connectors can also disrupt sensor operation. Frayed wires, corroded terminals, or loose connections interrupt the signal path, producing inconsistent or incorrect readings even when the sensor itself remains functional.

Over time, natural aging further reduces reliability. As internal materials degrade, the sensor’s ability to generate a consistent and accurate signal gradually declines, increasing the likelihood of failure.

Crankshaft Position Sensor Error Codes (P0335, P0336)

P0335: Crankshaft Position Sensor Circuit Fault

The P0335 code indicates that the engine control module is not receiving a valid signal from the crankshaft position sensor. The signal may be missing, interrupted, or unreadable, which prevents the control system from confirming crankshaft movement and establishing a reliable timing reference.

This condition is commonly linked to wiring damage, connector problems, internal sensor failure, or other interruptions that stop the signal from reaching the control module.

P0336: Crankshaft Position Sensor Range or Performance Fault

The P0336 code indicates that the crankshaft position sensor signal is present but does not fall within the expected timing or value range. In this case, the signal is detected, but its pattern does not match normal operating conditions.

This type of fault points to performance or synchronization issues rather than complete signal loss, which affects how accurately the control module can track crankshaft position during engine operation.

Relationship Between Crankshaft and Camshaft Position Sensors

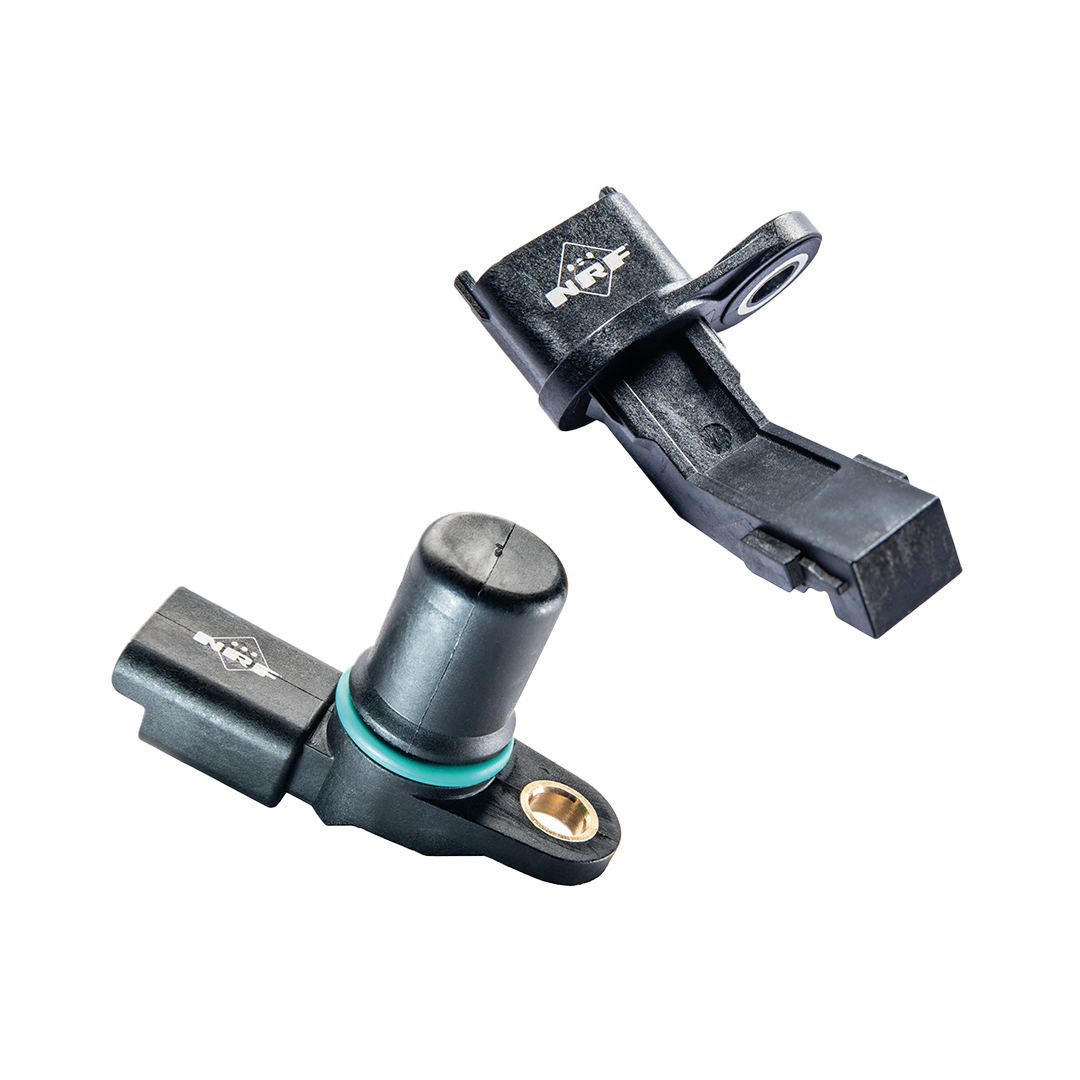

Figure 6. Crankshaft and Camshaft Position Sensors

The crankshaft position sensor and the camshaft position sensor work together to provide synchronized information about engine rotation. Each sensor monitors a different rotating component, and their signals are evaluated together to establish accurate engine timing.

The crankshaft position sensor provides data on overall crankshaft rotation, reflecting engine speed and basic rotational position, while the camshaft position sensor tracks camshaft movement to indicate valve position. On its own, the crankshaft signal cannot identify which cylinder is in a specific stroke, so the camshaft signal supplies this missing reference.

By comparing both signals, the engine control module determines cylinder position and firing order, allowing precise coordination of ignition timing and fuel injection for each cylinder. This combined input maintains engine synchronization, ensuring mechanical movement and combustion events remain accurately aligned throughout engine operation.

Importance of the Crankshaft Position Sensor in Engine Control

The crankshaft position sensor is essential to modern engine control because it provides a dependable timing reference for coordinated engine operation. Accurate crankshaft position and speed data allow the control system to manage combustion events precisely, supporting efficient and stable engine performance.

Correct timing based on this sensor helps the engine use fuel effectively. When ignition and fuel delivery occur at the proper moments, the engine runs smoothly with less wasted energy and maintains consistent operation across different driving conditions.

The sensor also plays an important role in emissions control. Precise timing supports more complete combustion, which reduces unburned fuel and limits harmful exhaust output. This consistency is critical for meeting emissions requirements.

Crankshaft position data further supports engine diagnostics and long-term reliability. A stable reference signal allows the control system to monitor engine behavior accurately and identify irregular operation, helping maintain dependable performance over time.

Conclusion

The crankshaft position sensor plays a central role in how your engine starts, runs, and responds while driving. It supplies timing information that allows fuel delivery and ignition to stay properly aligned with engine movement. Different sensor designs achieve this in different ways, but they all support the same goal of stable engine operation. When the sensor begins to fail, the engine often shows clear warning signs that are easy to notice. By understanding its function, types, common problems, and error codes, you gain a clearer picture of how modern engines maintain accuracy and reliability during everyday use.
