DS1307 RTC Module: Components, Applications, and Specifications

This guide explores the DS1307 Real Time Clock (RTC) module, an element for precise timekeeping in a wide range of electronic systems. Commonly used in devices such as computers and servers, the DS1307 delivers dependable time management through its built-in controller, quartz crystal resonator, and oscillator. In this guide, we'll examine its internal design, key technical features, interfacing techniques, and applications, showcasing how it maintains accuracy even with minimal power consumption.

Catalog

Overview of the DS1307 RTC Module

The DS1307 RTC module offers a remarkably efficient option for maintaining precise time measurements, integrating I2C communication to maximize function. Central to its capabilities, it features a comprehensive Binary-Coded Decimal (BCD) clock and calendar, coupled with a 56-byte non-volatile SRAM for effective data preservation. Through the I2C bus, you can retrieve information on seconds, minutes, hours, days, dates, months, and years, lending a sense of control over time data retrieval. The BCD clock/calendar feature is crafted to simplify time representation and manipulation, ensuring both precision and ease in usage. The incorporation of a 56-byte SRAM enhances its resilience, offering a sense of security by maintaining data integrity even during power losses, allowing for additional defined data storage without worry. The module's advanced engineering supports automatic adjustments for month-end dates, including leap year calculations, which lifts the burden of manual corrections in impractical settings. The availability of 12-hour and 24-hour formats, alongside AM/PM indicators, gives match diverse preferences, reflecting the module's adaptability. A standout aspect of the DS1307 is its power-sense capability, facilitating a smooth shift to backup power during main power outages. This ensures a continuous timekeeping process, proving advantageous in applications where continuity is prioritized and constant time data reliability is expected, such as within embedded systems.

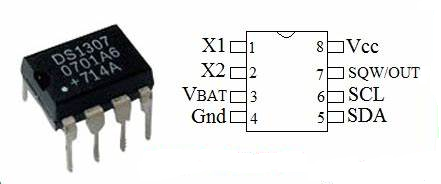

Pin Configuration of the DS1307 IC

Pin No.	Pin Name	Description
Pins 1 & 2	X1, X2	The crystal oscillator must be allied to these two pins.
Pin 3	V-Bat	Connected to the battery’s positive terminal; serves as a backup input supply for a normal 3V lithium cell to maintain precise timekeeping when main power is lost.
Pin 4	GND	Ground pin (negative power input) of the RTC IC.
Pin 5	VCC	Positive power input pin with a range of 3.3V to 5.5V.
Pin 6	SCL & SDA	SCL: Clock input for I2C communication, synchronizing data movement. SDA: Data I/O pin for the I2C serial interface.
Pin 7	SQW/Out	Used to obtain square wave frequencies (1Hz, 4kHz, 8kHz, or 32kHz) programmatically.



Features and Specifications of the DS1307 RTC

Feature/Specification	Description
Operating Voltage	5V
Package Type	Available in an 8-pin SOIC/DIP package.
Interface	Two-wire I2C interface.
Output Pin	1Hz output pin.
Power Consumption	Consumes < 500nA in battery backup mode with the oscillator running.
Non-volatile Memory	56 Bytes for data storage.
Pre-programmed Time	Comes pre-programmed with the present time.
Timekeeping Functions	Manages all timekeeping functions.
Compensation Validity	Valid up to the year 2100.
Battery Backup	Module is battery-backed.
Microcontroller Compatibility	Provides simple serial port interfaces for most microcontrollers.
Power-fail Detection	Features automatic power-fail detect and switch circuitry.

Components of the DS1307 RTC Module

DS1307 RTC Integrated Circuit

Central to the module is the DS1307 RTC IC, tasked with maintaining accurate time across numerous applications. It interfaces via the I2C protocol, facilitating straightforward data exchange with minimal cabling, mirroring the often desired simplicity in practical applications. The IC offers operation in either a 24-hour or 12-hour format with AM/PM indication, accommodating diverse timekeeping needs.

32kHz Crystal Oscillator

The 32kHz crystal oscillator, provides a steady frequency necessary for time accuracy. While temperature variations can cause slight shifts, these are managed through temperature compensation methods, leveraging empirical insights to fine-tune precision.

24C32 EEPROM Component

Featuring a 24C32 EEPROM chip, the module allows for permanent storage of configuration settings. Leveraging the shared I2C bus with the RTC, it enhances communication efficiency. Embedding data within the hardware increases device self-reliance and operational dependability.

Battery Encapsulation and 3V Lithium Cell

To ensure continuous timekeeping during power interruptions, the module includes a battery holder for CR2032 lithium cells. This continuity finds parallels in backup systems that safeguard data integrity and maintain operational flow, particularly in fields that demand persistent functionality.

Temperature Sensor Interface for DS18B20

The module can accommodate a DS18B20 temperature sensor through an optional port. Temperature monitoring becomes useful in scenarios where environmental conditions could affect time precision. In industrial settings, such data drive instantaneous refinements, ensuring efficiency and accuracy in processes.

Connecting DS1307 to Arduino Uno

To connect the DS1307 Real-Time Clock (RTC) module to an Arduino Uno, follow these simple steps: link the SCL pin to A5, SDA to A4, VCC to 5V, and GND to GND. This setup ensures reliable communication between the module and the Arduino. Before programming, install the DS1307 library by Michael Margolis through the Arduino IDE. This library provides the necessary functions to easily manage the hardware. The DS1307 module is invaluable for projects requiring precise timekeeping, such as data logging, scheduling, or data processing. It maintains the current time and date consistently, even during power outages, thanks to its built-in battery backup. To ensure a smooth setup, use a breadboard for secure and adjustable connections, avoiding short circuits. Labeling wires can also reduce confusion, especially in more complex projects.

Once the hardware is ready, the next step is initializing the software. Begin by establishing a robust serial connection, checking the RTC’s operational status, and setting the initial time if necessary. From there, monitor the time continuously and display it on the serial monitor in a readable HH:MM:SS format to verify proper communication between the Arduino and the module. Debugging and fine-tuning during this stage can greatly streamline the development process. If issues such as incorrect time displays or communication errors occur, ensure that your library is up to date and carefully check all connections. Troubleshooting systematically, testing individual components one at a time can often reveal the root cause. Consulting online forums or community resources can provide quick solutions to common challenges.

Applications of the DS1307 RTC Module

Digital Clocks and Time-Stamped Devices

The DS1307 is widely used in digital clocks and devices requiring precise timekeeping. Cameras, for instance, rely on it to add accurate timestamps to images and videos, helping document events in a chronological sequence. Time-stamping is also great in data recording devices such as environmental sensors, where accurate records are necessary for trend analysis and historical tracking. In attendance systems, the DS1307 ensures reliable tracking of employee check-in/out times for maintaining accurate time logs in workplaces and institutions.

DIY Projects and Microcontroller Integration

The DS1307 RTC is a favorite because its I2C communication interface makes it easy to pair with popular microcontrollers such as Arduino and Raspberry Pi. DIY projects like home automation systems, alarm clocks, and wearable tech frequently incorporate this module for its reliability and simplicity.

Robotics and Precision Timing

In robotics, timing precision is good for tasks like synchronization, sensor coordination, and navigation. The DS1307 provides accurate clock signals, allowing robots to perform actions at specific intervals and maintain precise control over their operations. It is commonly used in autonomous robots, drones, and industrial robotics to schedule tasks like sensor data collection, motor control, and obstacle avoidance with impeccable timing.

Servers and Distributed Systems

The DS1307 RTC module is a reliable solution for servers and distributed computing systems where synchronized timing is required. It assists in accurate data logging, ensuring that timestamps are consistent across multiple devices. In distributed systems, it helps coordinate actions between servers by maintaining a shared sense of time. Security systems also benefit from its precise timekeeping.

Utility Power Meters

Utility companies often integrate the DS1307 into power meters to ensure accurate billing and timestamping of energy consumption data. By logging the exact time when electricity usage occurs, these power meters provide a transparent and reliable record of energy use. This is great in areas where billing is time-of-day dependent, such as peak and off-peak electricity rates.

Gaming Devices

Modern gaming consoles and handheld devices leverage the DS1307 for internal clock functionality. The module enables time-based features, such as timed challenges, events, or rewards that depend on the clock. For example, games with day-night cycles or event triggers rely on the DS1307 to accurately track and manage in-game time.

GPS Units and Navigation Systems

The DS1307 is used in GPS units and navigation devices to enhance their functionality. Timekeeping is needed in GPS systems for calculating precise locations and coordinating signals from multiple satellites. The DS1307 ensures these devices maintain accurate timing, which directly impacts the quality and reliability of navigation data.

Medical Devices

Medical devices often depend on accurate timing for diagnostics, monitoring, and logging patient data. Devices such as insulin pumps, heart rate monitors, and portable ECG machines incorporate the DS1307 to track time accurately for medication schedules, continuous monitoring, or timestamping recorded health data. Its reliability ensures these devices function consistently, improving patient outcomes.

Smart Home Devices

In the smart home ecosystem, the DS1307 module finds its place in devices like thermostats, lighting systems, and home security systems. It allows these devices to operate on pre-programmed schedules, such as turning lights on or off at specific times, adjusting the thermostat throughout the day, or enabling/disabling alarm systems automatically. Accurate timing enhances the efficiency and usability of these systems.

Environmental Monitoring Systems

Environmental sensors that monitor conditions like temperature, humidity, and air quality use the DS1307 for precise time-stamped readings. This data benefit for research, climate studies, and industrial applications where trends must be tracked over time. For instance, in agricultural applications, it can help monitor soil moisture or weather patterns, enabling farmers to make informed decisions based on time and historical data.

Industrial Automation

In factories and industrial plants, the DS1307 is used in automated systems to schedule and coordinate tasks. Machines that require synchronization, such as conveyor belts or assembly line robots, depend on the DS1307 for reliable timing. Its use in industrial settings improves production efficiency and ensures operations are carried out with precision.
