Differences Between LM2576 and LM2596 Voltage Regulators

This article compares two common voltage regulators: the LM2576 and LM2596. These components are used to lower higher voltages to safer levels for electronic devices. While they serve similar purposes, each has specific features that make it better suited for certain projects. This guide will help you understand how they work, what makes them different, and where each one can be used, so you can pick the right one for your needs.

Catalog

Overview of LM2576 Voltage Regulator

The LM2576 voltage regulator series includes integrated circuits designed as step-down (buck) switching regulators. They are available in fixed output options of 3.3V, 5V, and 12V, along with an adjustable version that can be set between 1.23V and 37V. These regulators are capable of handling loads up to 3A while maintaining stable line and load regulation. With built-in frequency compensation and a fixed frequency oscillator, they minimize the need for additional external components, making them more efficient than traditional three-terminal adjustable linear regulators. The efficiency also reduces the size of heat sinks required, and in some cases, removes the need for them altogether.

Overview of LM2596 Voltage Regulator

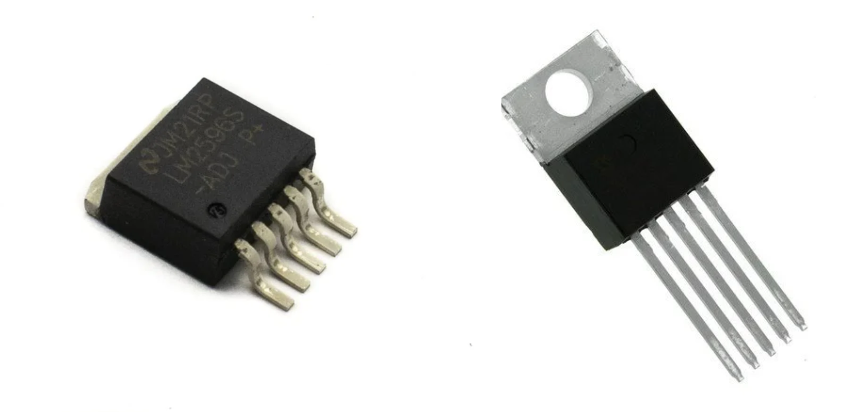

The LM2596 is a versatile voltage regulator designed specifically for buck-switching applications. It can handle up to 3A loads while maintaining stable performance under varying line and load conditions. Available in fixed output options like 3.3V, 5V, and 12V, as well as an adjustable version, it offers flexibility to suit different requirements. Its design reduces the need for external components, making it easy to use due to built-in frequency compensation. Operating at a 150kHz switching frequency, it allows for smaller and more efficient filter components, which results in a more compact overall setup. The LM2596 is available in 5-pin TO-220 and TO-263 surface-mount packages, making it adaptable for a range of applications.

LM2576 and LM2596 Features

When comparing the LM2576 and LM2596 voltage regulators, it's helpful to break down their specific features and applications.

LM2576 Features

The LM2576 voltage regulator is known for its reliable performance and distinct features. It operates with a fixed internal oscillator set at a consistent frequency of 52kHz. This regulator comes in two package options: TO-220 and TO-263. You can choose from fixed output voltages of 3.3V, 5V, and 12V, or use its adjustable range, which spans from 1.23V to 37V. Additionally, it includes protective mechanisms such as current limit and thermal shutdown. With an input voltage capability of up to 40V, it can be used in various applications, providing flexibility for different projects.

LM2596 Features

The LM2596 offers stable performance across a range of applications. It has an output voltage tolerance of ±4% and an oscillator frequency tolerance of ±10%. This regulator can handle a maximum output current of 3A and features an undervoltage lockout to ensure consistent operation within its specified voltage range. Similar to the LM2576, it is available with fixed output options of 3.3V, 5V, and 12V, as well as an adjustable output. The operating input voltage range is 4.5V to 40V, and it can maintain a minimum output voltage of 3.16V.

The LM2596 also supports continuous output current of 3A and peak currents up to 6.9A. Its switching frequency of 150kHz enables the use of smaller filter components without compromising performance. This regulator is available in both TO-220 and TO-263 packages, offering flexibility for different design needs and making it a practical choice for high-current applications.

Input and Output Voltage Ranges

The LM2576 offers an output voltage range from 1.23V to 37V, while the LM2596 provides an adjustable output from 1.25V to 37V, with a minimum setting of 1.25V. This flexibility makes both regulators suitable for designing power supply circuits where you need to fine-tune the voltage to match your components' needs. You can easily adjust the voltage to suit different requirements, making these regulators reliable choices for maintaining stable performance in sensitive electronic devices.

Feature	LM2576	LM2596
Manufacturer	Microchip Technology	Texas Instruments
Voltage Range	1.23V - 40V	1.25V - 40V
Output Voltage (Max)	37V	37V
Frequency-Switching	52kHz	150kHz
Function	Step-Down	Step-Down
Fixed Frequency	52kHz	150kHz
Package Options	TO-220, TO-263	TO-220, TO-263
Output Voltage Options	3.3V, 5V, 12V, 15V	3.3V, 5V, 12V, adjustable
Protection Features	Current limit protection, thermal shutdown	Undervoltage lockout, current limit protection
Adjustable Output Voltage	1.23V to 37V	1.25V to 37V
Input Voltage	Up to 40V	4.5V to 40V
Output Voltage Tolerance	±4% tolerance, ±10% oscillator frequency tolerance	±4% tolerance, ±10% oscillator frequency tolerance
Maximum Output Current	3A	3A continuous, 6.9A peak
Minimum Output Voltage	-	3.16V
Undervoltage Lockout	Prevents operation until fixed threshold voltage is reached	Ensures stable operation within specified voltage range

Applications of LM2576 vs. LM2596

Applications of LM2576 Voltage Regulator

The LM2576 voltage regulator serves a variety of applications, making it versatile for numerous settings:

• LED Drivers:

The LM2576 is used to regulate power for LEDs, enhancing the lifespan and functionality of lighting systems. This makes it suitable for both household and industrial environments.

• Power Supplies:

It helps convert AC mains to a stable low DC voltage, making it useful for powering microcontrollers, sensors, and communication modules. Its efficiency in minimizing heat generation also appeals to applications focused on energy conservation.

• Battery Chargers:

The LM2576 works well for charging lead-acid batteries, making it a great choice for automotive and backup power systems that require reliable performance over time.

• Vehicle Electronics:

It ensures a steady voltage supply for critical vehicle systems such as infotainment, navigation, and engine control units. This contributes to the overall safety and efficiency of modern vehicles.

• Telecommunications:

The LM2576 maintains a consistent DC voltage for devices like base stations and routers, helping support stable communication infrastructure.

• Industrial Automation:

The regulator provides reliable power for controlling systems, motor drives, and instrumentation circuits. Its durable design makes it suitable for challenging industrial environments.

• Consumer Electronics:

It is often found in TVs, set-top boxes, audio amplifiers, and home appliances, where it helps maintain operational efficiency and performance by delivering accurate voltage regulation.

• Renewable Energy Systems:

The LM2576 efficiently regulates the output from renewable sources like solar panels or wind turbines, optimizing battery charging and power distribution to various loads, thus supporting sustainable energy solutions.

Applications of LM2596 Voltage Regulator

The LM2596 voltage regulator is also widely used in different applications, making it an effective choice in various scenarios:

• Battery Charging:

The LM2596 provides precise voltage and current regulation, ensuring safe and efficient charging for different battery types, making it suitable for a range of applications.

• LED Lighting:

It enables accurate control of brightness and energy usage across various lighting systems, whether in homes, businesses, or vehicles, contributing to better energy savings and user experience.

• Industrial Automation:

The LM2596 delivers stable power to detectors, controllers, and other electronics used in automated systems, which supports smooth operations and increases overall system reliability.

• Consumer Electronics:

It is found in devices like audio equipment, computers, tablets, smartphones, and cameras, where it ensures stable performance and helps extend battery life, providing an enhanced user experience.

• Renewable Energy Systems:

The LM2596 regulates voltage and current from renewable sources, ensuring efficient battery charging and powering of various loads, which encourages the use of green technology and reduces dependency on traditional energy sources.

• Test and Measurement Instruments:

It supplies precise power to tools like multimeters, oscilloscopes, and signal generators, supporting accurate measurements in scientific and technical fields.

Conclusion

To wrap up, both the LM2576 and LM2596 are reliable voltage regulators with unique benefits. The LM2576 is a good choice for standard applications, while the LM2596’s flexibility and added features make it suitable for a broader range of uses. Knowing the strengths of each will help you select the right regulator, ensuring your projects run smoothly and efficiently.

Frequently Asked Questions [FAQ]

1. What's the difference between LM2576 and LM2596?

The LM2576 mainly works as a buck regulator, lowering voltage efficiently. The LM2596, on the other hand, can function as both a buck and boost regulator, allowing it to adjust voltage up or down. This makes the LM2596 more versatile and better suited for handling higher peak currents. Its flexibility makes it ideal for applications with fluctuating voltage requirements, such as communication networks.

2. What are the common applications for LM2576 and LM2596?

Both regulators are widely used in power supplies, battery chargers, LED drivers, automotive electronics, industrial automation, telecommunications, renewable energy systems, and test instruments. They provide stable voltage, ensure safe charging, maintain steady current for LEDs, and operate reliably in challenging conditions like automotive environments. Their stability and reliability make them useful in various fields where consistent performance is needed.

3. Where can I find more information about LM2576 and LM2596?

For more details, check the Texas Instruments (TI) website for datasheets and design guidelines. Electronic component distributors also offer resources like application notes and user guides. Additionally, online forums and technical communities can provide real-world troubleshooting tips and insights.
