Everything About the LM7809 Voltage Regulator

Voltage regulation is a keystone of modern electronics, ensuring consistent performance and reliability across various applications. The LM7809 voltage regulator exemplifies this necessity by delivering a stable 9V output, enabling seamless operation for devices sensitive to voltage fluctuations. Whether powering microcontrollers, sensors, or motor drivers, the LM7809 stands out for its simplicity, dependability, and adaptability. This article digs into the LM7809’s features, specifications, and applications, providing valuable insights for you aiming to optimize voltage regulation in their projects.

Catalog

LM7809 Voltage Regulator Overview

The LM7809 is a reliable positive voltage regulator IC, renowned for providing a steady 9V output in various applications. With its ability to handle currents between 1A and 1.5A, it finds widespread use in fields like robotics and embedded systems, where consistent voltage supply is serious. To achieve optimal performance, the LM7809 requires an input voltage of at least 11V, maintaining a minimum 2V headroom to deliver its regulated output. Designing a proper power supply with adequate input reserve is required to ensure efficiency and prevent interruptions in power flow.

With support for input voltages as high as 35V, the LM7809 proves highly adaptable to environments where voltage fluctuations are common, such as automotive electronics and field instruments. Its ability to handle voltage surges enhances reliability, making it a preferred choice for you managing systems with variable input conditions. However, managing heat dissipation is used, as the voltage differential between input and output generates heat. Proper thermal design, including the use of appropriate heatsinks, is required to ensure efficient operation and extend the device's lifespan.

Built-in features like thermal shutdown and short-circuit protection further enhance the LM7809’s dependability, safeguarding it under adverse conditions. These protections make the regulator valuable in both commercial and educational contexts, offering not only reliable performance but also opportunities for hands-on learning about circuit safety. These embedded safeguards contribute to its practicality in applications demanding high reliability and low maintenance, solidifying its role as a versatile voltage regulator IC.

Pin Layouts

Pin No.	Pin Name	Description
1	Input (V+)	Unregulated Input Voltage
2	Ground	Connected to Ground
3	Output (Vo)	Outputs Regulated +9V

Features

Feature	Details
Current Output Range	1A to 1.5A
Cost-Effectiveness	Yes
Application Suitability	Commercial Applications
Output Voltage	Steady and Consistent 9V Output
Maximum Input Voltage	35V DC
Standby Current Consumption	Extremely Low, Just 8mA
Minimum Required Input Voltage	11V
Maximum Allowed Input Voltage	35V
Power Supply Rejection Ratio (PSRR)	55 dB
Output Voltage Tolerance	9V ± 4%
Drop-Out Voltage (VI – VO)	2.0V
Output Type	Fixed
Thermal and Current Protection	Internal Thermal Overload and Short Circuit Current Limiting
Maximum Junction Temperature	125°C
Package Types	TO-220, TO-3, KTE

Technical Specifications

Type	Parameter
Nominal Supply Current	5 mA
Quiescent Current	8 mA
Output Configuration	Positive
Voltage Dropout (Max)	2V @ 1A Typ
Terminal Position	SINGLE
Protection Features	Over Temperature, Short Circuit
Dropout Voltage	2V
Dropout Voltage1-Nom	2V
Output Voltage Accuracy	4%

Thermal Considerations for the 7809 Voltage Regulator

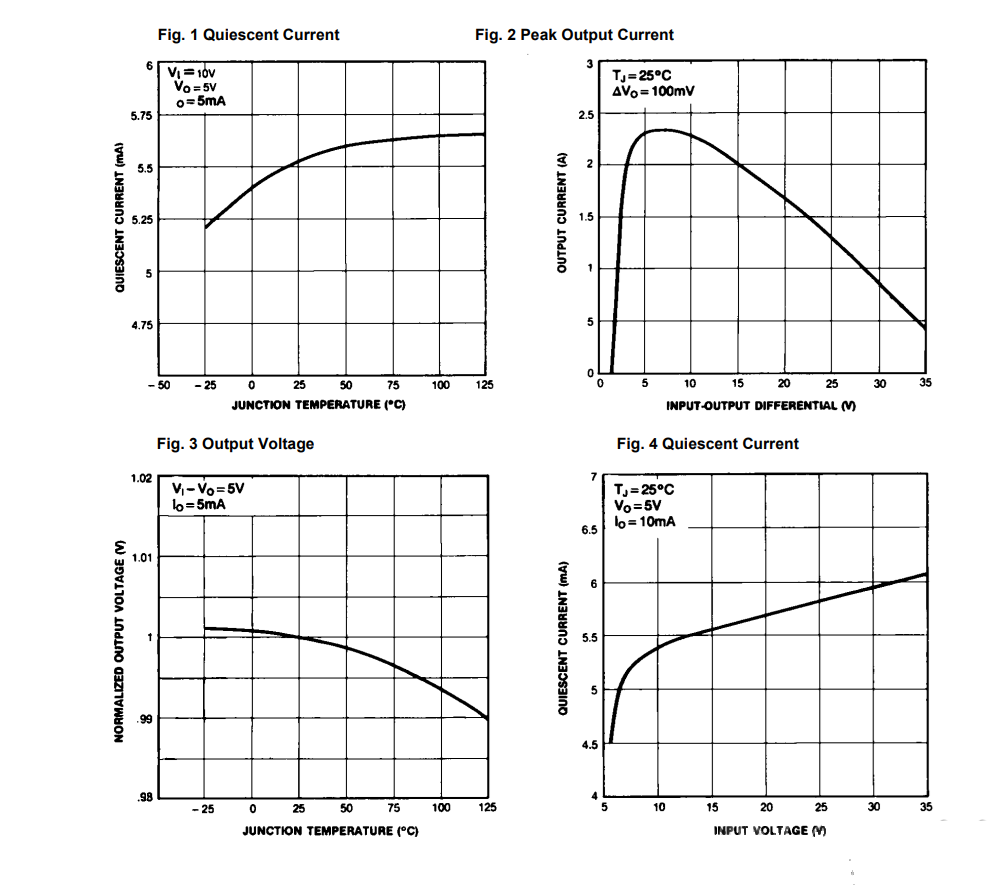

LM7809 Typical Performance Characteristics

The renowned 7809 voltage regulator is famous not just for its precision in output but also for its distinctive ability to deliver an exceedingly smooth voltage supply, often surpassing many DC-DC converters in this respect. However, generating more heat is a noteworthy byproduct of this attribute. This superior smoothness is largely due to the presence of a series pass transistor at the output, which plays a key role in curbing excess voltage.

To discern the amount of power dissipated, one can apply the formula: (Input Voltage - Output Voltage) x Output Current. Suppose the input voltage is 12V with a corresponding output current of 1A. In this situation, the power dissipation is calculated to be 3 watts, suggesting that effective thermal management strategies, such as heatsinks, are advisable.

The necessity for heat management becomes evident as the regulator’s dissipation surpasses 1.25 watts—the threshold beyond which additional cooling is required. In circuit design, ensuring sufficient heat dissipation is an ultimate task useful for sustaining both performance and system dependability.

Making Use of the 7809 for a Steady 9V Power Supply

The 7809-voltage regulator plays an ultimate role in providing a reliable 9V power output in scenarios where the input environment may vary. It efficiently handles input voltages between 11V and 35V, ensuring a steady output current that usually exceeds 1A, with peak capabilities reaching up to 2.2A. This renders it a suitable selection for you who value dependability.

When the power source is located over 10 inches away from the installation site, incorporating an input capacitor of 0.33uF or larger is advisable. Choosing capacitors with low equivalent series resistance (ESR) can help reduce energy loss. These configurations play a notable role in boosting the performance of the voltage regulator, mostly in maintaining stability amid varying conditions.

7809 9V Regulator with Bypass Caps

L7809 Serving as a +9V Voltage Regulator

Adding an optional 0.1uF output capacitor can enhance the transient response of the 7809 significantly. This leads to noticeable improvements when facing fluctuations in load or input voltage, thereby increasing the system's overall resilience. Although commonly practiced, it's insightful to explore custom configurations tailored to specific environmental requirements.

Equivalent Models

• LM7806

• LM7824

• LM7815

• LM7812

• LM317

• LM7905

• LM7912

Applications

Microcontrollers and Sensors

The LM7809 is extensively employed to deliver a consistent 9V output, which is mostly suited for microcontrollers and sensors. The ability of this device to maintain performance despite fluctuating input voltages supports the integrity of sensitive sensor data and microcontroller activities, ultimately enhancing the durability of electronic systems. Ensuring efficient voltage regulation is often pursued in practical applications to avoid issues like data corruption or loss within microcontrollers.

Voltage Reduction

When a precise downsizing from higher voltages to 9V is needed, the LM7809 excels due to its proficiency in minimizing voltage inconsistencies. This feature is especially valuable in scenarios where devices, like sophisticated home automation systems or portable electronics, are vulnerable to overvoltage threats. Integrating the LM7809 reduces the likelihood of harm caused by input voltage variations.

Power Supply Frameworks

Within power supply systems, the LM7809 is recognized for delivering a consistent output, useful for regular operations. In both industrial settings and consumer electronics, it prevents power disruptions that could result in expensive downtimes or data mismanagement. Its built-in thermal protection adds a layer of resilience, allowing the LM7809 to handle transient conditions commonly encountered in environments.

Motor Drivers

When used in motor driver setups, the LM7809 provides the stability needed for motors to perform consistently. This attribute is major for applications like robotics or precision manufacturing, where motors must operate at designated speeds or torques. The regulator's ability to smooth voltage fluctuations ensures operational efficiency is maintained.

Battery Charging and Solar Power

In battery charging and solar power systems, the LM7809 plays a basic role in providing a constant charging voltage, thus extending battery life and efficiency. It is mostly beneficial in solar systems with variable input voltages throughout the day. Integrating the LM7809 supports an optimized charging cycle under varied input conditions.

Microcontrollers

Functioning as a primary power source for microcontrollers, the LM7809 mitigates challenges related to power sensitivity and consistency. Providing a steady power supply is used in complex setups where precise power stability ensures seamless operation of microprocessor-driven tasks.

Adjustable Regulators and Current Management

The LM7809 is valuable as a part of adjustable regulator systems, where different voltage levels are needed for distinct stages. It also aids in situations where current limitations are required, protecting interconnected devices from unexpected surges. By incorporating the LM7809, you can secure not only voltage constancy but effective current management, a consideration that may be absent in broader system designs.

Dual Supply Systems

In dual supply systems requiring output polarity defense, the LM7809 offers protection against incorrect connections. This aspect is required in intricate electronic designs where reverse polarity can lead to component damage. The capability of the LM7809 to endure such conditions without losing performance introduces major resilience, contributing to uninterrupted system operation.

CAD Model

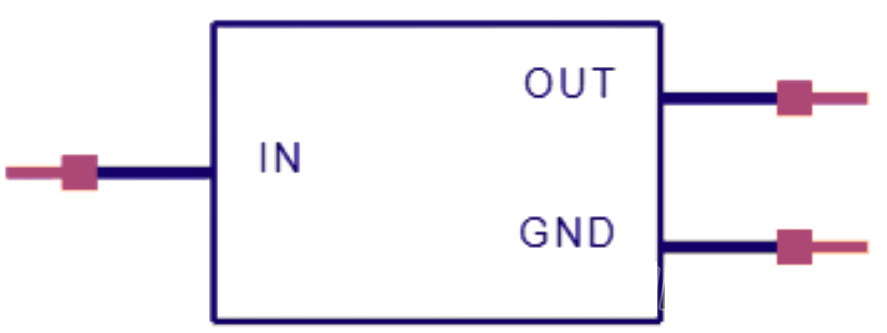

Symbol

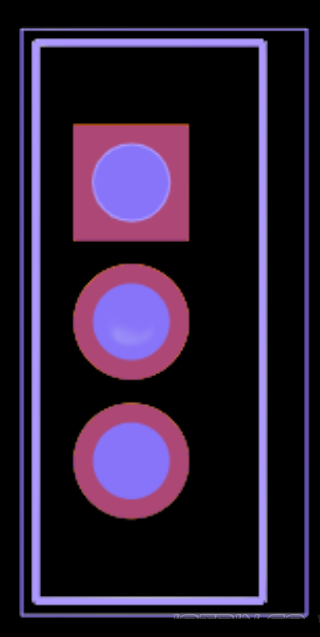

Footprint

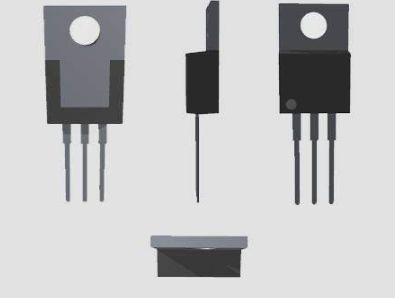

3D Model

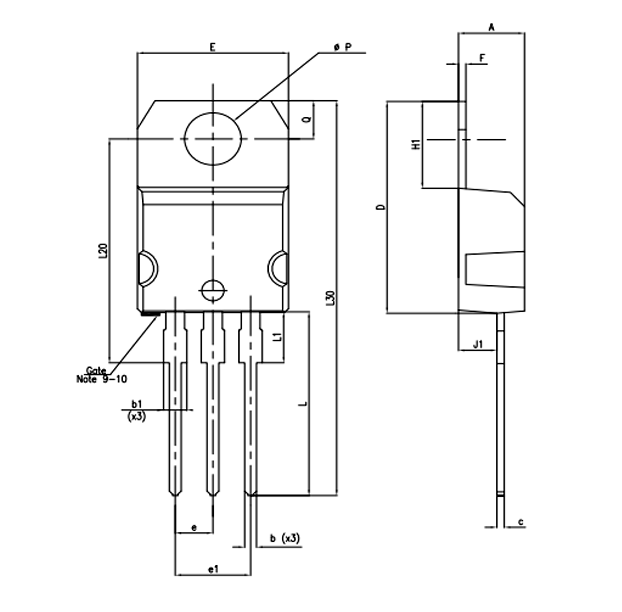

2D Model of LM7809

Conclusion

The LM7809 voltage regulator is a trusted solution for maintaining a steady 9V output, demonstrating remarkable performance in diverse electronic applications. Its straightforward design, combined with robust features like thermal protection and short-circuit safety, ensures reliability in both prototyping and finished systems. By addressing challenges such as voltage fluctuation and heat dissipation, the LM7809 enhances device efficiency and longevity. As technology evolves, the LM7809 continues to play a dynamic role in delivering stable power, fostering innovation, and ensuring the durability of electronic designs for you.
