Exploring the MC34063ADR2G Switching Regulator: Functions, Features, and Uses

This article highlights its role in the MC34063A series and its broad applications in electronics. It examines alternatives like the LM2575 and MC33063A, basic specifications such as voltage range and current output, and discusses the chip's advantages and drawbacks, including cost-effectiveness and heat issues. The text also covers the operational principles involving a switching regulator with an inductor, diode, and capacitor. Actual applications in compact and cost-sensitive environments are emphasized, along with the importance of effective thermal management.

Catalog

Comprehensive Evaluation of MC34063ADR2G

The MC34063ADR2G is a versatile monolithic bipolar linear integrated circuit tailored for DC to DC converter control applications. It reliably operates in temperatures from 0°C to 70°C, with a switching current capacity of 1.5 A and switching frequencies up to 100 kHz. The IC incorporates several intact internal circuits are temperature-compensated reference voltage source, oscillators, converters, logic control systems and switching transistors.

Employing a bandgap reference, maintains a stable output voltage. The oscillator's frequency is adjusted via an external capacitor on pin three. The comparator and logic circuitry regulate the switching transistor, ensuring peak operational efficiency. With a minimal external component count, the chip can be configured as a power inverter, buck converter, or boost converter. It is packaged using the convenient tape and reel method for easy delivery and installation.

Internal Circuitry and Functional Blocks

Temperature-Compensated Reference Voltage Source- The temperature-compensated reference voltage source in the MC34063ADR2G is dynamic for sustaining precise voltage levels despite temperature variability. This stability is especially valuable in fluctuating thermal environments, with actual applications showing that a stable voltage reference enhances overall circuit reliability.

Oscillator and Frequency-Setting Mechanism- The oscillator's frequency-setting mechanism uses an external capacitor, allowing designers to precisely adjust the operation for various application needs. This adaptability enables the MC34063ADR2G to excel in numerous DC to DC conversion scenarios, from battery-operated gadgets to embedded system power supplies.

Switching Transistors and Control Logic- Switching transistors, managed by an internal comparator and logic circuit, enhance the IC's efficiency. These components are crafted to minimize power dissipation and bolster energy transfer. Practical experiences underline the importance of energy efficiency in power management designs, where every watt saved contributes to the robustness of the system.

Alternatives and Equivalents to MC34063ADR2G

• MC34063ADG

• MC34063ADR2

• MC33063ADR2G

• NCP3063DR2G

• NCV3064DR2G

Technical Parameters of MC34063ADR2G

Operational Conditions and Voltage Range

Manufactured by Onsemi, the MC34063ADR2G component operates efficiently between 0°C and 70°C. Its voltage range stretches from 3V to 40V, accommodating a wide array of applications. Such flexibility makes it an attractive option for various consumer electronics, where reliable voltage regulation is required. These include devices like portable gadgets and automotive electronics, where stability can often mean the difference between smooth functioning and frustrating inconsistencies.

Installation Methods and Switching Frequency

Offering installation via Surface-Mount Device (SMD) or Surface-Mount Technology (SMT) methods, the device affords designers flexibility in PCB layouts. With a switching frequency of 100 kHz, it's crafted to strike a balance between efficiency and component size. This balancing act is especially used in high-performance applications, such as power management systems and telecommunications, where both space and performance cannot be compromised.

Packaging and Topologies

Comprising an 8-pin Small Outline Integrated Circuit (SOIC) package, the MC34063ADR2G fits seamlessly into various designs due to its compactness. Typically available in Tape & Reel (TR) packaging, it supports automated production, thus enhancing manufacturing efficiency and consistency. Capable of functioning in boost, buck, and inverting topologies, this component showcases versatility, making it suitable for diverse power supply configurations. This proves particularly beneficial in the design of converters and battery-operated systems, where adaptability is highly valued.

Physical Dimensions and Classification

The dimensions of the MC34063ADR2G are as follows - 5 mm in length, 4 mm in width, and 1.5 mm in height. These measurements classify it as a compact switching voltage regulator. Its size permits integration into space-constrained environments without sacrificing performance. This characteristic is especially serious in contemporary electronic devices, where board space is at a premium—such as in wearables and IoT devices.

Working Principle of MC34063ADR2G

The MC34063ADR2G operates on a bipolar transistor mechanism, where its temperature-compensated bandgap reference plays a main role in maintaining a stable voltage output across varying conditions. The oscillator driver, used in controlling the duty cycles, directly influences performance. In addition, the high-current output switch, delivering up to 1.5 A, caters to demanding load requirements. Regulating input voltage via the switching transformer is the ultimate for convert input to a steady DC output. This is achieved through the combined efforts of the timing element and a comparator. Positive feedback circuits ensure that any fluctuations in output voltage prompt immediate adjustments in the duty cycle, continuously stabilizing the output. The following basic components encapsulate this mechanism and their roles.

Temperature-Compensated Bandgap Reference

Maintaining a stable voltage despite temperature variations, the bandgap reference ensures ultimate voltage regulation remains unaffected by external thermal conditions. This characteristic proves beneficial in environments with momentous temperature fluctuations, showcasing the MC34063ADR2G’s reliability in diverse applications.

Oscillator Driver

Generating signals that control the duty cycle, the oscillator driver ensures consistent timing required for accurate voltage regulation. Actual implementations often highlight the value of precise oscillator behavior in achieving efficient power management.

High-Current Output Switch

Capable of delivering up to 1.5 A, the output switch meets the demands of higher loads. Helpful scenarios show that robust current delivery supports enhanced device performance and longevity.

Switching Transformer and Input Voltage Regulation

Facilitating the transformation of varying input voltages into a stable DC output, the switching transformer ensures desired output levels. Efficiently operating transformers minimize energy loss during voltage conversion, leading to more reliable and cost-effective power solutions.

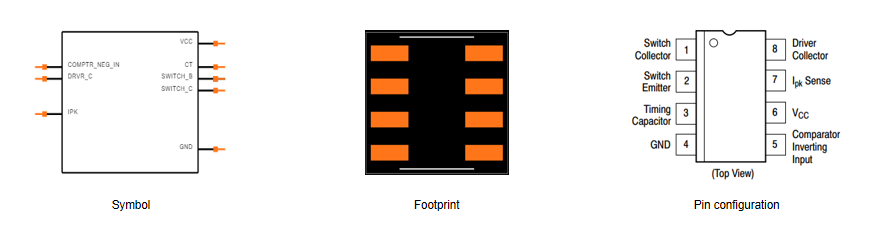

MC34063ADR2G Symbol, Footprint, and Pin Configuration

The MC34063ADR2G is represented by a distinctive symbol in circuit diagrams. Intricately designed for easy recognition, this symbol integrates logically within electrical schematics. It encapsulates desired information about pin locations and overall functionality, aiding practitioners in grasping the device's role within larger circuit assemblies.

The footprint of the MC34063ADR2G pertains to its physical layout on a PCB (Printed Circuit Board). This aspect encompasses the precise placement and soldering required during manufacturing. Proper alignment with the pin configuration ensures reliable connections, which can suggestively influence the device's performance and longevity. A well-aligned footprint minimizes potential soldering errors, enhancing the device's functionality in useful applications.

The pin configuration for the MC34063ADR2G establishes its interface with external circuitry. Each pin has a specific role, whether for power input, ground, or signal processing.

Advantages and Disadvantages of MC34063ADR2G

Advantages

Adjustable Output Voltage- The MC34063ADR2G offers the flexibility of an adjustable output voltage, allowing it to be tailored to a wide range of applications. This feature enables engineers to design circuits that meet specific voltage requirements, enhancing device compatibility and functionality.

Low Standby Current- Its low standby current suggestively reduces overall power consumption, making it ideal for battery-operated devices. By minimizing energy wastage, this feature extends the lifespan of portable equipment, catering to the ever-growing demand for longer-lasting gadgets.

High Operating Frequency- Operating at frequencies up to 100 kHz, this device ensures rapid conversion rates. This high frequency is particularly beneficial in applications requiring quick response times, such as dynamic power supplies.

Environmental Compliance- The MC34063ADR2G's adherence to environmental standards, being lead-free, halogen-free, and compliant with RoHS, demonstrates a commitment to eco-friendly and sustainable technologies. This compliance aligns with contemporary regulatory requirements, emphasizing environmental stewardship.

Wide Voltage Range- It operates within a broad voltage range of 3V to 40V, making it highly versatile for various applications. This extensive range offers flexibility in designing systems with varied voltage needs, spanning from low-power electronics to industrial equipment.

Current Limit Function- Including a current limit function serves as a safeguard for circuit protection, preventing damage from overcurrent conditions. This feature proves invaluable in protecting sensitive components and ensuring the longevity and durability of the entire system.

High Precision and Reliability- The device offers high precision in voltage control and reliable performance. Such precision is useful in applications where voltage regulation must be tightly controlled, like in medical devices or communication systems.

Disadvantages

Long Conversion Time- A notable drawback is its long conversion time, limiting the MC34063ADR2G's suitability for applications demanding rapid voltage adjustments. In present systems requiring instantaneous power shifts, this limitation could pose substantial challenges.

Poor Load-Following Capability- The device exhibits poor load-following capability, which can lead to unstable voltage outputs under varying loads. This instability can be detrimental in applications where consistent voltage levels are settling, such as in precision measurement tools.

Reduced Stability in Harsh Environments- Another limitation is its reduced stability in high-temperature or high-pressure environments. Devices operating under extreme conditions may experience performance degradation, affecting the system's reliability and safety.

Main Applications of MC34063ADR2G

LED Drives

The MC34063ADR2G demonstrates remarkable efficacy in LED drives. By stabilizing current and managing voltages with precision, it ensures the prolonged lifespan and high efficiency of LED lighting systems. This application is exceptionally advantageous in environments demanding consistent illumination, such as industrial settings and public infrastructures.

Household Water Pumps

In household water pumps, the MC34063ADR2G plays a major role by regulating power supply fluctuations. This regulation leads to better water flow control and extends the life of pump motors. It serves as a main component where the steadiness of water flow and energy efficiency are highly desirable.

Smart Grids

Smart grids gain substantial advantages from the MC34063ADR2G due to its efficient power management abilities. By optimizing energy distribution and consumption, it helps maintain grid stability. This component thus supports energy conservation initiatives and bolsters the dependability of modern electrical infrastructures.

Switching Power Supplies

The MC34063ADR2G is extensively utilized in switching power supplies because of its high efficiency and reliability. It maintains steady voltage levels and minimizes power loss. This reliability is used for various electronic devices that require a stable power supply under varying loads.

Surface Treatment Equipment

Surface treatment equipment benefits greatly from the MC34063ADR2G, as it efficiently manages power demands. This leads to enhanced precision and consistency in processes like electroplating and anodizing. Its dependability is useful for the stringent quality controls in manufacturing and finishing treatments.

Battery Protection

The MC34063ADR2G is requisite in battery protection systems, safeguarding against overcharging and deep discharge. This protection extends battery life and enhances safety, which is mainly dominant in delicate applications such as medical devices and portable electronics.

Precision Measurement Detectors

Precision measurement detectors necessitate stable and precise power management, a need effectively met by the MC34063ADR2G. This stability ensures measurement systems remain accurate and dependable, which helps in scientific research and high-precision industrial applications.

Common Problems and Solutions for MC34063ADR2G

Inaccurate Output Voltage

Adjust the parameters of external components meticulously, ensuring they suit the specific needs of your design. This might involve tuning resistances, capacitances, or inductances. Reevaluate the overall circuit design to ensure that the components are well-matched and optimally placed. Experience shows that fine adjustments can knowingly enhance voltage accuracy. This indicates that meticulous initial layout planning is used.

Protection Mechanism Failure

Thoroughly inspect protection components such as transistors, diodes, and fuses to ensure they are functioning correctly. Review the software algorithm implementation responsible for the protection mechanisms. In practice, integrating redundant checks within the software can preempt potential protection failures. This demonstrates the value of robust software in safeguarding hardware.

Unstable Power Supply

Ensure that the power supply environment is inherently stable. This includes using high-quality power sources and applying desired power filtering techniques, such as adding capacitors to filter out noise. Applications of EMC (Electromagnetic Compatibility) techniques have demonstrated that effective filtering strategies are settling for maintaining steady power supply operations. This highlights the benefits of incorporating advanced filtering solutions.

Overheat Protection

Introduce cooling measures such as heat sinks or fans to manage and dissipate excess heat. Inspect the circuit for abnormalities that might contribute to overheating, such as short circuits or excessive current draw. Experiences reveal that effective thermal management is suitable in preventing overheating issues. This reaffirms the necessity of incorporating efficient cooling strategies and circuit integrity checks.

Abnormal Power-down Protection

Verify that the power supply voltage range falls within the specified limits for safe operation. Evaluate the overall stability of the circuit, especially under variable load conditions. Observations show that maintaining a narrow voltage tolerance can preempt power-down issues. This emphasizes the importance of precise voltage regulation and robust circuit design.

Insufficient Driving Ability

Employ appropriate driving components that are capable of delivering the required current and voltage levels. Ensure that the circuit design includes adequate provisions to support the driving capabilities. Experiences suggest that selecting high-quality driver components can markedly improve performance.

Difficulty In Starting

Examine other related components, such as the input power supply, load, and start-up circuitry, to ensure they are correctly specified and implemented. Ensuring proper circuit design is ultimate to avoid start-up issues. Actual implementations demonstrate that paying attention to the entire system design, especially the start-up phase, can resolve many initial operational challenges. This illustrates the significance of a holistic design approach.

Frequently Asked Questions [FAQ]

1. What is the function of the MC34063?

The MC34063 is a versatile integrated circuit, designed for buck (step-down), boost (step-up), or voltage-inverter converter applications. Encased in an 8-pin DIP or SOIC package, it employs a 1.25 V reference voltage to precisely adjust the converter's output. Owing to its adaptability, it is extensively used in various power supply designs for enhancing product reliability and efficiency.

2. What is the purpose of the MC34063ADR2G IC?

The MC34063ADR2G IC has a substantial role in regulating and managing the output voltage of electronic circuits. It supports step-up, step-down, and inverting configurations, thus addressing diverse power management needs. Its application in different configurations increases its attractiveness in modern electronic design. You will often find it in power supplies for consumer electronics, industrial automation, and telecommunications.

3. What does a voltage regulator do?

A voltage regulator ensures a stable output voltage, regardless of input voltage variations or different load conditions. This stability is focal for protecting sensitive electronic components and ensuring consistent performance. Reflecting on historical practices, unregulated power supplies often led to equipment failures, revealing the role of voltage regulation in preventing such issues through its inherent reliability.

4. What are the typical applications for the MC34063ADR2G in inverting mode?

In its inverting mode, the MC34063ADR2G generates a negative output voltage, which is basic for certain applications. Typical uses includes operational amplifier circuits, audio equipment and analog signal processing.

These applications require negative voltages for proper operation. Drawing from experiences, inverting converters like the MC34063ADR2G prove useful

In the world of designs needing bipolar power supplies, ensuring seamless and reliable performance across various electronic devices.
