Exploring the SN74LS32N Positive-OR Gate: Features, Applications, and Datasheet Insights

The Texas Instruments SN74LS32N is a powerful and versatile quadruple 2-input OR gate designed for a wide range of digital logic applications. Featuring TTL-compatible inputs, this component is basic to creating efficient and reliable electronic systems. Its ability to perform the functions of four individual OR gates within a single integrated circuit (IC) makes it highly efficient, saving valuable board space and simplifying circuit design. In this article, we will explore the SN74LS32N’s key features, practical applications, and its role in modern digital electronics.

Catalog

Overview of SN74LS32N

The Texas Instruments SN74LS32N is distinguished for integrating four independent OR gates within a compact 14-pin dual in-line package (PDIP). This integrated circuit functions seamlessly with a 5V power supply, capable of executing Boolean operations such as Y = A + B or Y = (A\B) + (B\A). These features render it adaptable to a multitude of logic applications. Notably, it can source up to 16 mA of current, making it mostly effective for high-speed logic tasks that include arithmetic operations, data selection, and parity generation.

The SN74LS32N transcends simple logic operations, playing a key role in the design and implementation of complex digital circuits. You can often be employed by developing elaborate control systems and computational frameworks. The four OR gates enable parallel processing of logical operations, significantly enhancing computational efficiency.

The dual in-line package (PDIP) of the SN74LS32N is planned for straightforward integration into diverse hardware setups. Its 14-pin configuration assures compatibility with numerous circuit boards, establishing it as an ultimate component in electronic design. When constructing robust digital circuits, the IC's capability to drive 16 mA of current is especially beneficial. This is influential for scenarios that necessitate quick data processing and transmission, ensuring reliable performance under high-speed conditions.

Characteristics of SN74LS32N

Feature	Description
Propagation Delay Time	9 ns typical, 15 ns maximum
Power Dissipation	22 mW typical, 88 mW maximum
Fan-out	10 LS-TTL loads
Operating Temperature Range	-40°C to 85°C
Noise Immunity	0.4 V typical, 0.8 V minimum
Compatibility	Compatible with most TTL families

Applications for SN74LS32N

Logic and Arithmetic Operations

The SN74LS32N IC is prominently utilized in high-speed logic and arithmetic operations. Within arithmetic units, it pairs adeptly with AND and XOR gates to construct half-adders, full-adders, and ripple-carry adders. Creating a half-adder involves using an XOR gate for the sum output and an OR gate to derive the carry output from two input bits. Diving deeper, full-adders expand upon half-adders by calculating the sum and carry of three input bits. This typically integrates both OR and XOR gates. These components together simplify the complexity of digital system designs, creating more streamlined and efficient computational processes. Practical implementations of full-adders and ripple-carry adders are especially evident in microprocessor designs where each nanosecond can shape the difference between outstanding performance and mediocrity.

Data Selection and Multiplexing

In data selection, combining the SN74LS32N with NOT and AND gates allows the configuration of multiplexers, demultiplexers, and decoders. For instance, in a 2-to-1 multiplexer, an OR gate can control data input selection. Such configurations are ultimate when seamless data routing is sought, enhancing both flexibility and scalability in circuit design. Multiplexers and demultiplexers reap notable benefits from integrating the SN74LS32N. These arrangements foster efficient data channeling and less complex wiring. Various industries have applied these configurations in communication systems, ensuring dependable data transmission and robust network functionalities.

Parity Generation and Error Detection

In parity generation, the SN74LS32N helps form even and odd parity bits by strategically using XOR and OR gates. This feature is requisite for systems that demand error detection mechanisms, preserving data integrity during transmission. Systems utilizing the SN74LS32N for parity generation showcase notable improvements in error detection and correction routines. Incorporating this IC into parity-checking circuits provides a streamlined method to pinpoint and resolve transmission errors. This is especially used in high-reliability applications such as financial transactions and telecommunication networks, where the cost of mistakes can be considerable.

Technical Specifications

Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	14-DIP (0.300, 7.62mm)
Number of Pins	14
Weight	927.99329mg
Logic Level-High	2V
Logic Level-Low	0.8V
Operating Temperature	0°C ~ 70°C
Packaging	Tube
Series	74LS
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level	1 (Unlimited)
Number of Terminations	14
Termination	Through Hole
ECCN Code	EAR99
Voltage - Supply	4.75V ~ 5.25V
Terminal Position	DUAL
Number of Functions	4
Supply Voltage	5V
Base Part Number	74LS32
Pin Count	14
Number of Outputs	1
Output Type	TTL
Operating Supply Voltage	5V
Power Supplies	5V
Number of Channels	4
Operating Supply Current	100μA
Nominal Supply Current	100μA
Output Current	8mA
Propagation Delay	22 ns
Quiescent Current	0A
Turn On Delay Time	22 ns
Family	LS
Logic Function	OR
Number of Inputs	2
Logic Type	OR Gate
Max I(ol)	0.0008 A
Max Propagation Delay @ V, Max CL	22ns @ 5V, 15pF
Schmitt Trigger Input	No
Height	5.08mm
Length	19.3mm
Width	6.35mm
Thickness	3.9mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

3D Model of SN74LS32N

Symbol

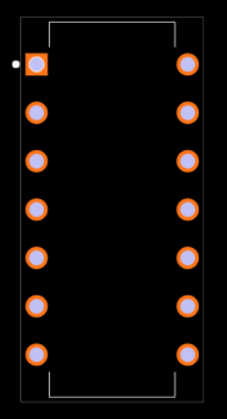

Footprint

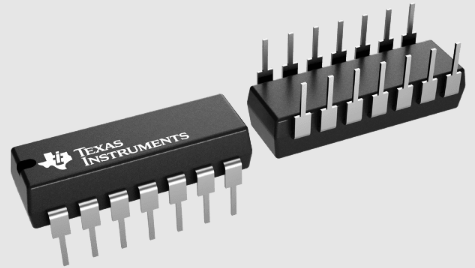

CAD Model

Alternatives to SN74LS32N

Part Number	Description	Manufacturer
DM74LS32N	LS SERIES, QUAD 2-INPUT OR GATE, PDIP14, DIP-14	Texas Instruments
SN74LS32N	LS SERIES, QUAD 2-INPUT OR GATE, PDIP14, PLASTIC, DIP-14	onsemi
N74LS32A	IC LS SERIES, QUAD 2-INPUT OR GATE, PDIP14, Gate	NXP Semiconductors
SN74LS32N	OR Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, ROHS COMPLIANT, PLASTIC, DIP-14	Rochester Electronics LLC
SN74LS32NE4	4-ch, 2-input, 4.75-V to 5.25-V, 16-mA drive strength bipolar OR gate with TTL-compatible inputs 14-PDIP 0 to 70	Texas Instruments
N74LS32N	OR Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14	Signetics
N74LS32N	IC OR GATE, PDIP14, Gate	NXP Semiconductors
T74LS32B1	LS SERIES, QUAD 2-INPUT OR GATE, PDIP14, PLASTIC, DIP-14	STMicroelectronics
