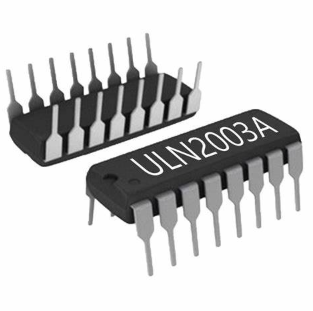

Guide to the ULN2003A

In the dynamic world of electronic design, the ULN2003A Darlington transistor array stands out as an ultimate component that revolutionizes the way you approach high-current applications. Known for its robustness and versatility, the ULN2003A enables seamless integration of low-power control signals with high-power outputs, useful for driving devices such as motors, relays, and LEDs. This article explores the technical specifications, operational distinctions, and wide-ranging applications of the ULN2003A, shedding light on its remarkable role in advancing modern electronic systems.

Catalog

ULN2003A Overview

The ULN2003A is an exceptionally versatile Darlington transistor array, crafted with great attention to detail and comprising seven NPN transistor pairs. It is designed to efficiently handle notable voltages and currents, featuring the ability to manage up to 500mA and 50V through each channel. This integrated circuit finds prominent application in controlling relays, actuating motors, and managing LED displays, where its performance meets the varied expectations and desires of those seeking dependable solutions in electronic systems.

Specification and Features

• Specification

Specification	Details
Output Voltage (V<sub>CE</sub>)	50V
Output Current (I<sub>C</sub>)	500mA per channel
Input Voltage (V<sub>BE</sub>)	2.4V to 5V (logic-level input)
Clamp Diodes	Integrated for inductive load protection
Package	DIP-16, SOIC-16

• Features

Feature	Description
Seven Darlington Pairs	Capable of driving up to seven high-current loads.
High Current Capability	Each channel can handle up to 500mA.
Integrated Freewheeling Diodes	Protects against back EMF from inductive loads.
TTL/CMOS Compatible Inputs	Easily interfaces with standard logic circuits.
Compact Package	Available in DIP-16 and SOIC-16 packages for easy integration.

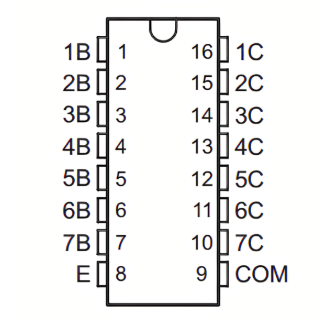

Pin Configuration

The ULN2003A is offered in both DIP-16 and SOIC-16 packages, each designed to provide reliable performance and easy integration into various circuits. Every pin is carefully designated to serve a specific purpose, enabling the precise control of high-current loads while ensuring efficient operation and compatibility with diverse applications.

Pin Name	Pin Number	Description	Function
IN1-IN7	7-Jan	Input Pins for Channels 1-7	Receives control signals from a microcontroller or logic circuit
COM	8	Common Freewheeling Diode Cathode	Connects to the positive supply when driving inductive loads
OUT1-OUT7	15-Sep	Output Pins for Channels 1-7	Connects to the load to be driven by each channel
GND	16	Ground	Ground reference for the IC

Pin Function

• IN1-IN7 (Input Pins): These pins take signals from a control device, such as a microcontroller. Each pin activates one of the seven internal switches (Darlington pairs) when it receives a high signal. This control determines whether the load connected to the output will operate.

• COM (Common Pin): The COM pin connects to the cathodes of internal diodes, which are there to protect the IC when controlling inductive loads like motors or relays. It should be linked to the positive supply voltage. This connection allows the diodes to absorb voltage spikes caused by inductive loads, ensuring safe operation.

• OUT1-OUT7 (Output Pins): Each of these output pins connects to a load. They are activated based on the corresponding input signals. When active, the output pin sinks current from the load to the ground, allowing the load to function as intended.

• GND (Ground Pin): This pin connects the IC to the system ground. A stable ground connection is active for proper operation, providing a consistent reference for current flow and preventing malfunctions.

Equivalents

Comparison with Equivalent Components

The ULN2003A is a versatile Darlington transistor array designed to drive a range of high-current loads. It shares similarities with the ULN2004A and ULN2803A, each tailored to specific voltage requirements and channel capacities.

• ULN2004A: While similar in function to the ULN2003A, the ULN2004A is optimized for handling higher input voltages, typically between 6V and 15V. This makes it better suited for applications where variable or higher voltage levels are a concern.

• ULN2803A: The ULN2803A builds upon the core functionality of the ULN2003A but offers eight output channels instead of seven. This additional channel provides greater flexibility for projects that require more drivers or connections, particularly in complex systems.

Compatibility with Control Devices

The ULN2003A is engineered to interface seamlessly with various control devices such as microcontrollers, logic circuits, and sensors. Its high compatibility simplifies integration into new and existing electronic systems. You can benefit from this flexibility, especially when creating high-current control solutions, as it reduces the need for extensive circuit redesigns.

Interchangeability in Circuit Design

One of the key strengths of the ULN2003A is its ability to serve as a substitute for other similar ICs, making it highly adaptable in circuit design and maintenance.

For systems operating within the ULN2004A’s voltage range (6V–15V), the ULN2003A can be replaced with the ULN2004A without requiring notable modifications. Conversely, when a design demands more output channels, the ULN2803A can be swapped in as long as the circuit layout supports the additional pin.

Uses of ULN2003A

The ULN2003A, renowned for its adaptability, acts as a bridge uniting low-power control signals with high-power components. Its wide range of applications reveals its profound impact across various fields, presenting an opportunity to explore its remarkable influence on modern technology.

Relay Driver Enhancements

The ULN2003A plays a notable role in simplifying automation processes through its efficient operation of relay coils. It ensures precision in electrical switching, integral to modern systems like smart home devices and industrial machinery. You can derive improvements in reliability and efficiency by leveraging their capabilities, drawing from past integration experiences.

Motor Drivers

In motor driver applications, this component excels in providing required currents for small DC motors, ranging from small device automation to educational robotics kits. Its reliability in powering motors ensures seamless operation, offering insights into mechanical system efficiency—a major element in advancing electric technologies. A noticeable trend in these uses is a streamlined design process, resulting in accelerated development timelines.

LED and Display Drivers

The ULN2003A demonstrates exceptional capability in LED and display driver applications, used for maintaining proper LED current. It is especially imperative in lighting systems and digital displays, where consistent brightness and reliability are key. The component's adaptability in diverse LED configurations is evident, often leading to nuanced luminosity control in varying conditions.

Solenoid Systems

In solenoid systems, the ULN2003A efficiently governs coil activations, basic for precise linear motion control, like in locking mechanisms or pneumatic systems. This precision enhances system stability, a valued attribute in automation and robotics. You can often confirm their intuition about the device's optimal functionality through testing, emphasizing the component's significance in fostering innovation.

Pros and Cons

Pros

The ULN2003A presents several alluring advantages, which have contributed to its widespread adoption in electronic design.

• Its high current capacity frequently eases the design process, allowing you to breathe easier as the need for extra current amplification components decreases.

• Built-in protective features, including flyback diodes, offer a safeguard for the circuitry, boosting confidence in reliability, mostly in scenarios involving inductive loads.

• The ease of integration with digital systems is enhanced by its user-friendly TTL/CMOS compatible inputs, facilitating effortless communication with microcontrollers and other digital devices.

• Its compact and space-efficient design offers adaptability in circuit layouts, catering especially to projects where board space is at a premium.

Cons

While ULN2003A has its perks, certain obstacles need thoughtful attention during the design stage.

• Overheating can arise, mostly when multiple channels are engaged simultaneously in high-current situations. To navigate this, designers should implement effective thermal management strategies, like heatsinks or active cooling, to maintain stability over time.

• Another factor to weigh is the fixed seven-channel limitation per IC. For projects demanding a higher number of outputs, designers might have to contemplate cascading multiple chips or considering alternate routes, meticulously balancing complexity with efficiency.

Package

The ULN2003A comes in two main package variations: DIP-16 and SOIC-16. Each package caters to different needs, aligning with specific circuit design preferences and considerations.

DIP-16 Package

The Dual In-line Package (DIP-16) excels in scenarios requiring through-hole mounting. Its sturdy construction supports projects where mechanical stability and the ease of manual interactions are basic aspects. For those who value the tactile experience of assembly and the forgiving nature during upkeep, DIP's straightforward design offers a sense of reassurance and resilience.

SOIC-16 Package

On the other hand, the Small Outline Integrated Circuit (SOIC-16) package proves active for surface-mount applications. It provides the benefits of minimized board space usage and compatibility with automated assembly techniques. This choice resonates with the current inclination towards miniaturization and densely-packed electronic innovations. The movement towards surface-mounted technology has reshaped product creation, yielding streamlined production and superior performance in small-scale designs. You can optimize spatial utilization and automatic manufacturing methods typically lean towards SOIC-16 packaging solutions.

Manufacturer

The ULN2003A is a well-regarded Darlington transistor array that undergoes a meticulous production journey adhering to industry benchmarks. This journey encompasses distinct phases such as the creation and treatment of silicon wafers during the wafer fabrication stage forms the initial step. Here, precise etching and doping craft the intricate transistor structures. The detailed accuracy maintained in this phase lays the groundwork for the eventual electrical properties of the array. Following this, in die preparation, the wafer is carefully sectioned into individual circuits. Semiconductor technology advancements play a notable role here, having brought about lower defect rates and improved performance attributes. The final steps involve thoughtful packaging and exhaustive testing to assure consistent reliability and optimal efficiency.

Comparison of ULN2003A and ULN2803A

Aspect	ULN2003A	ULN2803A
Number of Channels	7	8
Input Compatibility	TTL/CMOS compatible	TTL/CMOS compatible
Current Handling	Up to 500mA per channel	Up to 500mA per channel
Performance	Similar performance; fewer output channels	Similar performance; additional output channel
Applications	Suitable for designs with up to 7 outputs	Suitable for designs with 8 outputs
Common Uses	Relay drivers, motor drivers, LED displays	Relay drivers, motor drivers, LED displays

Conclusion

The ULN2003A is more than just a component; it is a basis in the architecture of contemporary electronic systems, facilitating substantial advances in automation and device control. Its ability to handle high currents while maintaining precision and efficiency makes it requisite in numerous applications, from industrial machinery to consumer electronics. The insights provided in this article highlight the ULN2003A's key contributions to technological progress, illustrating its enduring relevance and adaptability in the ever-evolving landscape of electronic design. As we continue to push the boundaries of what's possible in electronics, the ULN2003A remains a trusted ally, proving that great power can indeed come in compact, efficient packages.

Datasheet PDF

ULN2003A Datasheets:

ULN200x(A,D1).pdf
