HT12E RF Encoder IC: Equivalent, Pinout, and Applications

This guide explores the HT12E RF Encoder IC, a key component in wireless communication systems. It covers its functionality, features, and technical details, combining theory with practical insights. From basic data encoding to advanced integration methods, the guide explains how the HT12E works in various electronic systems while emphasizing its role in improving data security and system reliability.

Catalog

What is the HT12E RF Encoder IC?

The HT12E RF Encoder IC is a great component in the realm of RF and IR wireless communication systems. Its primary function is to encode signals into a 12-bit structure, enabling secure and reliable data transmission. This encoding process ensures that transmitted data is organized in a format that is both recognizable and processable by the receiving units. The HT12E works seamlessly with its counterpart, the HT12D decoder IC, creating an effective communication link between transmitting and receiving devices. One of the key advantages of the HT12E is its ability to convert parallel data inputs into serial outputs, a feature that enhances data integrity and security. This makes it valuable in applications such as remote controls and alarm systems, where consistent and dependable signal transmission is required for proper functionality.

Pin Configuration of HT12E IC

Pin Number	Pin Name	Description
1 to 8	A0, A1, A2, A3, A4, A5, A6, A7	These are the 8-bit address bits used to protect data. These bits must be set in the same pattern on the Encoder and Decoder ICs to pair them.
9	Ground/Vss	Connected to the Ground of the circuit.
10 to 13	AD0, AD1, AD2, AD3	These four pins are used to send data. The data encoded here will be decoded on the HT12D IC sharing the same address bits.
14	Transmission Enable (TE)	This pin must be connected to Ground (0V) to enable the transmission.
15 and 16	Oscillator Pins 1 & 2	The IC has a built-in oscillator. Connect these two pins through a 1M resistor to use it.
17	Output	The encoded 12-bit output data can be obtained from this pin.
18	Vcc/Vdd	This pin powers the IC, typically +5V is used. Can range from 2.4V to 12V.

Features of the HT12E IC

Feature	Description
12-bit Encoder IC	Designed to be used with HT12D for encoding data.
Encoded Data	Comprises 4 data bits and 8 address bits, forming a total of 12 bits (8+4=12 bits).
Wireless Transmission	Commonly used for RF and IR wireless transmission applications.
Supply Voltage Range	Operates with a wide supply voltage range from 2.4V to 12V, typically 5V is used.
Low Standby Current	Consumes a standby current of only 0.1µA at Vcc = 5V, ensuring energy efficiency.
Package Options	Available in 16-pin DIP and 20-pin SOP packages for flexible integration into circuits.

Equivalent Encoder of HT12E

• PT2262

• 74C922

Where can the HT12E IC be Used?

The HT12E IC is widely used in secure and reliable data transmission systems, especially in RF and IR wireless communication and remote control applications. It pairs with the HT12D decoder to create a secure framework, using an address-based configuration to prevent unauthorized access. Common uses include garage doors, home automation, and lighting systems, where its simple encoding method ensures ease of use and reliability. Despite supporting only 4-bit data transmission, it is ideal for short-range control systems that prioritize security and performance. Many often customize its address settings to meet specific project needs, making the HT12E a versatile choice for applications requiring moderate complexity and robust data integrity.

How do you Operate an HT12E Encoder IC?

The HT12E encoder IC is an important component for data transmission in remote control systems. To operate it, connect the IC to a stable 5V power source and ground the transmission enable pin to activate its data transmission mode. The internal oscillator requires a 1M resistor connected to the OSC1 and OSC2 pins to ensure precise timing and stable performance. For data input, use the 4-bit configuration on pins AD0-AD3, and align the address pins (A0-A7) to match the decoder’s address to avoid communication errors. The encoded data is then output through the data pin and can be transmitted to an HT12D decoder via either a wired connection or wireless technologies like RF or IR. While wired connections are reliable for short distances, wireless methods provide greater flexibility and adaptability, making them ideal for a variety of applications.

Connection Diagram for the HT12E IC

Applications of the HT12E

Remote Control Systems

The HT12E encoder is widely used in remote control systems like garage door openers to improve efficiency. It converts parallel data into a format suitable for RF module transmission, ensuring precise and reliable communication between the remote and the receiver. Compared to analog systems, the HT12E offers faster and more dependable performance.

Home Automation

In home automation, the HT12E plays a role in converting serial data for efficient system integration. It enables centralized control of various activities, such as turning lights on or off and managing appliances remotely. This encoder not only enhances convenience but also promotes energy efficiency by allowing precise control of home systems, catering to your needs for comfort and sustainability.

Security Systems

The HT12E improves security systems, such as burglar and fire alarms, by ensuring secure and accurate data transfer. Its reliable encoding ensures that emergency signals, like intrusion alerts or fire warnings, are quickly and correctly transmitted to monitoring stations or emergency responders. This enhances the overall safety and responsiveness of such systems in critical situations.

Field Performance and Adaptability

Field evaluations reveal that the HT12E consistently delivers reliable performance, even in challenging environments with electromagnetic interference. Its resilience and versatility across various applications make it a standout solution in wireless communication, inspiring to explore innovative uses and maximize its potential.

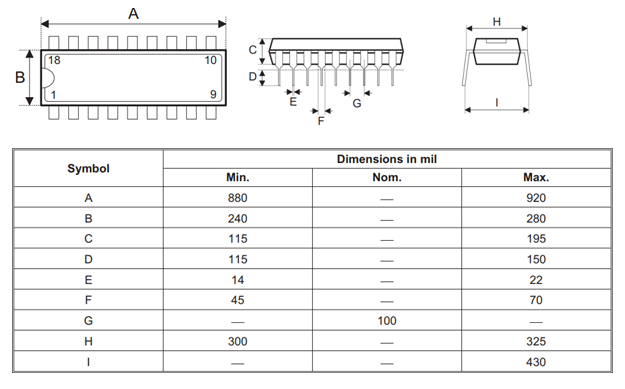

HT12E 2D Model and Dimensions
