INA333 Instrumentation Amplifier: Alternatives, Pinout, and Applications

Discover the INA333, a precision instrumentation amplifier known for its accuracy and low power consumption. In this guide, we’ll explore its design, features, and practical applications in modern technology. From its pin layout and operational details to its uses, learn how this component combines advanced technology with proven techniques to drive innovation.

Catalog

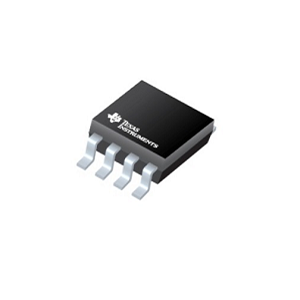

What is the INA333?

The INA333 is a precise, low-power instrumentation amplifier ideal for portable and battery-powered devices. Its advanced design, featuring three operational amplifiers, ensures high performance and versatility for mobile applications. Its compact size reduces energy use, enhancing durability and sustainability in portable technology. A key feature of the INA333 is its reliable performance on limited power, making it perfect for energy-efficient devices like portable medical equipment. It maintains accuracy while conserving power, supporting longer device lifespans andconvenience.

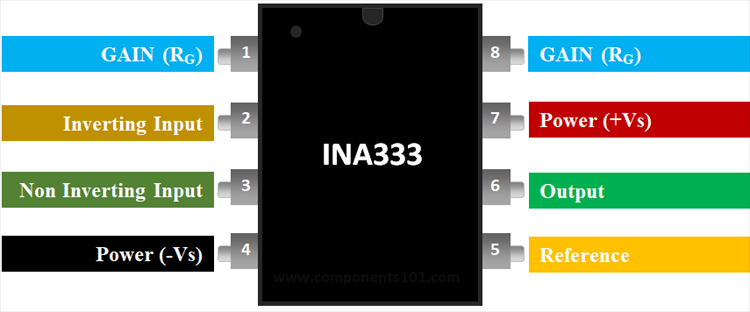

INA333 Pin Configuration

Pin No.	Pin Name	Description
1	Gain (Rg)	Inverting Gain Terminal connected to a resistor to set gain value
2	Inverting Input (IN-)	The Inverting input pin of the Op-Amp
3	Non-Inverting Input (IN+)	The Non-Inverting Input Pin of Amplifier
4	Power (-Vs)	Negative supply terminal
5	Reference	Output reference input. Normally connected to common
6	Output	Amplifier output pin
7	Power (+Vs)	Positive supply terminal
8	Gain (Rg)	Non-Inverting Gain Terminal connected to a resistor to set gain value

LM623 Specifications and Features

Feature/Specification	Description
Type	Rail-to-Rail Instrumentation Amplifier
Number of Channels	1 Channel
Operating Supply Voltage	5.5 V
SR - Slew Rate	0.16 V/µs
CMRR - Common Mode Rejection Ratio	100 dB
Ib - Input Bias Current	1.4 nA
Vos - Input Offset Voltage	10 µV
Operating Supply Current	198 µA
Bandwidth	150 kHz
Gain V/V	1000 V/V
Package Options	Available in 8-Pin PDIP, SOIC, and VSSOP packages

INA333 Equivalent ICs

• AD623

INA333 Alternative ICs

• LM4871

• AD620

• IC6283

• JRC4558

Where can the INA333 be Utilized?

The INA333 excels in battery-powered systems due to its low power consumption and rail-to-rail input/output, making it ideal for portable devices that require extended battery life, such as field measurement tools. It also offers superior differential signal amplification, with built-in input buffer amplifiers that simplify design by eliminating the need for external impedance matching. This makes it highly effective for precision measurement equipment, including high-resolution sensors and clinical diagnostic devices, where stability and accuracy are important. To fully leverage its capabilities, you must apply thoughtful strategies, like reducing parasitic capacitance and ensuring component compatibility, to optimize system performance and enhance satisfaction.

Using the INA333 Instrumentation Amplifier

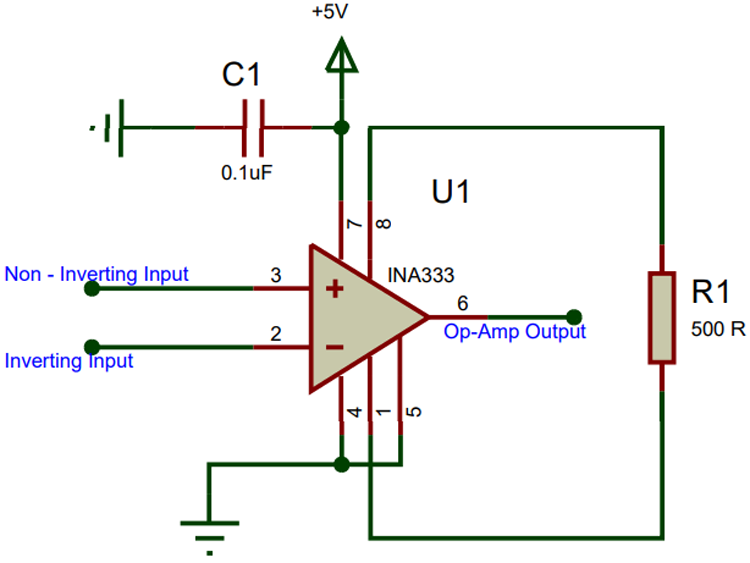

The INA333 is a highly reliable, precision component favor for its versatility and ease of integration. Its design emphasizes stability, accuracy, and adaptability, making it a go-to solution in various instrumentation and control applications. Below is an overview of its powering, input/output setup, and gain adjustment capabilities, accompanied by Figure, which illustrates the key connections.

The powering and base setup of the INA333 involves connecting Pin 7 to a suitable power supply, often a standard +5V for simplicity and compatibility, while grounding Pin 4. This straightforward configuration provides a solid foundation for various applications, as the consistent use of a +5V supply simplifies power management across devices. To minimize noise and interference, Pin 5 is grounded, ensuring a stable reference voltage. In the input and output management, the input signals are applied through Pins 2 and 3. These connections allow for differential input, a feature preserving signal quality from input to output. Meanwhile, the output signal emerges at Pin 6, ready for downstream processing. The inclusion of a 0.1 µF capacitor, C1, between the power supply and ground further aids in filtering noise, bolstering operational stability. Setting the amplifier's gain is made effortless by incorporating a resistor, R1, between Pins 1 and 8. A resistor value of 500Ω, typically sets the gain to 100. This flexibility allows to customize the gain to suit a variety of applications. The gain is determined using the formula:

G = (49.4 kΩ / RG) + 1

where RG represents the resistor value. This formula enables precise gain adjustments, ensuring that the INA333 meets diverse amplification requirements with remarkable accuracy. The INA333’s ease of integration, robust performance, and adaptability exemplify its role in maintaining high-performance standards in instrumentation.

Applications of the INA333

Bridge Amplifiers: Ideal for strain gauges, weighing systems, and load cells. Maintains accuracy in industrial environments despite temperature fluctuations.

ECG Amplifiers: Captures subtle biological signals with low noise and high input impedance. Excellent for precise cardiac monitoring in medical diagnostics.

Pressure Sensors: Accurately converts small pressure changes into signals. Used in aerospace and automotive safety systems for analysis.

Medical and Portable Instruments: Low power and compact size suit miniaturized medical devices. Powers devices like blood glucose and heart rate monitors, extending battery life.

Weighing Scales: Enhances sensitivity and precision in detecting weight changes. Used in commercial and industrial weighing systems.

Thermocouple and RTD Sensors: Handles low-voltage inputs for temperature monitoring. Applied in HVAC systems, industrial processes, and labs.

Data Acquisition Systems: Captures weak signals for accurate data collection. Good for industries leveraging data analytics for actionable insights.

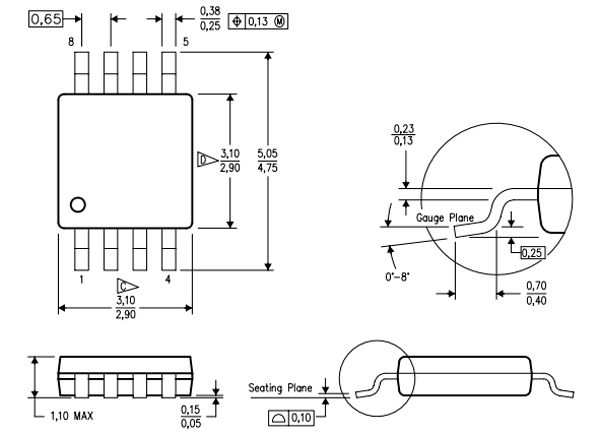

INA333 2D Model and Dimension
