Inside IC 7490: A Comprehensive Guide to Decade Counter Circuits

In the vast and ever-expanding universe of digital electronics, the role of integrated circuits in enhancing the sophistication and efficiency of electronic systems cannot be overstated. Among these basic components, the IC 7490 stands out as a typical binary-coded decimal (BCD) counter, key in applications demanding precise and efficient counting. Known for its robust functionality, the IC 7490 facilitates digital excellence by seamlessly managing decimal digits and resetting effortlessly, making it requisite in devices ranging from digital clocks to complex control systems. This article digs into the IC 7490, uncovering its operational dynamics, structural nuances, and profound impact on digital electronics, thereby illuminating its major role in modern technological applications.

Catalog

Exploring IC 7490

The Binary-Coded Decimal (BCD) counter remains a cornerstone in digital electronics. It is adept at counting decimal digits up to ten, resetting automatically with each clock pulse. Unique outputs from 0000 to 1001 in binary format are generated with precision, illustrating its contribution to system efficiency. The IC 7490 is a detailed integrated circuit specifically crafted for decimal counting, ensuring the seamless operation of electronic circuits.

BCD counters find their place in myriad applications, including digital clocks, odometers, and calculators. In scenarios requiring accurate representation of decimal numbers in binary forms, such counters excel by easing the conversion to formats readily understood. As BCD counters are utilized in control systems and devices demanding precise numerical representation, a deeper appreciation of their practicality emerges through everyday use.

The IC 7490 marks a noteworthy step forward in digital design, promoting seamless transitions and robust performance in counting tasks. Engineers hold its adaptability in high regard, especially when working on intricate electronics, due to its versatile handling of various counting functions. This efficiency in operation renders it a favored option for crafting digital systems where precision and dependability hold significant value.

IC 7490 Overview

IC 7490 is a sophisticated integrated circuit designed as a 4-bit decade counter. At its core, it utilizes a ripple-carry mechanism and features a series of interconnected master/slave flip-flops. The circuit is ingeniously organized into two distinct functional segments: one facilitating a divide-by-two operation and the other a divide-by-five operation. This dual configuration responds to varying clock frequencies, resulting in dynamic state transitions with each clock pulse. Such a structural approach permits versatile counting capabilities, opening avenues for intricate digital implementations.

The IC's unique dual-section framework empowers you to explore an array of digital counting applications. Embracing the divide-by-two and divide-by-five functionalities, you can tailor-counting ranges using complex logic designs. This adaptability proves advantageous in applications involving frequency division, making it a valuable asset in clocks, frequency counters, and related circuits. You can often push the limits of its features, striving for optimized performance in both synchronous and asynchronous counting endeavors.

IC 7490 Pin Configuration

Pin No.	Pin Name	Description
1	CLKB	Clock Input 2
2	R1	Reset 1
3	R2	Reset 2
4	NC	Not Connected
5	Vcc	Positive Supply Input
6	R3	Reset 3
7	R4	Reset 4
8	Qc	Output Pin 3
9	Qb	Output Pin 2
10	Gnd	Ground
11	Qd	Output Pin 4
12	Qa	Output Pin 1
13	NC	Not Connected
14	CLKA	Clock Input 1

Truth Table

The table below presents the truth table for the IC 7490-decade counter. As demonstrated, the counter sequentially progresses through states from 0 to 9, at which point it automatically resets and begins a new counting cycle.

Features and Technical Specifications

Feature/Specification	Description
Power Dissipation	Approximately 145 milliwatts
Count Frequency	Operates at 42 megahertz
Counting Modes	Offers various counting modes
Input Clamp Diodes	Restricts high-speed termination impact
Supply Voltage	Operates within a supply voltage of 5 volts
Ambient Temperature Range	Functional from -55°C to 125°C

IC 7490 Circuitry

Internal Circuit

The IC 7490 is architected with a series of four Master-Slave JK flip-flops cohesively connected, forming the nucleus of its operational scheme. The initiation of this sequence begins with a flip-flop energized by the CLKA pin, paving the way for subsequent flip-flops that are maneuvered through the CLKB pin, orchestrating a harmonious and sequential signal progression.

Block Diagram

The structural diagram of the IC 7490 showcases its components, with a particular focus on inputs that guide its functionality.

• VCC and GND provide the circuit’s energy, with VCC representing the higher voltage level and GND acting as the stabilizing ground.

• Clock Inputs (A and B) cater to the rhythmic pulsing required for IC operation, embodying a hallmark of counter-IC design.

• Set Inputs (S1 and S2) typically connect to GND in their dormant state, offering a pathway to presetting the IC into a defined condition, where the count often embarks from 0000 (0).

Intricacies in Counter Design with IC 7490

Several concepts serve as the backbone of counter design; understanding them is major for effective application:

• Asynchronous Counters enable each flip-flop to function independently, devoid of synchronized clocking, as exemplified by ICs such as 7490 and 7493.

• Synchronous Counters rely on a unified clock source, promoting synchronized actions, which is apparent in IC models like 74160 and 74163.

• BCD (Binary Coded Decimal) transforms decimal numbers into a binary format, promoting smoother data interactions within digital frameworks.

• Mod-n Counting delineates progress across 'n' states before a reset occurs, defining the modulus of a counter.

• Frequency Division articulates a method of segmenting the frequency of a clock signal by modulating the rate of flip-flop activation, thus showcasing how counters adeptly modulate signal frequencies.

Frequency Divider Implementation Utilizing IC 7490

The functional ability of the IC 7490 in frequency division is manifest in its application with a 10MHz crystal oscillator, accompanied by a hex inverter IC 7404 and several 7490 units. This setup deftly produces a spectrum of frequencies ranging from 1MHz to 1Hz. At each counter level, the frequency undergoes division by a factor of ten, visually represented by LED indicators that highlight output frequencies, emphasizing the IC 7490's robust capability in executing sophisticated frequency division tasks.

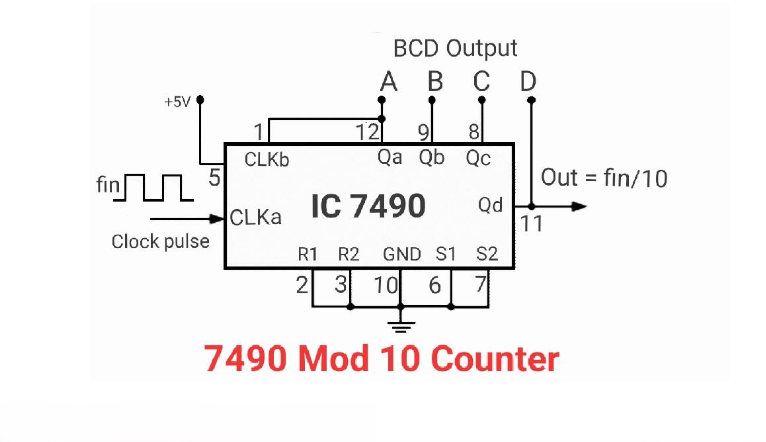

Operation of the 7490 Decade Counter

The IC 7490 operates as a Binary-Coded Decimal (BCD) counter, progressing elegantly through ten distinct states ranging from 0 to 9, earning it the designation of a modulo-10 (mod-10) counter. At its core are two integrated counting units: a mod-2 and a mod-5 counter. In unison, these units manifest decade-counting capabilities, fulfilling the requirements of both precision and efficiency. The process initiates with the mod-2 counter that oscillates between two states, 0 and 1. This oscillation generates an output that functions as a clock input, steering the mod-5 counter. Exact connections are useful: link the clock of the mod-5 counter to CLKB and the mod-2 counter to CLKA to ensure smooth operation.

Modular Counter

The moment a clock signal engages the mod-2 section, it skillfully alternates its output, Qa, between 0 and 1. This oscillating output propels the mod-5 section through five distinct states, completing a BCD cycle from 0 to 9 with impeccable functionality. Equipped with two reset pins (R0 and R1) and two set pins (S0 and S1), the counter offers flexible control over its state. Engaging a reset pin with a high signal or setting a set pin low impeccably resets the count to 0000, harmonizing the circuit to begin anew. On the flip side, a low signal on the reset and a high on the set allow the counter to soar to its maximum count of 1001, or nine.

To boldly expand the counting capacity to double digits (reaching 99, mod-100) or even triple digits (extending to 999, mod-1000) requires minimal adjustments. By incorporating the highest output from one IC as the clock input to another in a sequential series, these adjustments become feasible. For typical mod-10 operations, the second clock input, found at pin 1, should be linked to QA, with all other reset pins suitably grounded. A single pulse delivered to pin 1 effectively kick-starts the counting. Adopting a querying mind, for mod-6 operations, engage input 1 with reset pins R3 and R4 grounded, and ingeniously connect QA to input 2 to recalibrate the counting framework.

Integrating IC 7490 and a 7-Segment Display

Exploring digital circuit design with IC 7490 and IC 7446 to display counts from 0 to 9 on a 7-segment display offers a thrilling journey into electronics. Each clock pulse alters this combination, creating an engaging sequence of visual displays.

The IC 7490 serves as a decade counter, guiding counting from 0 to 9. Its task involves splitting the clock pulse into ten outputs, underpinning the accuracy of the counting sequence visible on the display. You can often admire the IC 7490 for its dependability, especially in digital clocks and frequency counters requiring precise sequence control.

In practice, setting up IC 7490 involves meticulous considerations such as power levels, noise reduction, and exact alignment of input signals. Successfully managing these aspects secures smooth performance and prevents erratic counting. You can often draw on their experience to fine-tune circuit parameters, elevating both stability and precision.

Connecting IC 7490 and 7-Segment Displays with IC 7446

IC 7446 plays a major role in converting binary count outputs into visually comprehensible numbers on a 7-segment display. It functions as a driver, interpreting IC 7490's binary output and activating the proper segments for decimal digit formation.

Implementing IC 7446 involves practical considerations. Ensuring segment current limitations and connection quality prevents burnout and ensures clear digit visibility. You can strategically incorporate resistors to balance current flow, thus prolonging display life.

The hallmark of refined digital systems lies in their functional versatility and adaptation to varying clock frequencies. Ensuring alignment between clock pulse frequency and the counting system supports smooth operation, with required adjustments to accommodate different design needs and environments.

Applications of IC 7490

Digital Counting Mechanisms

Within the world of digital counting, the IC 7490 takes center stage with its innate capacity to cycle through numbers 0 to 9. As devices strive for exact count management, the versatility and compatibility of this decade counter-shine when meshed with other digital elements, revealing a symbiotic relationship you admire.

Display Enhancement with 7-Segment Displays

IC 7490 finds a meaningful role in 7-segment displays, facilitating a structured approach to numeral representation. Such displays are prevalent in consumer electronics, ensuring effortless readability. You can often dig into the distinctions of fine-tuning the IC 7490 to achieve optimal display performance, a craft that not only boosts your interaction but also paves the way for discovering unexpected efficiencies. Calibrating these displays with precision distinguishes you from novices eager to learn.

Precision in Digital Timers and Clocks

When placed at the center of digital timers and clocks, the IC 7490 reveals its prowess in accurately dividing time. Through its influence on time-dependent systems, it provides reliable time segments used for operations. Mastering its synchronization with complementary components demands a considered blend of theory and hands-on experimentation. This careful endeavor transforms baseline functionality into sophisticated timing innovations cherished by timekeeping aficionados.

Streamlined Automation and Control in Server Environments

Incorporating IC 7490 into automated control circuits within digital systems and servers promotes enhanced operational effectiveness. It orchestrates intricate processes such as task scheduling and resource distribution by meticulously keeping track of operational cycles. Those seasoned in server orchestration leverage these features to refine server throughput, subtly shaping the dynamics of network traffic management. This prudent application showcases how deeply integrated technology redefines and elevates system capabilities.

Conclusion

The exploration of the IC 7490 in this article emphasizes its serious role as a decade counter in digital electronics. With its precise counting and reset capabilities, the IC 7490 has proven requisite in many applications that require reliability and accuracy. Its integration into various devices not only enhances performance but also streamlines the complexity inherent in digital circuit design. As we continue to push the boundaries of what is possible in digital electronics, the initial principles exemplified by the IC 7490 will undoubtedly inspire further innovations, ensuring that it remains a cornerstone in developing advanced electronic systems. This detailed examination of the IC 7490 not only enriches our understanding but also celebrates its enduring relevance in shaping the future of technology.
