LM324 Comparator: Applications, Pinout, and Circuits Working

This guide explores the LM324 Integrated Circuit (IC), a versatile chip containing four operational amplifiers. Known for its low power consumption, the LM324 offers excellent stability and bandwidth, operating efficiently with supply voltages from 3.0 V to 32 V. Its low quiescent current, compared to competitors like the MC174, makes it ideal for energy-efficient applications. The LM324’s ability to handle input ranges down to the negative supply voltage simplifies circuit design by removing the need for extra biasing. It can drive outputs to the negative supply rail, making it useful in a wide range of electronic projects. This guide highlights its features, such as its role as a comparator, and examines its use in advanced electronic systems.

Catalog

What is the LM324 Comparator?

A comparator is a component in electronic circuits, designed to compare two voltage levels, commonly referred to as V1 and V2. Its operation is straightforward: when V1 is greater than V2, the output is zero, but when V2 exceeds V1, the output switches to a defined positive voltage. The LM324 operational amplifier is frequently used as a comparator due to its versatility and efficient design. It incorporates elements such as sensor voltage, reference voltage, supply voltage (Vcc), ground, and output terminals, making it a reliable and practical choice for a variety of applications. The LM324’s ability to perform accurate voltage comparisons allows it to play a role in tasks like zero-crossing detection and pulse-width modulation. These functions are great in systems where precise voltage differentiation is necessary, making the LM324 comparator an important tool in modern electronic designs.

LM324 Comparator Pin Configuration

Pin No.	Pin Name	Function
1	Output 1	Output of the first comparator
2	Inverting Input 1	Inverting input of the first comparator
3	Non-inverting Input 1	Non-inverting input of the first comparator
4	V+	Supply voltage 5V
5	Non-inverting Input 2	Non-inverting input of the second comparator
6	Inverting Input 2	Inverting input of the second comparator
7	Output 2	Output of the second comparator
8	Output 3	Output of the third comparator
9	Inverting Input 3	Inverting input of the third comparator
10	Non-inverting Input 3	Non-inverting input of the third comparator
11	GND	Ground
12	Non-inverting Input 4	Non-inverting input of the fourth comparator
13	Inverting Input 4	Inverting input of the fourth comparator
14	Output 4	Output of the fourth comparator

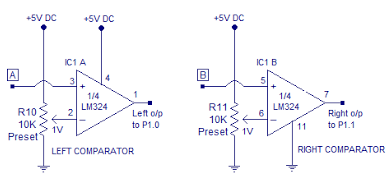

Circuit Design with LM324 Comparator

Designing a voltage comparator circuit with the LM324 operational amplifier, requiring careful consideration of its components and configuration. Typically, two 10K ohm resistors are used to create stable reference voltages, ensuring precise and reliable digital outputs. Inputs A and B, derived from the line sensor circuit’s output, are great for maintaining sensitivity to changing input conditions. The resistors help stabilize the reference voltage, allowing the comparator to function consistently, even with fluctuating input signals.

In this setup, Nodes A and B connect to the non-inverting inputs of the LM324. This non-inverting configuration amplifies only the positive voltage difference between the inputs, which is ideal for applications requiring accurate and distinct digital signaling. Each comparator within the LM324 requires precise input connections to achieve optimal performance. The output signals from the LM324 comparators are linked to microcontroller ports, enabling smooth communication between the comparator and the microcontroller. Proper mapping of these connections ensures efficient data processing and seamless system performance. By carefully directing the outputs, the microcontroller can make logical decisions with precision, facilitating reliable and well-regulated operations in a wide range of practical applications.

How Does the LM324 Comparator Work?

The LM324 comparator functions by utilizing three of its internal operational amplifiers, working in tandem with components like resistors and capacitors to create a responsive system. Its operation is based on voltage comparisons at its input terminals. When the voltage at the non-inverting terminal is lower than the voltage at the inverting terminal, the output switches to a low state, indicating no current flow. On the other hand, when the voltage at the non-inverting terminal surpasses that of the inverting terminal, the output shifts to a high state. This behavior is useful in applications like signal processing, where detecting and responding to voltage changes is needed for representing different logical states or conditions. Advantage of the LM324 is its built-in internal resistor network, which simplifies circuit design by removing the need for external resistors to manage power supply connections. This feature reduces circuit complexity, making the LM324 a convenient choice seeking to streamline PCB designs. By ensuring consistent performance while minimizing design challenges, the LM324 comparator proves to be a versatile and efficient component for a wide range of applications.

Working of LM324 Comparator

Features of the LM324 Comparator

• High DC Voltage Gain: Offers a gain of 100 dB, ensuring exceptional amplification for precise signal processing.

• Wide Bandwidth: Operates effectively at 1 MHz, suitable for a variety of applications.

• Versatile Power Supply Range: Supports single supply operation from 3V to 32V, enabling use in diverse scenarios.

• Stable Operation: Maintains consistent performance despite supply voltage fluctuations, ideal for environments with unstable power.

• Differential Input Voltage: Allows input voltage to equal the supply voltage, supporting an expansive output swing from 0V to (V+ - 1.5V) for greater precision.

• Low Power Consumption: Well-suited for energy-efficient designs, enabling integration into low-power systems without compromising performance.

• Broad Input and Output Ranges: Provides flexibility for a variety of circuit designs, enhancing compatibility with other components.

Advantages of the LM324 Comparator

Dual Functionality

The LM324 stands out for its ability to function as both a comparator and an operational amplifier, showcasing impressive versatility in electronic circuit design. This dual role allows engineers to use the LM324 for multiple purposes within a single circuit, eliminating the need for additional components. By combining these functionalities in one IC, it simplifies circuit designs, reduces component count, and streamlines development processes. This flexibility is advantageous in projects that require rapid prototyping or frequent design adjustments, enabling efficient resource management and faster development timelines.

High Gain for Precision Applications

One of the LM324’s key strengths is its high DC voltage gain, which ensures reliable performance in complex electronic systems. This high gain makes it ideal for applications that demand precision, as it enhances signal processing and improves data accuracy. By maintaining signal integrity, the LM324 delivers consistent output quality, making it a dependable choice for both general-purpose and advanced electronic applications.

Robust and Resilient Design

The LM324 is engineered with a durable structure that ensures stable operation under a variety of environmental conditions. Its resilience and adaptability make it suitable for use in diverse settings, from standard electronic projects to specialized, high-performance systems. This robust design enables to rely on the LM324 for consistent results, even in challenging conditions, solidifying its role as a versatile and trusted component in modern electronics.

Applications of the LM324 Comparator

Sensor-based Systems and Robotics

The LM324 comparator is widely used in sensor-driven applications, such as line-following robots. Its ability to process sensor data with precision makes it great for autonomous systems. The LM324’s flexibility in handling input voltages and stable operation ensures reliable performance, making it an ideal choice for robotics and environmental monitoring setups.

Signal Processing and Oscillator Circuits

The LM324 plays a role in signal processing tasks. Its use in oscillators enables precise frequency generation for communication systems and other signal-based technologies. The LM324 functions effectively as an amplifier, enhancing audio and visual signals for high-quality multimedia applications.

Prototyping and Educational Use

Engineers frequently utilize the LM324 during prototyping due to its affordability, reliability, and ease of use. Its consistent performance allows experimentation with innovative circuit designs, making it a favorite in both research and development environments. Similarly, its straightforward functionality makes it a valuable teaching tool for students learning about comparators and operational amplifiers.

General-purpose Electronics

The LM324 is often incorporated into standard electronic designs, such as rectifiers and general-purpose amplifiers. Its versatility allows it to integrate seamlessly into circuits that require precision and stability, catering to a wide range of electronic applications.
