MPC8260AZUPIBB PowerQUICC II Embedded Processor: Features, Pinout, Applications and Alternatives

This guide explains everything about the MPC8260AZUPIBB, a powerful chip used in many embedded systems. You’ll learn about its features like fast memory, built-in communication support, low power use, and wide temperature range. The article also shows where it’s used, lists other similar chips you can use, the maker of this chip, and why it’s a smart choice for long-term projects.

Catalog

MPC8260AZUPIBB Overview

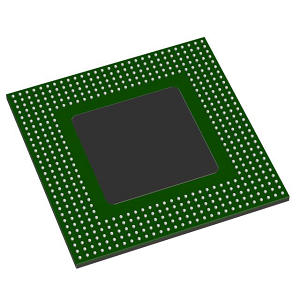

The MPC8260AZUPIBB is a high-performance embedded communications processor. It belongs to the PowerQUICC II family, built around a 32-bit RISC architecture using the PowerPC G2 core, based on the 603e design. Operating at 300 MHz, it features a dual-issue superscalar engine, integrated memory controller with ECC support, and dedicated Communications Processor Module (CPM) to handle protocol processing independently of the main CPU. Within the PowerQUICC II family, the MPC8260 stands out as a versatile solution, bridging the needs of robust embedded computing with high-throughput communication tasks. Other family members include the MPC8250, MPC8255, MPC8265, and MPC8266 designed for scalability and long-term deployment, widely used in routers, base stations, and industrial systems.

If you're looking for a reliable and scalable embedded solution, now’s the perfect time to place your bulk order for the MPC8260AZUPIBB.

MPC8260AZUPIBB Features

PowerPC G2 Core (603e-based): The processor integrates a 32-bit RISC architecture core based on the PowerPC 603e design. It offers efficient instruction execution and low power consumption while supporting complex embedded applications.

300 MHz Clock Speed: It operates at a frequency of 300 MHz, delivering high-speed processing suitable for demanding applications like data routing and telecom switching.

Dual-Issue Superscalar Engine: This feature enables the processor to execute two instructions per clock cycle, improving overall throughput and parallel processing performance in embedded systems.

16 KB Instruction and 16 KB Data L1 Caches: Both instruction and data caches are four-way set associative, ensuring faster access to frequently used data and minimizing memory latency.

Floating-Point Unit (FPU): The onboard FPU supports floating-point arithmetic operations, which is good for signal processing and other computation-heavy tasks in communication systems.

Memory Management Unit (MMU): The MMU provides address translation and memory protection, supporting operating systems with virtual memory and enhancing system reliability.

Communications Processor Module (CPM): A dedicated RISC-based subprocessor offloads communication tasks (Ethernet, HDLC, ATM), reducing the burden on the main core and improving system responsiveness.

Integrated Memory Controller with ECC Support: Supports DRAM and SDRAM with error correction code functionality, providing robust memory integrity for mission-critical operations.

I/O Voltage of 3.3V: Standard I/O voltage compatibility makes integration with other logic devices and peripherals easier in embedded hardware designs.

Multiple Interfaces: A rich set of communication interfaces enables seamless connectivity with external devices, making it suitable for diverse embedded networking environments.

Operating Temperature Range: Designed for industrial and telecom environments, it ensures stable operation over a wide temperature range.

MPC8260AZUPIBB Pinout Diagram

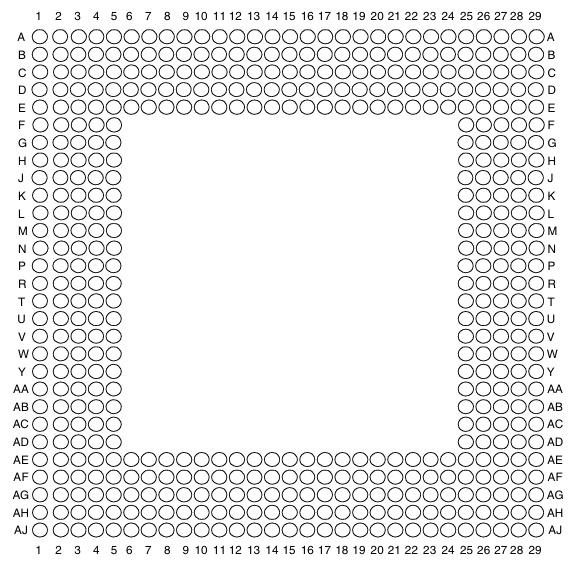

The pinout diagram shown for the MPC8260AZUPIBB represents a plastic ball grid array (PBGA) layout, commonly used for high-density integrated circuits like this PowerQUICC II processor. This diagram follows a matrix layout where rows are labeled alphabetically (A to AJ) and columns are numbered (1 to 29). Each circle in the grid marks a ball position or pin location on the underside of the chip package. This layout helps locate specific signals or power connections in relation to the grid. For example, a reference like D12 or R23 points to the exact pin used for functions such as power supply, I/O, or communication interfaces. The empty space in the center indicates a no-ball area, often used for thermal relief or mechanical stability.

MPC8260AZUPIBB Specifications

Type	Parameter
Manufacturer	NXP Semiconductors/Freescale Semiconductor
Series	MPC82xx
Packaging	Tray
Part Status	Obsolete
Core Processor	PowerPC G2
Number of Cores/Bus Width	1 Core, 32-Bit
Speed	300MHz
Co-Processors/DSP	Communications; RISC CPM
RAM Controllers	DRAM, SDRAM
Graphics Acceleration	No
Ethernet	10/100Mbps (3)
Voltage - I/O	3.3V
Operating Temperature	0°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	480-LBGA Exposed Pad
Supplier Device Package	480-TBGA (37.5x37.5)
Additional Interfaces	I2C, SCC, SMC, SPI, UART, USART
Base Product Number	MPC82

MPC8260AZUPIBB Applications

Telecommunication Base Stations

The MPC8260AZUPIBB is widely used in telecom infrastructure, particularly in base stations where high-throughput data handling and protocol management are required. Its integrated communications module supports multiple serial interfaces and protocols, making it ideal for wireless backhaul and channel card processing.

Network Routers and Switches

Thanks to its support for multiple Ethernet channels and fast processing core, the processor serves as the backbone of enterprise and service provider routers and switches. It efficiently handles packet routing, traffic shaping, and data filtering without requiring external communication processors.

Industrial Control Systems

In manufacturing and automation environments, the MPC8260AZUPIBB supports deterministic control and rapid data acquisition. Its robust CPU, wide operating temperature range, and reliable memory handling with ECC make it suitable for long-running industrial operations.

Access Gateways and Voice over IP (VoIP) Equipment

This processor is used in access devices such as DSLAMs and integrated access devices (IADs) where voice and data services converge. The onboard communications processor module handles traffic with low latency for voice communication.

ATM and Frame Relay Equipment

The integrated RISC engine in the MPC8260AZUPIBB is capable of offloading ATM and Frame Relay processing, which was widely used in legacy telecom networks. It ensures fast and reliable communication between data endpoints.

Military and Aerospace Communication Systems

Due to its reliability, embedded protocol support, and rugged packaging, the MPC8260AZUPIBB is applied in military communication systems, supporting secure voice and data links in harsh environments.

Broadband Infrastructure Equipment

The processor powers broadband systems like cable modem termination systems (CMTS) and fiber-to-the-home (FTTH) units, managing data flows, authentication, and service delivery at high speed.

Embedded Networking Appliances

It is suitable for use in firewalls, VPN concentrators, and other network security appliances, where encryption and data throughput are needed for secure communication.

MPC8260AZUPIBB Similar Parts

• MPC8265ACZUMHBC (NXP USA Inc)

The MPC8265ACZUMHBC is a powerful alternative from the same PowerQUICC II family, offering extended communication features and PCI support. It operates at 266 MHz and is housed in the same 480-pin TBGA package, making it pin-compatible with the MPC8260AZUPIBB. This model also supports a wider operating temperature range (-40°C to 105°C), which is beneficial for industrial or harsh environment deployments. With enhanced communication interfaces like UTOPIA II and 256 HDLC channels, it is a great option for networking applications requiring more flexibility and bandwidth.

• MPC8260AVVPIBB (Freescale Semiconductor)

The MPC8260AVVPIBB is a direct variant of the MPC8260 series with nearly identical core and feature sets to the AZUPIBB version. It runs at the same 300 MHz clock speed and uses the same 480-TBGA package, maintaining compatibility across boards and software. This makes it an ideal replacement in systems that already utilize the MPC8260 architecture but need sourcing flexibility. It is suited who want the same performance and footprint with no additional hardware adjustments.

• MPC8260AZUPJDB (Freescale Semiconductor)

The MPC8260AZUPJDB is functionally equivalent to the MPC8260AZUPIBB but may come with slight differences in packaging, silicon revision, or sourcing channel. It maintains the 300 MHz clock speed and full communications feature set, including the CPM and multiple protocol support. Its close match in specifications and architecture makes it a convenient substitute when managing supply chain variability or maintaining multi-vendor sourcing strategies.

MPC8260AZUPIBB Advantages

Balanced Processing for Communication Systems

The MPC8260AZUPIBB combines a general-purpose CPU with a dedicated Communications Processor Module (CPM), allowing one to manage control operations while the other handles data transfer and protocol tasks. This dual-logic setup helps build systems that can manage multiple communication streams in parallel, improving response and reducing delays in data-heavy applications.

Versatile Protocol and Interface Support

With built-in support for various networking and industrial protocols like Fast Ethernet, HDLC, ATM, and more, this processor allows you to use one chip across different applications. Many benefit from reduced development complexity and more efficient product standardization across projects that require multiple interface types.

Long-Term Availability and Industry Adoption

The MPC8260AZUPIBB comes from a well-established PowerQUICC II family, widely used in telecommunications and networking. This ensures ongoing supply, reliable documentation, and a large knowledge base, which lowers the risk of obsolescence and simplifies design validation, support, and debugging.

Efficient Power Usage in Embedded Designs

The processor is engineered for low power consumption while still delivering high data throughput. This is advantageous in embedded systems where heat dissipation and energy consumption are design constraints, to maintain system reliability without additional cooling or high power budgets.

Scalable and Flexible for Various Applications

You can deploy the MPC8260AZUPIBB across a broad range of system designs, from low-to-mid-level routers to industrial automation controllers. Its scalability allows to reuse the same architecture for different product tiers, saving development time and cost while maintaining consistency in software and support.

MPC8260AZUPIBB Packaging Dimensions

Package Dimensions

Symbol	Description	Min	Max
A	Overall package height	1.45	1.65
A1	Standoff (from PCB to package)	0.6	0.7
A2	Package body thickness	0.85	0.95
A3	Substrate thickness	0.25	—
b	Ball diameter	0.65	0.85
D	Package length	37.5	BSC
D1	Die size (reference)	35.56	REF
E	Package width	37.5	BSC
E1	Die size (reference)	35.56	REF
e	Ball pitch	1.27	BSC

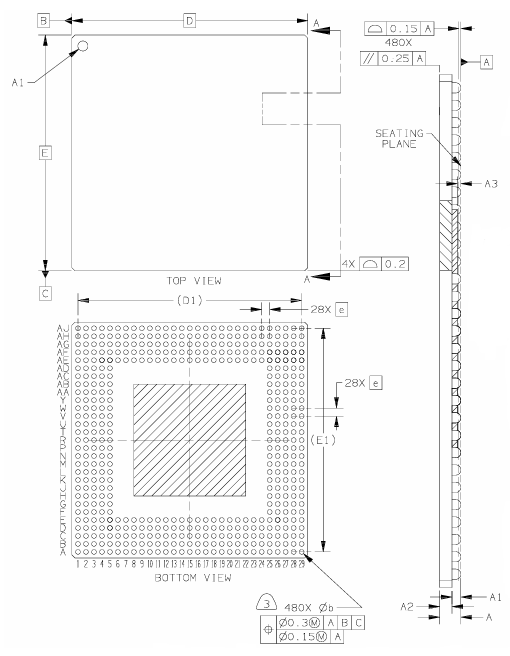

Package Outline

MPC8260AZUPIBB Manufacturer

The MPC8260AZUPIBB is manufactured by NXP Semiconductors, a global leader in embedded processing and secure connectivity solutions. Originally developed by Freescale Semiconductor, which itself was a spin-off from Motorola’s semiconductor division, the product became part of NXP’s portfolio following the acquisition of Freescale in 2015. NXP continues to support the MPC8260AZUPIBB as part of its PowerQUICC II family, maintaining high-quality manufacturing standards and long-term availability for industrial, networking, and telecom applications.

Conclusion

The MPC8260AZUPIBB is a strong and flexible processor made for systems that need fast and reliable communication. It can handle many tasks at the same time, thanks to its smart design and extra communication unit. This chip is great for use in phones, the internet, industrial machines, and more. It supports many types of connections and saves power, making it good for long-term use. Since it's backed by a trusted company, you can rely on it for quality, support, and easy use in different kinds of equipment.
