MPS2222A Transistor: A Complete Overview

The MPS2222A exemplifies the capabilities of a versatile NPN transistor, making it a staple in various electronic circuits. This article delves into the MPS2222A's characteristics, exploring its ability to handle power dissipation and voltage levels, while offering a comprehensive analysis of its applications from audio to communication devices. We will also compare it with other transistors, revealing its advantages and potential alternatives, and discuss practical configuration techniques to optimize its performance in different settings.

Catalog

What is the MPS2222A?

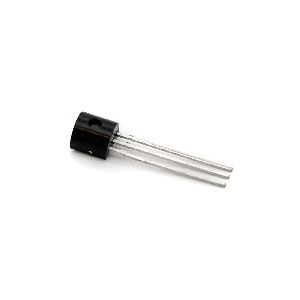

The MPS2222A is an NPN transistor, known for its versatility and efficiency. Its allure stems from the ability to handle a power dissipation of 0.625W and accommodate a collector current of 0.6A. This transistor bravely withstands substantial voltage levels: 75V between collector and base, 40V between collector and emitter, and 6V between emitter and base. An aspect to admire is its minimal reverse leakage currents, merely 0.01μA for both collector-base and emitter-base, emphasizing its proficient design. The collector-emitter saturation voltage is at 0.3V, while it offers a frequency characteristic of 300MHz and a flexible DC gain from 100 to 300. Such traits make it suitable for a diverse range of applications like audio amplifiers and instrumentation amplifiers. Its TO-92 package with a distinct pin configuration enhances its utility for specific designs.

Substitute Options

• 2SC9013

• KSC1008

• S8050

• PN2222A

• 2N4401

• 2SC945

• 2SC1008

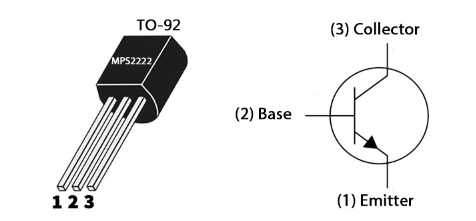

Pin Layout of MPS2222A

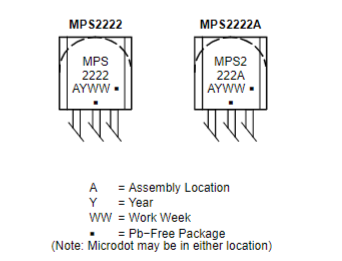

Comparison Between MPS2222 and MPS2222A

When exploring the distinctions between MPS2222 and MPS2222A transistors, consider their roles in electrical circuits through a lens of need and problem-solving. Both are NPN bipolar junction transistors embraced for their dependability and capacity to meet the demands of amplification and switching, blending performance and practicality.

Electrical Characteristics

Although the MPS2222 and MPS2222A share many attributes, subtle differences exist in their electrical performance. The MPS2222A accommodates a slightly higher collector current and voltage, making it more suited for rigorous scenarios that call for resilience and endurance, a choice that desire for steadfastness under pressure.

Package and Design

Encased in TO-92 packages, both transistors excel in compactness and ease of integration. This packaging speaks to the need for efficiency in space and cost. The design whispers to those driven to marry form with function seamlessly.

Amplification

These transistors shine in their capacity as amplifiers. The MPS2222A, in particular, with its heightened linearity and consistency, enhances sound clarity even at high volumes, resonating who seek the harmony of sound quality and affordability.

Switching

For switching, these transistors are instrumental in striking a balance between swift power management and energy efficiency in computing devices. Their quick response under an array of conditions mirrors the speed and conservation in an ever-demanding digital age.

Temperature Variability

Selecting between these transistors involves considering their responses to temperature shifts. The MPS2222A, with its refined thermal stability, might attract those who design for environments where temperature variability evokes the need for assurance and adaptability.

Longevity and Dependability

Reflections from industry reveal a leaning towards the MPS2222A in designs prioritizing long-term reliability. This choice resonates with the quest for components that endure, bearing the weight of operational challenges with a promise of lasting performance.

MPS2222A Specifications

Product Attribute	Attribute Value
Manufacturer	onsemi
Package / Case	TO-92-3
Packaging	Bulk
Mounting Style	Through Hole
Collector- Emitter Voltage VCEO Max	40 V
Collector- Base Voltage VCBO	75 V
Emitter- Base Voltage VEBO	6 V
Collector-Emitter Saturation Voltage	1 V
Maximum DC Collector Current	600 mA
Pd - Power Dissipation	625 mW
Gain Bandwidth Product fT	300 MHz
Minimum Operating Temperature	-55 C
Maximum Operating Temperature	+150 C
Continuous Collector Current	600 mA
DC Collector/Base Gain hfe Min	35
Transistor Polarity	NPN
Product Category	Bipolar Transistors - BJT

Features of MPS2222A

The MPS2222A, famous for its epitaxial planar structure, thrives in switching and amplification roles. It pairs well with the PNP variant, MPS2907A. You can select from the customizable TO-18 configuration or the SOT-23 package, known as MMBT2222A. These options bring adaptability to a wide range of applications, enhancing the fluidity of modern electronic design.

Epitaxial Planar Construction

This construction ensures the MPS2222A delivers stable and efficient performance. Enhancing thermal conductivity and uniformity, it optimizes the device for various electronic functions. It offers dependable performance under dynamic conditions, inspiring innovation in circuit design with consistent output and minimal response variation.

Switching Capabilities

The MPS2222A excels as a reliable switch in multiple circuit applications. It effectively manages current flow, supporting precise control mechanisms in today's technology. This design satisfies those looking to personalize their circuits, providing opportunities to fine-tune functionality with minimal redesign efforts.

Amplification Potential

As an amplifier, the MPS2222A delivers clean and accurate signal amplification, ensuring minimal distortion. Precision here is require for maintaining signal clarity, often leading to clearer audio outputs or more precise sensor readings.

Complementary Devices

The complementary PNP version, MPS2907A, broadens the usability of the MPS2222A. Utilizing complementary pairs in circuits enhances both switching and amplification by leveraging strengths of NPN and PNP setups. This flexibility elevates circuit efficiency, offering strategic benefits in intricate system integrations.

Packaging Options

Choosing between the TO-18 and SOT-23 packages in implementation. The choice impacts thermal and spatial dynamics, making the MPS2222A suitable for high-density applications and those needing thermal management. This flexibility can refine device performance and longevity across diverse electronic environments.

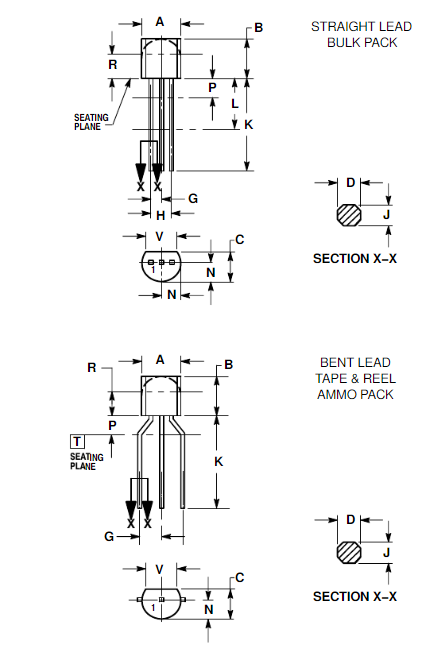

MPS2222A Packaging

MPS2222A Applications

Swift Switching Dynamics

With its rapid switching capabilities and minimal saturation voltage, the MPS2222A adeptly handles tasks in power supply transitions, motor regulation, and lighting ballasts. This transistor thrives in scenarios demanding proficient voltage control and swift state transitions, which are often encountered in technological and manufacturing fields.

Amplification for Enhanced Excitation

In multi-stage amplifier configurations, this transistor efficiently amplifies weak initial signals. Excellent factors like voltage amplification and impedance require attention for achieving optimal function. Precision in these parameters ensures stable signal enhancement,showing the thoughtful component selection in design.

High-Precision Instrumentation

The MPS2222A's compatibility with high-precision instrumentation amplifiers stems from its high input impedance and minimal noise. Its consistent performance in preserving signal fidelity makes it a reliable choice in scientific and industrial measurement applications, where both accuracy and uniformity are sought after.

Preamplifier Stability

In exciter systems, this component provides a reliable driving signal for subsequent stages. Ensuring consistent input for further signal processing is good for systems that require exact timing and dependable signal flow.

Audio Amplification

The MPS2222A skillfully manages audio power amplification issues like power, gain, bandwidth, and distortion. It adheres to principles of stability, frequency response, and noise minimization. In audio, where high fidelity and reduced distortion are valued, a profound understanding of transistor performance in circuits is important.
