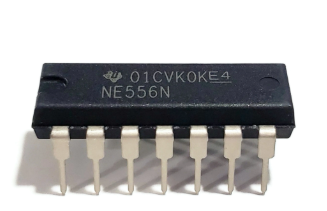

NE556N Dual Timer IC Explained: Functionality and Applications

The NE556 is a versatile dual-timer IC that simplifies timing functions in a wide range of electronic applications. As the dual-timer counterpart to the iconic NE555, it combines two independent timers in a single 14-pin package, ideal for projects requiring multiple timing operations. This article covers the NE556's pinout, features, and a comparison with similar components like the LM556 and NE555. It explains how to use the NE556 in astable, monostable, and bistable modes, along with practical applications such as time delays and sequential timing circuits, showcasing its versatility for you.

Catalog

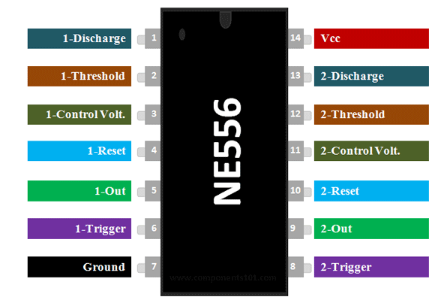

Pinout Configuration

Pin Number	Pin Name	Description
1, 13	Discharge	Open collector output which discharges a capacitor between intervals (in phase with output). It toggles the output from high to low when voltage reaches 2/3 of the supply voltage.
2, 12	Threshold	Compares the voltage applied to the terminal with a reference voltage of 2/3 Vcc. The amplitude of voltage applied to this terminal is responsible for the set state of the flip-flop.
3, 11	Control Voltage	Controls the threshold and trigger levels. It determines the pulse width of the output waveform. An external voltage applied to this pin can also be used to modulate the output waveform.
4, 10	Reset	Negative pulse applied to this pin to disable or reset the timer. When not used for reset purposes, it should be connected to VCC to avoid false triggering.
5, 9	Out	This pin is normally connected to load as it is the only pin with output-driven waveform.
6, 8	Trigger	Responsible for transition of the flip-flop from set to reset. The output of the timer depends on the amplitude of the external trigger pulse applied to this pin.
7	Ground	Ground reference voltage (0V).
14	Vcc	Supply voltage (Typical = 5V, Maximum = 18V).

Features and Technical Specs

Feature/Specification	Details
Precision Timers	Two precision timers in one single package
Typical Operating Voltage	+5V
Maximum Operating Voltage	+18V
Source/Sink Current (Output Pin)	150mA
Minimum Threshold Voltage	2.4V @ Vcc=5V
Operating Temperature	Up to 70°C
Available Packages	14-pin PDIP, SOIC, VSSOP

Alternatives

• LM556

555 and 556 IC Differences

Feature	NE555 Timer IC	NE556 Timer IC
Description	Classic timer IC	Successor to NE555 with two timers in one package
Timers	Single timer	Dual timers
Package	Standard	Reduces form factor and system complexity
Functionality	Identical to NE556	Identical to NE555
Pin Description	Identical to NE556	Identical to NE555

Utilizing the NE556 IC

The NE556 IC presents a straightforward yet sophisticated solution for timing applications, reminiscent of the well-known NE555. This integrated circuit features a 14-pin dual-timer configuration, which consists of two independent sets of timer pins. This thoughtful design allows for shared connections for Vcc and ground, streamlining circuit layouts while boosting efficiency in scenarios that require multiple timing functions.

Timer ICs, including the NE556, are basic to a wide array of electronic applications, thanks to their remarkable versatility. They can function in several modes, each tailored for specific tasks:

• Astable Mode: Generates continuous square waves, perfect for clock pulses.

• Monostable Mode: Produces a single output pulse triggered by an external signal.

• Bistable Mode: Acts as a flip-flop, maintaining a stable output state until activated.

In practical applications, the NE556 can be utilized for everything from basic timers to intricate pulse generation systems. For example, you might configure the NE556 in Astable mode to create a blinking LED circuit, showcasing both its practicality and accessible nature. Such experiential learning not only solidifies knowledge of timing circuits but also highlights the NE556's capability to manage timing intervals effectively.

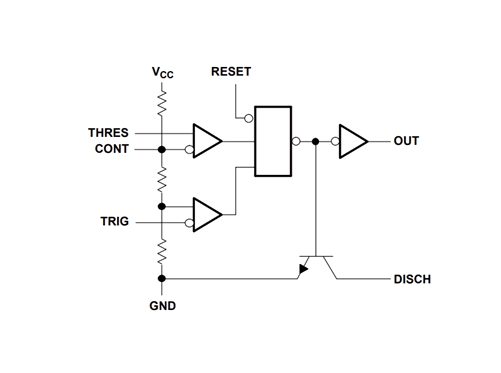

Exploring the internal architecture of the NE556 reveals a robust design comprising three 5K resistors, dual comparators, and a flip-flop. This configuration not only supports its versatile operation but also facilitates precise timing control. The dual comparators play a remarkable role in accurately comparing input voltages, a major aspect of dependable timing functions. Familiarity with these components equips you with the knowledge to troubleshoot effectively and enhance circuit performance.

Uses

The NE556 integrated circuit (IC) stands out as a remarkably adaptable component, finding its place in a myriad of applications. These include time delay generation, pulse width modulation, pulse generation, precision timing, and sequential timing circuits. Its versatility allows it to act as an ultimate element in endeavors, appealing to those who appreciate the blend of creativity and technical skill.

Time Delay Generation

In time delay applications, the NE556 can be expertly configured to produce precise delays. This feature is principally advantageous in scenarios where timing is of utmost importance, such as in automated systems or safety mechanisms. By fine-tuning resistor and capacitor values, you are empowered to customize the delay duration to their specific needs. This hands-on approach to timing has found its way into various industries, from automotive to consumer electronics, where dependable timing sequences play a key role in ensuring functionality and safety.

Pulse Width Modulation (PWM)

Pulse width modulation represents another prominent application of the NE556. This technique is extensively utilized in motor control, LED dimming, and audio signal modulation. By adjusting the duty cycle of the output signal, you can modulate the power delivered to a load, providing a remarkable level of control. This adaptability not only boosts efficiency but also allows for more refined management of devices. Engaging with PWM in actual projects often deepens one's appreciation for how variations in signal characteristics can intensely affect device performance.

Pulse Generation

The NE556 excels in generating pulses, which can be utilized in a wide array of applications, including clock generation in digital circuits and event triggering in sequential logic. Its capacity to produce stable and repeatable pulses is active for systems that depend on precise timing. You can frequently discover that experimenting with various configurations leads to valuable insights into the behavior of electronic components, fostering an intuitive understanding of circuit design.

Precision Timing

Precision timing circuits greatly benefit from the NE556's features. With its low jitter and stable output, it is well-suited for applications demanding high accuracy. This is especially pertinent in telecommunications and data acquisition systems, where even minor timing discrepancies can result in significant errors. By integrating the NE556 in these contexts, you can enhance reliability and performance, highlighting the significance of meticulous timing in electronic systems.

Sequential Timing Circuits

Sequential timing circuits, which necessitate a series of timed events, represent another area where the NE556 shines. By cascading multiple NE556 ICs, you can construct intricate timing sequences, useful for applications such as automated assembly lines or event-driven control systems. The knowledge gained from building these circuits often uncovers the complex interplay between timing, control, and system behavior, ultimately elevating overall design expertise.

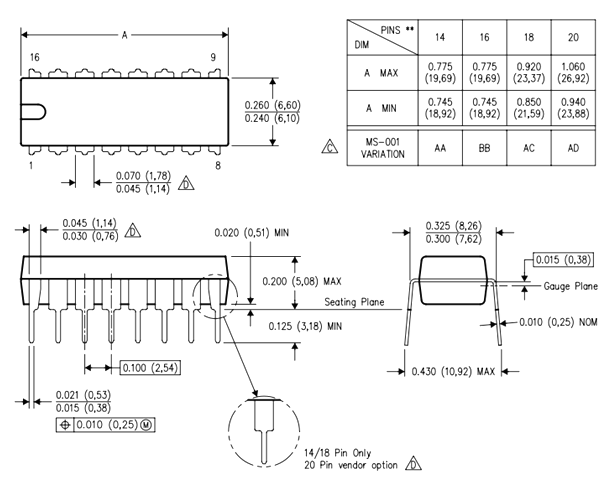

2D Model (PDIP)
