PN2222 Transistor Overview Key Features and Alternative Choices

The PN2222 transistor is a common NPN transistor that’s great for amplifying signals and switching currents in electronic circuits. It’s known for its small size and versatility, making it a popular choice for many DIY projects and professional designs. In this article, we’ll explore its key features, technical specifications, and some alternative transistors you can use. Whether you’re new to electronics or looking for reliable components for your project, this guide will help you understand why the PN2222 is a go-to option.

Catalog

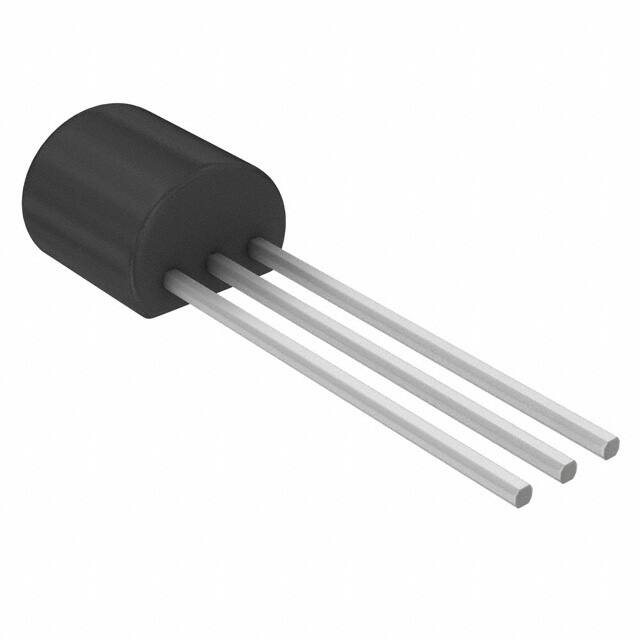

What is the PN2222 Transistor?

The PN2222 transistor is a widely used NPN bipolar junction transistor that serves well in both signal amplification and current switching tasks. Its structure consists of two N-type layers sandwiching a P-type layer, enabling it to handle significant current flow from the collector to the emitter while requiring only a small base current. Its compact TO-92 package design makes it suitable for a variety of applications, ensuring easy integration in different electronic projects.

With its high current gain (hFE), the PN2222 effectively amplifies weak signals and operates efficiently with a low saturation voltage (VCE(sat)), making it ideal for fast switching operations. It works well in low- to medium-power circuits, and is often used in devices such as LEDs and relays, handling up to 600mA of collector current. This versatility makes it popular in audio amplifiers, signal processing circuits, and digital logic systems, attracting attention from both electronics enthusiasts and professionals alike.

Specifications of the PN2222 Transistor

Parameter	Value
Type	NPN BJT
Maximum Collector-Emitter Voltage (VCEO)	30V
Maximum Collector-Base Voltage (VCBO)	75V
Maximum Emitter-Base Voltage (VEBO)	6V
Maximum Collector Current (IC)	600mA
Maximum Power Dissipation (Ptot)	625mW
DC Current Gain (hFE)	100 to 300
Transition Frequency (fT)	250 MHz (typical)
Collector-Emitter Saturation Voltage (VCEsat)	0.3V to 1V (typical)
Package Type	TO-92
Junction Temperature (Tj)	-55°C to +150°C
Storage Temperature (Tstg)	-55°C to +150°C
Thermal Resistance (RθJA)	200°C/W
Mounting Style	Through-hole
Lead Configuration	Emitter, Base, Collector

Similar Transistors You Can Use

• 2N2222

The 2N2222 has similar electronic properties to the PN2222 but differs in its packaging. While the PN2222 uses a plastic TO-92 package, the 2N2222 is housed in a metal TO-18 package, which allows for better heat dissipation. These transistors can often be used interchangeably depending on the application.

• 2N3904

The 2N3904 is similar to the PN2222 but has a lower collector current rating of 200mA. This makes it suitable for switching and amplification tasks, especially in low-power circuits. It has a low saturation voltage and good current gain, making it versatile for various uses. It also comes in a TO-92 package, making it easy to replace in many designs.

• BC547

The BC547 can handle a collector current of up to 100mA and a voltage of up to 45V. While it has a lower current rating compared to the PN2222, it can be a good substitute for low-current switching and amplification applications. It is widely used in European and Asian markets due to its availability and compatibility with the TO-92 package.

• 2N2369

Known for its fast switching capability, the 2N2369 is a good option for applications where speed is a priority over current capacity. Although it has a lower collector current rating of 200mA, it is ideal for digital circuits that require quick response times. It also comes in a TO-92 package for easy integration.

• MPS2222

The MPS2222 is electrically identical to the PN2222, sharing the same maximum voltage, current, and gain specifications. It comes in a TO-92 package and can be used for switching and amplification tasks. This transistor is commonly found in North American circuits and serves as a reliable replacement for the PN2222.

Key Features of the PN2222

Current Gain (hFE)

One of the main strengths of the PN2222 is its current gain, which ranges from 100 to 300. This means it can effectively amplify small input currents into much larger outputs, making it an excellent choice for signal amplification. This capability reduces the need for extra components in many electronic circuits, simplifying designs and improving efficiency.

Low Saturation Voltage (VCE_sat)

Another advantage of the PN2222 is its low saturation voltage. This helps minimize voltage drop during switching operations, making it particularly effective in digital circuits that need quick transitions and lower power usage. This characteristic is crucial in ensuring smooth performance, especially in circuits where speed and energy efficiency are priorities.

High Transition Frequency (fT)

The PN2222 can operate at a high frequency of up to 250 MHz, which allows it to perform well in high-speed applications like RF amplification and oscillators. This high transition frequency enables the transistor to handle high-frequency signals with ease, making it a reliable option for circuits that depend on fast signal processing and stable high-frequency performance.

Versatile Maximum Ratings

With the ability to manage a collector current of up to 600mA and voltages of up to 30V (V_CEO) and 75V (V_CBO), the PN2222 is versatile enough to be used in a variety of situations, from low-power signal processing to medium-power switching. This flexibility makes it a popular choice in both hobbyist projects and professional applications.

Strong Thermal Stability

The PN2222 can withstand temperatures up to 150°C, which, combined with its TO-92 package, ensures effective heat dissipation. This helps maintain stable performance even in environments where temperatures can fluctuate significantly, making it reliable for use in a broad range of conditions.

Common Uses of the PN2222

Signal Amplification

The PN2222's ability to amplify weak signals makes it an ideal component for audio circuits and microphones. It can strengthen input signals, making them easier to process or drive other components. This enhances overall audio performance by boosting clarity and output levels.

Switching Capability

In digital designs, the PN2222 excels at controlling larger currents with very little input, making it useful for applications like driving LEDs, motors, and relays. This capability is a key reason it's often found in automation systems, where effective switching is necessary for smooth operation.

Oscillators and Timing Circuits

Thanks to its high transition frequency, the PN2222 is frequently used in oscillator circuits to generate precise timing signals. These circuits are essential for applications such as timers and communication devices, where accurate control over signal frequency is needed.

Voltage Regulation

The PN2222 can also contribute to voltage regulation in circuits, maintaining stable outputs even when input conditions change. This makes it a good companion for operational amplifiers and zener diodes, ensuring consistent power delivery in sensitive applications.

Relay Interfacing

The PN2222 is a great option for interfacing low-control signals with high-current relays, allowing control circuits to be separated from the high-power parts of a system. This is particularly useful in industrial and home automation systems, where isolation is necessary for safety and reliability.

Pulse Width Modulation (PWM)

Finally, the PN2222 is used in Pulse Width Modulation (PWM) systems to control variables like motor speed and LED brightness. By adjusting the pulse width, it can provide precise control over these elements, helping improve efficiency and performance in applications such as power management and lighting systems.

Conclusion

The PN2222 remains a trusted and reliable option for electronics enthusiasts and professionals alike. Its versatility, combined with robust specifications and easy availability, ensures that it will continue to be a staple component in a variety of applications, offering solid performance and adaptability for years to come.
