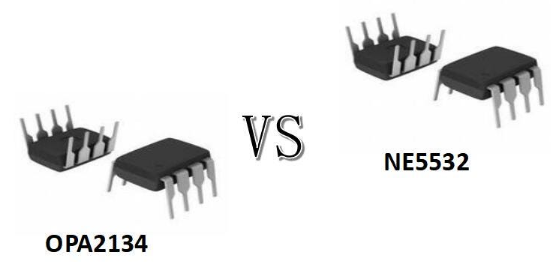

Performance Showdown: OPA2134 vs NE5532 - Features and Applications Compared

When it comes to operational amplifiers used in audio applications, both the OPA2134 and NE5532 stand out for their distinctive capabilities. The OPA2134 is revered for its high-fidelity performance, offering low distortion and exceptional sound clarity. On the other hand, the NE5532 delivers reliable performance with low noise and high output drive, frequently found in commercial and DIY audio projects. In this article, we will explore the unique features, performance traits, and practical applications of these two op-amps, helping you make an informed choice based on your audio needs.

Catalog

Overview of OPA2134

OPA2134 represents a high-fidelity, low-distortion operational amplifier carefully crafted for superior audio applications. This device features a genuine FET input stage that ensures exceptional sound quality and rapid response, making it highly suitable for high-end audio systems. The op-amp's robust output drive and remarkable DC performance make it adaptable across a range of demanding applications. Its design includes a wide output swing that approaches within 1V of the supply rail, providing ample headroom needed for various audio circuits.

OPA2134 offers single, dual, and quad-channel variations, with options for both DIP and surface-mount packages. This flexibility expands its usability across different design requirements and constraints. It functions effectively over a wide temperature range from -40°C to 85°C, ensuring reliability in diverse environmental conditions. Additionally, it supports SPICE macro models, facilitating detailed design analysis and optimization through simulation.

The integration of a genuine FET input stage is used as it enhances the op-amp's ability to handle audio signals with high fidelity. The rapid response of this stage is useful in minimizing distortion and preserving the integrity of original audio signals.

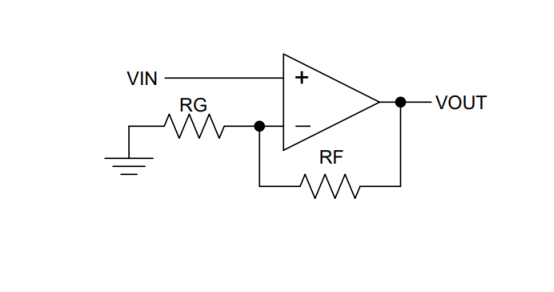

NE5532 Operational Amplifier

The NE5532 operational amplifier series delivers superior performance, marked by its exceptional DC and AC characteristics. This series is notable for its low noise levels, substantial output drive capability, and impressive gain linearity. Additionally, the product offers a wide output swing bandwidth, minimal distortion, and high slew rates, enhancing its robust functionality. The inclusion of input protection diodes and output short-circuit protection further ensures reliability. Furthermore, it is internally calibrated for unity-gain operations, setting a high standard in terms of input noise voltage limits.

The NE5532 series is identified by several substantial performance indicators. Its low noise levels are used in maintaining signal integrity, mostly in audio amplification and signal processing. The gain linearity of the NE5532 ensures consistent amplification across different input levels, dynamic for precise signal processing. This feature is paired with a maximum output swing bandwidth that supports a broad range of frequencies without signal degradation. Such a combination proves beneficial in intricate audio and communication systems where clarity and fidelity are requisite.

The NE5532's design achieves minimal distortion, useful for maintaining the integrity of amplified signals. High slew rates enable rapid responses to changes in the input signal, required in high-speed analog-to-digital conversion and other dynamic applications. The balance of low distortion and high slew rates positions the NE5532 as an optimal choice for precision and high-speed applications. The NE5532 incorporates input protection diodes and output short-circuit protection, ensuring resiliency in various application scenarios. Input protection diodes safeguard the internal circuitry from voltage spikes or electrostatic discharge. Output short-circuit protection helps maintain amplifier operation under adverse conditions, such as accidental short circuits, thereby extending the device's lifespan.

Performance Comparison: OPA2134 vs NE5532

A detailed examination of the OPA2134 and NE5532 reveals their unique strengths for various audio applications.

Noise and Distortion

The OPA2134 is distinguished by its remarkably low noise and distortion levels. This makes it highly favored in high-end audio systems and professional-grade equipment. Through carefully planned internal circuitry, it minimizes unwanted interference, ensuring audio clarity. In actual applications, this translates to a purer and more transparent sound—greatly appreciated in recording studios, high-fidelity playback systems, and other settings where pristine audio quality is cherished. You can often select the OPA2134 for serious listening scenarios where capturing and reproducing the finest details of sound is dominant.

Cost and Everyday Use

In contrast, the NE5532 serves as a cost-effective option with adequate performance for daily audio tasks. Even though its noise and distortion metrics may not match the OPA2134, it provides robust functionality suitable for routine applications. The NE5532 is often found in consumer audio devices, educational projects, and budget-conscious DIY audio projects. Its affordability and ready availability make it an excellent choice for those new to audio electronics, allowing experimentation and learning without substantial financial risk.

Balancing Performance and Cost

Both op-amps are crafted for excellent audio performance, with selection driven by specific circuit requirements and the desired trade-off between performance and cost. You should evaluate the importance of the audio task and the environment where the op-amp will be used. Professional-grade or audiophile precision may steer you towards the OPA2134, while practical, everyday audio needs might find the NE5532 more appropriate.

Integration in Audio Systems

When choosing between the OPA2134 and the NE5532, consider the surrounding components and intended application. For high-end systems where each component’s precision is used, the OPA2134 can greatly enhance overall sound quality. In general-purpose audio systems that do not demand ultra-low noise levels, the NE5532 offers a dependable and economical alternative.

OPA2134 and NE5532 Comparison of Characteristics

• OPA2134 is distinguished by its ultra-low distortion rate of 0.00008%, ensuring high fidelity in audio applications. Its low noise levels at 8 nV/√Hz make it suitable for sensitive audio equipment where clarity is dominant. Notably, its FET input has a bias current of only 5pA, reducing loading on preceding circuits. The high slew rate of 20 V/μs allows for accurate reproduction of rapid signal changes, while its 8 MHz bandwidth supports a wide range of frequencies without signal degradation. Featuring a high open-loop gain of 120 dB at 600 Ω, it provides robust amplification even at low input levels. Its versatile supply voltage ranges from ±2.5V to ±18V making it adaptable to various circuit requirements. Available in single, dual, and quad configurations, it offers flexible integration options for different design needs.

• NE5532 stands out with a small signal bandwidth of 10 MHz, suitable for applications requiring high-frequency response. Its high output drive capability, capable of driving 600 Ω loads at 10V RMS, makes it ideal for situations demanding strong signal output.

An input noise voltage of 5 nV/√Hz ensures efficiency in handling low-noise requirements. The NE5532 features a high DC voltage gain of 50,000 and an impressive voltage gain of 2,200 at 10 kHz, emphasizing its amplification proficiency. Its power bandwidth of 140 kHz and a slew rate of 9 V/μs support dynamic signal processing. The wide supply voltage range from 3V to 20V provides flexibility in various power environments, and unit gain compensation increases its utility in designs requiring stable gain across different applications.

Comparison of Data: OPA2134 vs NE5532

Specification	OPA2134	NE5532
Packaging	Tube	8-DIP
Supply Voltage	15V	15V
Operating Supply Current	4mA	8mA
Slew Rate	20V/μs	9V/μs
Output Current per Channel	35mA	38mA
Operating Temperature	-40°C ~ 85°C	0°C ~ 70°C

Applications for OPA2134 and NE5532

OPA2134

OPA2134 lends itself admirably to professional audio and music systems due to its low-noise behavior and robust output drive. Within these systems, it performs exceptionally well in line drivers and receivers, ensuring reliable and clear signal transmission. Its scope extends further into multimedia audio, where precision and transparency are active. In active filters and preamplifiers, OPA2134's distinct feature of low total harmonic distortion stands out, preserving the purity of signal processing. Integrators and crossover networks benefit greatly from this operational amplifier, as it consistently delivers high fidelity—a major characteristic of successful audio systems.

Examples from the field illustrate how precision components like OPA2134 make a difference. You can often choose it for recording equipment and live sound reinforcement, where accuracy and minimal noise dictate success. Its role is mostly impactful, elevating tonal quality while reducing unwanted artifacts. Audio equipment design continually reaffirms the OPA2134's role in maintaining sound integrity across various applications.

NE5532

NE5532 sees widespread use in audiovisual (AV) receivers due to its low noise and powerful output drive, which significantly enhances sound clarity and quality. Embedded PCs and netbooks benefit from its integration, offering improved audio processing capabilities serious for compact, complex devices. NE5532's role in video broadcasting platforms and DVD players/recorders is exceptional because of its seamless handling of high-performance audio and video signals. In multichannel video transcoder systems and professional audio mixers, the NE5532 performs with high speed and low distortion.

OPA2134 vs NE5532: What Sets Them Apart?

Noise Performance and Sound Fidelity

The OPA2134 generally excels in noise performance, a notable advantage in high-gain audio environments where sound integrity is dynamic. The low noise profile of the OPA2134 minimizes unwanted audio artifacts, seeking a purer sound experience. Furthermore, its lower distortion levels enable clearer and more accurate audio reproduction, which is useful in high-fidelity applications where every detail matters. In the world of audio manufacturing, these qualities of the OPA2134 enhance your listening experience by reducing technical impurities in the audio signal, allowing the emotion in music to come through more vividly.

Bandwidth and Slew Rate

Possessing a wider bandwidth and faster slew rate, the OPA2134 augments signal speed, making it more adept for high-speed audio tasks. This feature is especially useful in professional audio settings where rapid signal processing is a norm. The amplifier’s higher slew rate enables it to replicate fast-changing audio signals faithfully without distortion, preserving the authentic sound quality. For example, in live sound reinforcement systems, the OPA2134’s ability to handle quick transients efficiently results in audio that feels more dynamic and lifelike, enhancing the immersion of the auditory experience.

Cost Considerations

While the OPA2134 generally demands a higher price, its enhanced performance capabilities justify the cost of professional audio gear, where superior audio quality is sought. Its use in high-end audio equipment and recording studios emphasizes the emphasis on performance over expense. Choosing to invest in the OPA2134 frequently arises from a professional's requirement for top-tier sound quality that aligns with the high standards of serious listening environments. Such investment often reflects a commitment to achieving the utmost in audio fidelity and reliability.

Supply Voltage Range and Bias Current

Contrastingly, the NE5532 presents a broader supply voltage range, advantageous in various power scenarios, allowing for more versatile applications across different audio devices. However, its higher input bias current can introduce slight errors in specific contexts, demanding careful design considerations to mitigate potential adverse effects. Practically, this implies that while the NE5532 offers adaptability, it necessitates a thoughtful design approach to ensure peak performance. This requirement for meticulous planning in circuit design might appeal to those who enjoy the challenge of optimizing technical parameters for best results.

Conclusion

In conclusion, the OPA2134 and NE5532 op-amps cater to distinct roles in audio applications, each excelling in specific areas. The OPA2134, with its low noise, minimal distortion, and extended bandwidth, is ideal for high-fidelity audio systems where superior sound quality is a must. On the other hand, the NE5532 provides a budget-friendly alternative, offering reliable performance in general-purpose audio circuits. The choice between the two depends on the project's requirements—while audiophile setups favor the OPA2134 for its top-tier audio quality, the NE5532's affordability makes it popular in cost-sensitive applications. Both op-amps are requisite in their respective niches, and understanding their differences helps you balance performance and cost to optimize audio designs effectively.
