Programmable Logic Controller (PLC): Definition, Types, Working Principle, and Applications

A Programmable Logic Controller (PLC) is an industrial control device you use to automate machines and processes. In this article, you will learn what a PLC is, its main components, and how it works inside an automation system. You will also see the different types of PLCs, how ladder programming is used, and where PLCs are commonly applied. Clear comparisons with other control systems are included to help you understand their role in automation.

Catalog

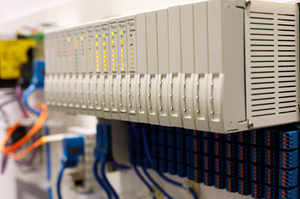

Figure 1. Programmable Logic Controller (PLC)

What is a Programmable Logic Controller?

A Programmable Logic Controller (PLC) is a rugged industrial computer designed specifically for reliable control in automation systems. As shown in the figure, a PLC is typically installed inside a control panel as a dedicated industrial device rather than a general-purpose computer. Its solid, modular construction allows it to operate continuously in harsh environments. PLCs are built to withstand electrical noise, vibration, dust, and temperature variations. Unlike standard PCs, a PLC is optimized for dependable industrial operation.

Components of a PLC System

The components of a PLC system are important because they work together to allow a programmable logic controller to reliably monitor, control, and automate industrial machines and processes.

Figure 2. Components of a PLC System

• Power Supply

The power supply is a core PLC component that provides the correct operating voltage to internal modules. It ensures stable and continuous power for reliable PLC operation.

• Controller (CPU Control Unit)

The controller is the central component that manages all internal PLC activities. It coordinates communication between memory, input modules, and output modules.

• CPU Processor

The CPU processor is the main processing component of the PLC. It handles logical operations and internal data processing required by the control system.

• Program & Data Memory

Memory is a PLC component used to store control programs and system data. It supports both temporary and permanent storage of instructions.

• Input Interface

The input interface is a PLC component that connects external signals to the controller. It conditions and converts incoming signals into a usable internal format.

• Output Interface

The output interface is responsible for delivering control signals from the PLC to connected devices. It translates internal logic signals into electrical outputs.

• Input Devices

Input devices are external components that provide signals to the PLC. They detect physical conditions and convert them into electrical inputs.

• Output Devices

Output devices are components that receive control signals from the PLC. They perform physical actions such as switching or indicating system status.

• Comms Interface

The communication interface is a PLC component used for data exchange with external systems. It supports networking and system integration functions.

• HMI, Remote I/O & Other PLCs

These are auxiliary components that interact with the PLC for monitoring and expansion. They support interaction and distributed control.

• Programming Terminal

The programming terminal is a support component used to configure the PLC. It allows program development, testing, and system diagnostics.

Working Principle of a PLC

A PLC operates using a continuous cyclic process called the scan cycle, which ensures precise and reliable control. The cycle begins with the PLC reading all input signals, such as sensor states, switch positions, or analog measurements. Next, the controller executes the user-defined program, applying logic instructions like timers, counters, comparisons, and arithmetic functions. After processing, the PLC updates its outputs, activating motors, solenoids, alarms, relays, and other field devices. This cycle repeats within milliseconds, allowing the PLC to respond instantly to changing conditions. Additional features such as communication protocols, internal diagnostics, and error-handling routines help maintain safe and reliable operation.

Types of Programmable Logic Controller

Compact PLC

Figure 3. Compact PLC

A Compact PLC is an all-in-one programmable logic controller that integrates the CPU, power supply, input/output modules, and communication ports into a single unit. In the figure, these built-in sections are clearly grouped within one compact housing, showing how the controller is designed to save space and simplify installation. The presence of integrated I/O terminals highlights that external expansion modules are not always required for basic automation tasks. Communication ports such as Ethernet and USB indicate how the compact PLC can be programmed and connected to other systems.

Modular PLC

Figure 4. Modular PLC

A Modular PLC is a programmable logic controller made up of separate, interchangeable modules that work together as one control system. In the figure, the PLC is shown assembled on a common rail with individual modules for the power supply, CPU, digital input, digital output, and analog I/O, clearly illustrating its modular structure. Each module performs a specific function, allowing the system to be expanded or modified by adding or replacing modules as needed. This flexible design makes modular PLCs suitable for medium to large automation systems where input/output requirements may change over time.

Rack-Mount PLC

Figure 5. Rack-Mount PLC

A Rack-Mount PLC is a programmable logic controller designed to house multiple functional modules within a single rack or chassis for high-capacity automation systems. In the figure, the PLC is arranged in a structured rack with separate slots for the power supply, CPU, digital input modules, digital output modules, analog I/O, and a communication module, clearly showing its organized layout. This arrangement allows many modules to operate together while sharing a common backplane for power and data communication. Rack-mount PLCs are commonly used in large and complex control systems where high I/O count, fast processing, and reliable communication are required.

Safety PLC

A Safety PLC is a specialized programmable logic controller designed specifically for safety-related applications. It includes redundant hardware and fail-safe architectures to ensure reliable operation even during faults. Safety PLCs support certified safety functions such as emergency stop, safety interlocks, and safe motion control. These controllers comply with international safety standards like IEC 61508 and ISO 13849. Safety PLCs are commonly used in hazardous and mission-critical industrial environments.

Soft PLC

A Soft PLC is a software-based programmable logic controller that runs on an industrial PC or embedded computing platform. It performs standard PLC control functions using software instead of dedicated PLC hardware. Soft PLCs offer high processing power and flexibility for complex control and data-intensive applications. They are commonly integrated with Industrial Internet of Things (IIoT) and advanced automation systems. This type of PLC is suitable for modern automation environments requiring scalability and connectivity.

PLC Ladder Programming

Figure 6. PLC Ladder Programming Diagram

PLC ladder programming is a graphical programming method used to create control logic for programmable logic controllers using symbols that resemble electrical relay circuits. The figure illustrates ladder logic with two vertical power rails and several horizontal rungs, which represent individual control instructions. Input instructions such as switches and contacts are placed on the left side of each rung, showing the conditions that must be met for the logic to be true. Output instructions, shown as coils on the right side, indicate the actions that occur when the input conditions are satisfied. This ladder-style layout makes PLC programming easy to read, troubleshoot, and understand, especially for industrial automation and control applications.

Applications of Programmable Logic Controller

Machine Automation and Sequencing

PLCs are used to control the step-by-step operation of machines in an automated system. They ensure that each action occurs in the correct order and at the right time. This improves machine reliability and reduces operational errors. Machine automation using PLCs increases efficiency and consistency in industrial processes.

Motor and Drive Control

PLCs manage the operation of electric motors by controlling start, stop, speed, and direction. They also handle motor protection functions such as overload and fault detection. This ensures safe and efficient motor operation. PLC-based motor control is widely used in industrial automation systems.

Process Control

PLCs regulate process variables such as temperature, pressure, flow, and liquid level. They use sensor feedback to maintain stable and accurate control conditions. This helps ensure consistent product quality and safe process operation. Process control is a key application of PLCs in industrial systems.

Material Handling Systems

PLCs control conveyors, elevators, and automated sorting systems for material movement. They manage speed, direction, and routing based on sensor inputs. This ensures smooth and efficient handling of materials. Material handling automation improves productivity and reduces manual labor.

Safety and Interlock Control

PLCs monitor safety devices such as emergency stop buttons and safety switches. They trigger interlocks or system shutdowns when unsafe conditions are detected. This helps protect both personnel and equipment. Safety control is an application of PLCs in industrial environments.

Production Line Automation

PLCs coordinate multiple machines and workstations in a production line. They ensure continuous and synchronized operation across all stages. This improves production speed and reduces downtime. Production line automation increases overall manufacturing efficiency.

Data Acquisition and Monitoring

PLCs collect operational data from sensors and machines during system operation. This data is used for monitoring performance, diagnostics, and fault detection. PLCs can transmit data to HMIs or SCADA systems for analysis. Data acquisition helps optimize and improve industrial processes.

PLC vs. Microcontroller vs DCS vs PAC

This comparison helps you understand the differences between PLCs, microcontrollers, DCS, and PACs so you can choose the right control system for your automation needs.

Specification	PLC (Programmable Logic Controller)	Microcontroller	DCS (Distributed Control System)	PAC (Programmable Automation Controller)
Primary Purpose	Industrial automation and control	Embedded control in devices	Large continuous process control	Advanced industrial automation
Application Size	Small to large machines	Small electronic products	Very large plants	Medium to very large systems
Processing speed	1 to 10 ms scan time	Up to hundreds of MHz	Optimized for steady processes	Faster than PLC, near PC level
Programming Languages	Ladder Logic, FBD, ST	C, C++, Assembly	Function blocks	IEC 61131-3 plus high-level languages
Operating Environment	Harsh industrial conditions	Normal electronic environment	Harsh industrial conditions	Harsh industrial conditions
I O capacity	Tens to thousands of I O points	Very limited I O pins	Thousands of I O points	Hundreds to thousands of I O
Scalability	Moderate to high	Very limited	Very high	Very high
Communication Protocols	Modbus, Ethernet IP, Profibus	UART, SPI, I2C	Proprietary industrial networks	Ethernet IP, OPC UA, Modbus
Fault Tolerance	Moderate	Very low	Very high with redundancy	High with redundancy options
System Architecture	Centralized control	Standalone device	Fully distributed control	Hybrid PLC and PC architecture
Typical Response Time	1 to 20 milliseconds	Microseconds	Seconds to milliseconds	Sub-millisecond to milliseconds
Maintenance Complexity	Low to moderate	Low	High	Moderate

Advantages and Limitations of PLC

Advantages of PLC

• Reliable operation in harsh industrial environments

• Easy program changes without rewiring

• Fast and real-time control response

• Compact design with reduced wiring

• Built-in diagnostics for easy maintenance

• Supports industrial communication networks

Limitations of PLC

• Requires skilled programming knowledge

• High initial system cost

• Limited processing power for complex tasks

• Vendor-dependent hardware and software

• Upgrades may require hardware replacement

Conclusion

PLCs are widely used in automation because they are reliable, fast, and suitable for harsh environments. Their components and scan-based operation allow accurate control of machines and processes. Different PLC types and programming methods support a wide range of industrial tasks. Knowing their advantages, limitations, and differences from other controllers helps in choosing the right automation system.
