Programmable Logic Controller (PLC): Working, Types, and Applications

A Programmable Logic Controller (PLC) is what you use to automate machines and industrial processes in a reliable and controlled way. In this article, you’ll learn what a PLC is, how it works through its scan cycle, and how its main hardware components function together. You’ll also see the different types of PLCs, common programming languages, and how input and output devices connect the controller to equipment. By the end, you’ll clearly understand where PLCs are used and why they are important in automation systems.

Catalog

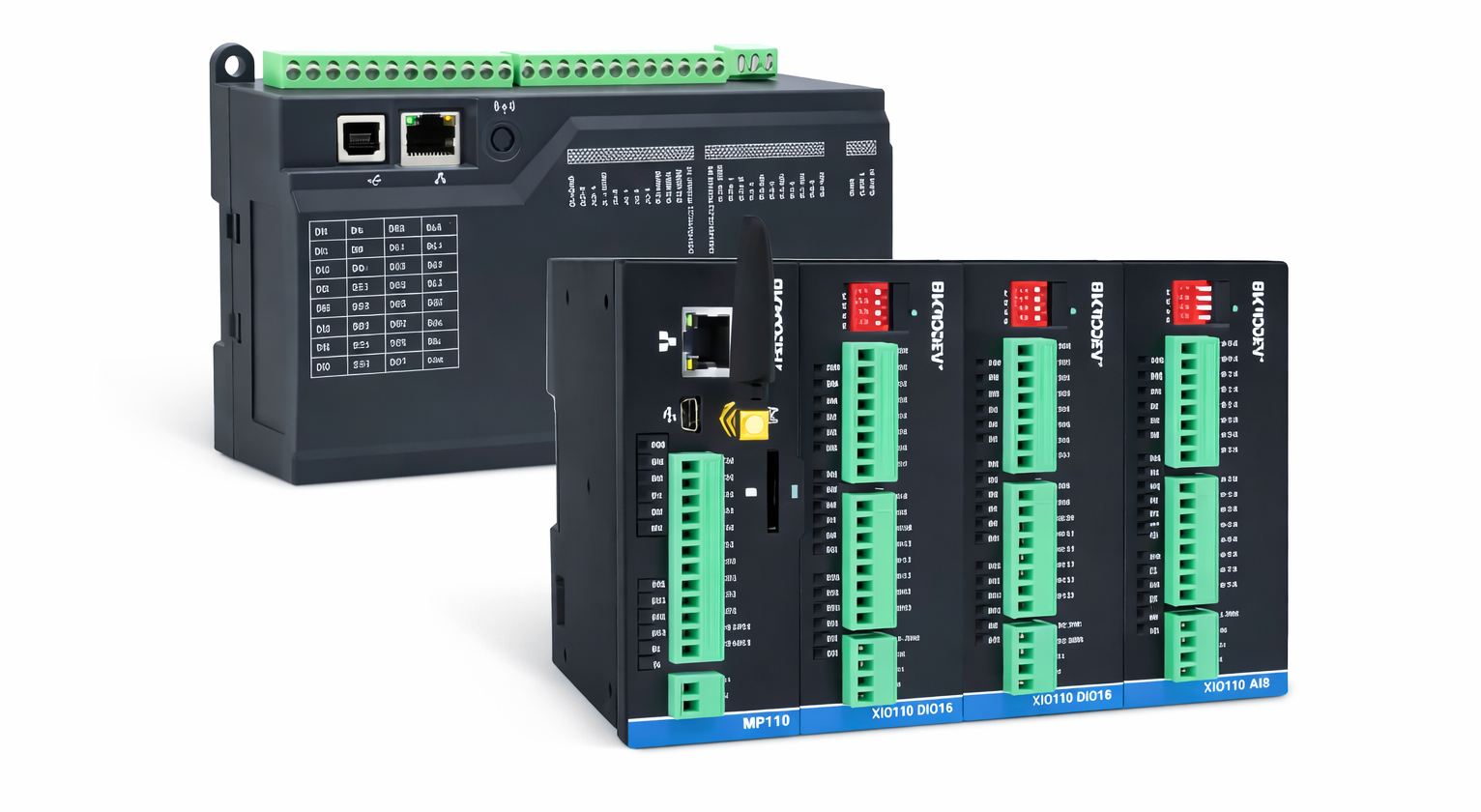

Figure 1. Programmable Logic Controller (PLC)

What is a Programmable Logic Controller?

A Programmable Logic Controller (PLC) is a rugged industrial control device used to automate machines and processes. It is designed to handle control tasks reliably in environments with electrical noise, vibration, and temperature changes. PLCs are widely used because they provide stable, repeatable control using software rather than hard-wired relays. They allow automation systems to be modified or expanded without rewiring entire panels. In industrial automation, PLCs serve as the central decision-making unit that coordinates inputs and outputs under predefined logic.

How a PLC Works?

Figure 2. PLC Operating Cycle

A PLC works by repeatedly executing a simple and predictable operating cycle called the scan cycle. As shown in the figure, the process begins with input scanning, where the PLC reads the current status of connected signals. Next, the controller performs program execution, applying the stored logic to the input states. After the logic is evaluated, the PLC performs output updating, changing the output signals accordingly. This sequence runs continuously in a loop, allowing the PLC to respond quickly to changes. The figure illustrates this closed loop of reading, processing, and updating. This cycle-based operation ensures stable and time control in industrial automation systems.

Components of a PLC System

Figure 3. Main Components of a PLC System

• CPU (Central Processing Unit)

The CPU is the core of the PLC and is responsible for processing control instructions. It manages logic execution, internal coordination, and overall controller operation. The CPU ensures consistent and deterministic behavior during automation tasks.

• Power Supply

The power supply converts incoming electrical power into regulated voltages required by the PLC. It provides stable power to all internal modules and protects the system from voltage fluctuations. Reliable power delivery is essential for continuous operation.

• Input Modules

Input modules receive signals from external devices and convert them into a form the PLC can recognize. They provide electrical isolation and signal conditioning to protect internal circuits. These modules act as the interface between the physical process and the controller.

• Output Modules

Output modules send control signals from the PLC to external devices. They translate internal control decisions into electrical signals suitable for field equipment. Proper output handling ensures accurate and safe control actions.

• Memory (Program and Data)

PLC memory stores control programs and system data required for operation. It retains configuration information and operational values during runtime. Memory ensures the PLC can execute logic consistently across cycles.

• Communication Interfaces

Communication interfaces allow the PLC to exchange data with external systems. They support integration with other controllers, monitoring systems, and programming devices. These interfaces enable coordinated automation across larger systems.

Types of PLCs

Compact PLCs

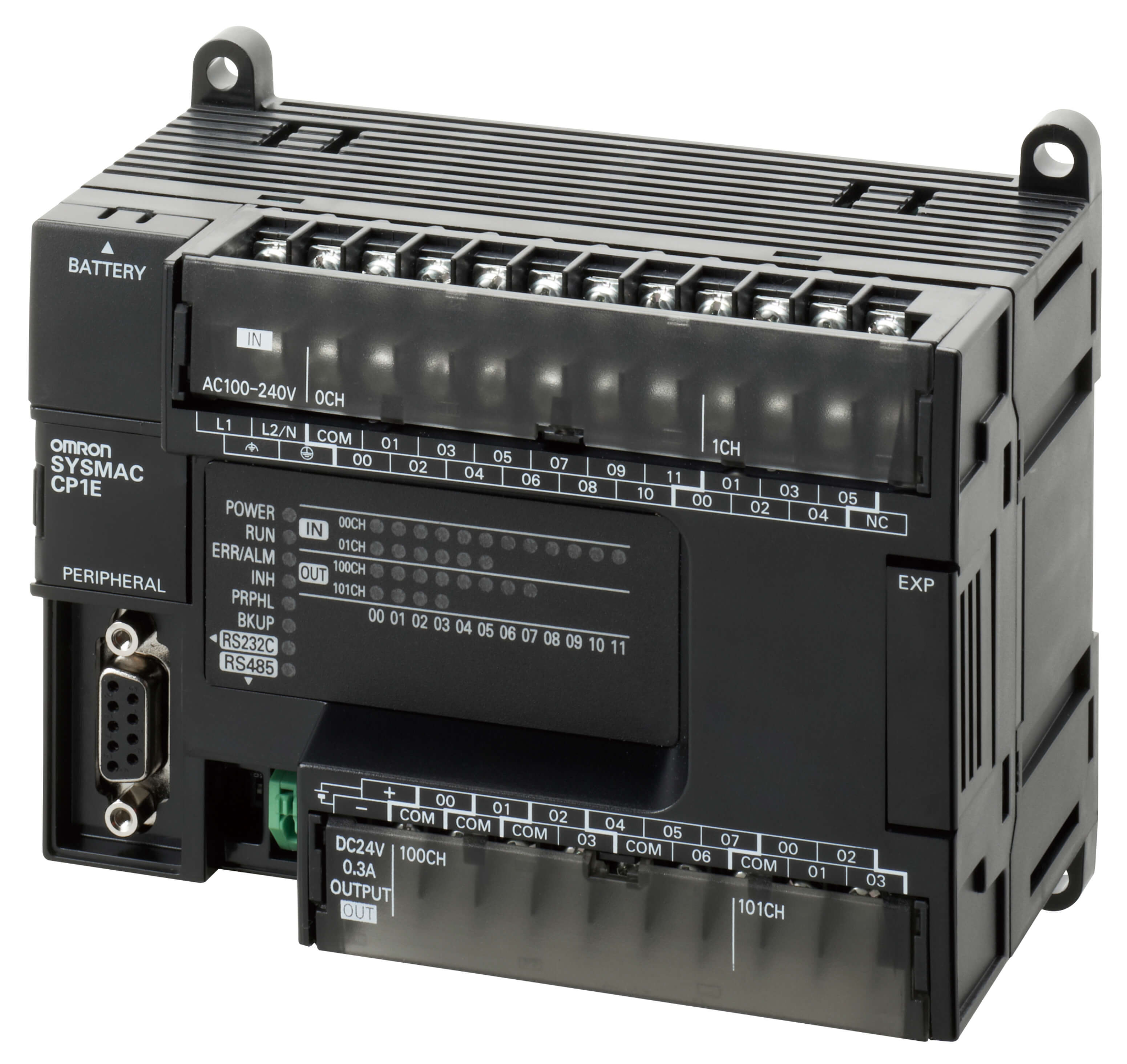

Figure 4. Compact PLC

A compact PLC is a self-contained controller with fixed inputs, outputs, and processing functions in one unit. It is designed for small automation tasks where space and cost are limited. The figure shows how all control functions are integrated into a single housing. Compact PLCs are easy to install and require minimal wiring. They are commonly used in simple control panels and standalone machines. Their fixed design makes them suitable for applications with stable and well-defined requirements. Compact PLCs provide reliable control without the need for system expansion.

Modular PLCs

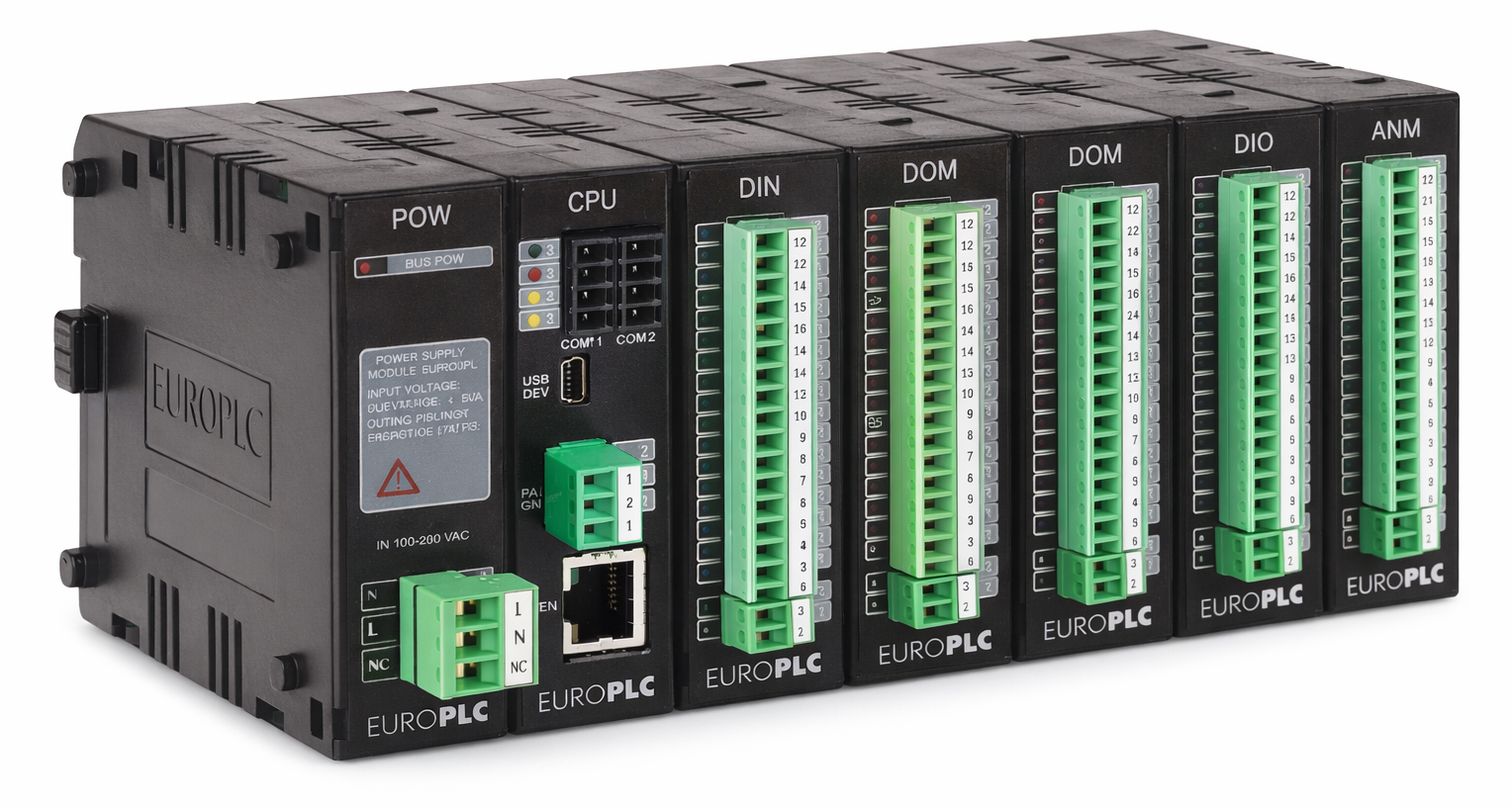

Figure 5. Modular PLC

A modular PLC consists of separate modules connected to a central controller. Each module performs a specific function, such as processing or signal handling. The figure illustrates how modules are arranged side by side to form a complete system. Modular PLCs allow to add or remove modules as system requirements change. This flexibility makes them suitable for medium to large automation systems. Expansion can be done without replacing the entire controller. Modular PLCs support scalable and adaptable control solutions.

Rack-Mounted PLCs

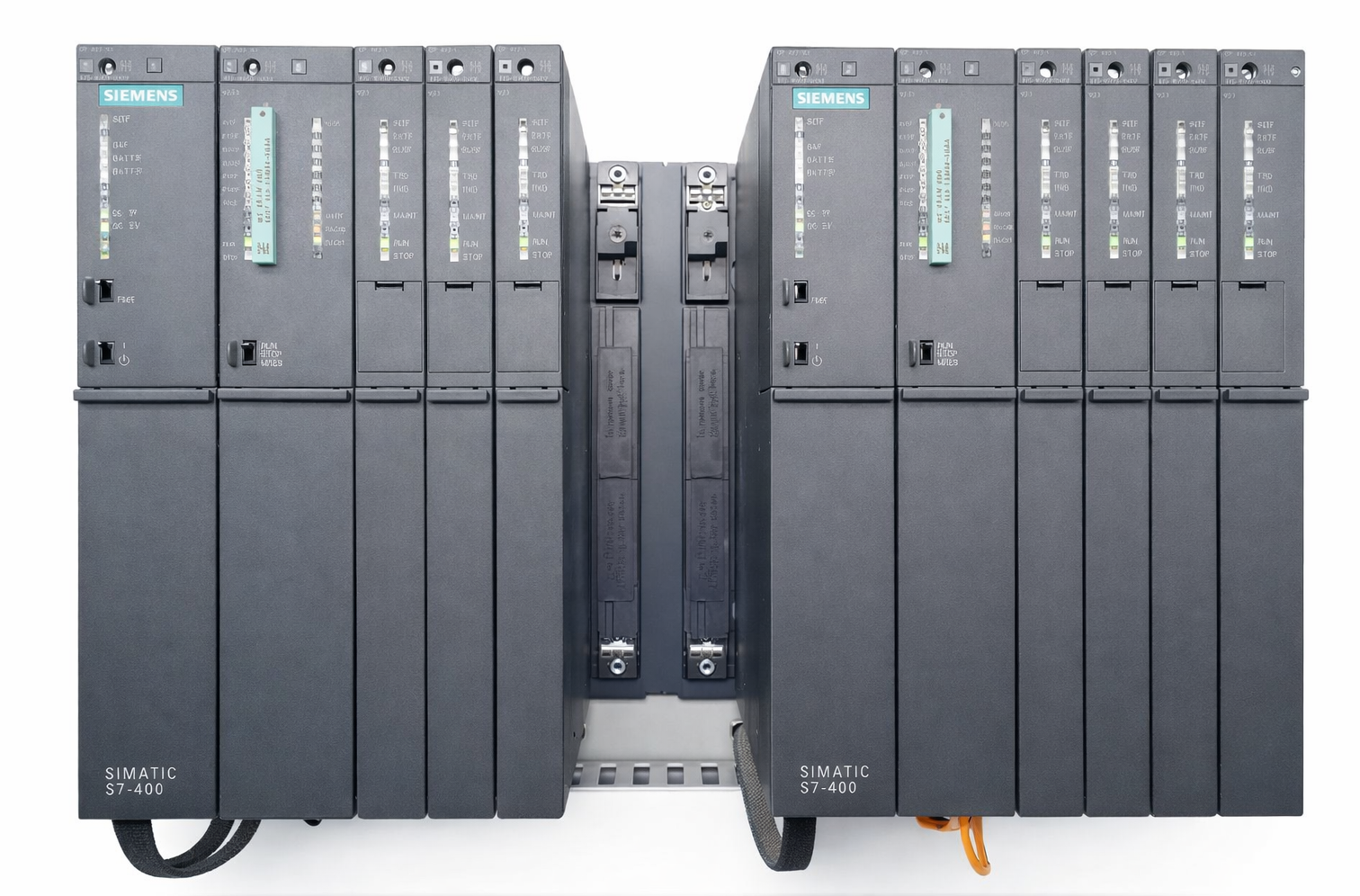

Figure 6. Rack-Mounted PLC

A rack-mounted PLC is a high-capacity controller designed for large control systems. It uses a dedicated rack to hold multiple functional modules in an organized structure. The figure shows modules installed into a shared backplane within the rack. Rack-mounted PLCs support large numbers of signals and complex configurations. They are built for systems that require high reliability and long-term operation. This structure allows easy maintenance and module replacement. Rack-mounted PLCs are suited for demanding automation environments.

Safety PLCs

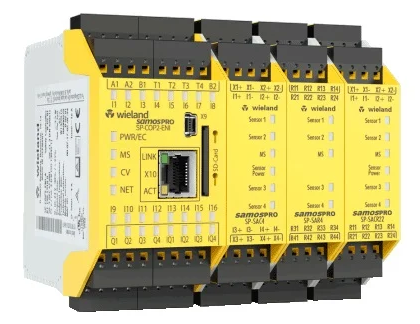

Figure 7. Safety PLC

A safety PLC is a specialized controller designed to handle safety-related control functions. It operates separately from standard control logic to ensure reliable safety operation. The figure highlights dedicated safety modules and connections used for protection tasks. Safety PLCs monitor signals and maintain safe system states when abnormal conditions occur. They are built with redundancy and fault-detection features. Safety PLCs ensure controlled and predictable responses in safety-critical systems.

PLC Programming Languages

Ladder Logic (LD)

Ladder Logic (LD) is a graphical PLC programming language modeled after traditional relay control circuits. It represents control logic using rungs arranged between two vertical rails, similar to electrical ladder diagrams. Contacts and coils are used to express logical conditions and control actions in a visual way. This structure makes control relationships easy to recognize and follow. Ladder logic clearly shows how logical conditions are combined to form control decisions. Because of its familiar layout, it is easy to read even for beginners. LD is widely used for creating clear and maintainable PLC control logic.

Function Block Diagram (FBD)

Function Block Diagram (FBD) is a block-based PLC programming language used to represent control functions visually. It organizes control logic into functional blocks connected by signal lines. Each block performs a specific operation such as logic processing, comparison, or signal manipulation. The connections between blocks show how data flows through the control logic. This visual structure helps simplify complex control relationships. FBD is well suited for representing logical and continuous control functions. It provides a clear and structured way to build PLC programs.

Structured Text (ST)

Structured Text (ST) is a high-level, text-based PLC programming language. It describes control logic using readable statements arranged in a structured format. This approach allows complex conditions and calculations to be expressed clearly. Structured text is useful when control logic requires precise mathematical or logical expressions. The written format helps organize logic in a clean and logical order. It is commonly used in advanced and data-driven control applications.

Instruction List (IL)

Instruction List (IL) is a low-level PLC programming language based on short textual commands. It represents control logic as a sequence of instructions executed in a defined order. Each instruction performs a specific operation on control data. This format is compact and closely aligned with how control instructions are processed internally. IL provides a direct and structured way to express basic control logic. It helps illustrate the flow of individual control operations. Instruction lists focus on concise and orderly logic representation.

Sequential Function Chart (SFC)

Sequential Function Chart (SFC) is a PLC programming language used to organize control logic into sequential steps. It represents processes as a series of defined stages connected by transitions. Each step defines a specific operating state within the control sequence. Transitions indicate the conditions required to move from one step to the next. This structure makes the overall process flow easy to understand. SFC is ideal for organizing multi-step control sequences. It helps simplify the structure of complex process control logic.

PLC Input and Output Devices

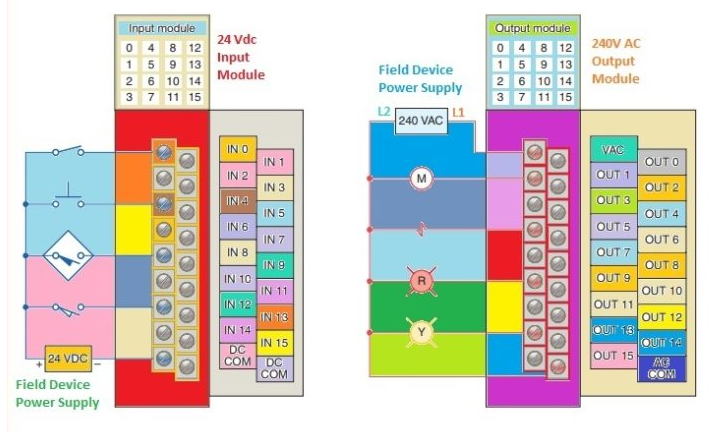

Figure 8. PLC Input and Output Devices

PLC input and output devices are external components that connect the controller to the physical process. Input devices send signals from the field to the PLC, while output devices receive control signals from the PLC. As shown in the figure, input devices include sensors and switches that detect physical conditions. Output devices include actuators, indicators, and motors that perform actions. The diagram illustrates how field signals are routed between devices and the controller. This interaction allows the PLC to monitor and influence the process. Input and output devices form the communication link between automation logic and equipment.

Advantages of Using PLCs

PLCs offer several key benefits that make them ideal for industrial automation.

• High reliability and stable operation in harsh environments

• Flexible control logic that can be modified through software

• Reduced wiring compared to relay-based control systems

• Faster troubleshooting through diagnostic features

• Easy scalability to support system expansion

Applications of PLCs

1. Manufacturing and Assembly Lines

PLCs control conveyors, machines, and automated workstations. They ensure synchronized operation and consistent production output. Their reliability supports continuous manufacturing processes.

2. Process Industries

In process plants, PLCs manage variables such as level, flow, and temperature. They help maintain stable operating conditions. This control improves product consistency and process safety.

3. Building Automation Systems

PLCs are used to control lighting, ventilation, and access systems. They enable centralized monitoring of building operations. This improves energy efficiency and system coordination.

4. Power and Utility Systems

PLCs monitor and control electrical and utility equipment. They support reliable operation of substations and treatment facilities. Their fast response improves system stability.

5. Transportation and Infrastructure

PLCs manage signaling, monitoring, and auxiliary systems. They help maintain safe and predictable operation. This supports large-scale infrastructure reliability.

PLC vs SCADA vs DCS

Parameter	PLC	SCADA	DCS
Primary Role	Direct control	Monitoring and supervision	Distributed process control
System Level	Field-level	Supervisory level	Process level
Control Execution	Yes	No	Yes
System Architecture	Centralized	Centralized monitoring	Distributed
Typical Control Scope	Machine or cell	Entire plant view	Process units
Data Handling	Control data	Large-scale data	Control and data
User Interface	Minimal	Graphical HMI	Integrated HMI
System Complexity	Low to medium	Medium	High
Network Dependence	Low	High	High
Redundancy Support	Limited	Software-based	Built-in
Expansion Method	Modular I/O	Software scaling	Distributed nodes
Configuration Focus	Logic control	Visualization	Process coordination
Maintenance Focus	Hardware logic	Software and data	System-wide
Integration Role	Control node	Supervisory layer	Core control system

Conclusion

PLCs work by continuously reading inputs, processing logic, and updating outputs to control machines accurately and consistently. Their hardware structure, flexible controller types, and standardized programming languages let you design systems for both small and large automation tasks. By linking sensors and actuators to control logic, PLCs give you direct control over processes. Their reliability, flexibility, and wide use across industries make them a core technology in industrial automation.
