RC Coupled Amplifier Circuit, Working, and Applications

RC coupled amplifiers are commonly used when you need to increase weak electrical signals without adding complexity to the circuit. They rely on simple resistor and capacitor networks to pass useful signal information while keeping each stage stable and independent. As you read, you will understand how RC coupled amplifiers are built, how signals move through them, what affects their performance, and where they are used in real electronic systems.

Catalog

Figure 1. RC Coupled Amplifier Trainer Module

What Is an RC Coupled Amplifier

An RC coupled amplifier is a type of amplifier in which multiple amplification stages are connected using resistor–capacitor networks. Each stage increases the signal level, while the RC network transfers the signal from one stage to the next without disturbing their operating conditions. This configuration is commonly used when a weak input signal needs to be amplified gradually to reach a usable level.

The primary role of RC coupling is to allow the alternating current (AC) portion of a signal to pass between stages while blocking direct current (DC). The coupling capacitor provides a path for the AC signal but prevents DC voltage from flowing into the next stage, allowing each stage to maintain stable biasing independently.

By isolating DC levels, RC coupling helps prevent shifts in operating points that could lead to distortion or unstable behavior. Each stage remains properly biased, which supports consistent voltage amplification using simple, economical components.

RC Coupled Amplifier Circuit

An RC coupled amplifier circuit is typically arranged using two or more amplifier stages connected in series, with each stage operating in a common-emitter configuration. Each stage amplifies the signal it receives, while coupling capacitors form the resistor–capacitor links that transfer the signal between stages without affecting their operating conditions.

Single-Stage RC Coupled Amplifier Circuit

Figure 2. Single-Stage RC Coupled Amplifier Circuit

In a single-stage RC coupled amplifier, the input signal is applied to the base of the transistor through an input capacitor, as shown in the circuit. This capacitor allows the alternating signal to enter the amplifier while blocking direct current, which helps keep the transistor’s operating point stable. The biasing resistors set the required base voltage, ensuring proper operation of the transistor during amplification.

Once the signal reaches the transistor, it is amplified and appears at the collector. The amplified output is then taken through an output capacitor, which passes the signal to the next circuit or load without allowing direct current to flow outward. Even though only one amplification stage is present, this arrangement clearly shows how RC coupling works and is commonly used in applications where modest signal amplification is sufficient.

Two-Stage RC Coupled Amplifier Circuit

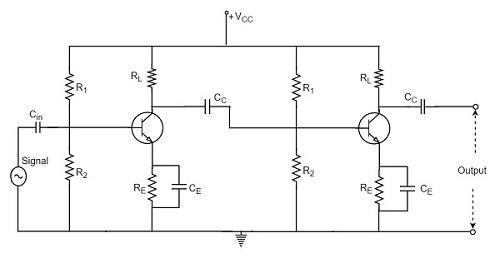

Figure 3. Two-Stage RC Coupled Amplifier Circuit

In a two-stage RC coupled amplifier, the signal amplified by the first stage is transferred to the second stage through a coupling capacitor positioned between the collector of the first transistor and the base of the second transistor, as shown in the circuit. This capacitor allows only the alternating part of the signal to pass forward while blocking direct current, so the operating conditions of each stage remain independent.

The second stage uses the same common-emitter arrangement as the first stage and further amplifies the incoming signal. Biasing resistors in each stage establish the proper operating point for the transistors, while emitter resistors and bypass capacitors support stable operation and effective amplification. The final output is taken from the collector of the second stage through an output capacitor, which delivers the amplified signal without passing direct current.

This two-stage arrangement increases overall voltage gain compared to a single-stage circuit. Additional stages can be connected in the same way when greater amplification is required, while the resistor and capacitor network continues to guide the signal smoothly from input to output and maintain steady performance across all stages.

Main Components and Working of an RC Coupled Amplifier

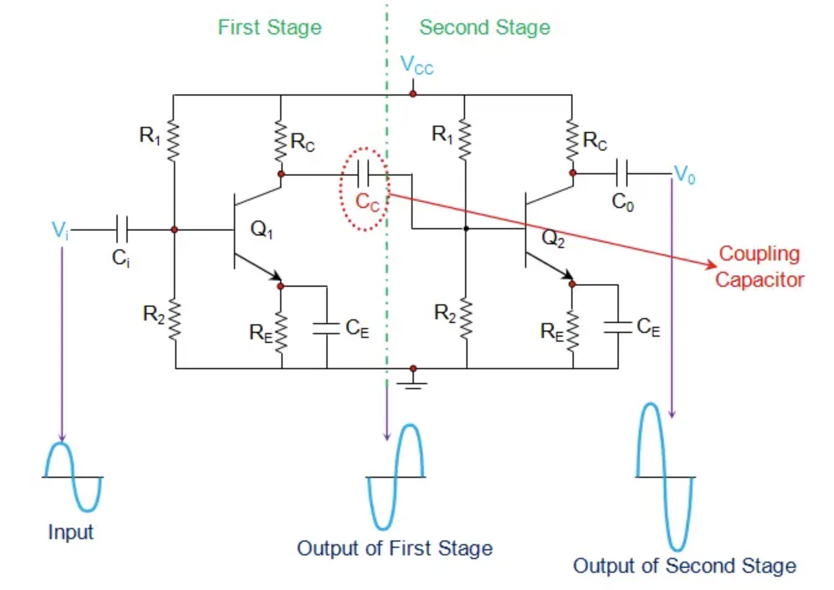

Figure 4. Signal Flow in RC Coupled Amplifier Stages

An RC coupled amplifier consists of multiple amplifier stages arranged in a similar structure, where each stage contributes to increasing the signal level. The signal is applied to the first stage, amplified, transferred through the coupling network, and then further amplified by the next stage. This arrangement allows the signal to progress smoothly through the circuit while maintaining consistent behavior across stages.

The coupling capacitor is positioned between the collector of one stage and the base of the next stage, forming the electrical link between them. It allows the alternating part of the amplified signal to pass forward while blocking direct current. By preventing direct current from flowing between stages, the coupling capacitor ensures that the operating conditions of one stage do not interfere with those of the next.

Biasing resistors are connected to the base of each transistor and provide a stable base voltage required for proper operation. These resistors keep each transistor within its intended operating region, which supports consistent and controlled amplification. The similar resistor arrangements across stages help maintain uniform performance throughout the circuit.

At the emitter of each transistor, the emitter resistor and bypass capacitor operate together. The emitter resistor improves stability by reducing sensitivity to temperature changes and variations in transistor behavior. The bypass capacitor, connected in parallel, provides a low-resistance path for the alternating signal, allowing the stage to achieve higher voltage gain while preserving stable direct current conditions.

Performance Characteristics of RC Coupled Amplifiers

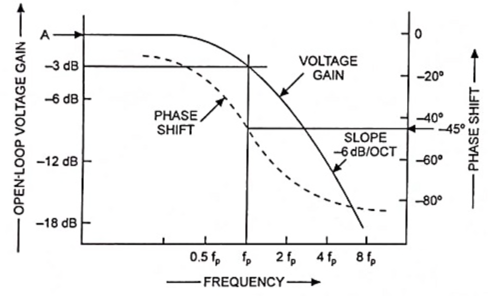

Figure 5. Frequency and Phase Response of RC Coupled Amplifier

Signal Flow Through Stages

In an RC coupled amplifier, the signal passes through the circuit one stage at a time, with each stage increasing the signal level before passing it forward. The input signal is applied to the base of the first transistor, where amplification occurs and the amplified signal appears at the collector. From the collector, the signal is transferred through a coupling capacitor into the next stage. This method allows the signal to progress smoothly through successive stages while keeping the operating conditions of each stage electrically independent, which supports stable and predictable operation.

Phase Shift

Each amplification stage in an RC coupled amplifier typically uses a common-emitter configuration. In this arrangement, the output signal taken from the collector is inverted relative to the input applied at the base. This inversion introduces a phase shift of 180 degrees at every stage. As the signal moves through multiple stages, each stage adds another phase reversal. When the total number of stages is even, the phase reversals cancel and the final output remains in phase with the input. When the number of stages is odd, one phase reversal remains, causing the output to be shifted by 180 degrees.

Frequency Response

The frequency response describes how the amplifier’s voltage gain varies with signal frequency. At low frequencies, gain is reduced because the capacitors in the circuit limit slow signal variations, which weakens signal transfer between stages. As the frequency increases into the mid-frequency range, the amplifier reaches stable operating conditions and provides nearly constant gain. This region represents the normal working range of the RC coupled amplifier. At higher frequencies, the gain decreases again as loading effects between stages and internal capacitance become more noticeable, limiting the amplifier’s ability to respond to rapid signal changes.

Voltage Gain

The voltage gain of an RC coupled amplifier is achieved by cascading multiple amplification stages, with each stage contributing to the overall gain. In ideal conditions, the total voltage gain is equal to the product of the gains of the individual stages. In practical circuits, however, the actual gain is slightly lower due to loading effects, where each stage draws current from the previous stage. This interaction reduces effective gain and places practical limits on how much voltage amplification can be achieved using RC coupling.

Advantages and Disadvantages of RC Coupled Amplifiers

Advantages	Limitations
Simple circuit design	Poor low-frequency response
Low cost components	Gain drops at very high frequencies
Compact and lightweight	Limited power gain
Good voltage amplification	Not suitable for power amplification
Stable operation for small signals	Impedance matching is poor
Wide mid-frequency bandwidth	Sensitive to noise and component aging
Easy to design and assemble	Capacitor values affect performance
Suitable for audio and signal stages	Performance affected by temperature variations
No transformer required	Output impedance relatively high

Applications of RC Coupled Amplifiers

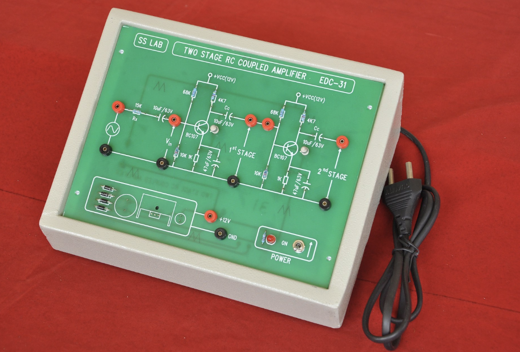

Figure 6. RC Coupled Amplifier Applications Setup

RC coupled amplifiers are widely used in electronic systems where small signals need to be amplified clearly and reliably. One of their most common applications is in audio pre-amplifiers, where weak audio signals from microphones, sensors, or audio sources are amplified before being sent to later stages. In these systems, RC coupling provides stable voltage gain and preserves signal quality across the audio frequency range.

In communication circuits, RC coupled amplifiers are used to amplify low-level signals before processing or transmission. They are well suited for this role because they offer consistent gain over a broad mid-frequency range and can be easily integrated into multi-stage designs without complex components. This makes them practical for use in wired communication equipment and signal conditioning circuits.

RC coupled amplifiers are also commonly found in radio and television receivers, where they serve as small-signal amplification stages. In these receivers, weak signals picked up by antennas require initial amplification before detection and further processing. RC coupling allows multiple amplification stages to be connected while maintaining stable operation and minimizing interference between stages.

Overall, RC coupled amplifiers are suitable for these applications because they are simple, cost-effective, and provide reliable voltage amplification for small signals. Their ability to maintain stable biasing between stages while handling a wide range of frequencies makes them a practical choice in many everyday electronic systems.

Conclusion

RC coupled amplifiers offer a practical way to amplify small signals using simple and affordable components. By understanding how the circuit is arranged, how signals flow through each stage, and how frequency and gain behave, you can better judge where this type of amplifier fits your needs. Their stable operation and wide mid-frequency performance make them useful in many everyday electronic systems where clear voltage amplification matters.
