STA540 Power Amplifier Guide: Specs, Pin Configuration, and Equivalent Options

The STA540 4-channel class-AB audio amplifier is a powerhouse of audio performance, carefully engineered for high-fidelity sound across a range of applications. Known for its adaptability and low distortion, the STA540 seamlessly balances power efficiency with sound quality, making it a popular choice for audio systems. This article digs into its technical specifications, pin configuration, and practical usage scenarios, exploring how its design contributes to superior audio output and reliability. We’ll also examine equivalent options and insights from its manufacturer, STMicroelectronics, highlighting why the STA540 remains a preferred choice for you seeking robust performance in their designs.

Catalog

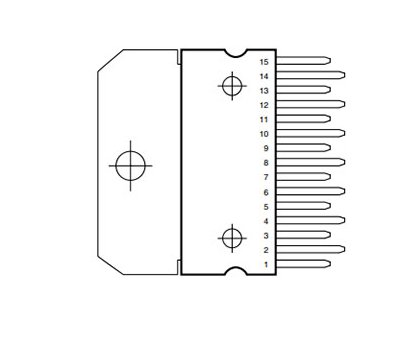

Pin Configuration

N°	Name	Type	Function
1	OUT1	OUT	Channel 1 output
2	OUT2	OUT	Channel 2 output
3	VCC1	PWR	Power supply
4	IN1	IN	Channel 1 input
5	IN2	IN	Channel 2 input
6	SVR	IN	Supply voltage rejection
7	ST-BY	IN	Standby control pin
8	P-GND	PWR	Power ground
9	S-GND	PWR	Signal ground
10	DIAGNOSTICD	OUT	Diagnostics output
11	IN4	IN	Channel 4 input
12	IN3	IN	Channel 3 input
13	VCC2	PWR	Power supply
14	OUT4	OUT	Channel 4 output
15	OUT3	OUT	Channel 3 output

STA540 CAD Resources

Symbol

Footprint

Overview of the STA540 Amplifier

The STA540 amplifier is encapsulated in a 15-pin Multiwatt ECOPACK® Pb-free package. This eco-friendly design adheres to RoHS standards, illustrating a commitment to sustainability in electronic components. Its lead-free nature lessens the ecological impact, echoing the electronics industry's shift towards green technology.

The STA540 features built-in short-circuit and thermal protection systems, enhancing reliability by safeguarding against irregular operational conditions. Thermal protection autonomously handles overheating, which maintains performance stability. You can thus channel their efforts into innovation rather than worrying about failure risks. Coupled with these safeguards, the amplifier’s diagnostic capabilities offer quick fault detection, promoting downtime reduction and performance optimization. Efficient troubleshooting distinguishes between minor setbacks and significant operational interruptions.

With insights from practical experiences in electronics design, the STA540 is widely utilized in audio applications where clarity and robustness are active. Its dependability makes it a favorite for both professional audio systems and consumer products. The preference for such reliable components illustrates a trend toward products that promise durability and efficient performance. Complying with RoHS standards, the STA540 marks progress in reducing hazardous substances in electronics. This transition curtails environmental damage and emphasizes an ethical obligation to sustainable development, resonating with societal values that prioritize conservation and responsibility.

Block Diagram

Technical Specification

Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Number of Pins	15
Operating Temperature	0°C~70°C TA
Packaging	Tube
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	15
ECCN Code	EAR99
Type	Class AB
Max Power Dissipation	36W
Voltage - Supply	8V~22V
Terminal Position	ZIG-ZAG
Number of Functions	1
Terminal Pitch	1.27mm
Base Part Number	STA540
Pin Count	15
Output Type	2-Channel (Stereo) or 4-Channel (Quad)
Operating Supply Voltage	18V
Supply Voltage-Max (Vsup)	22V
Supply Voltage-Min (Vsup)	8V
Number of Channels	4
Power Dissipation	36W
Output Power	34W
Supply Type	Single
Bandwidth	22 kHz
Voltage Gain	26dB
Gain	26 dB
Max Output Power	38W
Max Output Power x Channels @ Load	38W x 2 @ 4 Ω; 16W x 4 @ 4 Ω
Harmonic Distortion	10%
Load Impedance	8 Ohm
Features	Short-Circuit and Thermal Protection, Standby
Height	10.7mm
Length	19.6mm
Width	5mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

Features of STA540

Feature	Details
High Output Power Capability	Power Output Configurations
	2x 38 W into 4 Ω at 18 V, 1 kHz, 10% THD
	2x 34 W into 8 Ω at 22 V, 1 kHz, 10% THD
	2x 24 W into 4 Ω at 14.4 V, 1 kHz, 10% THD
	2x 15 W into 8 Ω at 16 V, 1 kHz, 10% THD
	4x 13 W into 2 Ω at 15 V, 1 kHz, 10% THD
	4x 11 W into 4 Ω at 18 V, 1 kHz, 10% THD
	4x 7 W into 4 Ω at 14.4 V, 1 kHz, 10% THD
Minimum External Components	No bootstrap capacitors, No Boucherot cells, Internally fixed gain 20 dB
Standby Function	CMOS compatible
No Audible Pop	No audible pop during standby operations
Diagnostic Facilities	Clip detector, Output to GND short-circuit detector, Output to VS short-circuit detector, Soft short-circuit check at turn-on, Thermal shutdown warning

STA540 Utilizations

Short Circuit Management in AC/DC Outputs

STA540 skillfully manages short circuits in AC/DC outputs. Its sturdy construction ensures dependable performance, reducing downtime significantly. Handling short circuits is basic to shield electrical components and prolong their lifespan. Specialists often focus on refining circuit designs to prevent potential disturbances.

Soft-Start Strategies During Power-Up

The STA540 supports a soft start during power-up, curbing inrush current and defending against possible system damage. This gradual voltage increase caters to systems that are sensitive to abrupt changes. Applying soft-start techniques is a widely adopted method that improves system stability and extends longevity.

Thermal Limiting for Overheat Mitigation

With thermal limiters, STA540 effectively prevents overheating. These temperature controls tweak performance as temperatures climb, ensuring safe operations. You can highlight these strategies to preserve device integrity, mostly in heat-prone environments. This reflects a commitment to safety and reliability in engineering.

High Inductive Tension Resilience

STA540 endures high inductive tension, making it apt for power tasks with varying inductive loads. This attribute is used when components face stress from inductive reactions. You can often include these aspects to maintain resilience and consistent performance under shifting load conditions.

ESD Protection Characteristics

Featuring Electrostatic Discharge (ESD) protection, STA540 shields components from abrupt electronic discharges that might cause failure. Integrating ESD protection is a core approach to sustaining device performance over time. Typically, you can consider these protective features useful to ensure product durability and enhance customer satisfaction.

Application Circuit

Equivalents for STA540

Part	Compare	Manufacturers	Category	Description
E-TDA7375AV	STA540 VS E-TDA7375AV	ST Microelectronics	Audio Amplifiers	Amplifier IC 2Channel (Stereo) or 4Channel (Quad) Class AB 43W x 2 @ 4Ω; 12W x 4 @ 2Ω 15-Multiwatt
TDA7375V	STA540 VS TDA7375V	ST Microelectronics	Audio Amplifiers	Audio Amp Speaker 2CH Stereo/4CH Stereo 40W Class-AB 15Pin(15+Tab) MULTIWATT V Tube
TDA7375AV	STA540 VS TDA7375AV	ST Microelectronics	Audio Amplifiers	Audio Amp Speaker 1CH Mono/2CH Stereo/4CH Stereo 25W Class-AB 15Pin(15+Tab) MULTIWATT V Tube

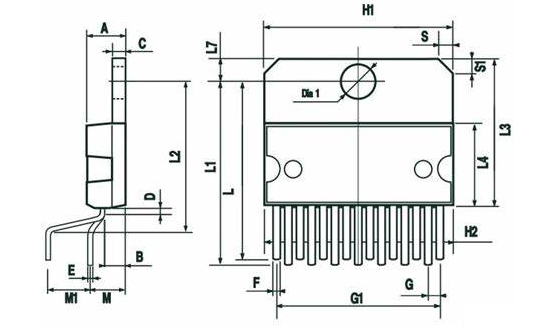

Package

About the Manufacturer

STMicroelectronics is a prominent semiconductor manufacturer in Europe, established in 1987 through the integration of French and Italian enterprises. Since then, its headquarters in Geneva has been a hub for impacting the global electronics industry, sitting at the intersection of technological advancements and sustainable practices.

The company's dedication to innovation is demonstrated through substantial investments in research and development. By embracing cutting-edge technologies, STMicroelectronics meets the varied demands of the market, producing components for sectors like automotive, industrial, personal electronics, and communication equipment. Notably, its strides in automotive semiconductor technology contribute to the creation of more energy-efficient electric vehicles.

STMicroelectronics emphasizes sustainable practices, integrating eco-friendly methods into its manufacturing processes. By minimizing its carbon footprint and advocating for renewable energy, the company aligns with industry shifts toward environmental responsibility. This not only bolsters its reputation but also positively impacts the communities it serves.

Datasheet PDF

STA540 Datasheets:

STA540.pdf

Frequently Asked Questions [FAQ]

1. What is STA540 used for?

The STA540 is crafted for those who value high-fidelity audio systems, mostly when durability and sound clarity are desired. Designed to thrive in challenging environments, it offers built-in protection features that ensure steady performance. You’ll find it used widely in home theater systems, professional audio equipment, and high-end speaker setups. Its capacity to produce clear sound with minimal distortion attracts you who enjoy its seamless integration and superior auditory performance. A distinguishing aspect of the STA540 is its resilience in demanding scenarios. Whether in expansive venues or cozy home settings, its protection mechanisms, like thermal shutdown and short-circuit protection, maintain continuous operation. These features help reduce anxieties related to sudden interruptions, especially during live events or extended use periods.
