Shielding Grounding Methods: How to Reduce EMI in Cable Systems

Shielding grounding helps you protect your signals from electromagnetic interference and unwanted noise in electronic systems. In this article, you will learn what shielding grounding is and how it differs from signal grounding. You will also understand the key methods used for low-frequency, high-frequency, and mixed-frequency systems. In addition, you will explore cable types, common mistakes, and where these methods are used.

Catalog

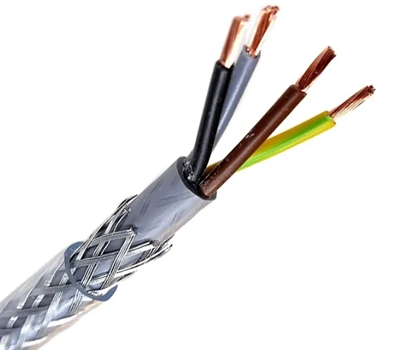

Figure 1. Shielded Cable Structure

What is Shielding Grounding?

Shielding grounding is the process of connecting a cable’s conductive shield to a reference ground to reduce electromagnetic interference (EMI) and unwanted noise. The shield, usually made of braided copper or foil as shown in Figure 1, acts as a barrier that blocks external electrical disturbances from affecting the signal inside. By directing interference to ground, it helps maintain signal integrity and improves overall system performance. This method is widely used in electronic systems where stable and clean signals are important. It is a key part of electromagnetic compatibility (EMC) design.

Unlike signal grounding, which provides a return path for current in a circuit, shielding grounding focuses only on protecting signals from noise. It does not carry normal operating current but instead handles induced interference. This distinction is important because mixing these roles can lead to performance issues. Shield grounding is designed to isolate noise, while signal grounding ensures proper circuit operation. Keeping these functions separate helps improve reliability and reduces electrical disturbances.

Low-Frequency Shield Grounding Method

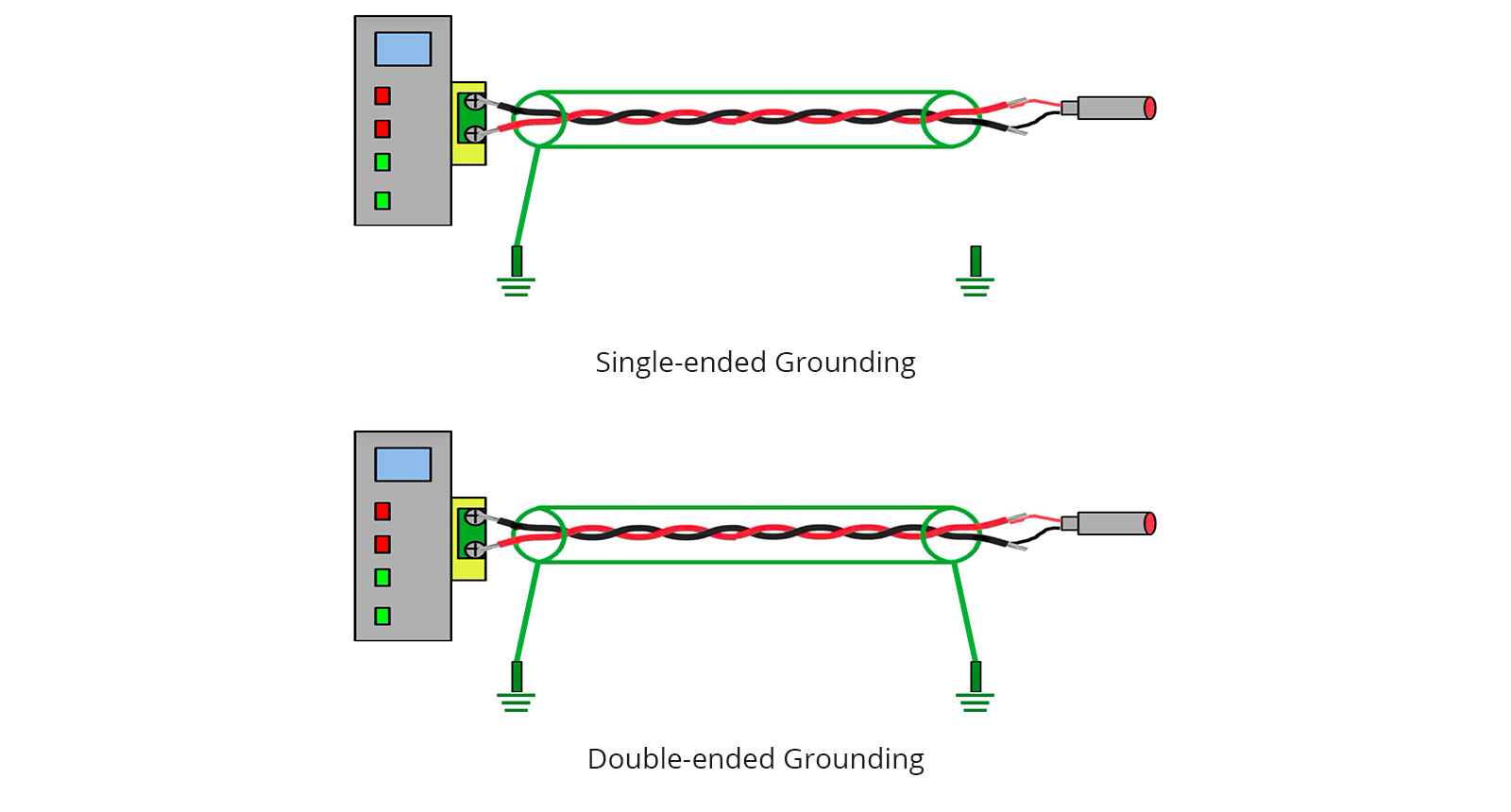

Figure 2. Single-Ended and Double-Ended Grounding

Low-frequency shield grounding is a method used to reduce noise in systems operating at lower signal frequencies, typically below a few kilohertz. In this approach, the cable shield is grounded at only one point, known as single-point grounding. This method prevents circulating currents, also called ground loops, which can introduce unwanted noise into the system. The grounding point is usually chosen at either the signal source or the load, depending on system design. As illustrated in Figure 2, grounding at one end ensures a stable reference without creating a loop path. This technique is simple and effective for low-frequency applications.

Single-point grounding works by eliminating multiple ground paths that could allow current to flow through the shield. When both ends are grounded at low frequencies, differences in ground potential can cause noise currents to circulate. By grounding only one end, the shield acts purely as a protective barrier rather than a current path. Choosing between source-end grounding and load-end grounding depends on where noise is most likely to enter the system. This method is commonly used in audio systems, instrumentation, and control circuits. It provides reliable noise reduction without adding complexity to the design.

High-Frequency Shield Grounding Method

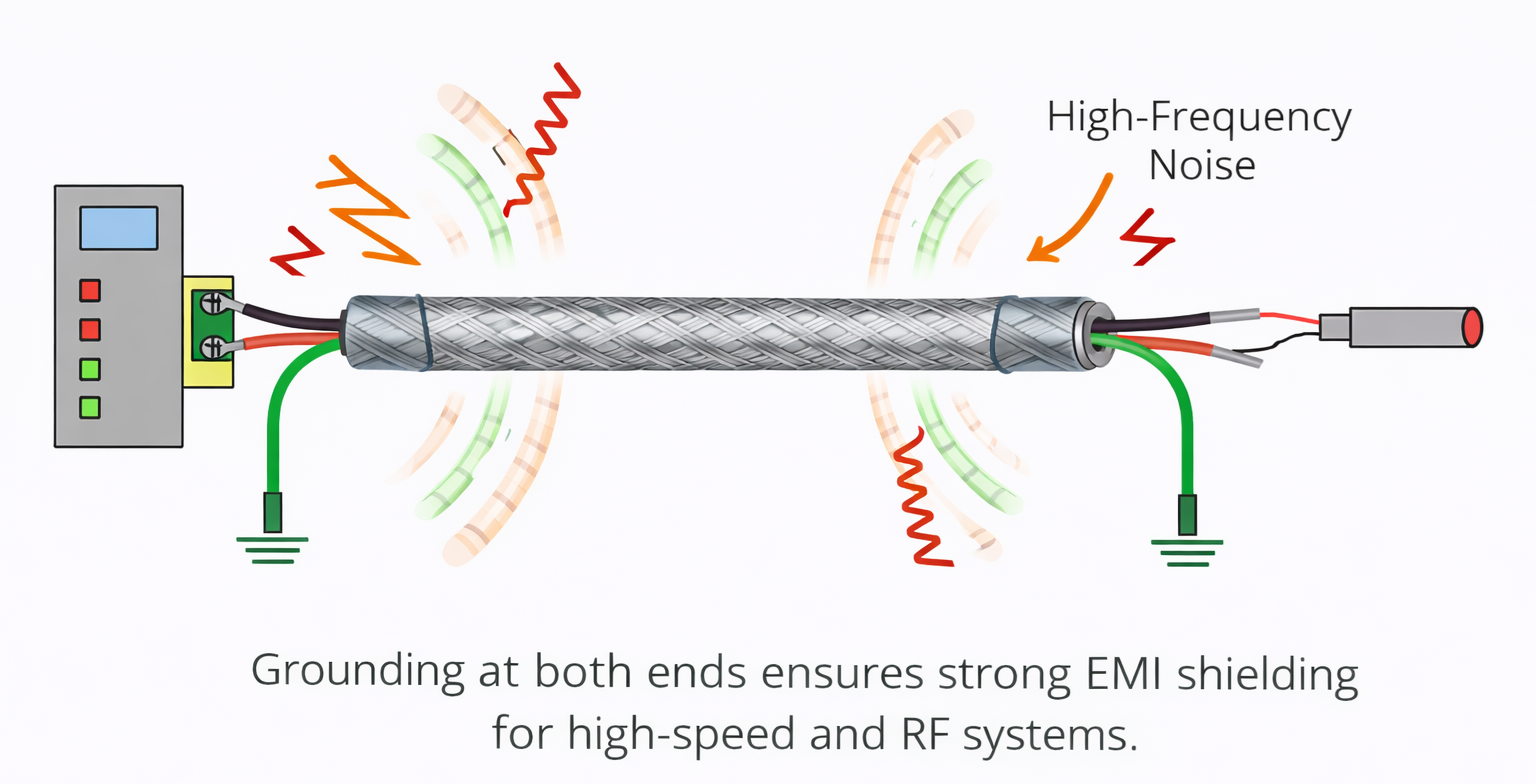

Figure 3. High-Frequency Shield Grounding Method

High-frequency shield grounding is a technique used to control electromagnetic interference in systems operating at high frequencies. At these frequencies, noise behaves differently and can easily couple into cables through electromagnetic fields. To address this, the shield must be grounded at multiple points, typically at both ends of the cable. This creates a low-impedance path that allows high-frequency noise to be effectively drained to ground. Unlike low-frequency methods, the goal here is to minimize impedance rather than prevent current loops. This approach is good in high-speed and RF systems.

Grounding at both ends improves shielding effectiveness by reducing the shield’s impedance across its entire length. At high frequencies, even small gaps or ungrounded sections can act like antennas, allowing noise to enter or escape. By connecting both ends to ground, the shield forms a continuous barrier against interference. This method enhances EMI suppression and ensures better signal quality in demanding environments. It is widely used in communication systems, high-speed data lines, and RF applications. Proper implementation ensures strong protection against external noise sources.

Hybrid Shield Grounding Technique

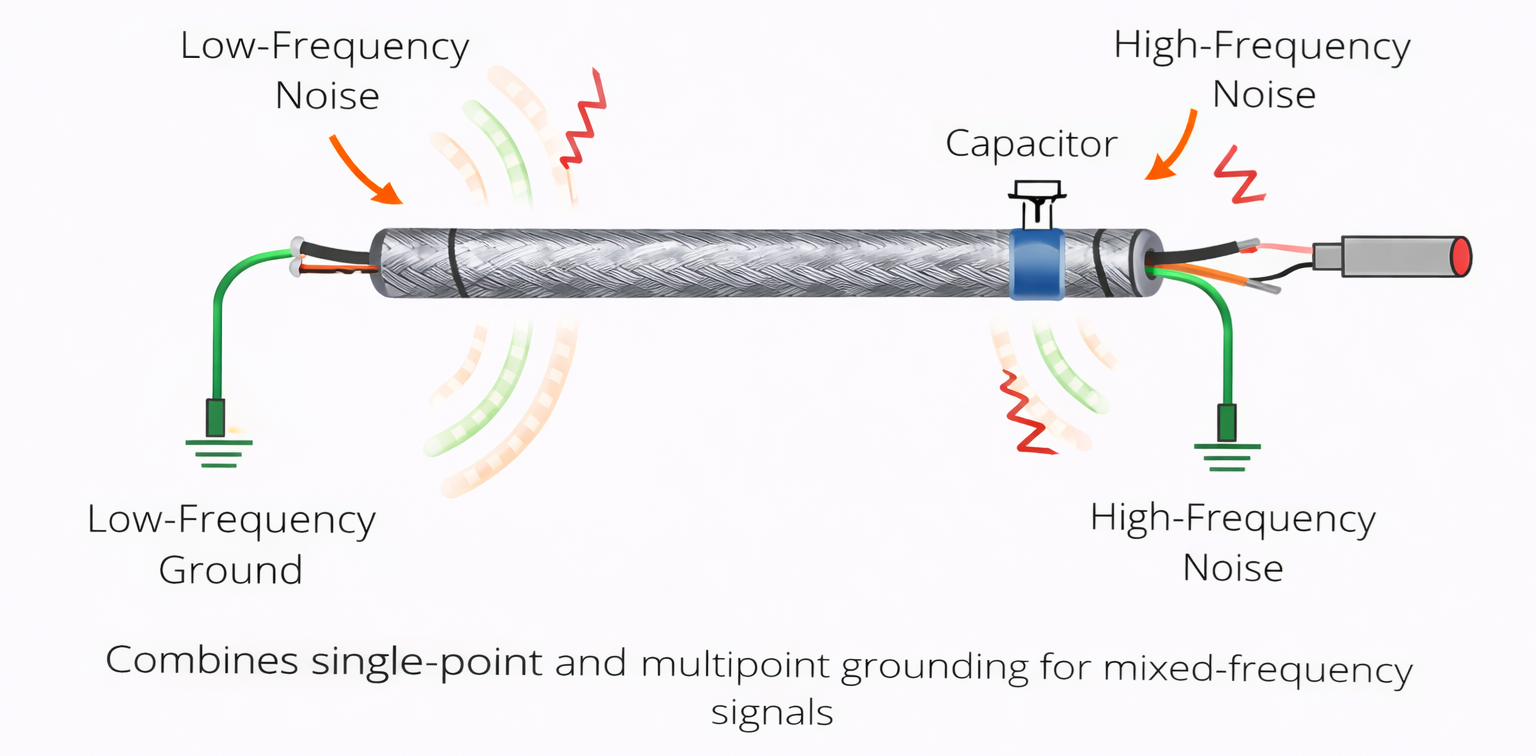

Figure 4. Hybrid Shield Grounding Technique

Hybrid shield grounding is a method that combines single-point and multipoint grounding to handle systems with mixed-frequency signals. It uses components such as capacitors to allow high-frequency noise to pass to ground while blocking low-frequency currents. This approach provides flexibility by addressing both low-frequency and high-frequency interference in a single design. The shield may be directly grounded at one end while connected through a capacitor at the other end. This creates a controlled path for different types of noise. It is commonly used in complex electronic systems.

This technique works by separating how different frequencies interact with the shield. Low-frequency signals are controlled by limiting ground connections, while high-frequency noise is safely redirected through capacitive paths. The capacitor acts as a frequency-dependent element, allowing only unwanted high-frequency signals to pass. This helps maintain signal stability without introducing ground loop issues. Hybrid grounding is useful in systems where both analog and digital signals are present. It offers a balanced solution for improving overall electromagnetic compatibility.

Double-Layer Shielded Cable Grounding

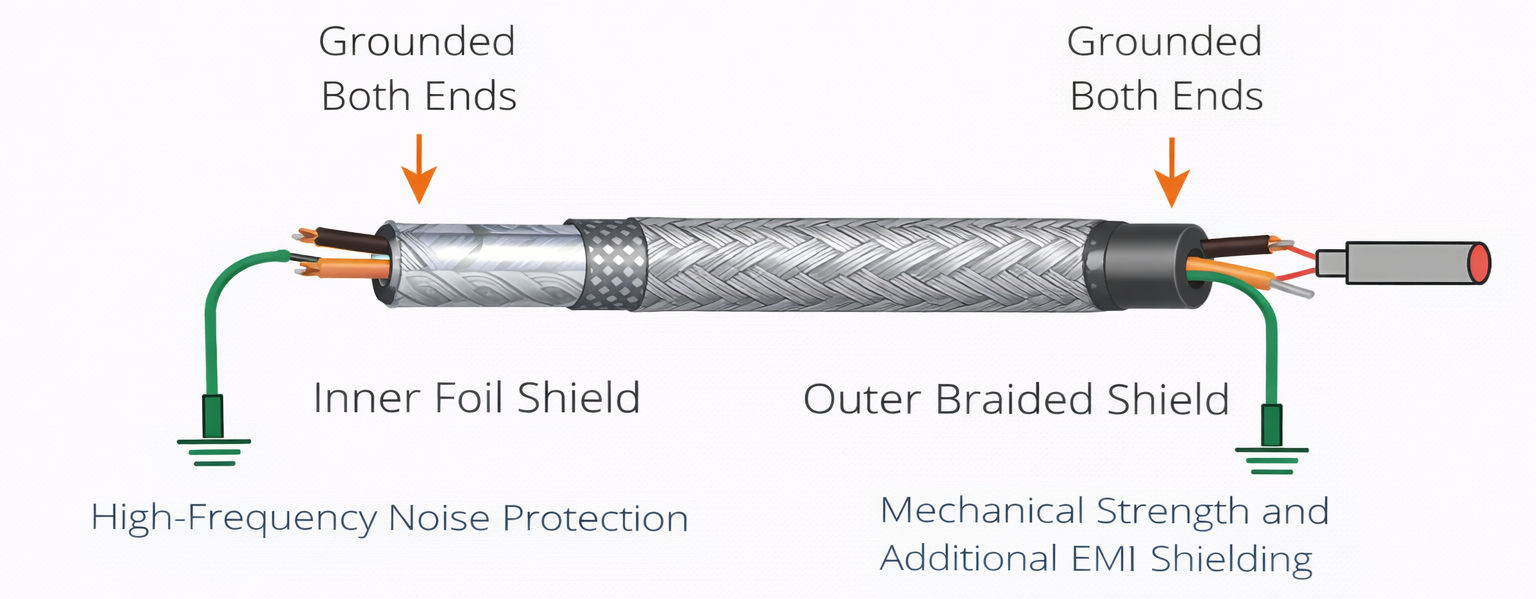

Figure 5. Double-Layer Shielded Cable Grounding

Double-layer shielded cable grounding refers to the use of cables with two separate shielding layers, typically an inner foil shield and an outer braided shield. Each layer serves a different purpose in protecting signals from interference. The inner shield provides high-frequency noise protection, while the outer shield offers mechanical strength and additional EMI shielding. Proper grounding of these layers is important to maximize their effectiveness. Each shield may be grounded differently depending on system requirements. This method is often used in high-performance applications.

In many designs, the outer shield is grounded at both ends to provide strong EMI protection, while the inner shield may be grounded at one end to avoid unwanted currents. This separation helps control how noise is managed within the cable. The dual-layer structure improves shielding performance across a wide frequency range. It is commonly used in sensitive systems such as medical devices, communication equipment, and industrial controls. Proper grounding ensures both layers work together without interference. This approach enhances signal reliability and reduces noise exposure.

How to Choose the Right Shielding Grounding Method?

Choosing the right shielding grounding method depends on your system’s frequency and noise environment.

First, identify whether your system operates at low or high frequencies. Low-frequency systems usually benefit from single-point grounding, while high-frequency systems require multipoint grounding. Understanding this difference helps avoid performance issues. This step ensures the method matches the signal behavior. It forms the foundation of your decision.

Next, evaluate the type of cable used in your system. Shielded cables vary in construction, including single-layer and double-layer designs. The cable structure affects how grounding should be applied. Selecting the correct method ensures maximum shielding effectiveness. This step also helps prevent installation errors. Proper cable assessment improves overall system reliability.

Then, consider the system’s grounding environment. Check for potential differences between ground points that could introduce noise. A stable and consistent ground reference is important for effective shielding. This helps reduce interference and maintain signal quality. Ground conditions directly impact performance. Careful evaluation avoids future issues.

After that, analyze the noise sources in your application. Determine whether interference is coming from external equipment, power lines, or internal circuits. Knowing the source helps you choose the most effective grounding strategy. This step improves EMI control and system stability. It also helps in optimizing shielding performance. Accurate identification leads to better results.

Next, review system complexity and design constraints. Some methods require additional components or careful layout planning. Choose a method that fits your design without adding unnecessary complexity. This ensures easier implementation and maintenance. Simplicity often improves reliability. Balance performance with practicality.

Finally, test and validate your chosen method. Measure system performance after grounding is applied. Check for noise reduction and signal stability. Testing ensures the method works as expected in conditions. It also allows adjustments if needed. Verification is needed for achieving optimal results.

Common Mistakes in Shielding Layer Grounding

Avoiding common mistakes is needed for effective shielding performance.

• Grounding both ends at low frequency unintentionally

This can create ground loops that introduce unwanted noise into the system. Many designs overlook this issue, leading to degraded signal quality. It often happens when grounding decisions are made without considering frequency. Careful planning helps prevent this problem.

• Using the wrong grounding point

Choosing an improper grounding location can reduce shielding effectiveness. If the ground reference is unstable, noise may not be properly redirected. This can result in inconsistent system performance. Proper grounding point selection is important.

• Poor shield connection quality

Loose or incomplete connections can increase resistance and reduce shielding efficiency. Even small gaps can allow noise to enter the system. Ensuring solid and continuous connections improves performance. Quality installation is required.

• Ignoring cable type and structure

Different cables require different grounding approaches. Applying the same method to all cables can lead to poor results. Understanding cable design helps in selecting the correct technique. This avoids unnecessary performance issues.

• Mixing signal and shield grounds improperly

Combining these grounds can introduce noise into sensitive circuits. Each has a different role and should be handled separately. Improper mixing can reduce system reliability. Clear separation improves performance.

• Lack of testing after installation

Skipping validation can leave hidden issues in the system. Without testing, it is difficult to confirm if grounding is effective. This may lead to long-term performance problems. Testing ensures proper implementation.

Applications of Shielding Layer Grounding Methods

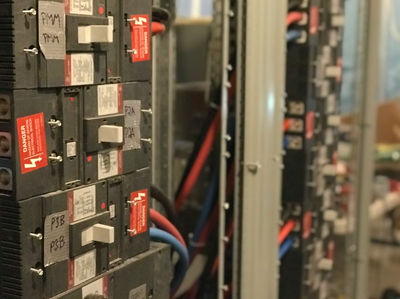

Figure 6. Industrial Electrical Panel with Shielded Wiring

Shielding grounding methods are widely used across different industries to ensure reliable signal transmission.

1. Audio Systems

Shield grounding is used in audio equipment to prevent hum and noise. It helps maintain clear sound quality by reducing interference. Proper grounding ensures stable signal transmission. This is important in both consumer and professional audio setups.

2. RF and Communication Systems

High-frequency systems rely on effective shielding to prevent signal loss. Grounding helps control electromagnetic interference in communication lines. It ensures reliable data transmission. This is good in wireless and networking equipment.

3. Industrial Control Systems

In industrial environments, electrical noise is common due to heavy machinery. Shield grounding protects control signals from interference. It improves system stability and accuracy. This is important for automation and monitoring systems.

4. Medical Equipment

Sensitive medical devices require clean and stable signals. Shield grounding helps prevent interference that could affect measurements. It ensures accurate operation of diagnostic tools. Reliability is great in healthcare applications.

5. Data Transmission Systems

High-speed data cables need strong shielding to maintain signal integrity. Grounding reduces noise that can cause data errors. It supports stable and fast communication. This is excellent in modern digital systems.

6. Power Distribution Systems

Shield grounding is used to control noise in power lines and equipment. It helps protect sensitive components from electrical disturbances. This improves system efficiency and safety. Proper grounding is key in power management systems.

Conclusion

Shielding grounding plays a role in maintaining signal integrity by directing interference away from sensitive circuits. Different methods, such as single-point, multipoint, and hybrid grounding, are applied based on system frequency and design requirements. Proper cable selection, grounding strategy, and installation practices significantly impact overall performance. By understanding these principles and avoiding common errors, systems can achieve reliable operation and effective noise reduction.
