TIP32C PNP Transistor: Equivalent, Pinout, and Datasheet

This guide explores the versatile TIP32C PNP transistor, a popular low-power component widely used in switching and amplification tasks. Offering a detailed breakdown of the TIP32C’s specifications, applications, and design considerations, this article serves as a valuable resource to optimize system performance and reliability through thoughtful circuit design and component selection.

Catalog

Overview of the TIP32C PNP Transistor

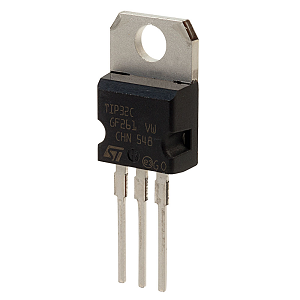

The TIP32C PNP transistor is a silicon epitaxial-base component encased in a TO-220 package. This design makes it well-suited for switching activities and scenarios demanding moderate power linear performance. With the ability to manage a continuous current load of up to 3A and a peak current capacity reaching 5A, it supports a maximum load voltage of 100V. This transistor displays a substantial power dissipation potential of up to 40W, making it advantageous for use in audio amplifier stages. It is also ideal for standalone amplifiers within speaker systems thanks to its dependable current gain, collector current, and the ease of managing an emitter-base voltage of 5V, alongside a base current threshold of 120mA. The TIP32C's robust current handling highlights an effective use of a heat sink for proficient thermal management, during extended operating periods. This component finds its application in audio and power amplifier circuits where high current levels are valued.

Pin Configuration of the TIP32C PNP Transistor

Pin No.	Pin Name	Description
Pin 1	Base	This pin is used to control the transistor biasing by turning ON/OFF the transistor.
Pin 2	Collector	This pin allows the flow of current and is usually connected to a load.
Pin 3	Emitter	This pin drains out the flow of current and is usually connected to GND.

Features and Specifications of the TIP32C PNP Transistor

Feature/Specification	Details
Transistor Type	PNP
Mounting Type	Through a Hole
Package Type	TO-220-3
Operating Temperature (Max)	150°C TJ
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Power Dissipation (Max)	40W
Element Configuration	Single Element
Collector Current (Max)	-3A
Cutoff Current – Collector (Max)	300μA
Collector-Emitter Saturation Voltage (VCE)	-1.2V
Emitter Base Voltage (VEBO)	-5V
Junction Temperature (Tj Max)	150°C
Number of Pins	3
Element Material	Silicon
Packaging	Tube
Collector Base Voltage (VCBO)	-100V
Current Rating	-3A
Transition Frequency (fT)	3MHz
Collector-Emitter Voltage (VCEO)	-100V
Collector-Emitter Breakdown Voltage	100V
DC Current Gain (hFE)	10 to 50

Equivalent and Alternative for TIP32C Transistor

CJF32C, BD582, TIP32D, BD592, 2N6475, BDT32C, 2N6476, MJE30C, 2SB1016, MJE32C, NSP582, MJE5195, NSP5195, RCA32C, RCA30C, TIP62A, TIP62C, TIP62B, 2SB761B, 2SB860, 2SB762B, 2SB869, BD242C, 2SB945, BD540C, ECG292, BD954, TIP32B, TIP32A.

Using the TIP32C PNP Transistor as a Switch

The TIP32C PNP transistor is commonly used in electronic circuits to act as a switch, regulating the flow of current to a connected load. Unlike the TIP31C NPN transistor, which has its emitter connected to the negative side of the power supply, the TIP32C is configured in reverse, with its emitter connected directly to the positive supply voltage. This inverted setup is what defines its operation as a PNP transistor. In its role as a switch, the transistor's behavior is controlled by the voltage applied to its base terminal. When the base voltage is sufficiently lower than the emitter voltage, the transistor "turns on," allowing current to flow from the emitter to the collector. If no voltage is applied to the base, the transistor "turns off," blocking the current flow to the load.

A resistor is always included in the circuit, connected to the base terminal, to prevent excessive current from damaging the transistor. This resistor limits the amount of current entering the base, ensuring the transistor operates safely. A mechanical switch can be introduced into the circuit to manage the base voltage. When the switch is closed, it provides the required voltage to the base, activating the transistor and enabling current to pass to the load. When the switch is open, the base voltage is removed, turning the transistor off and disconnecting the load from the power supply.

Amplifying with the TIP32C PNP Transistor

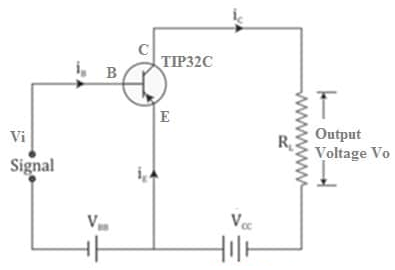

The TIP32C PNP transistor is not only effective as a switch but also serves as a component in circuits designed to amplify signals. In this role, it increases the strength of a weak input signal, producing a more robust output signal. To achieve this, the transistor operates in its active region, a state where it performs linear amplification with minimal distortion. For proper amplification, the circuit must establish specific biasing conditions. Two voltage supplies are used: one to forward bias the emitter-base junction and another to reverse bias the collector-emitter junction. These biases are maintaining the flow of charge carriers, which are responsible for amplifying the input signal.

In a standard setup, the emitter-base junction is forward biased by a voltage source, often referred to as VBB. This bias allows a small input signal to modulate the flow of charge carriers from the emitter to the collector. At the same time, a separate voltage source, VCC, provides reverse bias at the collector-emitter junction, ensuring that the transistor remains in its active region and the amplified output signal is stable and accurate.

The amplified output signal appears across a load resistor (RL) connected to the collector terminal. This output can represent amplified voltage, current, or power, depending on the design requirements of the circuit. For instance, in audio applications, the TIP32C can boost weak microphone signals into louder speaker outputs. Similarly, in data communication systems, it strengthens optical or electronic signals for reliable transmission over long distances. The TIP32C’s ability to amplify signals makes it highly valuable in modern electronic designs. Its versatility enables it to handle tasks ranging from small-scale audio processing to complex signal transmission, reinforcing its dual role as both a switch and an amplifier.

Using the TIP32C PNP Transistor as a DC Motor Driver

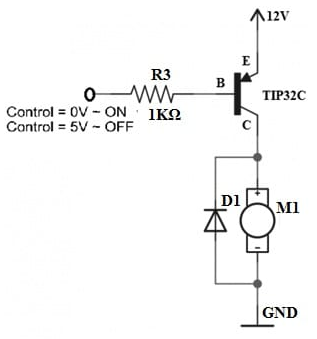

The TIP32C PNP transistor is a key component for controlling DC motors in electronic circuits. It works by connecting the base to the input signal, the emitter to a constant voltage source, and the collector to the motor on the ground side. This setup allows the transistor to regulate motor speed through a process called switching, where it alternates between fully on (saturation) and fully off (cutoff) states. By controlling how long the transistor stays in each state, it adjusts the motor's speed and torque. A unique feature of PNP transistors like the TIP32C is their default "on" state when the base voltage is low, while applying a higher voltage turns the motor off. This makes it highly effective for applications requiring precise and reliable motor control. Its compact size, efficiency, and affordability make it suitable for a wide range of uses in both industrial systems and everyday devices.

Ensuring Safe Use of the TIP32C Transistor in a Circuit

To safely use the TIP32C transistor, it’s important to follow specific guidelines. It can handle loads up to 3 amperes and 100 volts, but exceeding these limits can cause overheating and failure. For high-power applications, adding a heat sink is essential to manage heat and keep the transistor within its safe temperature range of -65°C to +150°C. Since the collector is connected to the metal tab, proper insulation is necessary to prevent short circuits or damage to nearby components. By adhering to these precautions, the TIP32C ensures reliable performance and durability in a variety of applications, from household devices to complex industrial systems.

Applications of the TIP32C PNP Transistor

• The TIP32C PNP transistor is a versatile electronic component capable of handling high currents and voltages, making it ideal for a range of applications.

• In amplifier circuits, it boosts weak signals with minimal distortion, enhancing audio quality and communication clarity.

• It controls LEDs and motors effectively, enabling smooth light dimming, precise motor speed adjustments, and improved energy efficiency.

• It excels in high-current switching applications, ensuring reliable performance in power supplies, motor drivers, and industrial equipment while reducing heat and maintenance needs.

• Paired with microcontrollers, it enables advanced motor control in H-Bridge circuits for robotics and automation systems that demand precision and flexibility.

• Widely used in industrial and general electronics, it supports both linear and switching systems, offering adaptability and reliability in demanding environments.

• Its durability and efficiency make it a go-to choice for optimizing performance, cutting costs, and fostering innovation across various fields.
