TMS320F28335PGFA Microcontroller: Applications and Implementation Guide

This article explores the TMS320F28335PGFA microcontroller, known for its strong performance and reliability. Its high-performance CPU handles complex tasks, stable in demanding environments, whether in industrial automation, automotive systems, or communication networks, the TMS320F28335PGFA stands out for its durability and contribution to innovation across industries.

Catalog

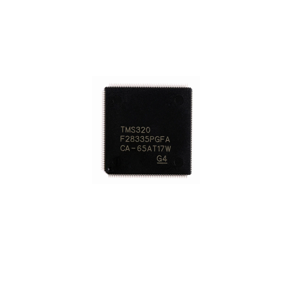

Overview of TMS320F28335PGFA

The TMS320F28335PGFA by Texas Instruments is a digital signal processor in the TMS320F2833x series, designed for real-time control and housed in a 176-pin LQFP package. With strong computing power and a wide range of peripherals, it’s a versatile choice that’s useful in industries such as industrial control, power electronics, automotive electronics, instrumentation, and communications.

Alternatives and Equivalents

The TMS320F28334PGFA is quite similar in function and performance to the TMS320F28335PGFA, making it a good option to consider. The main differences might be in processing power or specific features.

The TMX320F28335PGFA is an experimental version of the TMS320F28335PGFA. If you're a developer or researcher, pay close attention to any small changes or improvements in this version, as they could impact your project over time.

Core Features of TMS320F28335PGFA

TI's C28x Core

The TMS320F28335PGFA processor uses TI’s powerful C28x core, a 32-bit fixed-point digital signal processor (DSP). With 512 KB of flash memory and 68 KB of RAM, it can smoothly run at speeds up to 150 MHz.

Interfaces and Compatibility

This processor comes with a variety of interfaces, including ADCs, SPI, SCI, I2C, Enhanced PWM controllers, GPIOs, and GTC. It also supports Ethernet, CAN, and USB. These features suitable for applications in communications, automotive systems, and industrial control.

Analog-to-Digital Converters (ADCs)

ADCs are used for accurate data collection, converting real-time analog signals into digital data. ADCs help continuously process sensor data for improved performance and safety.

SPI and SCI Interfaces

The processor’s SPI and SCI interfaces enhance its flexibility in data transmission, with SPI being excellent in high-speed data transfer in sensor-based applications, while SCI is commonly used in embedded systems for reliable communication, supporting standard protocols.

Enhanced PWM Controllers

Precise PWM signals ensure better control over motor speed and position, boosting the efficiency and accuracy of automated systems.

General-Purpose Input/Output (GPIO) Pins

GPIO pins offer great flexibility for custom configurations. They allow the processor to connect with a wide range of external components, best for both prototyping and final product designs. GPIOs enable designers to create customized sensor integrations and control systems.

CAN and Ethernet Protocols

The DSP supports CAN and Ethernet protocols, which ensure fast and reliable data communication. CAN is used for in-vehicle communication, linking various electronic control units, while Ethernet is becoming more common in industrial settings due to its high bandwidth, allowing quick data transfer and better control network efficiency.

Specifications of TMS320F28335PGFA

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Package / Case	LQFP-176
Packaging	Tray
Length	24 mm
Width	24 mm
Height	1.4 mm
ADC Resolution	12 bit
Data Bus Width	32 bit
Data RAM Size	68 kB
Program Memory Size	512 kB
Mounting Style	SMD/SMT
Operating Temperature	-40°C to 125°C
Operating Supply Voltage	1.9 V
Pin Count	176
Part Status	Active
Interface Type	CAN/I2C/SCI/SPI/UART
Product Type	DSP - Digital Signal Processors & Controllers

Programming Techniques for TMS320F28335PGFA

Understanding the Hardware and Instruction Set

To start programming the TMS320F28335PGFA, you need to get familiar with its hardware and instruction set. This microcontroller, built on the C28x core, is designed for real-time control applications and comes with features like a high-speed ADC, PWM modules, and communication interfaces such as SPI, I2C, and CAN.

Using Development Tools

TrueStudio and Code Composer Studio are your go-to tools. These IDEs make coding, debugging, and optimization easier and faster, with helpful libraries and example codes that save you time and improve your troubleshooting and optimization skills.

Understanding Pin Functions and Peripherals

Each pin on the TMS320F28335PGFA has specific functions and can be configured for different uses. By carefully reading the datasheet, especially the Electrical Characteristics section, you can avoid common issues like pin conflicts or voltage mistakes. Correctly setting up peripherals like the ADC and PWM from the start can prevent future debugging headaches.

Managing Internal Memory

The TMS320F28335PGFA includes RAM, ROM, and Flash memory. Managing stack and heap allocation well is required for good performance in real-time applications where you need predictable and fast responses.

Multi-Language Support

This microcontroller supports programming in assembly, C, and C++. C and C++ are easier for higher-level programming and offer strong libraries, while assembly language gives you precise control over the hardware. Using the right language for the right task can improve your program’s performance.

Optimizing Instruction Sets

Logical instructions help with bit manipulation, arithmetic ones handle calculations, and data transfer instructions ensure data moves quickly between registers, memory, and peripherals. Tailoring these instructions to the hardware can lead performance improvements.

Core Perspective and Customization

Using custom libraries or tools can enhance your development process. Adapting these tools to your needs and constantly testing in real-world scenarios will help refine your programming, leading to a strong and efficient final product.

TMS320F28335PGFA Pricing Dynamics

 

The pricing dynamics of the TMS320F28335PGFA have witnessed notable changes since late last year. Initially, fluctuations in pricing were evident, causing some uncertainty in the market. Recently, prices have found a stable point, averaging around 75 yuan. This discrepancy between official and market prices reveals a complex interplay influenced by various factors.

Utilization of TMS320F28335PGFA

To get the best performance from the TMS320F28335PGFA microcontroller, start by making sure it’s securely connected to all hardware components for reliable operation. Use techniques like decoupling capacitors and proper grounding to stabilize the power and reduce noise, keeping the circuit stable. Set up the registers and memory blocks according to your project needs, using the datasheet as a guide. When writing control algorithms, use a language like C or assembly, and keep the code organized to make it easier to debug and update later. Refine the code through testing and reviews. Once the code is ready, compile it in an IDE like Code Composer Studio and download it to the microcontroller. Debug carefully using tools like JTAG. After debugging, optimize the code to improve efficiency, reduce memory use, and lower power consumption. Regularly update both software and hardware to keep the system stable and adaptable, making sure it can handle new technologies or project changes.

Application Areas of TMS320F28335PGFA

High-Performance Motor Drives and Power Electronics

The TMS320F28335PGFA shines in high-performance motor drives, including DC motors and stepper motors. Its precise control capabilities enhance operational efficiency and reliability, proving in many industrial scenarios. This microcontroller manages power electronic equipment, such as inverters and current control systems, due to its high-speed processing and accurate power factor correction. Modern grid systems have integrated advanced power factor correction techniques, leveraging this microcontroller to enhance both stability and efficiency.

Renewable Energy Systems

The TMS320F28335PGFA proves invaluable in renewable energy systems, including solar and wind power applications. Its capability to process data and control signals in real-time ensures efficient energy conversion and management. In solar power systems, for example, it enables optimal photovoltaic panel orientation and maximum power point tracking (MPPT), increasing energy yield. Similarly, in wind energy systems, it governs the dynamic control of turbine blades to optimize performance under varying wind conditions.

Medical Devices

In the medical field, the TMS320F28335PGFA is instrumental in data acquisition, signal processing, and control across various medical devices. Its high precision and reliability are good for diagnostic imaging, patient monitoring, and life-support systems. Advanced imaging systems, benefit from the microcontroller's real-time data processing capabilities, which enable higher-resolution images and improved diagnostic accuracy.

Industrial Automation and Robotics

The TMS320F28335PGFA encompassing high-performance controllers, motion control systems, and robotics. Its swift processing speeds and control algorithms make it well-suited for intricate automated systems. In robotics, the microcontroller ensures precise motion control, enabling the execution of complex tasks with high accuracy.

Functions of TMS320F28335PGFA in UAV Control Systems

Microcontrollers are important to making UAVs work well. They collect real-time data from different sensors like accelerometers, gyroscopes, and GPS, which is needed to keep the UAV stable and precise during flight. They also handle communication between different UAV parts through systems like CAN, SPI, and SCI, making sure everything runs smoothly.

Data Acquisition for UAV Operations

Sensors such as accelerometers and gyroscopes tell us about the UAV’s orientation and movement. The GPS provides real-time location, require for navigation. If you’re operating a UAV, you know that getting accurate data quickly helps the UAV respond better to changes and fly more smoothly, reducing risks.

Communication Protocols in UAVs

The microcontroller's role in handling communication protocols such as CAN, SPI, and SCI ensures reliable and redundant communication channels within the UAV. These systems helps quickly address any issues during flight, improving the UAV’s safety and reliability.

UAV Flight Control

Microcontrollers handle flight control tasks like keeping the UAV stable and guiding its navigation. Good flight control systems greatly enhance UAV performance in various conditions. Attitude stabilization helps the UAV maintain its intended orientation. It involves analyzing sensor data and making quick corrections in windy conditions, to keep the UAV on its planned path. UAV navigation systems rely on microcontrollers to process environmental data and execute precise flight plans.

Fault Detection Mechanisms

Microcontrollers constantly monitor the UAV's systems to detect any issues, like hardware or software problems. This allows for quick fixes before things escalate, which boosts safety by catching potential problems early.

Frequently Asked Questions (FAQs)

1. What are the features of the TMS320F28335PGFA?

The TMS320F28335PGFA comes equipped with numerous functionalities including PWM generation, ADC, UART, and SPI communication interfaces. It features high-resolution PWM, for accurate motor control, making it a desirable choice in applications demanding precise performance. The robust processing capabilities support efficient real-time control, playing a role in various industrial and commercial applications.

2. What are the applications of the TMS320?

The TMS320 series is a versatile tool used in many industries. It's used in speech signal processing, telecommunications, and robotics, driving advancements in these fields. In radar and sonar systems, its high-speed processing allows for accurate signal detection and interpretation. It's also used in seismology for real-time data processing and analysis. Additionally, the TMS320 series is applied in image processing, audio enhancements, biomedical instrumentation, and acoustic noise measurement. It even used in automatic test equipment, helping ensure the reliability and performance of various electronic systems.

3. What is the TMS320F28335PGFA?

The TMS320F28335PGFA is a sophisticated part of the TMS320C2000™ series of digital signal processors (DSPs). It is carefully crafted for real-time control scenarios. The processor stands out for its rapid handling of complex computations, which is beneficial in dynamic and time-sensitive environments.

4. Are there automotive applications for TMS320F28335PGFA?

Yes, the TMS320F28335PGFA proves its worth in various automotive applications, particularly in motor control for electric vehicles (EVs). Its high-resolution PWM ensures efficient motor functionality, enhancing both performance and energy efficiency of EVs. Besides, this DSP is also integrated into other automotive electronic systems, contributing to the improved functionality and safety of modern vehicles.
