The Complete Guide to the NE5532P Operational Amplifier

In this article, we'll dig into the technical excellence of the NE5532P, uncovering how its features make it a preferred choice for you seeking reliable and clear signal amplification. Whether it's enhancing the sound quality in audio pre-amplifiers or ensuring precise readings in sophisticated communication systems, the NE5532P brings unmatched stability and performance to the table. Join us as we explore the various facets of this requisite component, providing insights that help harness its full potential in both analog and digital circuits.

Catalog

Overview of the NE5532P

The NE5532P stands out as an integrated circuit known for its adaptability in handling both direct current (DC) and alternating current (AC) processes. This component is crafted to minimize noise disturbances, enabling seamless unity gain operation alongside notable power output with minimal distortion. Such a harmonious blend of features makes it well-suited for precision tasks, aided by an internal mechanism for gain compensation and clearly defined input noise limits, making it a prime choice in intricate electronic applications.

The exceptional capabilities of the NE5532P arise from its comprehensive technical specifications, fulfilling the stringent requirements of both professional audio fields and broader electronic uses. Its proficiency in sustaining a pristine signal, even in noise-prone settings, makes it highly desirable. You can observe that in audio pre-amplifiers, this chip can produce sound clarity that competes with more expensive alternatives, thus offering a practical choice for those seeking high-quality audio reproduction.

When it comes to design aspects, a thorough grasp of the NE5532P's thermal dynamics and power consumption is used. Although its energy-efficient features contribute positively to power management, the strategic arrangement of components within a circuit can elevate its performance further. In audio enhancement devices, you can highlight the profound effects of careful component tweaks to unlock the chip's full potential, attesting to its capability for enhancing sound quality.

CAD Design

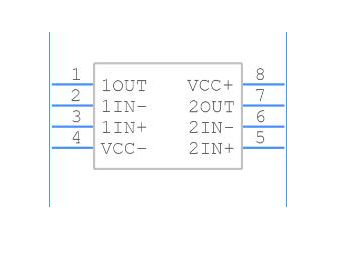

Symbol

Footprint

3D Models

Pin Configuration

Pin Number	Pin Name	Description
1	1OUT	Output
2	1IN-	Inverting Input
3	1IN+	Noninverting Input
4	VCC-	Negative Supply
5	2IN+	Noninverting Input
6	2IN-	Inverting Input
7	2OUT	Output
8	VCC+	Positive Supply

Dimensions

Parameter	Value
Height	5.08 mm
Length	9.81 mm
Thickness	3.9 mm
Width	6.35 mm

Technical Specifications

Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mounting Type	Through Hole
Package / Case	8-DIP (0.300, 7.62mm)
Surface Mount	NO
Number of Pins	8
Manufacturer Package Identifier	P (R-PDIP-8)
Operating Temperature	0°C~70°C
Packaging	Tube
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Number of Functions	2
Supply Voltage	15V
Base Part Number	NE5532
Pin Count	8
Power Supplies	±5/±15/10/30V
Number of Channels	2
Operating Supply Current	8mA
Nominal Supply Current	16mA
Output Current	38mA
Slew Rate	9V/μs
Architecture	VOLTAGE-FEEDBACK
Amplifier Type	General Purpose
Common Mode Rejection Ratio	70 dB
Current - Input Bias	200nA
Voltage - Supply, Single/Dual (±)	±5V~15V
Output Current per Channel	38mA
Input Offset Voltage (Vos)	4mV
Neg Supply Voltage-Nom (Vsup)	-15V
Unity Gain BW-Nom	10000 kHz
Voltage Gain	100dB
Low-Offset	NO
Frequency Compensation	YES
Voltage - Input Offset	500μV
Low-Bias	NO
Micropower	NO
Programmable Power	NO
Dual Supply Voltage	9V
Nominal Gain Bandwidth Product	10MHz
Max I/O Voltage	4mV
Power	YES
Input Offset Current-Max (IIO)	0.15μA
Height	5.08mm
Length	9.81mm
Width	6.35mm
Thickness	3.9mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

Applications

Audio Engineering

The NE5532P operational amplifier has remained an active element in audio engineering due to its outstanding abilities in noise reduction and output drive. This amplifier excels in high-fidelity sound systems, where the exact emotions conveyed through music take center stage. For example, professional studios lean on this chip to maintain audio clarity amidst intricate soundboards juggling multiple inputs, ensuring that every musical note resonates with authenticity. Its precision contributes to capturing the essence of musical performances, creating sound recordings that draw you in emotionally.

Communication Systems

Functioning as a dependable component in communication systems, the NE5532P shines with its capacity for signal clarity. Often found in processes like frequency modulation and amplification, it helps achieve the smooth transmission of signals, devoid of distortion. Telecommunication setups thrive with their usage, enhancing consistent communication quality. This component mitigates interference from environmental factors, ensuring operations flow seamlessly. Field experiences reveal that such systems gain remarkable long-term equilibrium, enhancing your confidence in maintaining connectedness.

Signal Processing

In signal processing, the NE5532P has a prominent presence with its aptitude for amplifying signals while maintaining noise-free outputs. Its prowess in filtering and boosting signals proves impactful across varied industrial sectors. In medical imaging systems, for instance, where precise interpretation can spell the difference in diagnostics, its performance ensures accuracy and reliability. Examples illustrate that employing this amplifier enhances equipment precision, safeguarding against errors that could compromise the integrity of medical assessments.

AV Receivers and Video Infrastructure

The distinctive features of the NE5532P have rendered it requisite in AV receivers and video infrastructure. This amplifier imparts enriched audio performance and maintains exceptional video clarity by minimizing distortions. It benchmarks standards in performance for systems designed to satiate the evolving consumer appetite for high-definition home theater experiences. With its integration, AV setups deliver immersive audio-visual experiences that captivate you, allowing you to experience media beyond the surface.

Contemporary Electronics

In modern electronics, including netbooks and DVD players, the NE5532P has carved out its significance. It effectively synchronizes operations across multifunctional environments, resulting in optimal sound and video quality with prudent power consumption. Devices powered by this operational amplifier are noted for their longevity and heightened satisfaction, demanding less frequent maintenance while delivering consistent quality. Reports suggest that the presence of NE5532P enhances the overall experience, leading to equipment that not only lasts longer but also brings joy to day-to-day activities.

Block Diagrams

Features

Feature	Specification
Number of Channels	2 Channel
GBP - Gain Bandwidth Product	10 MHz
SR - Slew Rate	9 V/µs
CMRR - Common Mode Rejection Ratio	70 dB
Output Current per Channel	38 mA
Ib - Input Bias Current	800 nA
Vos - Input Offset Voltage	4 mV
Operating Supply Voltage	10 V to 30 V, ±5 V to ±15 V
Operating Temperature	0 to 70° C
Mounting Style	Through Hole
Package / Case	PDIP-8
Dual Supply Voltage	±9 V, ±12 V
en - Input Voltage Noise Density	8 nV/√Hz at ±15 V
Maximum Dual Supply Voltage	±15 V
Minimum Dual Supply Voltage	±5 V
Supply Current per Channel	16 mA

Application Circuit

The NE5532P operational amplifier proves to be highly adaptable, finding its applications across a diverse range of audio and signal processing scenarios. Its exceptional capabilities allow for the design of circuits that adeptly handle intricate functionalities. This analysis investigates the advanced utilization of the NE5532P, enhancing its capabilities further with the strategic addition of selected transistors to achieve superior performance criteria.

Signal Processing Pathways

An in-depth comprehension of the signal routes within circuits utilizing the NE5532P enhances performance outcomes. You can examine the transformations of input signals through the op-amp, where the amplifier's role becomes evident in bolstering signal integrity and diminishing noise levels. Achieving these results involves experimenting with the arrangement and technical specifications of resistors and capacitors, which significantly influence the frequency response characteristics.

Targeting Precision in Gain Adjustments

Attaining precise gain settings in NE5532P circuits aligns with individual application necessities. By carefully selecting feedback resistors and capacitors, you can fine-tune the amplifier's gain to adhere to specific requirements. This process involves striking a balance between obtaining the desired output levels and preserving system stability. You can emphasize iterative testing and refinement, employing oscilloscopes and spectrum analyzers to unlock optimal configurations.

Conceiving a High-Efficiency Output Stage

Crafting an output stage that enhances efficiency while preserving quality represents a substantial achievement with NE5532P circuits. Incorporating power transistors is a serious strategy for elevating the output stage, empowering the system to manage heavy loads and heat dissipation efficiently. By simulating different output configurations, you can determine the most effective arrangement to minimize distortion while maximizing power handling—active objectives in elite audio systems.

Advantages

The NE5532P distinguishes itself with remarkable features, encompassing low noise, minimal distortion, impressive drive capabilities, and consistent operational performance across a range of conditions. As technological advancements continue, these features have positioned it as an ideal option for precision audio and instrumentation uses.

Superior Noise and Distortion Levels

In high-fidelity audio systems and precision instrumentation, attaining low noise and distortion levels is a priority. The NE5532P surpasses expectations by delivering sound clarity that enhances the listening experience. By minimizing undesirable harmonic distortions, it keeps the audio output authentic, and appealing to you. Imagine an audio engineering project, where preserving signal integrity is used—employing the NE5532P can amplify audio reproduction fidelity, offering a purer and more genuine sound.

Robust Driving Capabilities

The NE5532P's capability to handle notable loads without affecting performance makes it a flexible component across various applications. Its strong driving capabilities allow it to manage demanding audio loads while maintaining sound quality. For example, in a powerful stereo system setup, the NE5532P ensures you enjoy superior sound quality, irrespective of the speaker's demands. These features reflect designs where performance under load holds substantial value.

Operational Efficiency in Varied Conditions

Operational efficiency amidst diverse environmental scenarios matters for devices exposed to temperature variations and operational pressures. The NE5532P is built to sustain its performance in these conditions, highlighting its dependability. Consider actual contexts like outdoor audio systems or instrumentation in industrial environments with frequent temperature changes. The stability the NE5532P provides allows you to have confidence in its performance, reducing the need for frequent adjustments or replacements.

Alternative Options

• LM358

• NJM4560

• LM4558

• LM258

Manufacturer

Texas Instruments (TI) holds a prominent position in the global semiconductor sector, primarily for its expertise in crafting analog components and embedded processors. With a cultural backdrop that celebrates innovation, TI's headquarters are strategically located in Dallas, Texas. The company plays a key role in shaping the global electronics scene, using its expansive patent collection to fuel technological evolution.

TI's influence transcends its American origins. By engaging in strategic research initiatives and forming meaningful collaborations, TI continuously contributes to advancements in the global electronics arena. The company invests heavily in R&D efforts to nurture creativity and sustain its competitive position. With a focus on leveraging its substantial resources, TI effectively tackles a wide range of industry challenges, offering solutions for sectors from automotive to industrial applications.

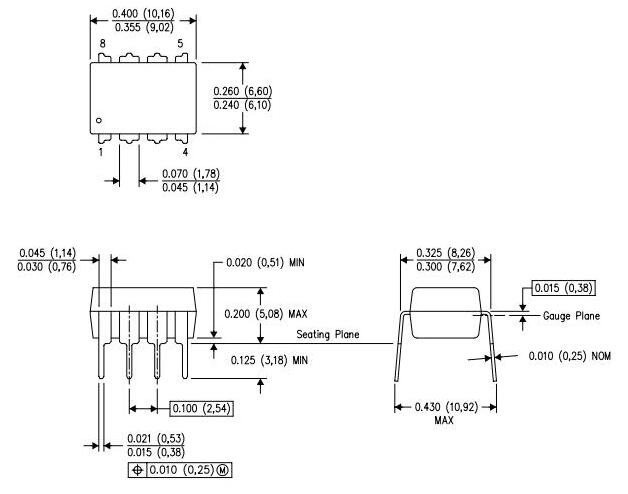

Package

Evaluating the NE5532 and OPA2134

Parameter	NE5532	OPA2134
Input Type	Bipolar	FET
Age of Design	Older component, widely used	Newer design, but similar in use cases
Applications	Suitable for most audio applications, cost-effective	Ideal for applications needing FET input, e.g., low-frequency filters
Use in New Equipment	Still used in modern audio equipment	Typically replaces TL072 in specific FET applications
Performance	Better for bipolar OP-amp requirements	Better for FET-specific applications like DC critical or low-frequency filters
Alternative Comparisons	Competes with OPA2134 and JFET types	A good replacement for TL072
Cost-effectiveness	More cost-effective for general use	Overkill for some applications, less cost-effective
Recommendation	Preferred if a bipolar op-amp suffices	Recommended for low-frequency filters or FET input needs
Better Version	NA	OPAx132 family for DC critical applications

Comparative Examination of NE5532 and TL072 Op-Amps

Parameter	NE5532	TL072
Input Type	Bipolar transistor inputs	JFET inputs
Input Current	Draws input current	No input current
Noise Performance (Low Impedance)	Quieter when source impedance is extremely low (e.g., 20Ω)	Higher noise at low source impedance
Noise Performance (High Impedance)	Equal noise at ~18.5kΩ source impedance; noisier at higher impedances	Quieter when source impedance >18.5kΩ
Input Voltage Noise	Affected by input current noise at higher impedance	Less affected by input current noise
Low-Frequency Noise	"Popcorn" noise below 30Hz	Much less low-frequency noise
Input Protection Diodes	Back-to-back diodes can cause circuit issues	Does not have input diodes
Supply Current Consumption	Higher consumption	Lower consumption
Common Applications	Phonograph cartridges, tape heads, microphone preamps (low impedance)	General-purpose, high-impedance circuits
Input Coupling Capacitor	Requires large input coupling capacitor to minimize noise	Not as dependent on coupling capacitor

Similar Elements

Part Number	Manufacturer	Package / Case	Number of Pins	Slew Rate	Input Offset Voltage	Common Mode Rejection Ratio (CMRR)	Supply Voltage	Operating Supply Current	Nominal Supply Current
NE5532P	Texas Instruments	8-DIP (0.300, 7.62mm)	8	9V/μs	4 mV	70 dB	15 V	8 mA	16 mA
NE5532AP	Texas Instruments	8-DIP (0.300, 7.62mm)	8	9V/μs	4 mV	70 dB	15 V	8 mA	16 mA
SA5532P	Texas Instruments	8-DIP (0.300, 7.62mm)	8	9V/μs	4 mV	70 dB	15 V	8 mA	16 mA
SA5532AP	Texas Instruments	8-DIP (0.300, 7.62mm)	8	9V/μs	4 mV	70 dB	15 V	8 mA	16 mA
