Understanding Transistor hFE: Measurement, Functions, and Impact on Circuit Design

This guide explains what transistor hFE is and why it matters in electronic circuits. You'll learn how to measure hFE, what affects it (like temperature or voltage), and how it changes in different types of transistors. The guide also shows where hFE is important such as in amplifiers, switches, voltage regulators, and signal circuits and how to adjust your designs to make sure circuits work even when hFE changes. It also explains different kinds of gain (like voltage gain or AC gain) and how they are used in electronics.

Catalog

What is hFE of a Transistor?

hFE stands for the DC current gain of a bipolar junction transistor (BJT) in its common-emitter configuration. It shows how effectively a small current at the base controls a larger current at the collector. For example, if hFE is 100, a 1 mA base current produces a 100 mA collector current. This property is key to amplification and switching functions. hFE isn't a fixed value. It changes based on how the transistor was manufactured and how it's used.

Even identical-looking transistors from the same batch can have different gains. Factors like temperature, voltage between collector and emitter (VCE), and current level all influence hFE. Higher temperatures or collector currents can lower the gain due to effects like charge carrier recombination and base widening. Because of this variability, datasheets show a range of hFE values instead of a single number. Others design circuits with enough tolerance to handle this variation, which is important in analog applications where stable amplification is important.

Measuring hFE

The DC current gain, often denoted as hFE, is a characteristic of a bipolar junction transistor (BJT). It represents the ratio of the collector current (Ic) to the base current (Ib) when the transistor is operating in its active region. In simple terms, it tells you how much the transistor amplifies the base current to produce a larger collector current. The formula used to calculate hFE is:

This means that to determine the hFE value, you must first measure the amount of current flowing into the base and the amount flowing through the collector, then divide the collector current by the base current. The following is the step-by-step procedure to measure hFE:

• Construct the Test Circuit: Begin by setting up a simple test circuit using the transistor whose hFE you want to measure. This circuit typically includes the transistor itself, one or more resistors to control current flow, and a suitable DC power source (such as a regulated power supply or battery). Arrange the components so that the base and collector currents can be independently measured or calculated.

• Apply a Known Voltage to the Base: Introduce a small DC voltage to the transistor’s base terminal through a resistor with a known resistance value. This resistor limits the current into the base. You can calculate the base current (Ib) using Ohm’s Law:

where 𝑉_{𝑏𝑎𝑠𝑒} is the voltage across the base resistor and 𝑅_{𝑏𝑎𝑠𝑒} is the resistance value.

• Determine the Collector Current: On the collector side of the transistor, include another resistor (often called the load resistor) in series. Measure the voltage drop across this resistor using a multimeter. Once again, apply Ohm’s Law to determine the collector current (Ic):

where 𝑉_{𝑐𝑜𝑙𝑙𝑒𝑐𝑡𝑜𝑟} is the voltage across the load resistor and 𝑅_{𝑙𝑜𝑎𝑑} is its resistance.

• Calculate hFE: With both current values in hand, you can now calculate the DC current gain using the initial formula:

This ratio provides the hFE value under the specific operating conditions of your circuit. The accuracy of this method for measuring hFE depends on several factors, including a stable voltage supply, precise component values, and thermal stability. The power source must deliver a steady, ripple-free voltage, as any fluctuations can influence both base and collector currents, leading to inaccurate hFE readings. It's also needed to use resistors with known and low-tolerance values, since any deviation in resistance can distort current calculations. Additionally, because transistors are sensitive to temperature, their gain can vary with thermal changes, so allowing the circuit to stabilize thermally before taking measurements ensures more reliable results. Lastly, since hFE is not a fixed value and varies with operating conditions such as temperature, collector-emitter voltage, and base current, it’s advisable to repeat the test at different base currents to observe how the transistor’s gain behaves under varying circumstances.

hFE Ranges for Different Transistor Types

Transistors come in different types, and each one handles current in its own way. A key feature that varies between them is hFE, or DC current gain. This value shows how much a transistor can amplify current. BJTs (bipolar junction transistors) usually have higher current gain than FETs (field-effect transistors) because of how they’re built and how they control current. Still, hFE values can differ a lot depending on the exact model and who makes it. Here are some common hFE ranges for different types of transistors:

Transistor Type	Typical hFE Range
NPN Transistor	20 to 1000
PNP Transistor	20 to 1000
Power Transistor	10 to 100
Small-Signal Transistor	50 to 300
High-Gain Transistor	100 to over 1000

How hFE Works in a Transistor?

Figure 2. Current Flow and Biasing in PNP and NPN Transistors

When an NPN transistor is working in its active mode, the base-emitter part of the transistor is forward biased. This means a small voltage is applied in a way that allows current to flow easily. In this case, electrons (which carry the current) move from the emitter into the base.

The base of the transistor is made very thin and is only lightly doped, meaning it doesn’t have many charge carriers. Because of this, most of the electrons that enter the base don’t stay there. Instead, they keep moving and go into the collector. The collector is reverse biased, which means it has a voltage set up that pulls the electrons in. This helps the electrons move through the transistor, from emitter to collector.

Now, here’s where hFE comes in. A small current flowing into the base controls a much larger current flowing from the collector to the emitter. The ratio between these two currents is called hFE (also known as current gain). For example, if the base current is 1 milliamp and the collector current is 100 milliamps, then hFE is 100. This shows how well the transistor "amplifies" the current.

But hFE is not always the same. It can change depending on how much current is flowing, the temperature, and other conditions. If the collector current is very high, the gain can go down because of resistance inside the base or because some electrons combine with holes before reaching the collector. At very low currents, hFE might also drop, possibly because of leakage currents or the voltage needed to turn the transistor on.

Because hFE changes so much with different conditions, others don’t rely on it to always be the same. Instead, they add extra parts like emitter resistors or use feedback in the circuit. These help make the transistor's behavior more stable, even if the gain changes. That way, the circuit keeps working properly, no matter how much hFE changes from one transistor to another or over time.

Functions of hFE

Amplifying Signals

One of the main functions of a transistor is to make a small signal bigger. This is called amplification. hFE tells us how much bigger the output current (from the collector) will be compared to the input current (at the base). For example, if hFE is 100 and you put 1 milliamp (mA) into the base, you will get 100 mA out of the collector. This is useful in audio amplifiers or sensor circuits where small signals need to be boosted. However, hFE is not always stable. It can change with heat, voltage, or the transistor itself. Because of this, others use hFE as a rough guide and add resistors or feedback parts to make the circuit more stable.

Setting Up the Transistor (Biasing)

For a transistor to work properly, it needs to be set up with the right current and voltage. This setup is called biasing. To get the right amount of collector current, we need to send a certain amount of base current. hFE helps us figure out how much base current to give. For example, if a circuit needs 10 mA of collector current and hFE is 100, then the base should get 0.1 mA. Since hFE can vary even between similar transistors, it's important to plan for the worst case. Use the lowest expected hFE value from the datasheet and adjust the circuit using resistors or feedback to ensure it operates correctly.

Helping with Circuit Design

hFE also affects how the whole circuit is built, especially in amplifier circuits. Even though hFE doesn’t show up directly in the formula for voltage gain, it still affects how the transistor works. It changes the base current, which changes the voltages and currents in the rest of the circuit. For example, in a common-emitter amplifier, the voltage gain depends on two resistors: one at the collector and one at the emitter. Adding a resistor to the emitter (called emitter degeneration) can make the amplifier more stable. This also helps reduce the effect of changes in hFE, making the circuit more reliable.

Turning Things On and Off (Switching)

Transistors are also used as switches in digital and power circuits. In this case, the transistor is either fully off or fully on. To make sure the transistor turns fully on, the base current has to be high enough. We usually give more current than the basic hFE calculation shows. This extra current is called a safety factor. For example, if a circuit needs 100 mA from the collector and hFE is 100, you might think 1 mA at the base is enough. But to be safe, many often give 2 to 5 mA instead. This ensures the transistor fully turns on, even if hFE is lower than expected. Giving extra base current helps avoid problems like the transistor only turning on halfway, which could cause heat or power loss.

Different Types of Transistor Gain

Beta (β) hFE

Beta, often represented by the symbol β or hFE, is the DC current gain of a transistor in a common-emitter configuration. It defines the ratio of the collector current (IC) to the base current (IB), showing how much the input current is amplified when passed through the transistor. This gain is specified in a transistor's datasheet and can vary depending on the specific transistor model, the manufacturing batch, and even operating conditions such as temperature. Though useful in understanding how a transistor behaves with steady signals, this gain is more ideal for DC analysis rather than high-frequency or rapidly changing signal applications.

Figure 3. Measuring DC Current Gain (hFE) in a Common-Emitter Transistor Configuration

hfe

The AC current gain, denoted as hfe, is similar in concept to β but applies to small-signal, alternating current scenarios where the input signal is changing over time. This gain is important in amplifier design because it indicates how effectively a transistor can amplify minor fluctuations in input current. However, hfe is not constant, it decreases as frequency increases, primarily due to the effects of internal transistor capacitances that begin to dominate at higher frequencies. You must account for this frequency-dependent behavior when designing circuits intended to operate at radio or other high frequencies, as signal gain may be lower than expected.

α (alpha)

Alpha (α) is the current gain of a transistor when it is configured in a common-base arrangement, and it is defined as the ratio of the collector current (IC) to the emitter current (IE). Since very little current enters the base in this setup, α is usually very close to 1, meaning nearly all of the emitter current makes it to the collector. This makes common-base amplifiers effective in high-frequency applications, as they offer excellent stability and low input impedance. While alpha is less intuitive than beta, it remains an important parameter in RF and analog circuit design.

Voltage Gain (Av)

Voltage gain, represented by Av, is the ratio of the output voltage to the input voltage (Vout/Vin) and serves as a key measure in amplifier performance. It tells us how much a circuit increases the voltage level of a signal, which is great when the goal is to strengthen weak voltage inputs, such as those from sensors or microphones. Voltage gain depends on both the transistor’s properties and the surrounding circuit components like resistors and capacitors. A high voltage gain means a small input voltage can result in a large output swing, but you must manage this with care to avoid distortion or instability.

Power Gain (Ap)

Power gain, denoted as Ap, represents the ratio of output power to input power and parameter in applications where energy transfer efficiency matters, such as in audio amplification and radio frequency (RF) transmission. It considers both current and voltage amplification, providing a more holistic view of how effectively a transistor can increase the energy of a signal. Power gain is important when the output must drive a load over a distance or produce audible sound with clarity and volume. Aiming for maximum output with minimal input energy, use this measure to select suitable transistors and optimize the circuit layout.

hFE vs. Beta (β)

Feature	hFE (DC Current Gain)	Beta (β)
Definition	Ratio of collector current (Ic) to base current (Ib)	Theoretical current gain of a transistor
Also Known As	Forward DC current gain; sometimes βF in datasheets	General symbol for current gain
Symbol	hFE	β
Usage	Used for selecting/testing real transistors	Used in circuit analysis and quick estimations
Measurement Type	Real-world, measured under specific conditions	Theoretical or idealized
Signal Type	Represents DC gain; lowercase hfe used for AC gain	Typically used to mean DC gain
Frequency Dependence	hfe (AC) is frequency dependent; hFE (DC) is more stable	Usually considered constant in calculations
Range	Typically between 10 and 500	Typically assumed similar to hFE for basic calculations
Sensitivity	Varies with temperature, voltage, and other conditions	Also varies, but not always factored into basic design
Application	Practical use in amplifier and switch design	Conceptual understanding and design estimation

Current Gain in Different Transistor States

Active Region

In the active region, the transistor is functioning as an amplifier, which is its most common application in analog electronics. This is the state where the base-emitter junction is forward biased, while the base-collector junction is reverse biased, allowing the transistor to respond in a controlled and proportional manner to changes in the base current. In this region, the current gain, typically denoted as hFE or β, remains relatively constant and predictable, making it ideal for linear amplification. The collector current is directly influenced by the base current, and even a small change at the base can result in a much larger change at the collector, which is why transistors are so useful in amplifying signals in this state.

Figure 4. Active Region Biasing and Current Flow in NPN and PNP Transistors

Saturation Region

In the saturation region, the transistor operates more like a switch that is turned fully on. Here, both the base-emitter and base-collector junctions are forward biased, allowing current to flow freely from collector to emitter with minimal resistance. This state is typical in digital logic circuits and switching applications, where the transistor is used to either completely allow or block current flow. In saturation, the collector-emitter voltage drops to a low level, and the current gain, or hFE, becomes irrelevant because the transistor no longer responds linearly to input. Instead, the device is considered to be conducting at its maximum capacity for the given conditions, and any increase in base current does not significantly increase the collector current.

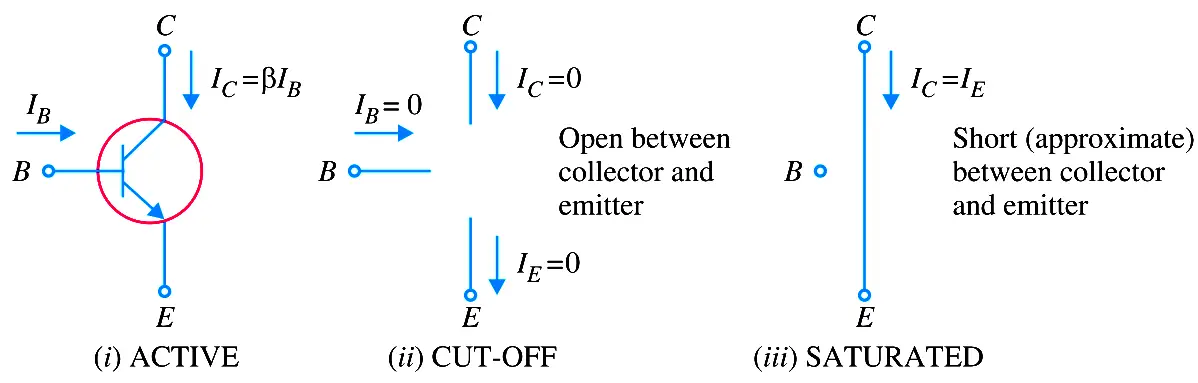

Figure 5. Transistor Behavior in Active, Cutoff, and Saturated Regions

Cutoff Region

In the cutoff region, the transistor behaves like an open switch, meaning that no current flows through the collector-emitter path. This occurs when both the base-emitter and base-collector junctions are reverse biased, effectively shutting the transistor off. Since there is no base current, there can be no collector current, making this state useful in digital circuits where a clear "off" condition is needed. In this region, the current gain doesn't apply because the transistor is not conducting at all. The cutoff state ensures that the transistor blocks current flow entirely, and it is commonly used in conjunction with the saturation region for binary on/off control in switching applications.

Figure 6: BJT Output Characteristic Curve Showing Cutoff, Active, and Saturation Regions

Applications of Transistor hFE in Circuits

The DC current gain (hFE) of a bipolar junction transistor (BJT) plays a central role in how effectively the transistor amplifies signals or switches current in a circuit. Defined as the ratio of collector current to base current, hFE directly influences how a small input current controls a larger output current. Below are key circuit applications where hFE has an impact.

Amplifier Circuits

In amplifier designs, especially those using a common-emitter configuration, hFE sets how much a small base current is amplified into collector current. This affects the current gain, which in turn influences voltage gain when combined with external resistors. hFE also plays a role in the input and output impedance of the amplifier. In multi-stage designs, mismatched hFE values between stages can lead to distortion or uneven gain. To manage this, others match transistor hFE or add emitter degeneration resistors to stabilize the gain and reduce dependency on hFE. For precision analog systems, consistent hFE helps ensure clean signal amplification, low harmonic distortion, and better linearity.

Switching Circuits

In digital and power switching circuits such as logic inverters, relay drivers, or microcontroller interfaces, hFE determines how efficiently the transistor enters saturation mode. A higher hFE means the transistor can fully saturate with less base current, which is important when the control signal provides limited current. If hFE is too low, the transistor may not fully switch on, causing slower transitions, incomplete saturation, and increased heat. These issues reduce circuit efficiency and reliability. To ensure dependable operation, use the minimum expected hFE value during design. This approach ensures the transistor will still switch properly under various temperatures and load conditions.

Voltage Regulators

In linear voltage regulator circuits, the transistor operates in the active region, where it must control a wide range of collector currents with precise base current input. Here, hFE helps maintain accurate voltage regulation across varying input voltages and output loads. For example, in series-pass regulators, a stable hFE allows the transistor to maintain a constant output voltage while supplying varying amounts of current. However, hFE can decrease with temperature rise or aging, which may compromise voltage stability.

Oscillator Circuits

In circuits like Colpitts or Hartley oscillators, the transistor’s hFE affects the loop gain, a factor in initiating and sustaining oscillation. If the gain is too low, oscillation may not start. If it’s too high, the signal may distort or shift into unstable behavior. Because hFE impacts the amplifying stage within the oscillator loop, changes in hFE can cause frequency drift or amplitude variation. This is true in environments with fluctuating temperatures or supply voltages. To maintain stable oscillation, some designs include automatic gain control (AGC), which adjusts the circuit dynamically to compensate for changes in hFE.

Signal Conditioning Circuits

Circuits designed to process weak or sensitive signals such as preamplifiers, active filters, or impedance buffers, depend on hFE for accurate, low-noise operation. These systems require high fidelity and minimal distortion. For instance, in a buffer stage, a high and stable hFE provides high input impedance and low output impedance, helping preserve signal strength and shape without loading the source. You must carefully select biasing resistors and plan for hFE variations across devices and environmental changes to ensure the transistor stays within the linear operating range and maintains consistent signal processing.

Conclusion

Transistor hFE is a key part of how a transistor works in a circuit. It tells you how much a small input current can control a larger output current. Even though hFE can change depending on the transistor and how it’s used, this guide shows you how to measure it, plan for it, and design circuits that still work well if it changes. By using tools like resistors and feedback, you can make your circuit stable and reliable. Whether you’re building an amplifier, a switch, or a signal filter, knowing how to handle hFE helps your circuit work better and last longer.
