Understanding the 2N7002 N-Channel Logic Level MOSFET

In this article, we dig into the world of the 2N7002, a highly versatile N-channel Logic Level MOSFET. Recognized for its efficiency and adaptability, this semiconductor component is serious in various electronic circuits, mostly in enhancing energy efficiency and optimizing performance. From its swift switching capabilities to its compatibility with low-voltage applications, the 2N7002 is a favorite for designing compact and reliable systems. Whether powering digital switches, driving microcontroller-based projects, or enabling sustainable energy solutions, the 2N7002’s attributes make it a key choice for modern electronics. Join us as we explore its technical specifications, applications, and practical considerations, offering insights into how this MOSFET supports the development of efficient, high-performance devices.

Catalog

2N7002 MOSFET Overview

The 2N7002, an N-channel Logic Level MOSFET, holds a special place in the world of discrete semiconductor devices. This component, requisite to many, is primarily utilized as a switch or amplifier. It is crafted from semiconductor materials and is constructed with three terminals. Noteworthy aspects of the 2N7002 include its remarkably low on-state resistance and a gate-source threshold voltage of approximately 2.1V. These qualities make it mainly fitting for circuits operating at 3.3V, enhancing energy efficiency and optimizing switching performance.

In contrast to its strengths, its compact SMD packaging (SOT-23) presents certain limitations. It has a moderately low drain current, reliably delivering up to 200mA continuously and accommodating maximum current spikes of up to 1A. To prevent potential damage, it is crucial to adhere to these operational constraints in practical applications. The 2N7002, commonly sourced from manufacturers like ON Semiconductor, operates reliably across a temperature range from -55°C to 150°C and has a power dissipation cap of 200mW. You can often emphasize the necessity of adhering to these specifications to preserve the integrity of circuits and prolong performance reliability.

2N7002 Features

Feature	Description
Type	N-Channel MOSFET
On-State Resistance	< 5Ω
Continuous Drain Current (ID)	200mA
Drain-Source Voltage (VDS)	60V
Gate Threshold Voltage (VGS-th) (Min)	1V
Gate Threshold Voltage (VGS-th) (Max)	3V
Turn ON Time	15ns
Turn OFF Time	8ns
Package Types	TO-92, SOT23-3L

Uses of the 2N7002 MOSFET

The 2N7002 MOSFET is favored in various electronic circuits, known for its adept handling of low-current and voltage switches. Its architecture is especially useful in DC-DC converters and eMobility systems, promoting efficient energy usage. To harness its capabilities, its part in contemporary power management systems should be acknowledged, with a focus on its ability to minimize on-state resistance which curbs power waste.

Applications in DC-DC Converters

In DC-DC converters, the 2N7002 excels by boosting energy transfer efficiency in electronic circuits. You can concentrate on reducing power dissipation, facilitated by the MOSFET's low on-state resistance, allowing gadgets to operate longer on limited energy reserves. It's widely found in portable electronics where each unit of power conserved enhances battery endurance.

Role in eMobility Solutions

As the push for eco-friendly transportation intensifies, the 2N7002's dependable and efficient nature is leveraged for eMobility technologies, such as electric bicycles and scooters. Its role in power management ensures optimal functioning and boosts these vehicles' effectiveness, influencing performance and satisfaction. You can persistently refine methods to integrate such components, with aspirations to augment system stability while being mindful of ecological impacts.

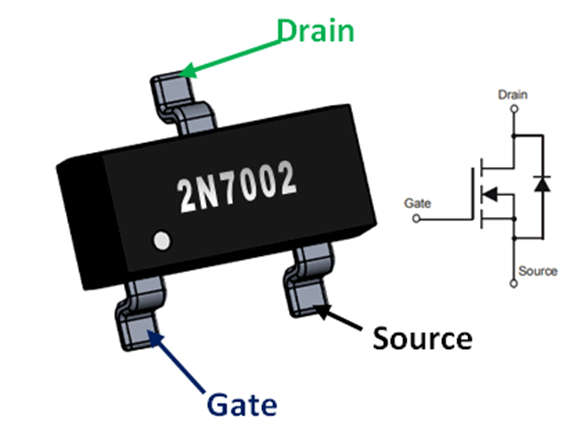

Pin Configuration

The 2N7002 transistor features three fundamental terminals: Source, Gate, and Drain. Each one has its distinct function and role in ensuring the transistor operates efficiently.

Alternatives and Substitutes

2N7002 Alternatives

• NTR4003

• FDC666

• FDC558

Other Types of N-Channels MOSFETs

• BS170NL

• IRF3205

• 2N7000

• IRF1010E

• RF540N
