What Does a Voltage Regulator Do?

A voltage regulator keeps the output voltage stable, even when the input voltage or the connected load changes. It works like a control system that constantly monitors the output and adjusts its internal operation to maintain a fixed voltage.

There are two main ways this adjustment happens. In linear regulators, the regulator changes resistance to drop excess voltage. In switching regulators, it turns a transistor on and off rapidly to control how energy is delivered.

This regulation process uses internal feedback. The system compares the output voltage to a known reference. If there's a mismatch, it corrects the internal behavior to restore the target voltage. This keeps sensitive components like microcontrollers, sensors, and analog chips within safe voltage limits, reducing the risk of malfunction or damage.

Types of Voltage Regulators

Voltage regulators come in two basic forms: linear and switching.

Figure 2. Linear Regulator vs Switching Regulator

Linear Regulators

Linear regulators are a type of voltage regulator commonly used in electronics due to their simplicity and low noise output. They are well-suited for noise-sensitive applications, such as audio equipment and analog signal chains, where maintaining clean and stable voltage is needed. Their quiet electrical operation makes them a popular choice in environments where minimizing interference is important.

The core function of a linear regulator involves continuously adjusting the resistance through a control element typically a transistor acting as a variable resistor to maintain a constant output voltage. This regulation process results in the excess input voltage being dissipated as heat, which contributes to their lower efficiency compared to switching regulators. Despite this inefficiency, their ease of use and low output noise remain key advantages in specific applications.

Switching Regulators

Switching regulators are advanced voltage regulation devices known for their high efficiency. Unlike linear regulators, they are more complex but excel at conserving power, making them ideal for applications that require energy efficiency such as in portable electronics, automotive systems, and other compact, power-sensitive designs. Their ability to deliver efficient power conversion in a small footprint makes them well-suited for modern, high-performance electronic systems.

These regulators operate by rapidly switching power devices on and off to regulate the flow of energy. Instead of dissipating excess voltage as heat, switching regulators temporarily store energy in inductors and capacitors and then release it as needed, achieving much higher efficiency. This process allows them to manage power with minimal loss, although it introduces more electrical noise and complexity compared to linear regulators. Choosing between the two depends on your design priorities, use linear regulators for low-noise, simple systems and switching regulators when efficiency and space are top concerns.

Types of Linear Voltage Regulators

Series Regulators

Series regulators are a type of linear voltage regulator that controls the voltage supplied to a load by placing a pass transistor in series with the load. This transistor adjusts its resistance dynamically to maintain a constant output voltage, even as the input voltage or load current changes. The appeal of series regulators lies in their smooth output, relatively high efficiency compared to shunt types (especially at moderate to high currents), and simplicity of design. These are used in power supplies for sensitive analog electronics and low-noise digital circuits.

Figure 3. Block Diagram of Series Regulator

The core mechanism relies on a feedback loop involving an error amplifier that compares the actual output voltage with a fixed reference voltage. Based on this comparison, the amplifier adjusts the conduction of the pass transistor. If the output voltage dips, the transistor conducts more; if it rises, conduction is reduced. This adjustment keeps the output voltage nearly constant. However, the transistor still dissipates power in the form of heat, so heat sinks or thermal protection may be required to manage energy loss during operation.

Shunt Regulators

Shunt regulators are simpler forms of voltage regulation where the control element typically a Zener diode or a transistor, operates in parallel (or shunt) with the load. Instead of controlling current flow into the load like series regulators, shunt regulators maintain voltage by diverting excess current away from the load. This makes them suited for applications where the current requirement is low, such as reference voltage circuits or low-power sensor applications.

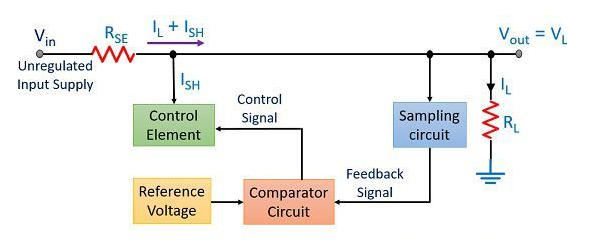

Figure 4. Block Diagram of Shunt Regulator

In operation, a shunt regulator maintains a constant voltage by using a reference element (like a Zener diode) that begins to conduct when the voltage exceeds a certain threshold. Once active, it "shunts" excess current to ground, keeping the voltage across the load stable. While this provides excellent voltage regulation and quick response to load changes, it is inherently inefficient, since unused current is continuously dissipated as heat. The efficiency drops when the current drawn by the load is much less than the available supply current.

Low Dropout Regulators (LDOs)

Low Dropout Regulators, or LDOs, are a specialized form of linear series regulators designed to function with a very small difference between input and output voltages, sometimes as little as a few hundred millivolts. This capability is valuable in battery-powered devices, where it’s important to extract as much usable power as possible from the supply. LDOs offer the low noise and simplicity of linear regulators, while minimizing energy loss.

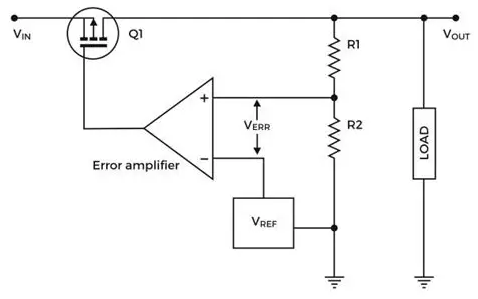

Figure 5. Low Dropout Regulators (LDOs)

An LDO regulator achieves low dropout performance by using a PNP or P-channel MOSFET pass transistor instead of the more traditional NPN or N-channel type. These components can maintain regulation with a lower voltage across them. The control loop, driven by an error amplifier, monitors the output voltage against a reference and adjusts the transistor’s conductance accordingly. Because the dropout voltage is minimal, LDOs can regulate output even when the supply voltage is only slightly higher than the desired output, making them ideal for modern low-voltage electronics.

Fixed Regulators

Fixed voltage regulators are integrated circuits that output a constant, predefined voltage such as 3.3V, 5V, or 12V. They are widely used because of their ease of use, no additional components are needed to set the voltage, and they often include internal protection features like current limiting and thermal shutdown. These regulators are ideal for standard applications where a known, steady voltage is required.

The internal design of a fixed regulator includes a voltage reference, a pass element (usually a transistor), and a feedback loop. The feedback loop continuously compares the output voltage to the internal reference and adjusts the pass element to correct any deviation. Because the reference is hardwired into the chip, the output remains at the fixed voltage as long as the input voltage is above a certain minimum level. The regulator dissipates excess energy as heat, so it's important to ensure the input-output differential is not excessively high for power efficiency.

Adjustable Regulators

Adjustable regulators are versatile power management components that allow to set the output voltage using an external resistor divider network. Unlike fixed regulators, which output a set voltage, adjustable types give flexibility to use the same chip for multiple voltage requirements by simply changing resistor values. This makes them ideal for prototyping, multi-voltage systems, and custom applications.

At the heart of an adjustable regulator is a fixed internal reference voltage, commonly 1.25V. By connecting two resistors externally, a voltage divider is formed that scales this reference voltage to the desired output. The regulator uses feedback to maintain this scaled voltage by adjusting the conduction of the internal pass transistor. The feedback loop ensures that any variation in load or input voltage does not affect the chosen output, maintaining consistent performance as determined by the resistor values.

Dual Tracking Regulators

Dual tracking regulators are specialized devices designed to provide symmetrical positive and negative output voltages used in analog systems like operational amplifier circuits, instrumentation amplifiers, and audio processing gear. The hallmark feature is that the negative and positive outputs “track” each other, maintaining equal magnitude but opposite polarity. This symmetry is important for balanced signal paths in sensitive analog designs.

The regulator maintains tracking by using a shared reference voltage and matched feedback loops for both the positive and negative rails. If one side of the output changes due to a load fluctuation, the regulator adjusts the opposite side to keep both outputs mirrored. This ensures that any changes in system demand or input voltage don’t unbalance the power supply. Internal circuitry carefully monitors both outputs and adjusts pass transistors accordingly to preserve the symmetry, enhancing system stability and signal integrity.

Types of Switching Voltage Regulators

Buck Converters (Step-Down)

Buck converters, also known as step-down converters, are DC-DC converters designed to reduce a higher input voltage to a lower output voltage. They are widely used in power electronics for their high efficiency and compact design. Buck converters are ideal for supplying microcontrollers, processors, and other digital logic circuits that require stable, lower voltages from a higher supply source such as a battery or wall adapter.

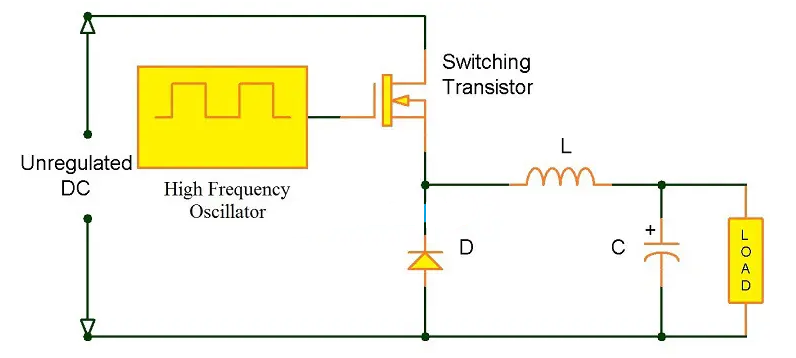

Figure 6. Buck Converters (Step-Down)

A buck converter works by rapidly switching a transistor (typically a MOSFET) on and off. When the switch is on, current flows through an inductor, storing energy in its magnetic field. When the switch turns off, the inductor releases that energy to the output load while maintaining current flow via a diode or synchronous switch. The duration the switch stays on versus off (known as the duty cycle) controls the average voltage delivered to the output. By adjusting this duty cycle, the converter maintains a desired lower output voltage, achieving efficiencies often exceeding 90%.

Boost Converters (Step-Up)

Boost converters, or step-up converters, are used when the input voltage is lower than the required output. These converters are important in applications such as LED drivers, portable electronics, or any circuit that needs to elevate a battery voltage (e.g., 3.7V) to power a device that requires a higher voltage (e.g., 5V or 12V). They're compact, efficient, and great in energy-constrained designs.

Figure 7. Boost Converters (Step-Up)

In a boost converter, a transistor switch turns on and allows current to flow through an inductor, building up magnetic energy. When the switch turns off, the inductor’s magnetic field collapses, releasing energy into the output circuit via a diode. This process boosts the voltage at the output, often to levels higher than the input. The duty cycle determines the final output voltage. Since energy is temporarily stored and then transferred, careful timing and control of the switch are needed for stable and efficient operation.

Buck-Boost Converters

Buck-boost converters are versatile DC-DC converters capable of delivering output voltages that are either higher or lower than the input. This makes them extremely useful in systems where the input voltage can vary widely, such as battery-powered devices where the battery drains over time. Buck-boost converters ensure a steady output regardless of whether the input is above or below the target output.

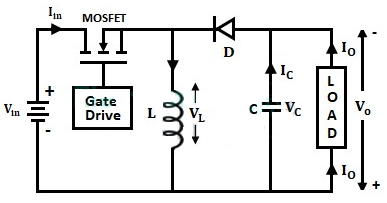

Figure 8. Buck-Boost Converters

The buck-boost topology combines the operating principles of both buck and boost converters. It stores energy in an inductor when a switch is closed (on), and transfers that energy to the output when the switch is open (off), often through a diode. In the classic inverting buck-boost configuration, the output polarity is opposite the input. However, non-inverting designs (like SEPIC or 4-switch converters) can maintain the same polarity. Control circuitry adjusts the duty cycle to determine whether the converter is stepping voltage up or down to achieve the desired output level.

Ćuk Converters

Ćuk converters are a unique type of DC-DC converter capable of increasing or decreasing the voltage while always inverting the output polarity. These converters are valued for their ability to produce a continuous and smooth output current with low ripple, making them suitable for sensitive analog circuits and precision electronics.

The Ćuk converter uses a capacitor to transfer energy between input and output, in contrast to buck or boost converters that primarily rely on inductors. Two inductors (one on the input side, one on the output) and a coupling capacitor form the core of the circuit. During each switching cycle, the capacitor charges and discharges through the inductors, transferring energy while inverting the voltage. This energy transfer method results in minimal current ripple at both input and output, improving electromagnetic compatibility and performance in noise-sensitive environments.

SEPIC Converters

The Single-Ended Primary Inductor Converter (SEPIC) is a flexible DC-DC converter that can output a voltage higher or lower than the input, without inverting polarity. It’s popular in battery-powered systems, such as portable instruments or embedded devices, where the input voltage may fluctuate above or below the desired output (e.g., a 3V–5V input needing a steady 3.3V output).

A SEPIC converter uses two inductors (or a coupled inductor) and a capacitor to transfer energy, similar to a combination of a boost and buck-boost converter. During the switch’s on-time, energy is stored in the inductors. When the switch turns off, the stored energy is released into the output via a diode. The capacitor ensures that energy transfer is smooth and that the output voltage maintains the same polarity as the input. Control over the switch’s duty cycle allows for voltage regulation above or below the input, depending on the conditions.

Inverting Converters

Inverting converters generate a negative voltage from a positive input source. These are important in applications where both positive and negative supply rails are needed for instance, in op-amp circuits, analog signal processing, or certain display systems but only a single positive voltage is available. They are efficient, compact, and useful in dual-supply analog systems.

Inverting converters typically use a buck-boost topology configured so the output voltage is negative relative to the input ground. When the switch turns on, current flows through the inductor, storing energy. When the switch turns off, the energy is released in such a way that the output polarity is inverted. A diode and output capacitor help route and store this negative voltage. The output level is controlled by adjusting the duty cycle, and careful feedback ensures stable regulation even as the load varies.

Advantages and Disadvantages of Voltage Regulators

Type	Advantages	Disadvantages
Linear Regulators	Simple and cost-effective	Low efficiency with high input-output voltage difference
	Low output voltage ripple	Generates significant heat
	Fast transient response	Limited current output
	Minimal external components	Requires heatsinking for higher loads
	Ideal for low-power applications	Not suitable for high-voltage conversion
Switching Regulators	High energy efficiency (up to 90% or more)	More complex circuit design
	Supports wide input voltage range	Requires more external components
	Can step-up, step-down, or invert voltage	Can introduce high-frequency electrical noise (EMI)
	Compact and thermally efficient with good layout	Slower transient response
	Suitable for battery-powered and high-current use	May require shielding or additional filtering

How to Choose the Right Regulator?

To choose the right voltage regulator, you should start by figuring out a few basic things about your circuit. First, check the input voltage range, this means the lowest and highest voltage your power source will give. Then decide what output voltage your circuit needs to work properly. Finally, figure out the maximum current your circuit will use. These three things, input voltage, output voltage, and current are very important when picking a regulator that will work correctly in your system.

Next, think about what matters most in your design. If your circuit needs low noise, like in sound systems or other sensitive equipment, a linear regulator is usually better. It’s simple and gives a clean, steady voltage, but it’s not very efficient and can get hot. If you care more about saving battery power or keeping things cool, then a switching regulator is a better choice. It’s more complex, but it wastes less energy and works well when there’s a big difference between input and output voltage.

After choosing the type, look for extra features that can help your design. Some regulators have thermal protection, which turns them off if they get too hot. Others have soft-start, which slowly increases the power when turned on to protect your circuit. Some also have enable pins, which let you turn the regulator on or off with a signal. These features can make your project safer and easier to use.

Finally, use manufacturer tools to help you choose. Many companies offer online tools, guides, or calculators that let you type in your needs and show you parts that match. This can save time and help you find the right regulator faster and more easily.

Where Voltage Regulators are Used?

• Audio Systems: Voltage regulators are used in audio systems to provide a clean and stable power supply. This is important because any noise or fluctuations in voltage can cause unwanted hums, buzzes, or distortion in the sound. Linear regulators are often preferred here because they produce less electrical noise, which helps keep the audio signal clear.

• Medical Devices: In medical devices, voltage regulators ensure that the electronic components get a constant and reliable voltage. These devices often monitor or assist bodily functions, so even a small power issue could lead to incorrect readings or device failure. Regulators with safety features like thermal shutdown and battery backup support are important in this field.

• Sensors: Sensors, especially in precision systems, need a steady voltage to work accurately. Fluctuations in power can cause sensors to give wrong measurements. Voltage regulators help by keeping the power level smooth and consistent, which is important in systems like temperature monitoring, motion detection, or environmental sensing.

• RF Front-Ends: RF front-ends (used in radios, wireless communication, etc.) are very sensitive to power noise, which can interfere with signal quality. Voltage regulators, especially low-noise types, help by delivering clean power to these circuits, allowing them to transmit and receive signals more clearly without interference.

• Microprocessor Cores: Microprocessor cores often require very specific and low voltages that must stay stable even when power demand changes quickly. Voltage regulators make sure the processor always gets the correct voltage. Switching regulators are common here, as they can efficiently handle fast changes in load while keeping heat low.

• LED Lighting Systems: In LED lighting systems, voltage regulators help prevent flickering or overheating by providing a steady voltage or current to the LEDs. This not only extends the life of the LEDs but also ensures smooth and consistent brightness. Some regulators are designed to work in constant current mode, which is ideal for LEDs.

• Automotive Control Units: Modern vehicles have many electronic systems, from engine control to safety features. Voltage regulators are used to make sure each system gets the right power, even if the car battery voltage changes (like during engine start). Automotive-grade regulators are designed to handle wide voltage ranges, high temperatures, and tough conditions.

• Industrial Automation: In industrial automation, machines and controllers rely on stable power to operate correctly. Voltage regulators provide the reliable voltage levels needed to avoid shutdowns or errors in sensors, motors, and control systems. These regulators are often rugged and designed to handle harsh environments, such as dust, vibration, and electrical noise.

Conclusion

Voltage regulators are important for keeping electronic devices safe and working properly. They make sure the voltage stays steady, which is very important for many types of equipment. Linear regulators are simple and quiet, good for things like sound systems. Switching regulators are more efficient and save power, great for battery-powered or heat-sensitive devices. There are many types of regulators, and each has its own job depending on the needs of your circuit. Choosing the right one means knowing your input voltage, the voltage you need to give to your device, and how much current it uses. It’s also good to check if extra features like heat protection or soft start are needed. Voltage regulators are used in many places because they help deliver clean and steady power, which keeps everything running smoothly.
