What Is an LR1130 Battery

You’ve probably seen the LR1130 battery inside small gadgets like calculators or key fobs and wondered what makes it different. This guide helps you understand its size, voltage, common uses, and how it compares to similar batteries like the SR1130. You’ll also learn how long it usually lasts and what to check before buying a replacement. With clear explanations and practical details, you can confidently choose the right battery for your device and avoid compatibility problems.

Catalog

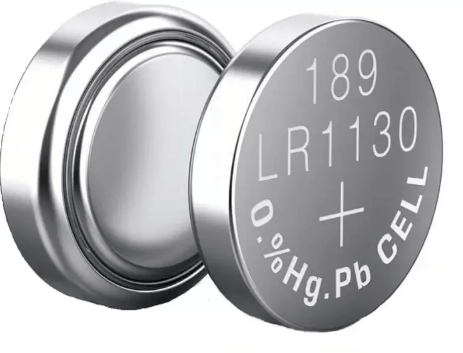

Figure 1. LR1130 Battery

What Is an LR1130 Battery

The LR1130 is a small alkaline button cell battery designed for use in compact electronic equipment. It has a flat, round shape that allows it to fit into devices with limited internal space. This type of battery is commonly classified as a primary cell, meaning it is manufactured for single-use operation and is not intended to be recharged.

The battery is based on alkaline zinc and manganese dioxide chemistry, which produces a nominal voltage of 1.5 volts under standard conditions. This chemical system is widely used in small primary batteries due to its stable output characteristics and predictable performance in low-power applications.

The designation “LR1130” follows the standardized naming system defined by the IEC 60086 specification. In this format, the letter L identifies alkaline chemistry and R indicates a round cell shape. The numerical portion provides size information, where 11 represents the approximate diameter in millimeters and 30 indicates the approximate height in tenths of a millimeter. This coding system ensures uniform identification of battery type and dimensions across manufacturers.

LR1130 Battery Specifications and Size

Parameter	Rating
Type	LR1130 (Hg Free)
Nominal Voltage	1.5V
Standard Weight	1.05g
Terminal (–) Negative	Cu/Fe/Ni clad
Terminal (+) Positive	SUS + Ni plate
Diameter	Ø11.6 mm
Overall Height	3.05 mm

Common Uses of LR1130 Batteries

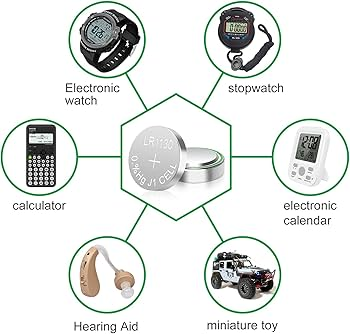

Figure 2. LR1130 Applications

The LR1130 battery is widely used in small electronic devices that operate with low current demand. It is commonly found in calculators, where it supports continuous display functions and basic processing without frequent replacement.

Many digital thermometers use this battery to power internal measurement circuits and display components, since energy is required only during short reading intervals. Car key fobs also rely on button cell batteries like the LR1130 to supply power for signal transmission and small indicator lights, remaining inactive for long periods and drawing minimal current except when a button is pressed.

In addition, the battery is used in small toys and novelty items, especially those with LED lighting or simple sound modules, where compact size is necessary for enclosed designs. Laser pointers represent another typical application, as they require short bursts of energy during brief periods of use. Certain basic medical devices, including small diagnostic instruments, may also incorporate LR1130 batteries when their electrical demand is limited.

Across these applications, the battery supports reliable operation in equipment designed for low-power consumption and compact construction.

LR1130 Battery Equivalents

LR1130	Alkaline
AG10	Alkaline
LR54	Alkaline
189	Alkaline
L1131	Alkaline
389	Silver Oxide
390	Silver Oxide
SR1130 / SR1130W	Silver Oxide

LR1130 vs SR1130 Battery Differences

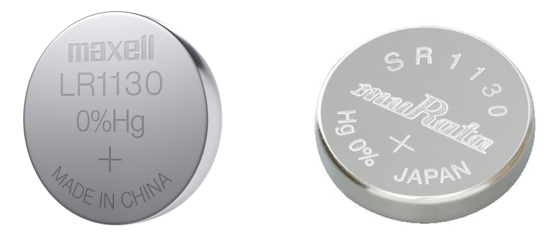

Figure 3. LR1130 vs SR1130 Battery Comparison

The LR1130 and SR1130 batteries are the same size, but they differ in internal chemistry and overall performance. The LR1130 uses alkaline chemistry, while the SR1130 is made with silver oxide, and this difference affects how each battery delivers power over time.

The LR1130 provides a nominal voltage of 1.5 volts, with output gradually decreasing as it discharges. The SR1130 typically delivers 1.55 volts and maintains a more stable voltage throughout most of its service life, which can support more consistent operation in devices that are sensitive to small voltage changes.

Silver oxide SR1130 batteries generally offer higher capacity, which often results in a longer usable lifespan under similar conditions. They are usually more expensive than alkaline versions, reflecting differences in materials and performance. In applications where stable voltage and longer service life are important, the SR1130 may be more appropriate, while the LR1130 remains a practical and lower-cost option for less demanding devices.

LR1130 Battery Life and Performance

Figure 4. LR1130 Battery Life and Performance

The lifespan of an LR1130 battery depends mainly on how much current the device draws and how often it is used. In devices that are activated only occasionally, such as a car key fob, the battery may last six months to one year or longer, since power is consumed only during short operating intervals. Low standby demand helps preserve stored energy over extended periods.

In devices that operate more frequently or remain powered for longer durations, the battery discharges at a faster rate. Continuous use or repeated daily operation increases energy demand, which shortens the time before replacement becomes necessary. Actual service life varies according to the device’s current requirements and total operating hours.

Environmental conditions also affect performance. Higher temperatures can accelerate internal chemical reactions, reducing overall lifespan, while low temperatures may temporarily lower available capacity and reduce output efficiency during use.

Storage conditions further influence long-term reliability. When kept in a cool, dry environment, the battery retains most of its charge for several years. Exposure to heat or moisture during storage can increase self-discharge and reduce usable life once installed.

How to Choose the Right LR1130 Replacement

Choosing the correct LR1130 replacement battery begins with confirming the exact size specified for the device. Although many button cells look similar, even small differences in diameter or thickness can prevent proper installation or reliable contact. The device manual or the marking inside the battery compartment typically indicates the required model number.

Battery chemistry should also be verified. Some devices are designed specifically for alkaline batteries such as the LR1130, while others may allow or recommend a silver oxide equivalent. Selecting the correct chemistry helps maintain proper performance and expected service life.

The nominal voltage must match the device requirement, which for LR1130 batteries is generally 1.5 volts. It is also important to check the expiration date printed on the packaging, since batteries lose capacity over time even when unused.

Conclusion

The LR1130 battery is a compact alkaline button cell designed for small electronic devices. You’ve seen how its size, voltage, and chemistry define where it can be used and how it performs. Understanding the differences between LR1130 and SR1130 helps you choose the right option based on voltage stability and lifespan. You also learned how usage habits, temperature, and storage affect battery life. By checking size, chemistry, and expiration date before purchase, you can make sure your device runs reliably and efficiently.
