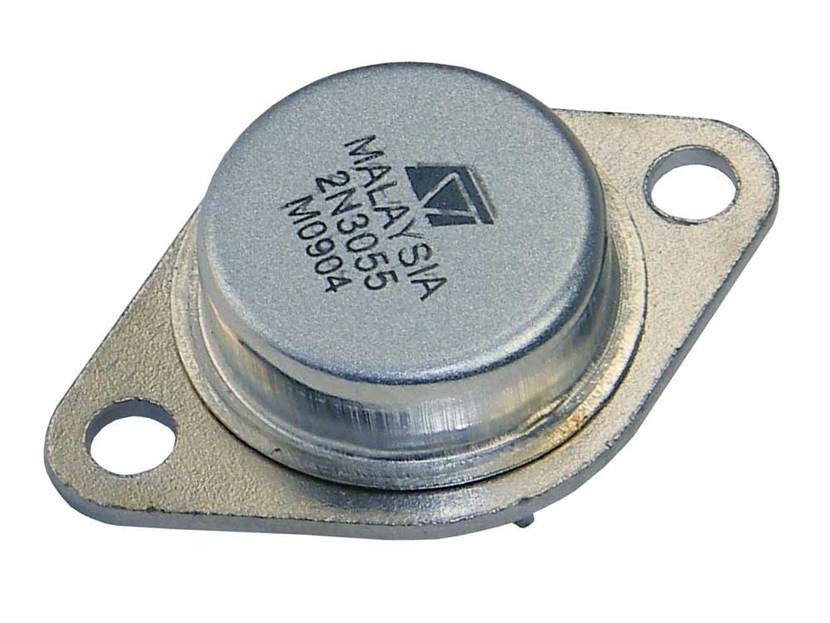

A Complete Guide to the 2N3055 Transistor

The 2N3055 is a reliable power transistor designed for high-power tasks like switching and amplification. Its sturdy TO-3 metal package and ability to handle large currents make it a dependable choice for various applications. Whether you need it for audio amplifiers, motor controllers, or power supplies, this transistor offers consistent performance in demanding conditions.

Catalog

Introduction to 2N3055 Transistor

The 2N3055 is a highly adaptable NPN power transistor designed for switching and amplification tasks. Built using an epitaxial base process, it is housed in a sturdy, hermetically sealed metal casing that provides durability and reliable performance. This transistor is well-suited for handling medium power loads, making it a practical choice for various applications.

One of the key advantages of the 2N3055 is its effectiveness in audio power amplifiers. Its nearly linear gain allows for consistent and high-quality amplification, making it a preferred option for projects requiring robust audio output. Whether you are using it for general-purpose switching or in circuits that demand reliable power management, this transistor’s design ensures efficiency and dependability.

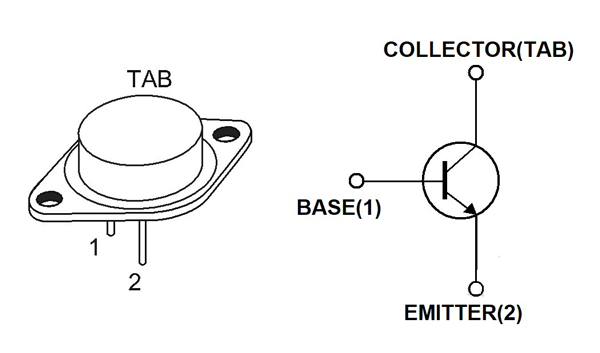

Pin Details and Configuration of 2N3055

The 2N3055 transistor is designed with a TO-3 package, a sturdy and efficient design that supports high-power applications. This package not only ensures reliable performance but also makes the transistor suitable for environments where robust thermal and mechanical properties are required.

Pin Number	Pin Name	Description
1	Base	Control Terminal: Controls the transistor's operation.
2	Emitter	Ground Terminal: Returns current to the ground.
3	Collector	Output Terminal: Main current-carrying terminal.

Functions of Each Pin

• Base: This is the control pin of the transistor. By applying a small current to the base, you can regulate a larger current flow between the collector and emitter, allowing the transistor to function as a switch or amplifier.

• Collector: Acting as the main current-carrying pin, the collector connects to the load in your circuit and manages the flow of the controlled current.

• Emitter: This pin serves as the ground terminal, directing the current back to the circuit's ground, completing the flow of electricity.

Specifications and Features of 2N3055 Transistor

Parameter	Value
Transistor Type	NPN
Collector-Emitter Voltage (Vce)	60V
Collector-Base Voltage (Vcb)	100V
Emitter-Base Voltage (Veb)	7V
Collector Current (Ic)	15A
Power Dissipation (Ptot)	115W
Current Gain (hFE)	20 to 70
Operating Temperature Range	-65°C to 200°C
Package	TO-3

Features

• High Power Handling

The 2N3055 can handle up to 115W of power, making it a reliable choice for applications that require managing substantial power loads. This feature ensures the transistor can perform efficiently in circuits demanding high power, such as amplifiers or motor controllers.

• Robust Design

The metal can package of the 2N3055 is designed to provide excellent thermal performance. This design helps dissipate heat effectively, ensuring stable operation even under heavy usage or in high-power setups.

• Wide Availability

You will find the 2N3055 readily available from many manufacturers. Its widespread availability makes it a convenient option, whether you are working on a small project or a larger design that requires multiple components.

• Versatile Usage

The versatility of the 2N3055 allows it to fit into a wide range of high-power applications. Whether you are building a power amplifier, a switching circuit, or a power supply, this transistor adapts seamlessly to various uses, giving you flexibility in your designs.

Equivalents of 2N3055 Transistor

Equivalent Part	Manufacturer	Description
2N3055	Hi-Tron Semiconductor Corp	Power Bipolar Transistor, 15A IC, 60V V(BR)CEO, NPN, Silicon, TO-3, Metal, 2 Pin
2N3055A	Motorola Semiconductor Products	Power Bipolar Transistor, 15A IC, 60V V(BR)CEO, NPN, Silicon, TO-204AA, Metal, 2 Pin
2N3055AG	Rochester Electronics LLC	15A, 60V, NPN, Silicon, Power Transistor, TO-204AA, RoHS Compliant, Metal, 2 Pin
JANTXV2N3055	Cobham Semiconductor Solutions	Power Bipolar Transistor, 15A IC, 70V V(BR)CEO, NPN, Silicon, TO-3, Metal, 2 Pin
JANTX2N3055	Microsemi Corporation	Power Bipolar Transistor, 15A IC, 70V V(BR)CEO, NPN, Silicon, TO-3, Metal, 2 Pin
2N3055CECC	TT Electronics Power and Hybrid / Semelab Ltd	15A, 60V, NPN, Silicon, Power Transistor, TO-3, Metal, 2 Pin
BDX10R1	TT Electronics Power and Hybrid / Semelab Ltd	15A, 60V, NPN, Silicon, Power Transistor, TO-204AA, Hermetic Sealed, Metal, 2 Pin
BDX10	TT Electronics Resistors	Power Bipolar Transistor, 15A IC, 60V V(BR)CEO, NPN, Silicon, TO-204AA, Hermetic Sealed, 2 Pin
2N3055R1	TT Electronics Power and Hybrid / Semelab Ltd	15A, 60V, NPN, Silicon, Power Transistor, TO-204AA, Hermetic Sealed, Metal, 2 Pin
JAN2N3055	API Technologies Corp	Power Bipolar Transistor, 15A IC, 70V V(BR)CEO, NPN, Silicon, TO-3, Metal, 2 Pin

Guidelines to Use 2N3055 Transistor Effectively

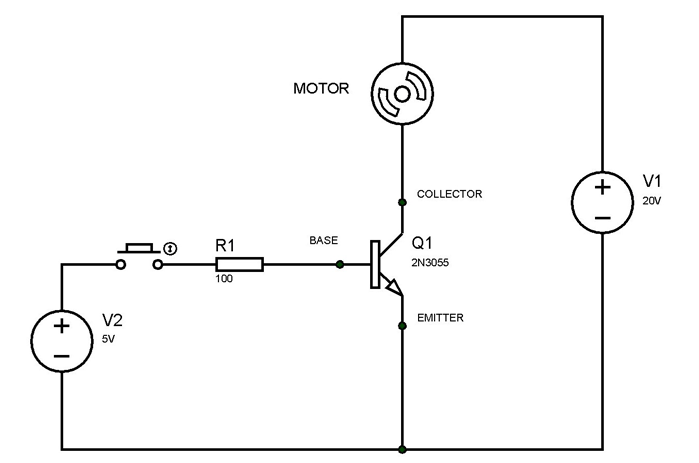

The 2N3055 transistor is a versatile component that works well in a variety of NPN transistor applications. To understand how it functions, consider an example where it is used as a simple switching device in a common emitter configuration to operate a motor.

In this setup, the motor acts as the load, and a 5V power source connects to a push button, which provides the signal to activate the transistor. For the circuit to work properly, the trigger and power sources need to share a common ground. A 100Ω resistor is also included to manage the current flowing through the transistor's base.

When the push button is not pressed, no current flows into the base of the transistor, keeping it in an open circuit state. This means the full supply voltage is across the transistor, and the motor remains off.

Pressing the push button sends a voltage signal to the base, completing the circuit between the base and emitter. This action allows current to flow through the transistor, which activates it. Once activated, the transistor behaves like a closed circuit, enabling current to flow from the collector to the emitter. As a result, the motor begins to run and will continue to operate as long as there is current at the base.

Releasing the button stops the base current, deactivating the transistor. The transistor then transitions to a high-resistance state, halting the current flow through the collector and stopping the motor.

This simple example highlights how the 2N3055 can be used effectively as a switching device. Its straightforward operation makes it easy to integrate into a variety of circuits that require reliable switching capabilities.

Real-World Applications of 2N3055 Transistor

Power Amplifiers

The 2N3055 is widely used in power amplifiers because of its ability to handle high current and power. You can rely on it for audio amplifiers, where clear and consistent amplification is needed. Its nearly linear gain ensures a smooth output, making it suitable for high-performance audio systems and even RF amplifiers.

Switching Circuits

In switching circuits, the 2N3055 functions as an effective switch for managing high-power loads. Whether you need to control a motor, lamp, or heater, this transistor can efficiently handle the task. It allows you to build circuits that switch heavy loads with ease and reliability.

Power Supplies

The 2N3055 plays an essential role in power supply circuits, including both linear and switching types. Its ability to regulate and control high voltage and current levels makes it ideal for maintaining stable output in devices that demand consistent power delivery.

Motor Controllers

If you're working on motor control applications, the 2N3055 can drive and regulate DC motors effectively. Its performance ensures smooth operation and reliable control, whether you're building motor controllers for industrial purposes or personal projects. Its robust handling of current makes it a dependable choice for motor-driven systems.

Package Details of 2N3055 Transistor

The 2N3055 comes in a TO-3 metal can package, a design known for its durability and reliable thermal performance. This package allows the transistor to handle high-power applications without overheating, as it efficiently dissipates heat generated during operation. The sturdy metal casing ensures the component can withstand demanding environments, providing a dependable option for projects requiring robust performance. Additionally, the TO-3 package makes it easy to mount the transistor securely, which simplifies integration into your designs while ensuring stable operation.

Leading Manufacturers of 2N3055 Transistor

The 2N3055 transistor is produced by several well-known semiconductor companies, including ON Semiconductor, STMicroelectronics, and Fairchild Semiconductor. These manufacturers have built a reputation for creating reliable and high-quality electronic components. Choosing a 2N3055 transistor from these companies gives you confidence in its performance and dependability. Whether you're working on a small project or a more demanding application, these manufacturers ensure consistent quality that you can trust for your designs.

Comparison Between 2N3055 and MJ2955 Transistors

Specifications of 2N3055

The 2N3055 is an NPN transistor designed to handle high power. It operates with a maximum collector-emitter voltage (Vce) of 60V, a collector current (Ic) of 15A, and a power dissipation capacity (Ptot) of 115W. These specifications make it suitable for circuits requiring reliable switching and amplification capabilities.

Specifications of MJ2955

The MJ2955, as a PNP transistor, mirrors the specifications of the 2N3055 with a 60V Vce, 15A Ic, and 115W Ptot. However, its PNP polarity allows it to function in circuits where a negative base voltage is required, complementing the operation of NPN transistors.

Differences in Polarity and Functionality

The primary difference between the 2N3055 and MJ2955 lies in their polarities. The 2N3055 is an NPN transistor, which conducts when a positive voltage is applied to its base. The MJ2955, being a PNP transistor, conducts under a negative base voltage. This complementary nature allows them to work together efficiently in applications like push-pull amplifiers, where one transistor conducts while the other is off, ensuring balanced operation.

Applications Requiring Complementary Transistors

In applications that demand complementary transistors, such as audio amplifiers, the 2N3055 and MJ2955 pair is ideal. The 2N3055 handles positive voltage requirements, while the MJ2955 manages negative voltages. Together, they provide smooth and efficient operation in circuits that require both NPN and PNP components. Their balanced performance ensures reliable output in power amplifiers and other similar systems.

Conclusion

The 2N3055 transistor is a versatile and dependable choice for high-power applications. Whether you're working on power amplifiers, switching circuits, or power supplies, it offers reliable performance that meets your needs. Its ability to handle high power, along with the durability of its TO-3 metal package, makes it a trusted option for a wide range of projects.

You can use the 2N3055 in audio amplifiers, motor controllers, and various power supply designs with confidence. Its sturdy design and consistent operation ensure it performs well even in demanding environments, making it a reliable component for your circuits.
