AA vs AAA Batteries: What’s the Difference and Which One Should You Use?

AA and AAA batteries are two of the most common power sources used in everyday electronic devices. Although they look similar and often share the same voltage, they differ in size, capacity, and performance. Understanding these differences helps you see why certain devices use one battery type instead of the other. This article explains the key characteristics of AA and AAA batteries, including their size, specifications, performance, applications, advantages, limitations, and equivalent battery names.

Catalog

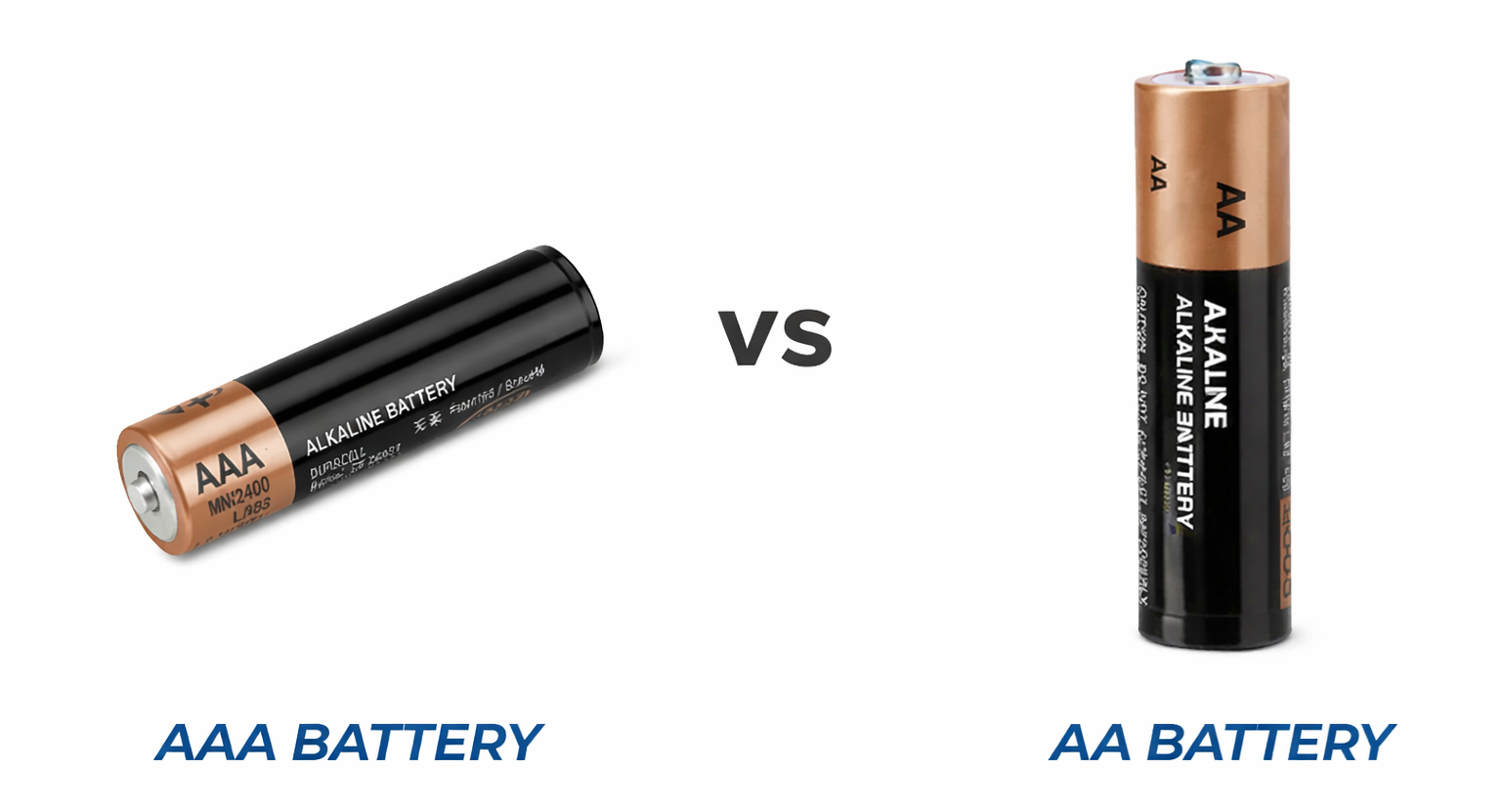

Figure 1. AA Battery vs AAA Battery

What is an AA Battery?

An AA battery is a standard cylindrical battery widely used as a portable power source in homes, offices, and consumer electronics. It usually has a nominal voltage of 1.5 volts in common chemistries such as alkaline and zinc-carbon, while rechargeable AA versions often have a nominal voltage of 1.2 volts. Its familiar shape follows an internationally recognized form factor, which makes it easy to replace and use in many products. Because of this standard design, the AA battery remains one of the most common battery types in the world. It is known mainly as a reliable general-purpose battery for everyday power needs.

What is an AAA Battery?

An AAA battery is a standard cylindrical battery designed for compact electronic products that need a small and convenient power source. It typically has a nominal voltage of 1.5 volts in primary versions such as alkaline batteries, while rechargeable AAA batteries usually provide 1.2 volts. Its slim and lightweight form makes it suitable for devices built with limited battery space. The AAA battery is also part of an internationally standardized battery format, so it is easy to find and replace. Because of its compact design, it is a common choice for many small portable electronics.

Size Comparison of AA vs AAA Batteries

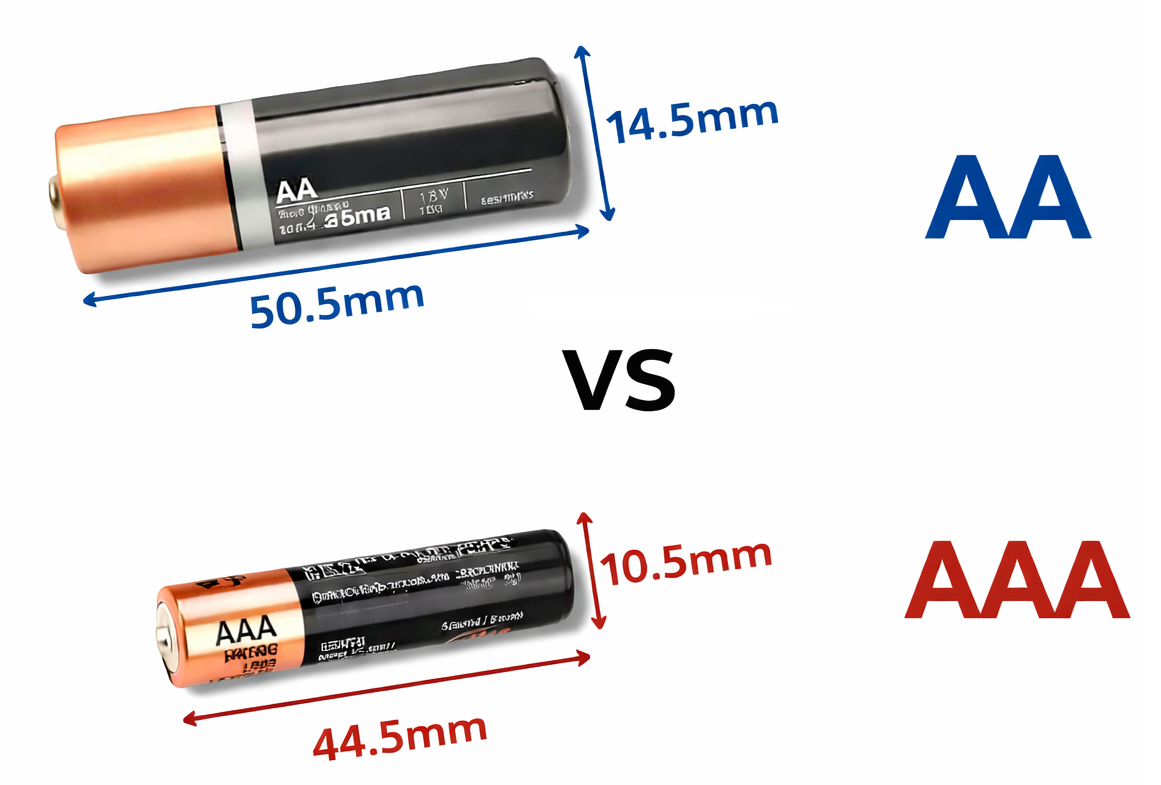

Figure 2. Physical Dimensions of AA and AAA Batteries

As shown in Figure 2, an AA battery has a larger cylindrical body with a standard length of about 50.5 mm and a diameter of about 14.5 mm. Its thicker and longer shape gives it a more substantial physical presence. The figure clearly shows that the AA format occupies more space inside a battery compartment. This larger body is one of the easiest ways to visually identify an AA battery. In simple terms, the AA battery is the bigger of the two standard cylindrical battery sizes shown.

An AAA battery, has a smaller cylindrical body with a standard length of about 44.5 mm and a diameter of about 10.5 mm. Its narrower and shorter shape makes it noticeably slimmer than the AA format. The figure highlights how the AAA battery takes up less physical space in both length and width. This compact size makes it easy to recognize in products designed for smaller battery compartments. In simple visual terms, the AAA battery is the more compact standard cylindrical size.

Specifications Comparison of AA vs AAA Batteries

Specifications	AA Battery	AAA Battery
Standard designation	AA	AAA
IEC designation	R6 / LR6 / HR6	R03 / LR03 / HR03
ANSI designation	15A / 15D / 15DC	24A / 24D / 24DC
Typical shape	Cylindrical	Cylindrical
Standard length	50.5 mm	44.5 mm
Standard diameter	14.5 mm	10.5 mm
Typical alkaline nominal voltage	1.5 V	1.5 V
Typical NiMH nominal voltage	1.2 V	1.2 V
Typical alkaline capacity	1800-3000 mAh	800-1200 mAh
Typical NiMH capacity	1300-2800 mAh	600-1200 mAh
Typical weight (alkaline)	23-24 g	11-12 g
Typical weight (NiMH)	26-31 g	12-15 g
Terminal type	Button top and flat base	Button top and flat base
Common primary chemistries	Alkaline, zinc-carbon, lithium	Alkaline, zinc-carbon, lithium
Common rechargeable chemistry	NiMH	NiMH

Performance Comparison of AA vs AAA Batteries

AA and AAA batteries may share similar voltage levels, but their performance is not the same. The table below focuses on how they behave during actual use rather than on size or basic technical dimensions.

Performance	AA Battery	AAA Battery
Runtime in continuous use	~4–10 hours in moderate-drain devices	~2–6 hours in moderate-drain devices
Energy reserve	~2.7–4.5 Wh energy capacity	~1.2–1.8 Wh energy capacity
Current delivery	Typical continuous current: ~500–1000 mA	Typical continuous current: ~200–500 mA
Voltage stability under load	Voltage drop ~0.05–0.15 V under 500 mA load	Voltage drop ~0.10–0.25 V under 300 mA load
Suitability for long sessions	Continuous operation ~6–12 hours in many devices	Continuous operation ~3–7 hours in many devices
Performance in power-hungry devices	Can support loads up to ~1 A for short periods	Typically limited to ~0.5 A loads
Performance in light-drain devices	~150–300 hours in low-drain devices	~80–200 hours in low-drain devices
Frequency of replacement	~1 replacement per 2–4 weeks (typical daily use devices)	~1 replacement per 1–3 weeks (typical daily use devices)
Heat buildup under load	Temperature rise ~3–8°C at 700 mA load	Temperature rise ~4–10°C at 400 mA load
Overall endurance	Typical discharge cycle ~2000–3000 mAh capacity	Typical discharge cycle ~800–1200 mAh capacity
Best fit by power demand	Devices requiring ~0.3–1 A current	Devices requiring ~0.1–0.5 A current

Applications of AA vs AAA Batteries

Applications of AA Batteries

AA batteries are commonly selected for products that need a dependable source of portable power for longer use. They are often used where the device has enough internal space for a larger battery compartment.

• Remote-controlled toys

Many battery-powered toys use AA batteries because they often need steady energy for motors, lights, and sound features. These toys may run for long play sessions, so a battery with more stored energy is helpful. AA batteries also fit well in toy designs that have larger battery compartments. This makes them a practical choice for many children's electronic products.

• Flashlights and portable lamps

AA batteries are often used in flashlights because these devices need reliable power for strong and steady light output. A larger battery size helps support longer operating time, especially during frequent or emergency use. Many portable lamps and camping lights are also designed around the AA format. This battery type is easy to find, which adds convenience for replacement.

• Wireless computer accessories

Some wireless keyboards, mice, and similar accessories use AA batteries to support longer operation between battery changes. These devices benefit from a battery that can maintain stable power during repeated daily use. The AA format is also common in office and home environments because it is widely available. As a result, you can easily find replacements when needed. This helps reduce interruptions caused by battery replacement.

• Portable audio devices

Certain radios, recorders, and small speakers use AA batteries when they need a stable portable power source for extended use. These devices may stay on for long periods, especially during travel or outdoor activity. A battery with greater energy storage helps maintain operation without frequent replacement. That makes AA batteries a practical option for many portable audio products.

• Digital cameras and camera accessories

Some cameras and camera accessories are built for AA batteries because they benefit from a battery format that supports repeated operation. Photography devices often cycle through power for screens, sensors, or flash-related functions. In such products, a larger standard battery can provide a more dependable portable power supply. AA batteries are also easy to replace when traveling.

• Handheld game controllers

Many game controllers use AA batteries because they need reliable power over many hours of play. These devices are held by hand, but they still have enough room to fit larger battery compartments. The battery format supports continuous everyday use without requiring constant replacement. This makes AA batteries common in both home gaming and accessory controllers.

• Household test instruments

Basic meters, thermometers, and other handheld tools often use AA batteries as a stable everyday power source. These products are used repeatedly but may not always be recharged after each session. AA batteries help keep them ready for regular household or light professional use. Their easy availability also supports quick replacement when needed.

Applications of AAA Batteries

AAA batteries are usually chosen for products that need a compact and lightweight power source. They are especially common in devices where saving space and reducing bulk are important.

• TV and media remote controls

Remote controls often use AAA batteries because these devices are slim, lightweight, and designed to fit comfortably in the hand. Their power needs are usually modest, so a compact battery format works well. The smaller size also helps create narrow and easy-to-hold designs. This is one of the most common uses of AAA batteries in everyday life.

• Small wireless accessories

Compact keyboards, presentation clickers, and small computer accessories often use AAA batteries to keep the device light and portable. These products are usually designed for convenience and easy handling. A smaller battery helps reduce total weight without making the device bulky. As a result, AAA batteries fit well in many lightweight digital accessories.

• Wall clocks and small timers

Many clocks and timers use AAA batteries because their internal mechanisms need only a small amount of power over time. A compact battery fits neatly inside a thin or decorative housing. This helps product keep the unit small and attractive. AAA batteries are therefore common in many simple timekeeping devices.

• Mini flashlights

Small flashlights often use AAA batteries because the device itself is built for easy carrying in a pocket, bag, or drawer. The slim battery shape supports a narrow flashlight body. This makes the product lighter and more portable for daily use. AAA batteries are a good match for simple compact lighting tools.

• Personal care devices

Electric toothbrushes, beard trimmers, and similar grooming tools may use AAA batteries in compact models. These products are usually designed to be easy to hold and store. A smaller battery helps maintain a narrow handle and portable form. That makes AAA batteries suitable for many basic personal care products.

• Portable thermometers and small sensors

Small electronic measurement devices often use AAA batteries because they need a compact power source that fits into a slim enclosure. These products are made for portability and quick handling. Using a smaller battery helps keep the overall product light and simple. AAA batteries are therefore common in many small household instruments.

• LED decorative lights and compact gadgets

Small decorative electronics and mini gadgets often use AAA batteries because the battery compartment must fit inside a limited space. These products usually focus on portability, appearance, and small size. The compact battery format helps build neat and lightweight products. AAA batteries are a practical option for these small everyday devices.

Advantages and Limitations of AA vs AAA Batteries

AA and AAA batteries each offer useful benefits, but each also comes with trade-offs. In general, AA batteries are often favored when longer battery life is important, while AAA batteries are often preferred when compact size and lower weight matter more.

Advantages and Limitations of AA Batteries

Advantages	Limitations
Higher energy capacity in a standard cell	Larger physical size
Longer use between replacements	Heavier to carry
Better suited to higher power demand	Needs more battery compartment space
Often fewer battery changes over time	Less suitable for very slim devices
Widely available in many chemistries	Can add more overall device weight
Good balance of standard size and stored energy	Bulkier for pocket-sized products

Advantages and Limitations of AAA Batteries

Advantages	Limitations
Smaller and lighter format	Lower energy capacity
Easy to fit into compact products	Shorter operating time in many cases
Better for slim and portable designs	More frequent replacement may be needed
Reduces total device weight	Less suitable for heavier power demand
Common and easy to purchase	Lower overall energy reserve
Useful where space is limited	Can be less convenient for long continuous use

Battery Equivalents for AA and AAA Batteries

AA and AAA batteries may appear under different standardized names depending on international battery naming systems such as IEC and ANSI.

• R6

R6 is the IEC designation for a zinc-carbon AA battery. It follows the International Electrotechnical Commission (IEC) naming system used in many technical documents and battery datasheets. The letter “R” indicates a round cylindrical battery, while the number 6 identifies the standard AA size. This battery is therefore equivalent to an AA battery in terms of dimensions and terminal configuration. Even though the chemistry is zinc-carbon, it fits any device designed for a standard AA battery.

• ANSI 24

ANSI 24 is the American National Standards Institute designation for AAA batteries. In the ANSI battery classification system, the number 24 corresponds specifically to the AAA battery size. This code identifies the same physical battery dimensions used by AAA batteries across different chemistries. Because of this standardization, ANSI 24 batteries are equivalent to AAA batteries in form factor and compatibility. Technical documents sometimes reference ANSI 24 to confirm that the battery matches the AAA size standard.

• LR6

LR6 is the IEC code for an alkaline AA battery. In this naming system, the letter “L” indicates alkaline chemistry, while R6 still represents the standard AA cylindrical size. Because the physical size and voltage category match the AA format, LR6 batteries are considered direct equivalents of AA batteries. Many use LR6 in technical labeling and packaging specifications.

• FR03

FR03 is the IEC designation for a lithium AAA battery. The letter “F” indicates lithium battery chemistry, while R03 identifies the AAA cylindrical battery size. Because the physical structure follows the AAA battery standard, FR03 batteries are lithium equivalents of AAA batteries. They typically offer longer shelf life and stable performance under varying conditions. Despite the chemistry difference, FR03 batteries fit devices designed for AAA batteries.

• HR6

HR6 refers to a rechargeable AA battery, usually based on nickel-metal hydride (NiMH) chemistry. In IEC naming, the letter “H” indicates rechargeable NiMH chemistry, while R6 again identifies the AA cylindrical size. This means HR6 batteries are rechargeable equivalents of AA batteries that fit the same battery compartments. Even though the chemistry and recharge capability differ, the size and terminal layout remain identical. As a result, HR6 batteries can replace standard AA batteries in many compatible devices.

• R03

R03 is the IEC designation for a zinc-carbon AAA battery. In the IEC naming system, “R” identifies a cylindrical battery, while 03 indicates the smaller AAA battery size. Because the physical structure matches the AAA standard format, R03 batteries are equivalent to AAA batteries in size and terminal arrangement. They are typically used as basic primary batteries with zinc-carbon chemistry. Despite differences in chemistry, any device designed for AAA batteries can accept an R03 battery.

• FR6

FR6 is the IEC designation for a lithium AA battery. The letter “F” indicates lithium-based chemistry, while R6 confirms the standard AA cylindrical form factor. Because the physical dimensions follow the AA battery specification, FR6 batteries are considered lithium equivalents of AA batteries. They are often used where longer shelf life or wider temperature tolerance is required. Despite the chemistry difference, FR6 batteries are interchangeable with standard AA batteries in devices designed for the AA size.

• LR03

LR03 is the IEC code for an alkaline AAA battery. The letter “L” represents alkaline chemistry, while R03 specifies the AAA cylindrical size. Since the physical format matches the AAA battery standard, LR03 batteries are direct equivalents of AAA batteries. This designation is commonly found in technical manuals, datasheets, and battery packaging. In everyday retail packaging, the battery may simply be labeled AAA alkaline, but LR03 confirms its official IEC classification.

• ANSI 15

ANSI 15 is the American National Standards Institute designation for AA batteries. This naming system is commonly used in North American technical references and battery standards. The number 15 corresponds specifically to the AA battery size category regardless of chemistry. Because of this classification, ANSI 15 batteries are equivalent to standard AA batteries in both dimensions and electrical format.

• HR03

HR03 refers to a rechargeable AAA battery, most commonly using nickel-metal hydride (NiMH) chemistry. In IEC terminology, the letter “H” indicates rechargeable NiMH chemistry, while R03 defines the AAA cylindrical battery size. Because the dimensions and terminals match the AAA standard, HR03 batteries are rechargeable equivalents of AAA batteries. These batteries can often replace disposable AAA batteries in compatible devices. The key point is that the battery size remains AAA even though the chemistry allows recharging.

How to Choose Between AA and AAA Batteries

Choosing between AA and AAA batteries becomes easier when you focus on the device design and its power needs. The best choice is usually the one that matches the product’s battery compartment, operating demand, and expected battery life.

Check the device label or battery compartment first

Start by reading the battery marking printed on the device, cover, or user manual. Most products clearly state whether they need AA or AAA batteries. This is the most important step because battery size must match the compartment exactly. Even when both types look similar, they are not interchangeable. Always follow the required battery size before considering any other factor.

Match the battery to the device’s power demand

After confirming the required size, think about how much power the device uses during operation. Products with longer running time or stronger power draw generally benefit more from battery formats with greater energy storage. Smaller, lighter devices often work well with the battery size already chosen by the manufacturer. The goal is not to force a different battery type, but to understand why that type is specified. This helps you make better replacement choices within the correct size category.

Consider how long you want the battery to last

Battery life matters when a device is used often or for long periods. If the product uses AA batteries, it usually requires fewer battery changes over time. If it uses AAA batteries, replacement may happen more often depending on usage. Considering the expected operating time helps you choose the right battery chemistry and brand within the correct size. This step is especially useful for devices used every day.

Think about size and portability needs

Some products are designed to stay small, light, and easy to carry, which is why they use AAA batteries. Other products have enough room for AA batteries and prioritize longer use between replacements. Understanding this design purpose helps you choose batteries that suit the product’s intended function. Compact devices usually value lighter battery weight and smaller housing. Larger handheld or stationary products may place more value on longer service life.

Choose the right battery chemistry for the job

Once the size is confirmed, select the chemistry that best fits how you will use the device. Alkaline batteries are common for everyday use, lithium batteries are useful for long shelf life and some demanding conditions, and NiMH batteries are a practical rechargeable option. The correct chemistry can improve convenience and cost-effectiveness over time. Always make sure the chosen chemistry is suitable for the device.

Decide between disposable and rechargeable batteries

If the device is used frequently, rechargeable batteries can reduce long-term replacement costs. If the device is used only occasionally, disposable batteries may be more convenient because they are easy to store and use when needed. This decision should be based on how often the product operates in life. A high-use device often benefits from rechargeability, while an occasional-use product may not. Choosing this wisely helps improve both cost and convenience.

Use quality batteries from trusted brands

Battery quality can affect consistency, storage life, and overall reliability. Well-made batteries are more likely to deliver stable performance and safer operation when used properly. Trusted brands also tend to provide clearer labeling for chemistry, capacity, and usage guidance. This makes replacement easier and reduces the risk of buying the wrong product. Choosing a reliable battery brand is a simple step that can improve everyday results.

Avoid mixing battery types or old and new cells

Always use the same size, chemistry, and brand together in one device whenever possible. Mixing batteries can lead to uneven discharge and less reliable operation. It can also increase the chance of leakage or reduced battery life. Replacing all cells at the same time is a safer and more consistent practice. This step helps your device work more smoothly and protects the battery compartment over time.

Conclusion

AA and AAA batteries both provide portable power, but they serve different needs. AA batteries are larger and usually last longer, which makes them suitable for devices that need more power or longer use. AAA batteries are smaller and lighter, making them better for compact and lightweight devices. Understanding these differences helps you choose the right battery for reliable and efficient device operation.
