Active and Passive Infrared Sensors

Infrared sensors are parts of many devices we use every day, and we might not even notice. You can find these sensors in things like your TV remote or detailed security systems. They work using a type of light called infrared. By learning about active and passive infrared sensors, we can get a better idea of how our favorite gadgets operate and appreciate their role in technology and safety.

Catalog

Figure 1: Active And Passive Infrared Sensors

Infrared Sensors in Everyday Use

Infrared (IR) sensors are often used in many everyday things, even if you don't notice them. For example, when you change the TV channel with a remote control, it uses an IR sensor. In the same way, security systems that detect movement use IR light. IR sensors are also widely used in automated garage doors.

In a typical IR sensor setup, there is a part that sends out invisible infrared light towards a receiver placed a certain distance away. The receiver detects this light. If something blocks the light, the receiver does not pick up the signal, which makes the sensor indicate that something is in the way.

The main parts of an IR sensor include the emitter (usually an infrared LED), the receiver (typically a photodiode or phototransistor), and the needed circuits to process the signal. The emitter produces the infrared light, which travels in a straight line. The receiver detects the light and turns it into an electrical signal. If something blocks the path between the emitter and receiver, the signal is lost, and the sensor responds accordingly.

This technology is used in many practical ways. For example, in an automated garage door system, the IR sensor helps prevent the door from closing if something is in its way. This keeps people and things safe by stopping the door from causing harm or damage.

IR sensors are also used in security systems to detect motion. When someone moves within the sensor's range, their presence interrupts the infrared light beam, triggering an alarm or alert. This is widely used in both home and business security systems.

Active Infrared Sensors

Figure 2: Active Infrared Sensor

How Do Active IR Sensors Work?

Active infrared (IR) sensors use two main parts: an emitter and a receiver. The emitter makes a beam of infrared light and points it at the receiver. The receiver is placed so it faces the emitter directly, allowing it to always see the IR beam.

Here's how it works:

• The emitter creates and sends out an IR light beam. This beam travels in a straight line to the receiver;

• The receiver is lined up with the emitter, so normally it sees the IR light beam all the time;

• When something gets in the way of the IR beam, it blocks the light from reaching the receiver;

• The receiver notices that the IR beam is gone. This means that something is blocking the IR light.

This simple way of detecting if the IR beam is there or not makes active IR sensors dependable for many uses. They are used in things like automatic door openers, systems that detect obstacles, and some security systems.

Figure 3: Variations And Uses Of Active Infrared Sensors

A different way to use the standard active infrared (IR) sensor involves having both the emitter and receiver face the same direction. When something enters the detection area, the IR signal that is sent out is reflected back to the receiver. This lets the sensor know that something is there based on the reflected signal.

Another way uses a fixed reflector to bounce the sent signal back to the receiver. This setup makes the system easier because it removes the need for a remote electrical part at the detection point. This makes it simpler to install and take care of.

Active IR sensors are commonly used in factories, especially for keeping track of objects on conveyor belts. These sensors help ensure smooth and efficient operation by detecting if items are there or not, allowing for precise control and automation of the production process.

Passive Infrared Sensors (PIR)

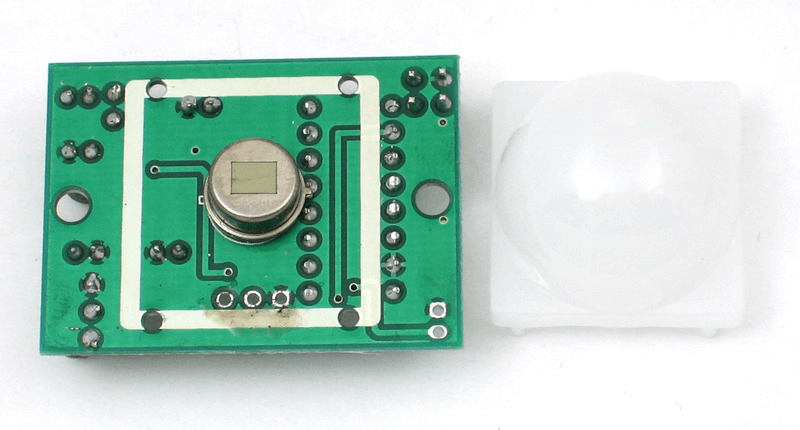

Figure 4: Passive Infrared Sensors (PIR)

What Does PIR Mean?

A Passive Infrared (PIR) sensor is a type of sensor that detects heat emitted from objects around it. It's known as "passive" because it doesn't emit any infrared light itself; instead, it only detects changes in the heat levels in its environment. This feature makes PIR sensors popular in security systems and automated lighting setups, where they help detect movement.

The main components of a PIR sensor include a pyroelectric sensor, which is sensitive to infrared light, and a Fresnel lens that concentrates this light onto the sensor. The sensor has two detection slots. Normally, both slots pick up the same amount of infrared radiation from their surroundings. However, when a warm object, such as a human, moves into the sensor's range, it disrupts this equilibrium. One slot then detects more radiation than the other. This difference is detected by the sensor's electronics, which then may trigger an alarm or activate a light.

PIR sensors are highly valued in security applications to detect unauthorized entry and in lighting systems to turn lights on automatically when someone enters a room and off when they leave, thereby saving energy. This makes them efficient and eco-friendly choices for managing energy usage in buildings.

How Do Passive IR Sensors Work?

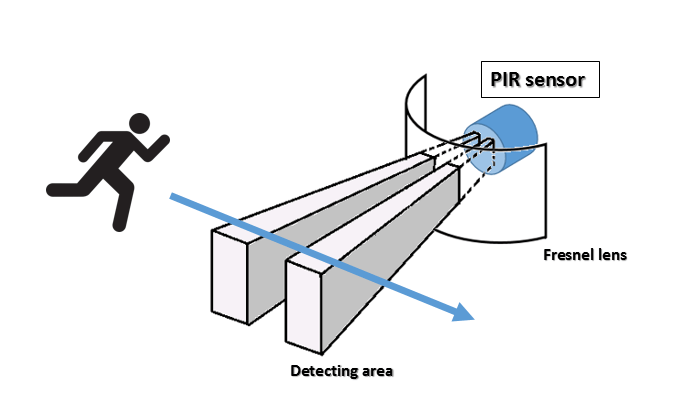

Figure 5: How Do Passive IR Sensors Work

Passive Infrared (PIR) sensors detect the heat given off by warm things like humans or animals.

Here's how it works:

•At the heart of the PIR sensor is a special part that senses heat from its surroundings. It's tuned to notice changes in heat caused by moving warm objects;

•The sensor is split into two parts, each sensitive to heat. Normally, both parts sense the same amount of heat, so no signal is generated;

•When a warm object like a person moves into the area the sensor watches, it changes the heat balance. One-part senses more heat than the other, creating a difference in voltage (a type of electrical signal);

•The sensor looks at this change in voltage. If the change is big enough compared to a set level, it means there's motion;

•After detecting motion, the sensor activates connected devices, such as lights or alarms. This can help in improving security or saving energy by turning on lights only when needed;

•The sensor uses a special lens to focus the heat signals onto it and to make its viewing area larger. This helps the sensor cover a wider area effectively.

These sensors are great for places where you need to detect movement without being obvious, like in home security systems or in buildings to help save energy.

Comparing Active and Passive IR Sensors

Table Comparison Between Active IR Sensors And Passive IR Sensors.

Active IR(Infrared) Sensor Passive IR(Infrared) Sensor

These sensors give off their own light. These sensors do not give off their own light.

They can directly measure the distance and speed of objects. They have trouble measuring distance and speed.

They work well during the day, at night, and with cold objects. They do not work well at night or with cold objects.

They can be easily found by enemy detection systems. They are not easily found by enemy detection systems.

They are small and lightweight sensors. They are small and lightweight sensors.

They are inexpensive. They are inexpensive.

Detection and measurement abilities are not as good as radars. Detection and measurement abilities are not as good as radars.

Active Infrared (AIR) Sensors

Active Infrared (AIR) sensors use an infrared LED to emit light, which is detected by a receiver. When an object breaks the beam, it triggers actions like opening doors, sounding alarms, or turning on lights. They are used in automatic door systems, security systems, and industrial settings. Their effectiveness depends on the alignment of components, light reflection, and environmental conditions.

Passive Infrared (PIR) Sensors

Passive Infrared (PIR) sensors detect heat emitted by objects and people. They don't send signals but detect changes in heat patterns, causing the sensor to trigger a connected device. PIR sensors use a pyroelectric sensor and lens to focus heat onto the sensor, allowing it to cover larger areas. They are commonly used in security systems and automatic lights due to their energy efficiency and sensitivity.

The main difference between the two is that AIR sensors emit and detect infrared beams, making them ideal for detecting specific obstructions. PIR sensors detect natural infrared radiation, making them suitable for broader motion detection. Choosing between them depends on whether you need to detect specific blockages or monitor wider areas for motion.

The Future of Infrared Sensors in Safety and Security

Infrared sensors are helpful for safety and security, offering flexible and accurate monitoring by detecting infrared light emitted as heat from objects. This makes them valuable in low-visibility areas.

There are two types of infrared sensors: active and passive. Active sensors emit their own infrared light, which bounces off objects and returns to the sensor, aiding in movement detection and distance measurement. This is useful in automated manufacturing and advanced security systems. Passive sensors, on the other hand, detect infrared light naturally emitted by warm objects like the human body, making them ideal for security cameras and motion detectors as they provide discreet surveillance.

The future of infrared sensors in safety and security looks promising. Advancements in technology will make these sensors more sensitive, smaller, and energy-efficient. This will lead to more applications, such as advanced surveillance systems that distinguish between different heat sources, better navigation for self-driving vehicles in various conditions, and improved fire detection systems that quickly locate heat sources.

As these advanced systems become more integrated into daily life, the role of infrared sensors in maintaining safety and security will grow. They will become more prevalent in both public and private spaces, enhancing our ability to protect property and lives, making environments safer and more secure.

Conclusion

Infrared sensors, both active and passive types, play a big part in modern safety and security setups. You find them in lots of common items and big industrial setups. Active sensors, which emit and detect infrared light, are really useful for tasks where you need to find specific blockages or obstacles. Passive sensors are more suited for monitoring larger areas for any movement, which makes them useful for keeping areas secure and saving energy. As technology advances, these sensors are likely to become more accurate, smaller, and more energy-efficient. This means they might be used in new ways, like in more complex security systems that can distinguish between different heat sources, better navigation for self-driving cars, and faster fire detection systems. As these technologies play a larger role in our lives, the role of infrared sensors in keeping us safe and secure will grow. They will become more common in both public and private spaces, helping us protect our properties and ensure people's safety in smarter and more effective ways.

Frequently Asked Questions [FAQ]

1. What is the construction of a passive infrared sensor?

A passive infrared sensor is made up of a sensor that detects heat, a lens that focuses the heat signals onto the sensor, and two sensitive areas that measure the amount of heat. It is usually placed inside a plastic case that protects it from outside heat sources except for those that come through the lens.

2. What is a passive infrared camera?

A passive infrared camera uses sensors to pick up heat from objects like people and animals in its view. These cameras are often used in security systems to take pictures or record videos based on the heat that comes from these objects, especially in places that are not well-lit.

3. Why is it called a passive infrared sensor?

It's called a passive infrared sensor because it only picks up natural heat coming from objects around it. It doesn't send out any heat or light itself, unlike active sensors that send out light and then measure how it bounces back.

4. What is the difference between active and passive infrared sensors?

Active infrared sensors send out their own light and measure how it bounces back from objects to find out where they are or how far away they are, much like a radar works. Passive infrared sensors don’t send out any light. Instead, they just detect the natural heat given off by warm objects like people and animals.

5. What is the purpose of the infrared sensor?

The purpose of an infrared sensor is to sense and measure the invisible heat energy that objects give off. This feature helps it to spot objects or people nearby without needing to touch them or see them with light, making it very useful for keeping places secure, checking the environment, and helping machines operate automatically.
