CD4050 Non-Inverting Buffer IC: A Comprehensive Overview

The CD4050 IC is a widely used hex buffer chip featuring six non-inverting buffers. It is perfect for applications like signal regeneration and voltage level conversion. This article covers its features, working principles, pin configuration, and applications in a simple, reader-friendly way.

Catalog

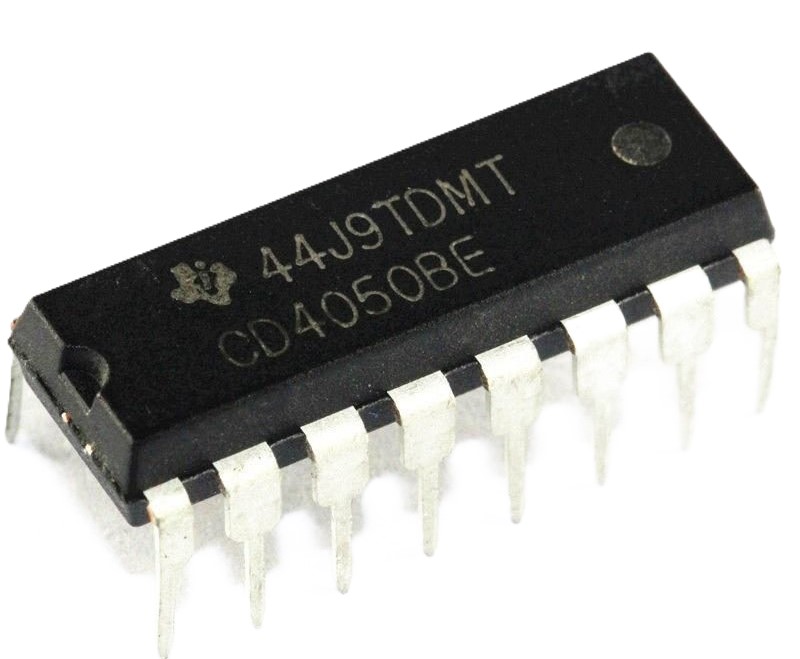

CD4050 IC Overview

The CD4050 IC is a hex buffer chip with six non-inverting buffers that pass signals unchanged, ideal for voltage level conversion and signal regeneration. It can drive up to two TTL or DTL devices at once, offering reliable performance with low power consumption. Its high sink current capability ensures it handles multiple loads efficiently, making it a versatile choice for digital circuits.

Key Features and Specifications

This section provides the key highlights and specifications of the CD4050 IC, including its operating voltage, current consumption, and performance metrics.

Parameter	Specification
Operating Voltage	3V - 15V DC
Current Consumption (Max)	50mA
Sink Current Capability	High Sink Current for Driving 2 TTL Loads
Maximum Low-Level Output Voltage	0.5V at 5V Vcc
Minimum High-Level Output Voltage	4.95V at 5V Vcc

CD4050 IC Pin Description

Pin Number	Pin Type	Description/Direction
1	VCC	Positive input supply
2	G	Non-Inverted output 1
3	A	Input 1
4	H	Non-Inverted output 2
5	B	Input 2
6	I	Non-Inverted output 3
7	C	Input 3
8	VSS	Negative Supply
9	D	Input 4
10	J	Non-Inverted output 4
11	E	Input 5
12	K	Non-Inverted output 5
13	NC	No connection
14	F	Input 6
15	L	Non-Inverted output 6
16	NC	No connection

Functional Working of the CD4050 Non-Inverting Buffer IC

The CD4050 IC is designed with non-inverting buffers that maintain the input signal as it is, without changing its logic state. Unlike an inverter, which flips the signal, a non-inverting buffer ensures the output matches the input. Its primary purpose is to strengthen the signal, delivering a clear HIGH or LOW at the output.

Each buffer within the IC has a single input and a single output. The output is always equal to the input, making it suitable for applications where signal integrity needs to be preserved. These buffers can also introduce a slight propagation delay, which can be useful in specific circuit designs.

Internal Design and Logic Diagram of CD4050 IC

The internal structure of the CD4050 IC contains six non-inverting buffers, each linked to specific input and output pins. The image below illustrates how these buffers are arranged within the IC and shows their connections to the corresponding pins. For example, when a signal is applied to input A (pin 3), the output will be identical at G (pin 2). Similarly, input B corresponds to output H, input C to output I, and so on.

This consistent behavior ensures that the IC reliably mirrors input signals at its outputs without any alterations to their logic state.

The table below highlights the truth table for the IC, confirming that the output always matches the input. Whether the input is HIGH or LOW, the output reflects the same state, ensuring seamless signal integrity.

Input Signal (A,B,C,D,E,F)	Output Signal(G,H,I,J,K,L)
HIGH	HIGH
LOW	LOW

Package Variants and Availability

• SOIC

• PDIP

• CDIP

Applications of CD4050 IC

High to Low Logic Level Converter

The CD4050 IC is used to safely adapt signals from higher to lower voltage levels, enabling compatibility between circuits operating at different voltages.

DTL or TTL Hex Converters

This IC serves as a hex converter, allowing smooth interfacing between DTL and TTL logic families, handling multiple signals with ease.

CMOS Current Sink or Source Driver

The CD4050 can act as a current sink or source, ensuring stable current flow to drive multiple loads in CMOS systems effectively.

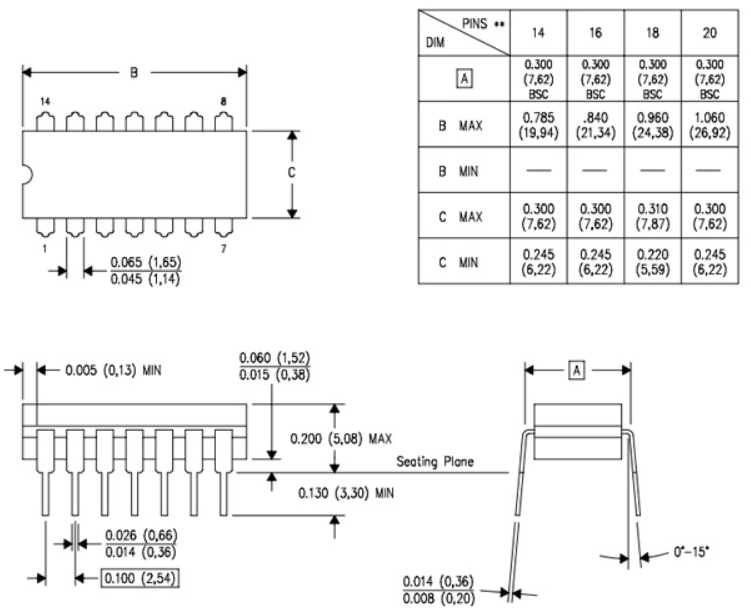

2D Model and PCB Design Reference

The 2D model of the Non-Inverting IC, shown below, includes its dimensions in both millimeters and inches. This information is helpful for creating custom footprints and is ideal for use in PCB design and CAD modeling.
