Fiber-Optic Connectors: SC vs. LC

Fiber optic connectors keep light signals flowing smoothly through cables by joining fibers with accuracy. In this article, you will learn what connectors do, the parts that make them work, and how SC and LC connectors compare in structure, size, and use. You will also see their applications, advantages, disadvantages, and how to choose the right one for your setup.

Catalog

Figure 1. LC and SC Fiber Connectors

Fiber Optic Connectors Overview

Fiber optic connectors are devices used to join two optical fibers or connect a fiber to network equipment, ensuring that light signals pass through with minimal loss. Their role is to keep the fiber end stable and precisely aligned so that light continues smoothly from one fiber to another.

The performance of a connector depends on how well it controls alignment and contact between fiber cores. Even a small misalignment or gap can cause insertion loss (a drop in transmitted light) or increase return loss (light reflected back into the fiber). To minimize these effects, connector designs follow strict industry standards that specify dimensions, tolerances, and surface quality.

Figure 2. Structure of a Fiber Optic Connector

SC and LC Connectors

SC and LC connectors are two of the most widely adopted types in fiber optic communication systems. While both are designed to align fibers and reduce signal loss, they differ in size, design, and durability, which influences where each type is most effective.

SC Connector

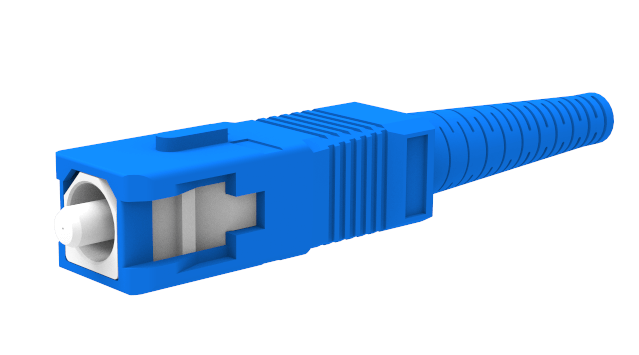

Figure 3. SC Connector

The SC connector, or Standard Connector, was introduced by NTT in the mid-1980s and became one of the first fiber optic connectors to gain widespread use. Also known as the Subscriber Connector or Stick-and-Click Connector, it has a rectangular profile and is recognized for its straightforward design. It incorporates a 2.5 mm ceramic ferrule that ensures accurate fiber alignment, supported by a push-pull latching mechanism that allows simple insertion and removal. The connector can withstand up to 1000 mating cycles, making it suitable for applications requiring frequent handling. Its insertion loss typically ranges from 0.25 to 0.5 dB, which allows it to perform reliably in both telecommunication and data communication systems.

LC Connector

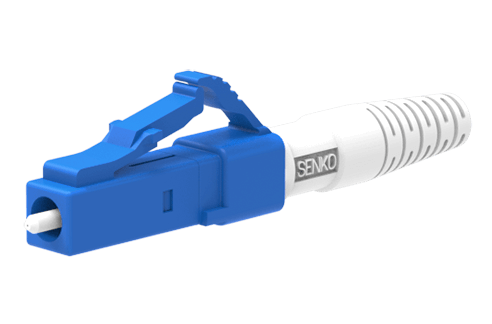

Figure 4. LC Connector

The LC connector, or Lucent Connector, was introduced in the early 2000s by Lucent Technologies to meet the need for more compact fiber connections in high-density environments. Its most notable feature is a 1.25 mm ceramic ferrule, half the size of the SC ferrule, which allows for greater port density in patch panels and equipment. Instead of a push-pull latch, it uses a latch locking system that holds the connection securely in place. The LC connector supports up to 500 mating cycles, which is lower than the SC, but it achieves the same insertion loss range of 0.25 to 0.5 dB. Its compact size and reliable performance make it particularly well suited for crowded installations such as data centers and telecommunication racks where space efficiency is a priority.

Both SC and LC connectors provide similar optical performance in terms of insertion loss. However, their differences define their practical roles. The SC connector is larger, more durable, and preferred for general-purpose use where space is not a constraint. In contrast, the LC connector is smaller, designed for high-density configurations, and favored in modern network environments where maximizing space is a critical requirement.

Applications of SC and LC Connectors

SC Connector Applications

• Datacom and telecom networks

• Internet and cable television systems

• Media converters for linking different network types

• Passive optical networks such as FTTX and EPON

• General-purpose connections with PCs, Wi-Fi routers, and gaming consoles

• Optical distribution frames and central office networking cabinets

• Fiber-to-the-home (FTTH) subscriber installations

• Long-haul systems and WDM networks using SC/APC for low back reflection

• Hybrid adapter systems for converting between SC and other connector types

LC Connector Applications

• High-density patch panels and data centers

• Telecommunications equipment

• SFP, SFP+, QSFP+, and QSFP28 transceivers

• Behind-the-wall (BTW) installations where space is limited

• Duplex connections in enterprise LANs and campus backbones

• Cloud and large-scale data center infrastructures

• Industrial and medical systems requiring compact and reliable fiber links

• Polarity-changeable LC connectors in complex fiber cabling systems

Technical Comparison of SC and LC Connectors

Feature	SC Connector	LC Connector
Ferrule Size	2.5 mm ceramic	1.25 mm ceramic
Coupling Mechanism	Push-pull latch	Latch locking
Durability (Mating Cycles)	Around 1000 or more	Around 500 to 1000 (typically 500)
Cost (Relative)	Lower, more cost-effective	Higher due to precise manufacturing
Insertion Loss	Typically ≤ 0.3 dB, often in the 0.25–0.5 dB range	Typically ≤ 0.3 dB, often in the 0.25–0.5 dB range
Return Loss / Reflection Performance	UPC versions ≥ 50 dB, APC versions ≥ 60 dB	UPC versions ≥ 50 dB, APC versions ≥ 60 dB
IEC / Interface Standard	IEC 61754-20	IEC 61754-4
Typical Application / Use Case	PCs, routers, legacy systems, fiber-to-the-home, telecom distribution and central office systems	High-density telecom, data centers, SFP/SFP+ and QSFP transceivers, compact racks and limited-space environments
Environmental / Physical Factors	Larger housing makes it more robust in demanding conditions	Smaller and more delicate, but allows much higher port density
Trend / Market Adoption	Still common in legacy networks and some telecom systems	Increasingly the standard in modern data centers and new installations

Advantages and Disadvantages of SC and LC Connectors

Connector Type	Advantages	Disadvantages
SC Connector	Simple design and easy to use	Larger ferrule (2.5 mm) requires more space
	Durable with up to 1000 mating cycles	Not suitable for high-density environments
	Cost-effective due to mature technology	Bulkier compared to LC connectors
	Stable performance with low insertion loss	Push-pull tab may disconnect if not secured
	Widely compatible with existing systems
	Made with engineering plastics that resist oxidation and heat
	Quick, tool-free push-pull mechanism for connections
	Compatible with single-mode and multimode fibers
	Provides low insertion loss and high return loss
	Common in FTTH, CATV, and optical distribution frames
LC Connector	Compact size with 1.25 mm ferrule saves space	Higher cost due to compact design
	Supports high port density in data centers and telecom	Shorter lifespan of around 500 mating cycles
	Secure latch mechanism prevents disconnections	More delicate and requires careful handling
	Strong performance in single-mode, long-distance links	Can be harder to handle in tight spaces
	Standard for SFP, SFP+, QSFP+ and QSFP28 modules	May require tools for removal in dense panels
	Available in duplex or simplex, with clip conversion
	Works with both single-mode and multimode fibers
	Compact size ideal for LAN backbones and cloud data centers
	Used in industrial and medical systems where space is limited
	APC versions available for low-reflection optical systems

Choosing Between LC and SC

The selection of a fiber optic connector depends on the requirements of the network and the environment where it will be used. LC connectors are generally preferred in high-density installations such as data centers or telecom racks, where saving space is important. They are also the standard for SFP and SFP+ transceivers and are widely used in single-mode fiber systems that require low signal loss over long distances.

• LC connectors – best suited for compact, high-density environments and long-distance single-mode links

• SC connectors – practical for general-purpose networks, offering durability and cost-effectiveness

SC connectors are often used in homes, offices, and smaller networks, especially where space is not a major concern. In systems that use both types, adapters are available to convert between SC and LC interfaces, ensuring compatibility across different setups.

Conclusion

Both SC and LC connectors offer strong performance, but the best choice depends on your needs. If you want something durable, cost-friendly, and don’t worry about space, SC connectors are a good option. If you are working with data centers or compact telecom racks, LC connectors are the better fit since they save space and allow more connections in a small area. Both provide low signal loss and good stability, so it comes down to size, density, and durability. By knowing where each type works best, you can pick the connector that makes your network setup efficient and reliable.
