Get Started with STM32G030F6P6 Microcontroller Projects

The STM32G030F6P6 microcontroller offers a combination of performance and versatility, making it suitable for a range of applications. With a focus on speed and functionality, it is designed to meet the demands of modern embedded systems. This article explores its features, pin configuration, CAD models, and specifications, providing you with a complete overview of what this microcontroller can offer.

Catalog

STM32G030F6P6 Microcontroller Overview

The STM32G030F6P6 microcontroller is crafted to deliver performance and reliability for a variety of applications. It uses an Arm® Cortex®-M0+ 32-bit RISC processor running at speeds up to 64 MHz, making it responsive and efficient for tasks in consumer electronics, industrial equipment, and appliances.

Its embedded memory setup includes 8 Kbytes of SRAM and up to 64 Kbytes of Flash memory, ensuring smooth performance and ample storage for programs. With built-in memory protection, your data and system remain secure during operation.

The microcontroller features a versatile set of peripherals, including communication interfaces like I2C, SPI/I2S, and USART, along with functional tools such as a real-time clock, advanced PWM timers, and general-purpose timers. These features allow the STM32G030F6P6 to adapt to different project requirements, from smart gadgets to industrial control systems.

Designed with a thoughtful balance of speed, functionality, and adaptability, this microcontroller is an ideal choice for a range of embedded system projects. Its features make it easy to integrate into your designs while providing reliable and consistent performance.

STM32G030F6P6 Pin Configuration

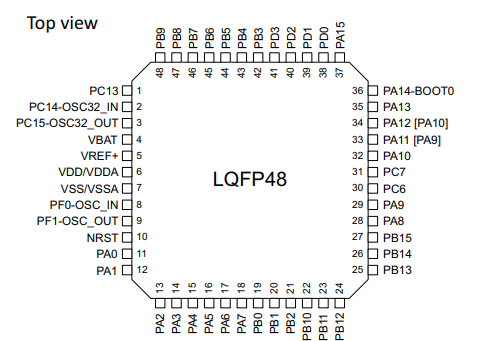

STM32G030F6P6 CAD Model

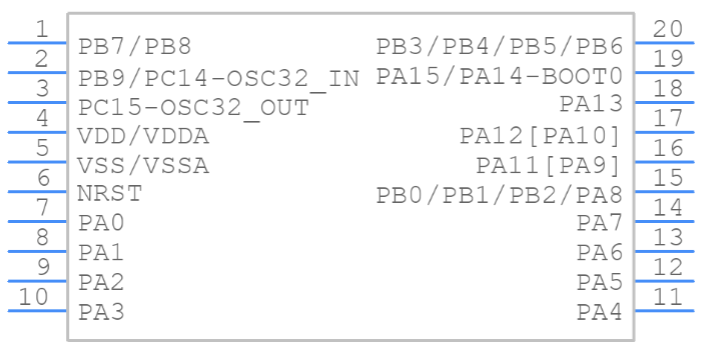

STM32G030F6P6 Symbol

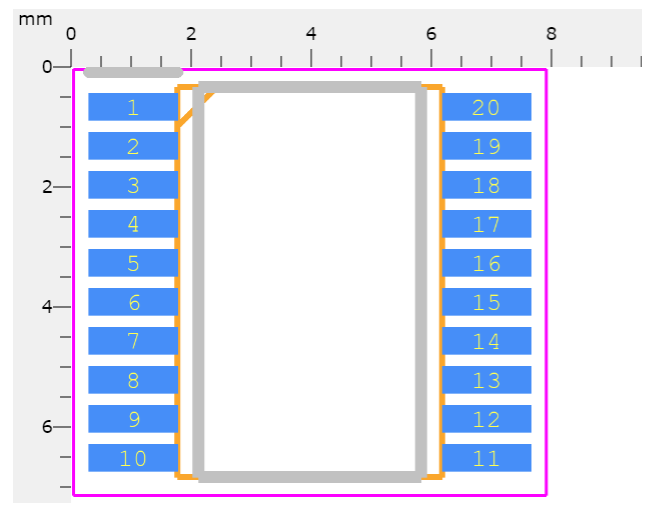

STM32G030F6P6 Footprint

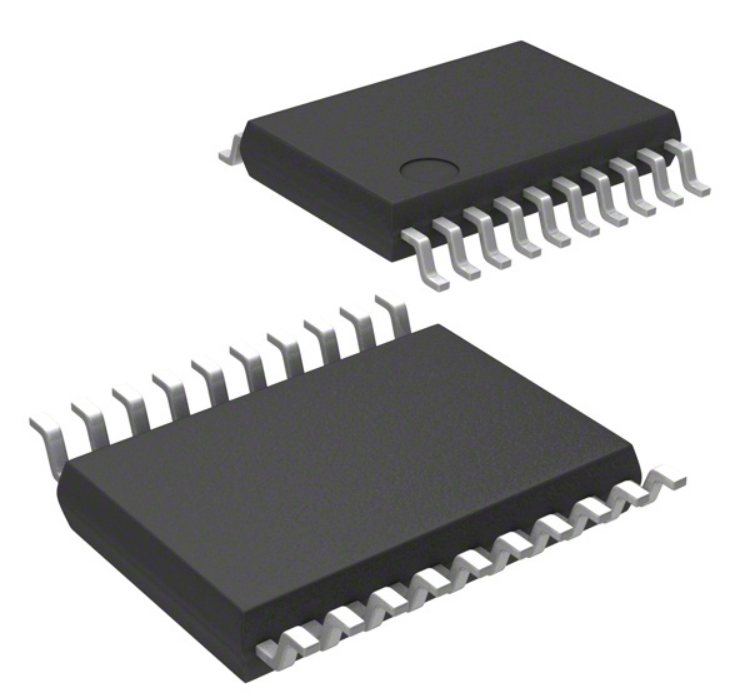

STM32G030F6P6 3D Model

Key Features of STM32G030F6P6

Timers for Versatile Applications

The STM32G030F6P6 includes 8 timers designed to handle various tasks with precision. Among these are 4 general-purpose 16-bit timers that offer flexibility for different control and timing requirements. Additionally, there’s a 16-bit timer tailored for advanced motor control and 2 watchdog timers that ensure your system runs safely by resetting in case of unexpected events. The inclusion of a SysTick timer further supports accurate time tracking for system operations.

Real-Time Clock with Alarm

A built-in calendar real-time clock (RTC) is available, complete with an alarm function. This feature helps you track time and set alerts for specific events, which is especially useful in applications where timekeeping and scheduling are involved. The recurring standby wakeup feature allows the system to conserve power while maintaining time-based functionality.

ECOPACK 2 Compliant Packaging

The STM32G030F6P6 uses ECOPACK 2 compliant packaging, aligning with environmentally conscious manufacturing practices. This ensures that the device meets industry standards while being designed with sustainability in mind.

STM32G030F6P6 Specifications

Technical specifications, features, characteristics, and components with comparable specifications of STMicroelectronics STM32G030F6P6.

Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Data Converters	A/D 13x12b
Number of I/Os	18
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	STM32G0
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Terminal Position	DUAL
Terminal Form	GULL WING
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	Compliant
Supply Voltage - Max (Vsup)	3.6V
Supply Voltage - Min (Vsup)	2V
Oscillator Type	Internal
Speed	64MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	2V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	DMA, I2S, POR, PWM, WDT
Clock Frequency	48MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	32KB 32K x 8
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	32
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
Length	6.5mm
Width	4.4mm

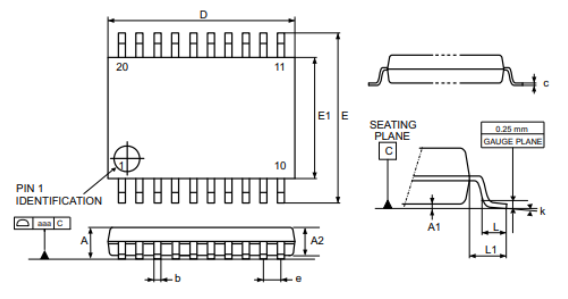

STM32G030F6P6 Package

Datasheet PDF

STM32G030F6P6 Datasheet:

STM32G030F6P6.pdf
