Cold Cranking Amps (CCA) Explained: Types, Test, and Maintain the Right Car Battery

This guide explains what Cold Cranking Amps (CCA) are and why they matter when choosing a car battery, especially in cold weather. It shows how much CCA your car needs, how CCA compares to other ratings like CA and MCA, how to test your battery, how to take care of it, and how to choose the right one based on your climate and engine.

Catalog

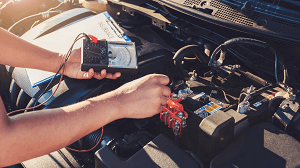

Figure 1. Battery CCA Measurement Setup Using a Multimeter

What are Cold Cranking Amps (CCA)?

Cold Cranking Amps, or CCA, is a standard measurement that shows how well a car battery can start an engine in very cold weather. It specifically measures the number of amps a 12-volt battery can deliver for 30 seconds at 0°F (-18°C), while still keeping the voltage above 7.2 volts.

Cold weather puts a strain on both the battery and the engine. Battery efficiency drops, and oil becomes thicker, making the engine harder to turn over. That’s why a reliable CCA rating is important, it reflects how much power the battery can provide under these difficult conditions.

How Many CCAs Does Your Vehicle Need?

The amount of CCA your vehicle needs depends on two main things: how cold it gets where you live, and what kind of engine your vehicle has.

As temperatures drop, starting your engine becomes harder. Cold air thickens engine oil and reduces the chemical reaction inside the battery. So, the colder the climate, the more CCA your battery should have to overcome this resistance.

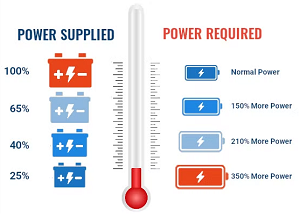

Figure 2. CCA Temperature Chart

Bigger engines need more power to start. Diesel engines, which operate under higher compression, demand more CCA than gasoline engines of the same size. Gasoline engines need about 1 CCA per cubic inch of engine displacement. Diesel engines need roughly 2 CCAs per cubic inch.

Here’s a quick reference table showing suggested CCA ranges by vehicle type and climate conditions:

Vehicle Type / Engine	Climate	Suggested CCA
Small car (4-cylinder)	Warm	300–400 CCA
Small car (4-cylinder)	Cold	400–500 CCA
Mid-size car (6-cylinder)	Warm	400–500 CCA
Mid-size car (6-cylinder)	Cold	500–600 CCA
Full-size/SUV (8-cylinder)	Warm	500–600 CCA
Full-size/SUV (8-cylinder)	Cold	600–800 CCA
Diesel (light truck)	Warm	700–800 CCA
Diesel (light truck)	Cold	800–1000+ CCA
Heavy-duty/commercial	Any	1000+ CCA
Motorcycle/ATV	Any	150–300 CCA

Types of Cranking Power Ratings

Understanding the differences between cranking ratings helps ensure the battery you choose fits your vehicle and climate.

CCA (Cold Cranking Amps)

Cold Cranking Amps (CCA) measure how many amps a battery can supply for 30 seconds at 0°F while maintaining at least 7.2 volts. This rating is great for vehicles operating in cold climates, where starting an engine puts extra strain on the battery. The colder the temperature, the harder it is for the engine to turn over, making a high CCA rating important. Batteries with higher CCA values perform better in freezing conditions, ensuring reliable starts even on icy mornings.

CA (Cranking Amps) or MCA (Marine Cranking Amps)

Cranking Amps (CA), also called Marine Cranking Amps (MCA), are measured at a milder temperature of 32°F. Because of the warmer test condition compared to CCA, these ratings tend to be higher. This type of rating is commonly used in marine environments or in vehicles that operate primarily in moderate or warm weather. While helpful, CA is less relevant in extreme cold, so it's important to match the rating to your climate.

HCA (Hot Cranking Amps)

Hot Cranking Amps (HCA) represent a battery’s starting power at 80°F, a temperature typical in warm or hot climates. Batteries naturally perform better in heat, so this rating is usually higher than both CCA and CA. It’s a useful measure for vehicles in tropical or desert regions where extreme heat is the main concern. HCA helps ensure consistent starting performance when the engine compartment is already warm.

PHCA (Pulse Hot Cranking Amps)

Pulse Hot Cranking Amps (PHCA) measure the battery’s ability to deliver a quick burst of high current for a few seconds at around 77°F. This rating is important for high-performance applications like racing or vehicles equipped with advanced AGM or lithium batteries. PHCA focuses on peak power output rather than sustained starting power. It’s designed to reflect scenarios where engines demand an intense initial surge to start quickly and reliably.

RC (Reserve Capacity)

Reserve Capacity (RC) indicates how long a battery can deliver 25 amps at 80°F before its voltage drops below 10.5 volts. Unlike cranking ratings, RC isn’t about starting the engine but about how long a battery can keep important systems running if the alternator fails. A higher RC is valuable in vehicles with many electronic accessories or in marine situations. This rating reflects the battery’s endurance and backup power potential more than its starting strength.

How to Test Cold Cranking Amps?

To perform a CCA test accurately and safely, gather the following tools and equipment:

• Digital Battery Tester with CCA Function

• Manual Load Tester (Alternative Option)

• Wear Insulated Gloves and Eye Protection

• Multimeter

Step 1: Fully Charge the Battery

Before testing, ensure the battery is fully charged. A partially charged battery can give falsely low CCA readings. Use a battery charger if needed and allow the battery to rest for at least 30 minutes after charging.

Step 2: Clean the Battery Terminals

Dirty or corroded terminals can interfere with the accuracy of your test. Use a wire brush or terminal cleaner to remove any build-up. A clean connection ensures consistent current flow.

Step 3: Connect the Tester Properly

Attach the red (positive) clamp to the positive terminal and the black (negative) clamp to the negative terminal. Make sure the clamps are secure and have solid contact.

Step 4: Input Battery Information

Turn on the tester and select the correct battery type (AGM, flooded, gel, etc.). Enter the manufacturer’s listed CCA rating, typically found on a label on the battery case.

Step 5: Run the Test

Initiate the test. The tester will simulate a cold engine start by applying a load and measuring how much current the battery can deliver. The display will then show the actual measured CCA along with a pass/fail result, depending on your input.

Once the test is complete, interpret the results as follows:

If the measured CCA is equal to or higher than the rated value, the battery is in good shape. If it's slightly lower (within 10%), the battery still works but may be aging. If it's much lower, the battery should be replaced, as it may not start the car in cold weather.

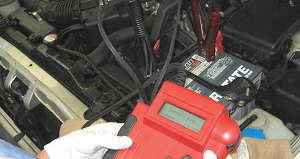

Figure 3. CCA Test Result

Manual Load Testing Option

If you don’t have a digital tester with CCA functionality, you can perform a manual load test using the following method:

Step 1: Apply a Load

Use a load tester to draw a current equal to half of the battery’s rated CCA for 15 seconds.

Step 2: Monitor Voltage

During the load, watch the battery voltage. If it remains above 9.6 volts at 70°F (21°C), the battery is still considered serviceable.

Step 3: Temperature Adjustment

Battery performance changes with temperature. If your tester doesn’t automatically compensate for this, use the following rule of thumb: subtract 0.1 volts from the 9.6V benchmark for every 10°F (6°C) below 70°F.

Step 4: Rest After Charging

Always allow the battery to rest for 30 minutes after charging before testing. This prevents surface charge from skewing results.

Comparing CCA, CA, and MCA

Feature	CCA (Cold Cranking Amps)	CA (Cranking Amps)	MCA (Marine Cranking Amps)
Test Temperature	0°F (-17.8°C)	32°F (0°C)	32°F (0°C)
Minimum Voltage	≥ 7.2V	≥ 7.2V	≥ 7.2V
Typical Amp Range	300 – 1000	400 – 1000	400 – 1000
Application Focus	Cold climate automotive starting	Moderate climate automotive use	Marine engines and high-vibration uses
Environment	Sub-zero or winter conditions	Mild weather or warm climates	Wet, humid, or salty marine environments
Battery Type	Automotive lead-acid	Automotive lead-acid	Marine deep-cycle/starting hybrids
Performance Duration	30 seconds at low temp	30 seconds at 32°F	30 seconds at 32°F
Labeling Standard	SAE J537	Often JIS or SAE	Often ABYC or SAE
Vibration Resistance	Moderate	Low to moderate	High
Corrosion Resistance	Standard	Standard	Enhanced (for marine exposure)
Power Delivery	Strongest under extreme cold	Stronger under moderate cold	Strong under wet start conditions
Lifespan (Typical)	Medium	Medium	Medium to high (depending on quality)
Weight (Typical)	Moderate	Moderate	Heavier due to thicker plates
Cost	Standard	Slightly cheaper than CCA	Higher due to marine-grade components

How to Maintain Long-Term Battery Operation?

To keep your battery in good shape year-round:

• Clean terminals regularly to prevent corrosion.

• Turn off lights and electronics before shutting off the engine.

• Ensure battery cables are tight and secure.

• Park in the shade during summer to reduce heat damage.

• Use battery insulation in winter.

• If you drive infrequently, use a battery maintainer.

• Avoid short trips, longer drives help recharge the battery.

• Test voltage regularly with a multimeter.

• Replace aging batteries before they fail unexpectedly.

Following these habits extends battery life and helps ensure reliable cold-weather starts.

Figure 4. How to Maintain Long-Term Battery Operation

Conclusion

Cold Cranking Amps (CCA) shows how much power a battery can give to start your car in freezing temperatures. How much CCA you need depends on how cold it gets where you live and the size or type of engine you have. Ratings like CA, MCA, HCA, and PHCA are also helpful, but CCA is the most important for cold weather. Testing your battery, keeping it clean, and choosing the right size and type will help it last longer and work better. A good battery with the right CCA gives you reliable starts and fewer problems year-round.
