Solving Electrical Circuits Using Mesh Currents

When you're trying to figure out how current moves through a circuit, it can get confusing fast—especially if the circuit has multiple loops and components. That’s where the mesh current method comes in. It helps you focus only on the loops in the circuit, making it easier to solve for unknown currents and voltages without tracking every wire. By applying simple rules like Kirchhoff’s Voltage Law and Ohm’s Law, you can break the problem into manageable steps. This method not only saves time but also keeps the math simpler, especially in more complicated circuits. Whether you're dealing with resistors, power sources, or even AC components, mesh analysis gives you a clear, reliable path to follow. In this guide, you'll learn how to apply the method step by step using examples, and also see when it’s the right tool to use.

Catalog

Figure 1. Mesh Current Method (Loop Current Method)

What is Mesh Current Method in Circuit Analysis?

The mesh current method is a helpful tool you can use to figure out how current flows through a circuit. Instead of looking at every wire and branch separately, this method focuses on the loops or meshes within the circuit. A mesh is just a closed path that doesn’t enclose any other loops inside it. Once you’ve spotted these meshes, you assign a current to each one. The direction of each mesh current doesn’t need to be correct—you’re free to pick any direction, and the math will sort out whether it ends up positive or negative.

What makes the mesh current method especially useful is how it applies Kirchhoff’s Voltage Law (KVL). KVL says that if you go all the way around any loop in a circuit, the total voltage you gain and lose adds up to zero. You combine this with Ohm’s Law—which relates voltage, current, and resistance—to write equations that describe what’s happening in each loop. These equations help you solve for the unknown currents and voltages in the circuit.

One nice thing about this method is that it often leads to fewer equations than other approaches, like the branch current method. Instead of writing a separate equation for each branch or junction, you only need one for each mesh. That makes it a lot easier to solve, especially when you're dealing with circuits that have many components.

So, in simple terms, the mesh current method is about assigning loop currents, writing equations using KVL and Ohm’s Law, and solving for the unknowns. It’s a clear, logical way to analyze electrical circuits without getting lost in too many details.

How to Apply the Mesh Current Method?

Before getting started with the mesh current method, it helps to know that we’ll be working with a familiar circuit—the same one used earlier to explain other ways of analyzing circuits. This makes it easier to compare how different methods work on the same setup and understand what each one offers.

You might remember seeing this circuit in examples using:

• Branch current method

• Superposition theorem

• Thevenin’s theorem

• Norton’s theorem

• Millman’s theorem

In this case, we’ll now take a closer look at how the mesh current method is applied to that very same circuit.

Figure 2. Circuit schematic for explaining the mesh current method.

Using this example makes it simple to follow each step of the process. You’ll get to see how the mesh current method breaks things down, how currents are assigned in each loop, and how equations are written and solved—all in a clear and manageable way.

Step 1: Find and Mark the Current Loops

The first thing you’ll do in the mesh current method is to identify and label the loops in the circuit. These loops are closed paths made up of circuit elements like resistors and voltage sources. Each loop will have a current that you assign to it, and together, the loops should cover all parts of the circuit. This makes sure no component is left out when you're solving for unknown values.

In our example circuit (Figure 2), the first loop goes through B1, R1, and R2, while the second loop runs through B2, R2, and R3. These loops are chosen so that every component lies in at least one of them.

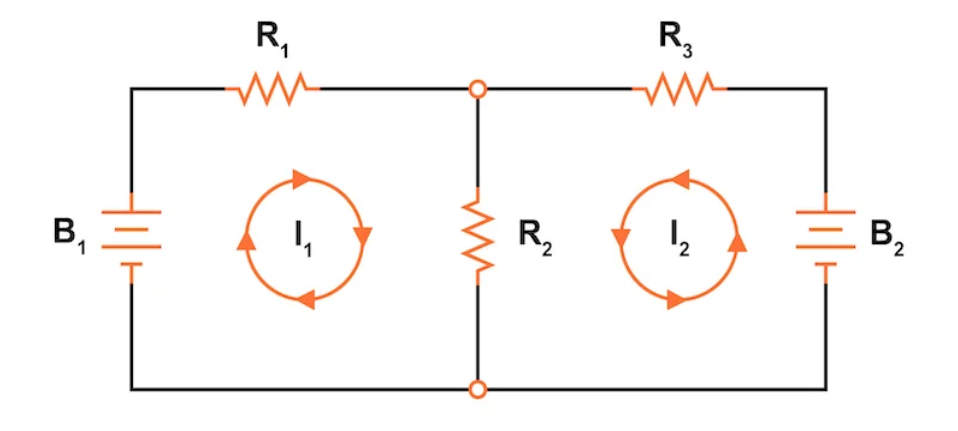

Figure 3. Identify and Label the Current Loops.

One part of this method that might seem strange at first is the idea of loop currents “circulating” in each loop. You imagine them like tiny gears turning, sometimes in the same direction, sometimes in opposite ones. That’s where the term mesh comes from—because the currents from different loops can “mesh” together when they pass through shared components.

When picking a direction for each loop current, it doesn’t have to be perfect. You can choose clockwise or counterclockwise, and the math will still work out. If the actual direction turns out to be different, the current will just come out as a negative number, which means it flows the other way.

It also helps if you assign loop currents that flow in the same direction through any shared components. For instance, in R2, both currents I1 and I2 flow “down” through it in this example. This makes it simpler later on when writing the equations for voltage drops.

Step 2: Mark Voltage Drop Directions

Once you’ve chosen the directions of the mesh currents, the next thing to do is mark the voltage drops across the resistors. This means showing which side of each resistor is positive and which is negative, based on how the current is flowing through it. The direction you picked for the mesh current helps you decide this.

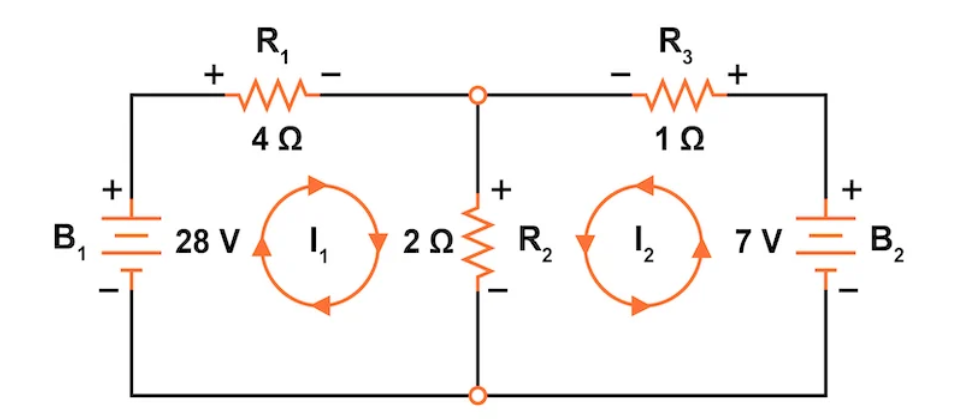

Figure 4. Label the Voltage Drop Polarities.

A good way to remember this is that the side of the resistor where the current enters is considered the positive side, and the side where it exits is the negative side. That’s because a resistor drops voltage as current flows through it—it doesn’t supply voltage like a battery does. So, the voltage "falls" in the direction of the current.

It’s also important to keep in mind that batteries are a little different. Their polarities are fixed by how they're drawn in the circuit diagram. Sometimes, the battery’s polarity might not match up with the direction you picked for the current in that loop, and that’s perfectly okay. You don’t need to change anything—just follow the battery symbol and your assumed current direction separately when writing the voltage equations later.

By carefully marking all these voltage polarities, you make it much easier to apply Kirchhoff’s Voltage Law in the next step. That way, when you move around a loop, you’ll know exactly how the voltages rise or fall, which helps you set up your equations correctly.

Step 3: Use Kirchhoff’s Voltage Law for Each Loop

Using Kirchhoff’s Voltage Law, you now take a walk around each loop in the circuit, keeping track of the voltage drops and their polarities. Just like in the branch current method, each resistor’s voltage drop is represented by multiplying the resistance (in ohms) with the mesh current flowing through it. Since the actual current values aren’t known yet, you use variables for those. In cases where two mesh currents pass through the same resistor, you combine them to reflect the total current through that component.

You can start at any point in a loop and trace in any direction—it’s totally up to you. Here, for the left loop, you begin at the lower-left corner and go clockwise. Think of yourself holding a voltmeter with the red lead always pointing ahead and the black one behind. For the left loop that contains current I₁, the equation becomes:

Notice how R₂ carries the current made up of both I₁ and I₂. That’s because both mesh currents are flowing in the same direction through R₂, so they add up. Next, distribute the coefficient of 2 across both I₁ and I₂, then group similar terms to make it simpler:

Now you’ve got one equation with two unknowns, I₁ and I₂. To find their values, you’ll need one more equation, which you can get by doing the same process for the right loop of the circuit.

This time, follow the right loop, which carries current I₂, starting again at the lower-left corner and tracing clockwise. This gives you a second KVL equation. In this loop, the current through R₂ is still the sum of I₁ and I₂, and then there’s R₃ which only carries I₂. You also have a voltage source of 7V at the end. So the equation comes out as:

Once again, simplify it by distributing and combining like terms:

Now that you have two equations with two unknowns, you’re all set to solve for the mesh currents I₁ and I₂.

Step 4: Solve the Equations to Find Unknown Currents

Now that you’ve written the two KVL equations from each loop, the next step is to solve for the unknown mesh currents. These are the values of I₁ and I₂—the currents flowing in the loops you defined earlier.

To make things a bit easier, it helps to rearrange the equations so they’re neatly lined up. This way, it’s simpler to spot patterns or apply methods like substitution or elimination.

You can now use any method you prefer to solve these equations. Some people like using substitution, while others might go for elimination. If you're solving by hand, elimination usually keeps things cleaner. Either way, once you work through the math, you’ll get:

[EQUATION OF FINAL MESH CURRENT SOLUTION]

The result for I₁ tells us that the assumed direction for that current was correct—it flows as drawn in the loop. On the other hand, the negative value of I₂ means that current actually flows in the opposite direction to what was assumed. This is completely normal in mesh analysis. It doesn’t mean anything went wrong; it just tells you which way the current really flows in that loop.

With these values, you now have the actual mesh currents, and in the next steps, you’ll use them to find out what's happening in each branch of the circuit.

Step 5: Update Mesh Currents and Find Branch Currents

Now that we’ve found the values of the mesh currents, the next step is to see how they translate into actual branch currents—the currents flowing through each part of the circuit. To do this, we return to the original diagram and apply the mesh current values to the relevant components.

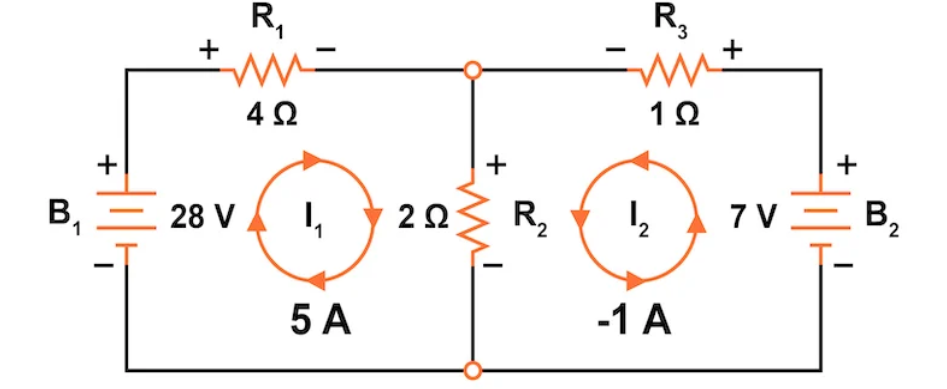

Figure 5. Circuit with Calculated Mesh Current Values.

From the earlier calculation, we found that I₁ = 5 A and I₂ = –1 A. The negative sign on I₂ simply means that the current flows in the opposite direction from how we originally assumed it in the loop. So, in reality, I₂ flows clockwise, not counterclockwise.

To reflect this, we redraw the circuit and update the direction of I₂, as well as the voltage polarity across any components it affects—like resistor R3.

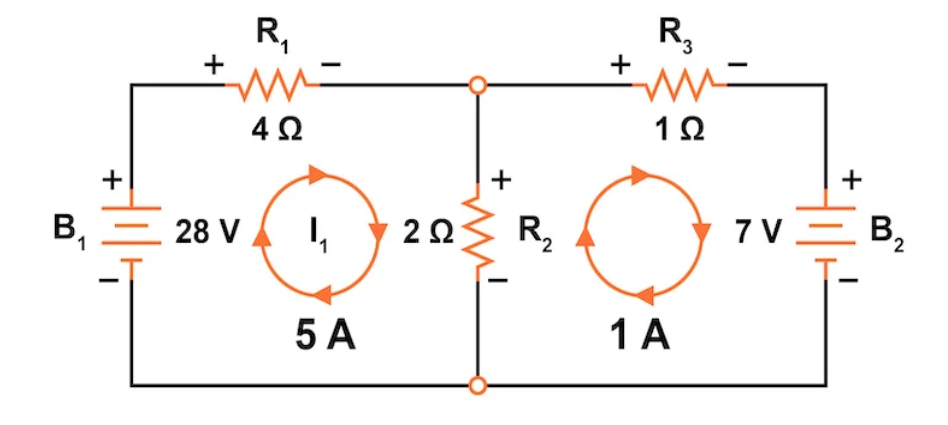

Figure 6. Circuit with Corrected Mesh Current Direction for I₂.

Now that both mesh current values and directions are set, we can determine the current in each branch. This part is quite simple:

• The current through R1 is just I₁, which is 5 A, since no other mesh current passes through it.

• The current through R3 is just I₂, and with the corrected direction, it's actually 1 A flowing clockwise.

• For R2, things are a little more interesting, since both mesh currents pass through it.

In the case of R2, mesh current I₁ moves down through the resistor, while corrected current I₂ moves up. These two currents oppose each other, so the net current through R2 is the difference between them.

So, the branch current through R2 is 4 A flowing downward, following the direction of I₁. This final adjustment gives us the full picture of how the current behaves in every part of the circuit.

Figure 7. Circuit with Calculated Branch Currents.

With this step complete, you've taken the abstract loop currents and converted them into the real, physical currents flowing through each resistor and voltage source. That’s the real power of the mesh current method—it gives you a clear, systematic way to solve even complex circuits piece by piece.

Step 6: Find Voltage Drops Using Ohm’s Law

Now that the branch currents are known, we can use Ohm’s Law to figure out the voltage drops across each resistor. Ohm’s Law is simple: V = I × R—meaning voltage equals current times resistance. Each resistor’s voltage drop depends on the current flowing through it and its resistance value.

Let’s calculate the voltage drop across each resistor:

For resistor R1, the current is 5 A (I₁), and the resistance is 4 ohms, so the voltage drop is 20 volts.

Resistor R2 has two mesh currents passing through it, so we take the difference (since they flow in opposite directions). That gives a current of 4 A and a voltage drop of 8 volts.

Resistor R3 has only current I₂ flowing through it, which is 1 A, and its resistance is 1 ohm, so the voltage drop is just 1 volt.

Now, let’s double-check our results using Kirchhoff’s Voltage Law. The idea here is that the total voltage gains and drops around a closed loop must cancel out to zero. We’ll apply this to both loops in the circuit:

Both loops check out correctly. This means our voltage drops and current directions are consistent, and the circuit is now fully analyzed with the mesh current method.

Benefits of Using Mesh Current Over Branch Current

One of the biggest advantages of the mesh current method is that it often lets you solve a circuit using fewer equations and fewer unknowns than the branch current method. This is especially helpful when working with more complex networks, where trying to keep track of every current in every branch can quickly become overwhelming.

Take, for example, the more complex circuit shown below.

If you were to solve this circuit using the branch current method, you’d need to define a separate variable for every individual current flowing through each branch. In this particular circuit, that means assigning currents I₁ through I₅. You can see how this setup looks in the diagram below.

Figure 9. Complex Circuit Setup for Branch Current Analysis.

To solve this setup using the branch method, you'd need five equations—two based on Kirchhoff’s Current Law (KCL) at the nodes and three from Kirchhoff’s Voltage Law (KVL) across the loops. That’s a lot of variables to manage.

Now, if you're fine solving five simultaneous equations, that’s completely doable—but it takes time and can get confusing, especially without a calculator.

The mesh current method, by contrast, simplifies the process. Instead of five separate currents, you only define one loop current for each mesh. In this case, there are just three loops, so you only need to define I₁, I₂, and I₃. The diagram below shows how this setup looks.

Figure 10. Complex Circuit Setup for Mesh Current Analysis.

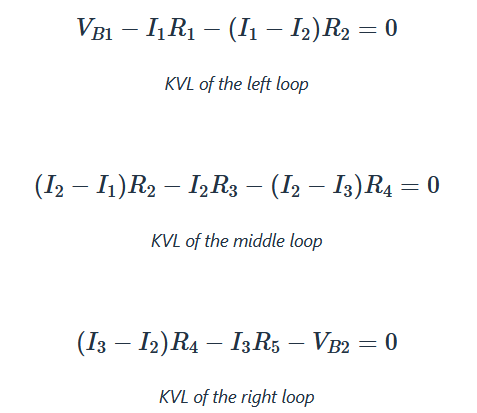

And now, using just these three loop currents, you can write three KVL equations—one for each loop.

With fewer unknowns and fewer equations, the mesh method saves time and effort—especially when you’re solving everything by hand. It also helps reduce the chance of making mistakes while setting up or solving the system. This is what makes it a preferred method for analyzing planar circuits, particularly when efficiency matters.

Handling Dependent Sources in Mesh Analysis

When a circuit includes dependent sources, the mesh current method can still be used effectively—you’ll just need to take a slightly different approach when setting up your equations. Dependent sources are special components whose value is not fixed but instead depends on another voltage or current elsewhere in the circuit.

These sources come in different types. Some provide voltage based on another current or voltage, and others provide current based on another part of the circuit. Regardless of type, what makes them unique is that their behavior is tied to something happening in another location of the circuit.

To handle this in mesh analysis, you follow the usual process—define mesh currents and write KVL equations—but when you come to a dependent source, you also write a supporting statement that shows how its value is related to the controlling variable. This is often called a constraint. You’ll include this in your list of equations to be solved.

If the dependent source is a current source and it's shared between two meshes, you use what's called a supermesh. Instead of writing separate KVL equations for each mesh that contains the source, you create a larger loop that goes around both meshes, skipping over the source itself. You then use a separate expression to describe the current relationship between the loops.

So even though dependent sources add a little extra step, the mesh current method handles them well. You just add one more relationship to account for how the source behaves, and then you solve the full system together—just like you would in any other circuit.

Mesh Analysis in AC Circuits with Impedance

The mesh current method works just as well in AC circuits as it does in DC circuits—but with a few key differences. In AC analysis, instead of just using resistance, you’ll work with impedance, which combines both resistance and reactance. This means you're dealing with components like capacitors and inductors, which behave differently depending on the frequency of the AC signal.

Impedance is a way of expressing how much a component resists or reacts to AC current. It includes not just a magnitude, like resistance does, but also a phase angle, which tells you how much the current is shifted in time compared to the voltage. That’s why, in AC mesh analysis, values are written using complex numbers—which can represent both the size and phase of voltages and currents.

Instead of just writing mesh equations with regular numbers, you'll write them in phasor form, where voltages and currents are expressed as complex values. The steps are very similar to what you’ve already seen:

• You identify the meshes and assign current directions.

• You write loop equations using impedance values in place of simple resistance.

• You solve the system of equations using complex arithmetic, which gives you the phasor form of the mesh currents.

These phasor currents tell you not just how large each current is, but also how it lags or leads the voltage depending on the reactive components in the circuit. Once you’ve solved for the phasor currents, you can convert them back to time-domain values if needed.

So while AC mesh analysis adds a layer of complexity with phasors and impedance, the core method stays the same. You just extend what you already know into the world of alternating current using a few new tools.

How to Identify Planar and Non-Planar Circuits

Before you use the mesh current method, it's important to check whether the circuit is planar or non-planar. Mesh analysis only works correctly with planar circuits, so knowing the difference helps you avoid using it where it doesn’t apply.

A planar circuit is one that can be drawn on a flat surface without any of the wires crossing each other—except at actual connection points like junctions. If you're able to sketch the entire circuit in two dimensions and arrange the components so that no lines overlap unless they’re supposed to be connected, then you’re looking at a planar circuit. Most basic circuits fall into this category and are well-suited for mesh analysis.

A non-planar circuit, on the other hand, includes at least one connection that would have to cross another wire if you try to draw it flat. A common example is a bridge circuit or one with a crisscrossing layout where you can’t move wires around without overlaps. In these cases, the mesh current method doesn’t work properly because it depends on defining loops without crossing over other branches.

If you try redrawing the circuit to check and you can’t avoid wires crossing no matter how you position them, then it’s non-planar. When that happens, you should use another method—like the node voltage method—which works for both planar and non-planar networks.

Being able to spot the difference early on helps you choose the right analysis technique and prevents unnecessary confusion later in the problem-solving process.

Conclusion

The mesh current method is a smart and straightforward way to solve circuits by focusing on the loops instead of every single branch. It helps you find unknown currents and voltages more easily using just a few simple rules. Once you understand how to set up the loops and equations, the rest becomes a smooth process. Whether you're working with DC or AC circuits, this method gives you a clear path to follow and gets you to the answers faster.
