How Surface Mount Technology Works in Electronics?

Surface Mount Technology helps you understand how modern circuit boards are built with small parts placed directly on the surface. In this guide, you’ll learn how SMT works, the types of components used, how they are assembled, how quality is checked, and where this method appears in everyday devices.

Catalog

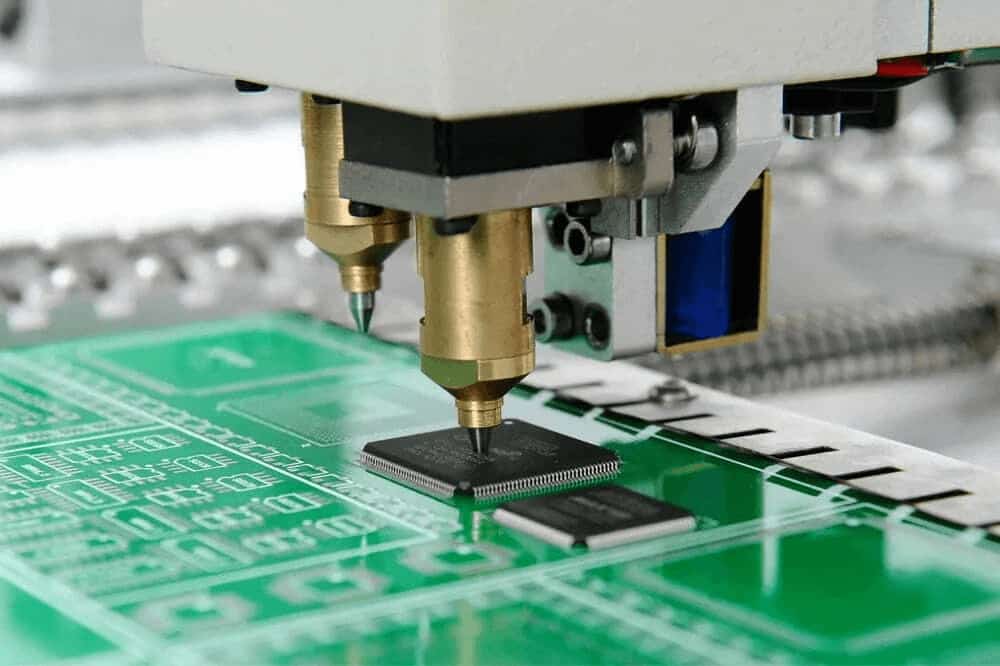

Figure 1. SMT Component

Introduction to Surface Mount Technology (SMT)

Surface Mount Technology (SMT) is a method of assembling electronic circuits by placing components directly onto PCB pads instead of inserting them through holes. This process reduces size and weight, improves layout efficiency, and enables higher component density. SMT is widely used in modern electronics and supports reliable, high-volume manufacturing with consistent assembly quality.

How SMT Works on Printed Circuit Boards

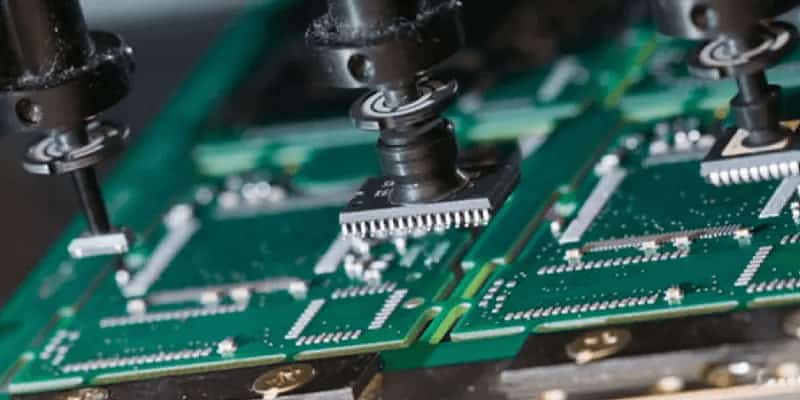

Figure 2. SMT Component Placement

Surface Mount Technology joins components directly to the copper pads on a printed circuit board. The pads are first coated with solder paste, a mixture of fine solder and flux that cleans the metal and prepares it for bonding. Components are then placed on the pasted pads; the tacky paste holds them in position.

The board passes through a reflow oven, where a controlled temperature profile melts the solder paste. Molten solder wets both the pads and the component terminals, and when the board cools, it solidifies into strong electrical and mechanical joints. Most packages have terminals around the edges, while others, such as ball grid arrays (BGAs), use small solder balls on the underside to form their connections.

Surface-Mount Components and Their Types

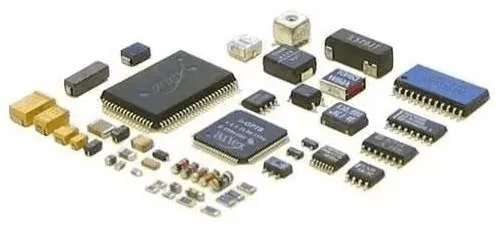

Figure 3. SMT Component Types

Surface-mount components are designed to sit directly on the surface of a printed circuit board. They rely on small metal terminations for electrical contact rather than long leads. Their shapes and sizes vary based on function, but they’re all intended to fit into compact layouts where space is limited.

Passive Components

Passive surface-mount components include resistors, capacitors, and inductors. These parts guide, store, or limit electrical energy without needing an external power source. Most of them come in small rectangular packages, which makes them easy to place on the board and helps keep the layout organized. You’ll notice standard size codes like 0805, 0603, 0402, or 0201, and these numbers describe the length and width of the part. They’re important because they determine how much space the component occupies, how it fits with nearby parts, and how well it can handle power or electrical stress. Resistors and capacitors are the most common in this group, while inductors often appear in slightly larger or differently shaped packages when higher current levels are needed.

Transistors and Diodes

Transistors and diodes in surface-mount form are usually built into small plastic packages with metal leads arranged along one side. Many transistors have three leads, which match the way they control or switch current inside the circuit. Diodes typically have two leads, although some versions use more when they contain multiple diodes in one package. These components play important roles in switching, rectifying, or shaping signals within compact circuits, and their size makes them suitable for layouts that need tight spacing without losing electrical performance.

Integrated Circuits (ICs)

Surface-mount integrated circuits combine many internal components into one package, allowing more advanced functions to fit into a small area. Several package styles are widely used. SOIC parts work well for moderate pin counts, while thinner versions like TSSOP help save even more board space. QFP packages carry pins on all four sides and are used when a device needs a higher number of connections. BGA packages place small solder balls on the underside instead of exposed leads, which supports very high pin counts and helps with heat flow and signal quality. Each type is chosen based on how complex the circuit is, how many connections it needs, and how much space is available on the board.

SMT Package and Sizes

Surface-mount components follow standardized package styles that define their shape, size, and where their terminals sit on the printed circuit board. These standards help the parts fit correctly on the board and ensure steady placement during manufacturing. Each category of component uses its own common footprints, and these footprints guide how the part fits into a compact layout.

Chip Packages for Resistors and Capacitors

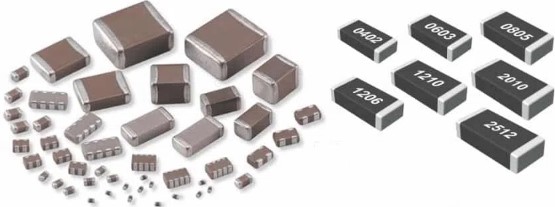

Figure 4. Chip Packages for SMT Resistors and Capacitors

Resistors and capacitors in SMT form are usually made as rectangular chip packages marked with size codes such as 1206, 0805, 0603, 0402, or 0201. These codes describe the length and width of each part and show how much space the component takes on the board. A 0603 part, for example, measures 0.06 by 0.03 inches. The package size affects how easily the part can be placed and soldered and how much electrical or thermal stress it can support. Larger packages are easier to handle, while smaller ones help keep the layout compact when space is limited.

Packages for Diodes and Transistors

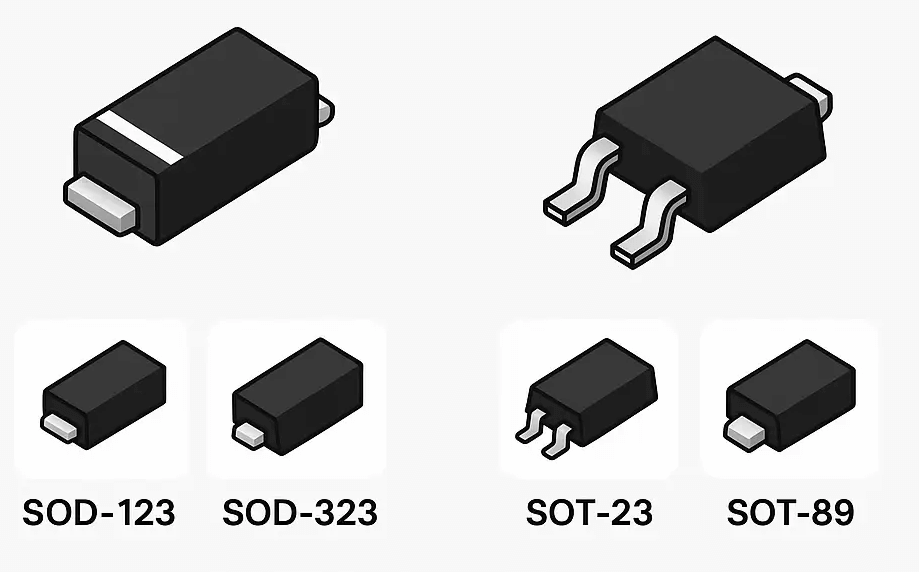

Figure 5. SMT Packages for Diodes and Transistors

Diodes and transistors commonly use small plastic packages designed for clear orientation and simple mounting. Diodes often appear in SOD-123 or SOD-323 packages, and many transistors use SOT-23 or similar styles.

Integrated Circuit Package Families

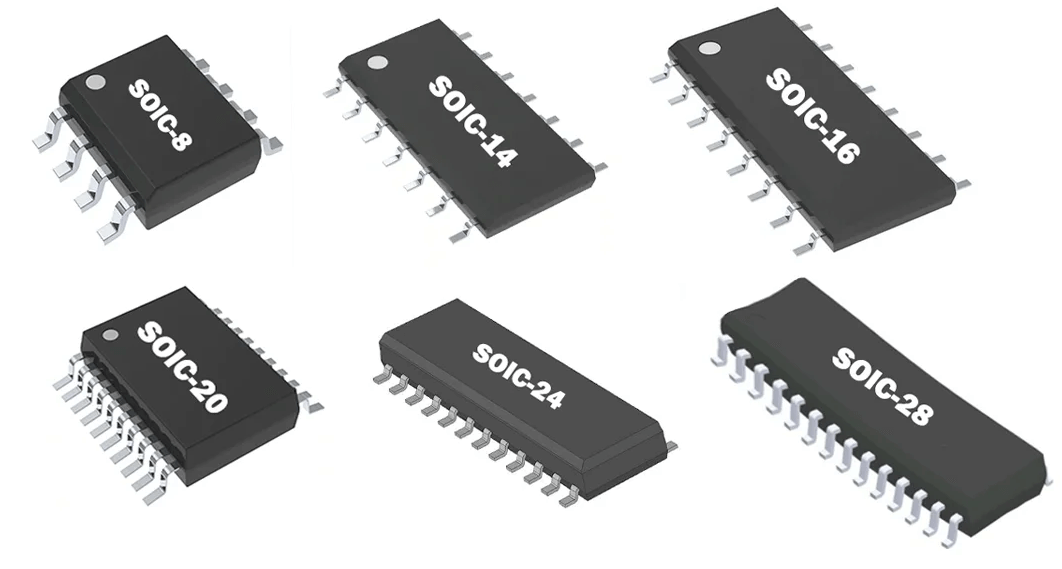

Figure 6. Common SMT IC Packages

Integrated circuits rely on a wider range of SMT package types to match their connection needs. SOIC, SSOP, and TSSOP packages use side leads and work well for devices with moderate pin counts. QFP packages place leads on all four sides to support higher pin numbers. More complex devices often use BGA packages, which carry small solder balls on the underside for a dense and efficient connection pattern. Chip scale packages bring the size close to the silicon die to save even more board space.

SMT Assembly Process

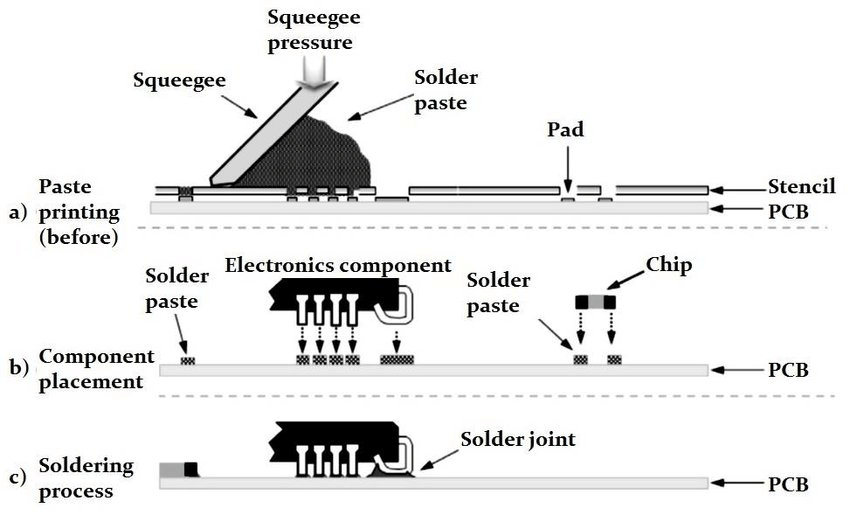

Figure 7. SMT Assembly Stages

The SMT assembly process begins with applying solder paste to the copper pads on the printed circuit board. During this step, a stainless steel stencil guides the paste so it settles only on the pads where component terminals will make contact. The mixture of fine solder particles and flux must be deposited with careful control, since the amount and placement affect how the joints form during heating.

Once the paste is in place, the board moves to component placement. Each part is positioned onto its corresponding pads, and vision systems check alignment to ensure proper orientation before soldering. The tackiness of the paste is enough to hold the components steady while the board is prepared for the next stage.

The board then passes through a reflow oven, where controlled heating melts the solder paste and allows it to draw the terminals into their final positions. As the board cools, the solder solidifies into a reliable electrical and mechanical joint. Consistent temperature control throughout heating and cooling helps maintain joint quality and prevents components from shifting.

SMT Inspection and Quality Control

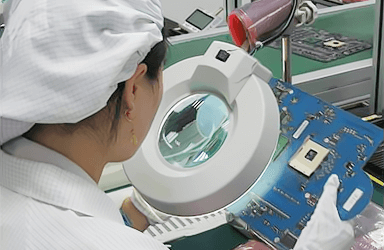

Figure 8. SMT Inspection and Quality Control

Inspection and quality control ensure that each surface-mount component is correctly placed and securely soldered to the printed circuit board. Automated optical inspection (AOI) is commonly used; cameras scan the board and compare it to a reference image to detect issues such as misalignment, wrong orientation, insufficient solder, excess solder, or bridging.

For packages with hidden solder joints—such as BGA, LGA, and QFN—X-ray inspection is required. X-ray images reveal internal solder quality, showing voids, incomplete joints, or hidden defects that may affect reliability. Some processes also include solder-paste inspection to verify proper paste volume and placement before components are mounted.

After assembly, electrical and functional testing confirm that the board operates as intended. These tests ensure that each connection performs correctly under power or signal load. Together, the inspection steps help maintain consistent quality and ensure that finished boards meet required performance standards.

Advantages and Limitations of SMT

Advantages	Limitations
Supports compact, high-density layouts with smaller components	Difficult to repair manually because of tiny, tightly spaced parts
Allows mounting on both sides of the PCB to save space	Requires specialized equipment such as paste printers, pick-and-place machines, and reflow ovens
Improves electrical performance due to shorter lead lengths	Very small packages (0201, 01005) introduce placement and soldering challenges
Reduces drilling, board size, and overall production cost	Hidden joints in BGA, QFN, and LGA packages need X-ray inspection
Provides uniform reflow-formed solder joints with stable quality	Surface-mount joints offer less mechanical strength for high-stress components
Can improve heat flow using thermal pads or underside contacts	Sensitive to heat and moisture, requiring careful handling and storage

SMT vs Through-Hole

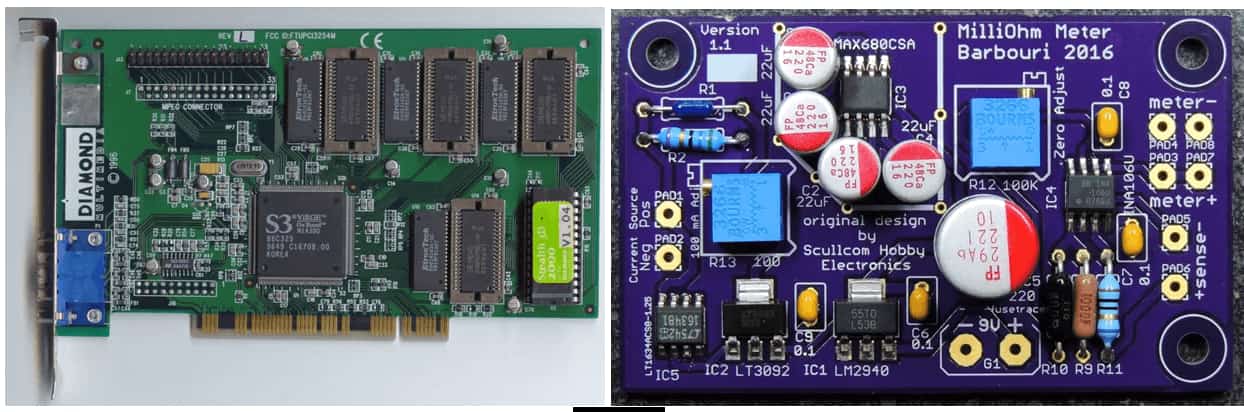

Figure 9. SMT vs Through-Hole Boards

Surface Mount Technology and through-hole assembly differ in how components attach to a printed circuit board. SMT parts sit directly on the surface with short terminations, while through-hole components use leads inserted through drilled holes and soldered on the opposite side.

SMT enables compact layouts because the parts are smaller and do not require holes, allowing tight spacing and efficient use of the board area. Through-hole components are larger and spaced farther apart, but their lead-through structure provides strong mechanical support, making them suitable for parts exposed to stress or requiring extra durability.

Assembly methods also differ. SMT parts are placed on pads and soldered during reflow, allowing faster production. Through-hole parts require manual or automated lead insertion before soldering, which increases assembly time. Electrically, SMT’s shorter paths help reduce unwanted effects in high-frequency or sensitive circuits, while longer through-hole leads can introduce small variations.

Applications of SMT

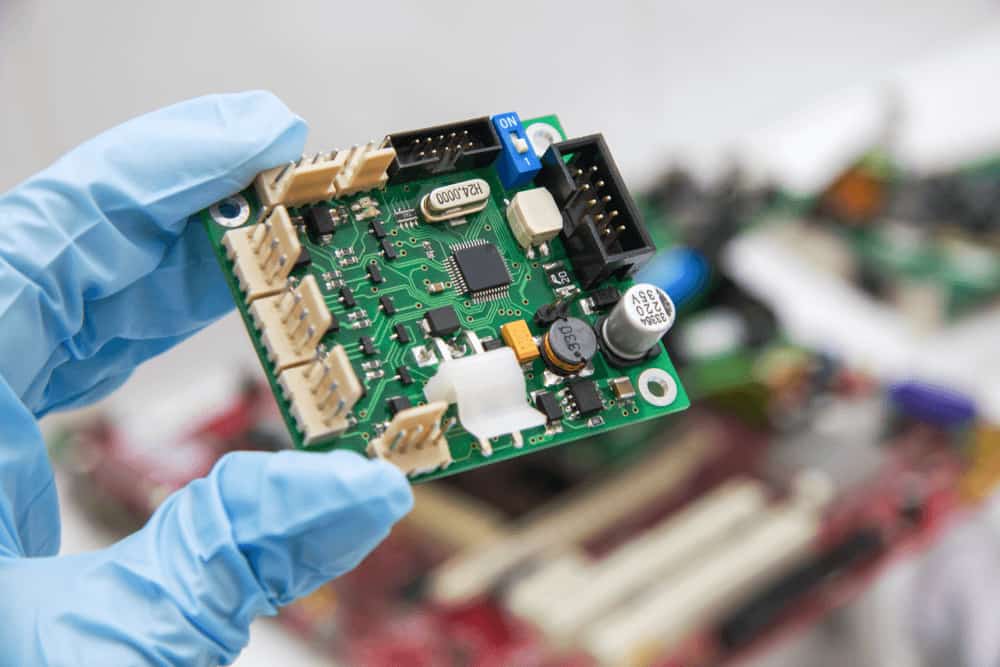

Figure 10. SMT in Modern Electronics

Surface Mount Technology is used in a wide range of electronic systems because it supports compact layouts and high component density. Its ability to place small parts closely together allows designers to build complex circuits in limited space, which is essential for many modern products.

Consumer Electronics

In consumer electronics, SMT is found in devices that require small, lightweight, and multifunctional circuit boards. It’s used in smartphones, tablets, laptops, wearables, televisions, and other home electronics. The compact structure of SMT parts helps support features such as wireless communication, fast processing, and advanced sensing functions, all within tight housings.

Automotive Systems

The technology is also central to automotive systems, where electronic control units and sensor modules rely on small, reliable components. SMT appears in engine management circuits, safety modules, braking systems, navigation units, and the control boards used in electric vehicles. These applications depend on steady performance in environments where space is limited.

Industrial Equipment

In industrial equipment, SMT supports the control and monitoring functions needed in manufacturing and power systems. Examples include programmable logic controllers, motor drivers, power supplies, and industrial sensors. These boards benefit from the steady performance and compact size that SMT provides.

Medical Devices

Many medical devices use SMT to achieve precise operation in small housings. It appears in diagnostic tools, patient monitors, imaging equipment, and both wearable and implantable electronics. The small size and consistent performance of SMT parts support the accuracy needed in medical environments.

Portable and Battery-Powered Devices

SMT is also widely used in portable and battery-powered devices, such as handheld meters, wireless accessories, GPS trackers, and compact communication modules. Higher circuit density helps these products combine multiple functions while managing size and power use effectively.

Telecommunications and Networking

In telecommunications and networking, SMT supports equipment that needs stable high-frequency performance. It’s used in routers, modems, switches, base station hardware, RF modules, and fiber communication systems, where short electrical paths help maintain signal quality.

Aerospace and Defense

Some aerospace and defense systems also rely on SMT. Avionics, radar modules, satellite electronics, and navigation units often use boards built with SMT to achieve compact structures and steady operation in demanding settings. The reduced mass of SMT components makes them suitable for aircraft, drones, and space systems where weight is a critical factor.

Conclusion

Surface Mount Technology gives you a clear way to understand how modern circuits fit many features into a small space. You see how parts are placed on the surface of the board, how soldering turns them into solid connections, and how inspection keeps everything reliable. The method reduces size, improves performance, and supports many features in everyday products. As you learn about the components, packages, and assembly steps, you get a better idea of how compact circuits are built. SMT continues to support phones, computers, vehicles, medical tools, and many other technologies by keeping layouts small and performance steady.
