Understanding the UA741IN Operational Amplifier

The UA741IN is a versatile operational amplifier commonly used in analog applications. It’s known for its ability to amplify signals with high gain, making it useful in a variety of circuits such as integrators, summing amplifiers, and feedback systems. This article will guide you through its features, pin configurations, applications, and technical specifications, helping you understand how the UA741IN can fit into your designs.

Catalog

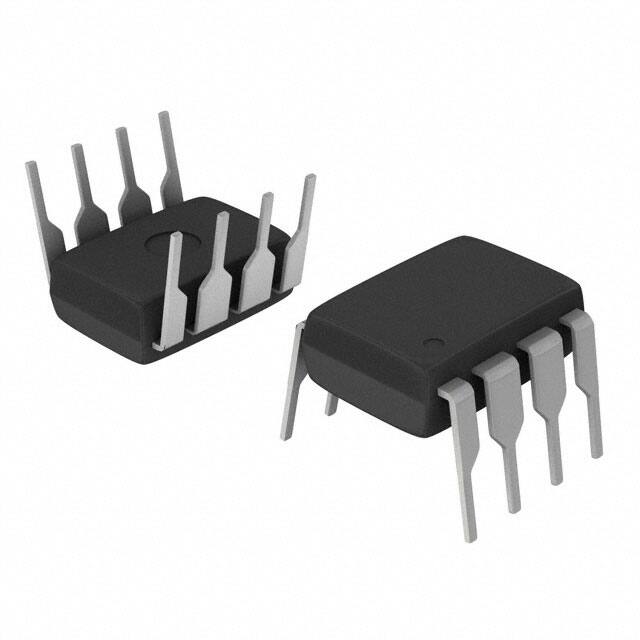

Overview of the UA741IN

The UA741IN is an operational amplifier designed for various analog applications. It provides high gain, making it effective for amplifying signals. It works well in circuits like integrators, summing amplifiers, and feedback systems, where controlling performance is important.

One feature of the UA741IN is its internal compensation network, which ensures stability in closed-loop circuits by helping the amplifier maintain a steady operation. It also operates over a wide range of voltages, making it adaptable for different circuit requirements.

UA741IN Pin Configuration

NAME	DESCRIPTION
IN+	Noninverting input
IN–	Inverting input
NC	Do not connect
OFFSET N1	External input offset voltage adjustment
OFFSET N2	External input offset voltage adjustment
OUT	Output
Vcc+	Positive supply
Vcc–	Negative supply

UA741IN CAD Model

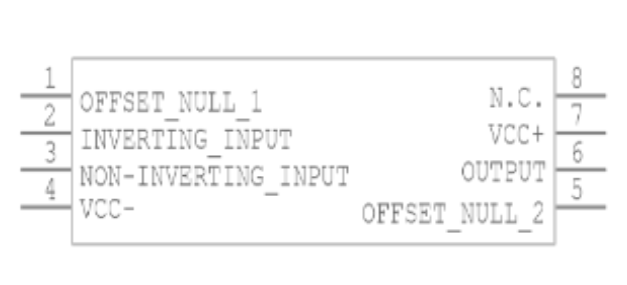

UA741IN Symbol

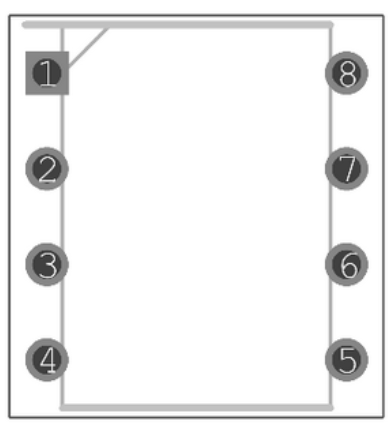

UA741IN Footprint

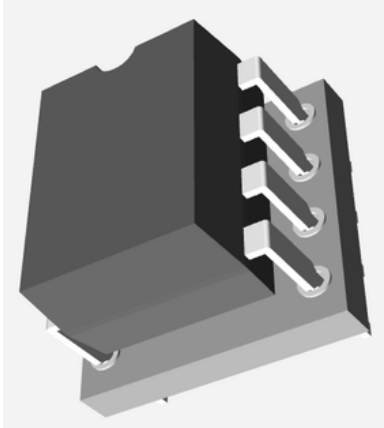

UA741IN 3D Model

UA741IN Key Features

Large Input Voltage Range

This feature allows you to work with a variety of input signals. The UA741IN can handle a wide range of input voltages, which means you can use it in many different circuits without worrying about voltage limits. It’s a flexible option for different types of projects.

No Latch-up

The UA741IN is designed to avoid latch-up. Latch-up is a condition where the amplifier becomes stuck in an unwanted state. With the UA741IN, you won’t have to worry about this happening, which helps keep your circuits functioning properly.

High Gain

High gain means the UA741IN can amplify weak signals effectively. Whether you’re working with low-level signals or need to boost the output, the UA741IN offers reliable performance to handle this task.

Short-circuit Protection

This feature helps protect your circuit from damage caused by accidental short circuits. The UA741IN has built-in protection, which means that if a short circuit occurs, the device will safeguard itself and the surrounding components.

No Frequency Compensation Required

With the UA741IN, there’s no need to add external components to manage frequency stability. The internal design of the amplifier ensures that the circuit remains stable, simplifying your design process and saving time.

Same Pin Configuration as the UA709

If you’ve used the UA709 before, you’ll find that the UA741IN has the same pin configuration. This makes it easier to swap out the UA709 with the UA741IN in existing designs, ensuring a smooth transition without needing to redesign your circuit layout.

UA741IN Common Applications

Summing Amplifiers

The UA741IN works well in summing amplifiers, where you need to combine multiple input signals into one output. It helps maintain the quality of the signal while accurately summing the inputs.

Voltage Followers

In voltage follower circuits, the UA741IN provides strong performance by matching the input voltage to the output. This is useful when you need to buffer a signal without amplifying or distorting it.

Integrators

The UA741IN can also be used in integrator circuits, where it helps to convert input signals into time-based outputs. This is especially useful in signal processing applications where integration of the input signal is required.

Active Filters

The UA741IN is suited for active filter applications, where it helps filter out unwanted frequencies from your signals. It allows you to design low-pass, high-pass, or band-pass filters to meet your specific needs.

Function Generators

When used in function generators, the UA741IN can help produce various waveforms such as sine, square, or triangle waves. This makes it a useful tool for creating different signal types in testing and measurement setups.

UA741IN Technical Specifications

STMicroelectronics UA741IN technical details, features, performance parameters, and comparable parts with similar specifications to the UA741IN

Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	8-DIP (0.300, 7.62mm)
Number of Pins	8
Weight	4.535924g
Operating Temperature	-40°C~105°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Number of Functions	1
Supply Voltage	15V
Terminal Pitch	2.54mm
Base Part Number	UA741
Pin Count	8
Operating Supply Voltage	20V
Number of Channels	1
Operating Supply Current	1.7mA
Nominal Supply Current	2.8mA
Power Dissipation	500mW
Output Current	25mA
Slew Rate	0.5V/μs
Architecture	VOLTAGE-FEEDBACK
Amplifier Type	General Purpose
Common Mode Rejection Ratio	70 dB
Current - Input Bias	10nA
Voltage - Supply, Single/Dual (±)	10V44V ±5V22V
Output Current per Channel	25mA
Input Offset Voltage (Vos)	5mV
Bandwidth	1MHz
Neg Supply Voltage-Nom (Vsup)	-15V
Unity Gain BW-Nom	1000 kHz
Voltage Gain	106.02dB
Average Bias Current-Max (IIB)	0.2μA
Low-Offset	NO
Frequency Compensation	YES
Supply Voltage Limit-Max	22V
Voltage - Input Offset	1mV
Height	3.32mm
Length	10.92mm
Width	6.6mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

UA741IN Circuit Diagram

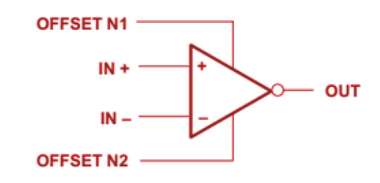

UA741IN Simplified Circuit

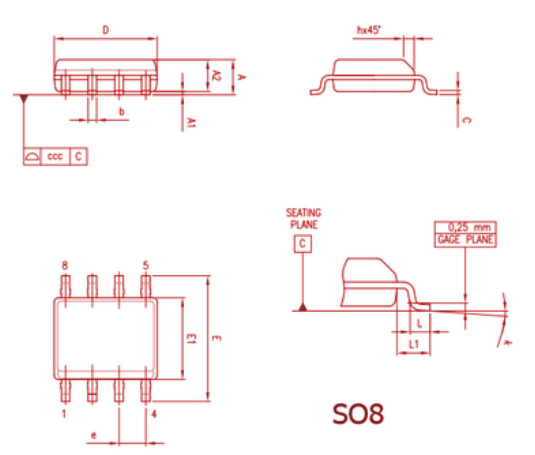

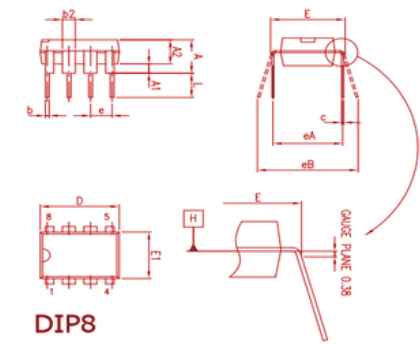

UA741IN Package Information

Datasheet PDF

UA741IN Datasheet:

UA741IN.pdf

Frequently Asked Questions [FAQ]

1. What is the purpose of the UA741 IC?

The UA741 IC is an operational amplifier designed to handle a range of analog tasks. It is made on a single silicon chip and is commonly used in applications like integrators, general feedback circuits, and summing amplifiers. The UA741’s broad operating voltage range and high gain make it a reliable option for these types of circuits.

2. What is the working temperature range of the UA741?

The UA741 operates within a temperature range of 0°C to 70°C. This means that it functions properly in environments where the temperature stays within this range.

3. How many pins does the UA741 have?

The UA741 IC comes with eight (8) pins. Each pin serves a specific role in the operation of the amplifier, enabling it to perform different functions within a circuit.

4. Which IC is better for a Zero Crossing Detector (ZCD), the LM358 or the UA741?

The choice between the LM358 and UA741 depends on the specific application. Generally, the LM358 is preferred in newer designs because it performs better, especially when used with a single power supply. It can also bring its output closer to 0V, which is useful in certain configurations.

5. How can I fix offset voltage issues in the UA741 op-amp?

To fix offset voltage problems, you can connect a 10k potentiometer between pins 1 and 5, which are the offset null pins. Adjust the potentiometer until the output voltage reaches zero, which should correct the offset.
