Specifications

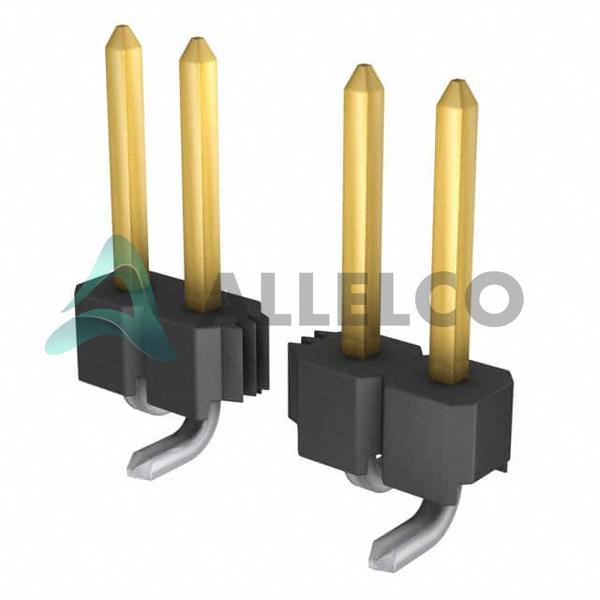

961106-6700-AR-TP Tech Specifications
3M - 961106-6700-AR-TP technical specifications, attributes, parameters and parts with similar specifications to 3M - 961106-6700-AR-TP
| Product Attribute |
Attribute Value
| |
| Manufacturer |
3M |
|
| Voltage Rating |
- |
|
| Termination |
Solder |
|
| Style |
Board to Board |
|
| Shrouding |
Unshrouded |
|
| Series |
961 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.100" (2.54mm) |
|
| Package |
Tube |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-25°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
6 |
|
| Mounting Type |
Surface Mount |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Thermoplastic |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.098" (2.50mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
2A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Copper Alloy |
|
| Contact Length - Post |
- |
|
| Contact Length - Mating |
0.260" (6.60mm) |
|
| Contact Finish Thickness - Post |
39.4µin (1.00µm) |
|
| Contact Finish Thickness - Mating |
Flash |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Base Product Number |
961106 |
|
| Applications |
- |
|
