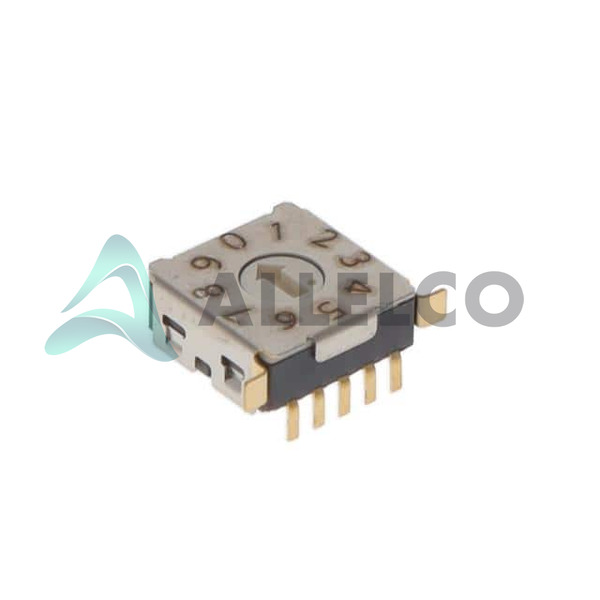

MRSSH4DR10SMGWT - TE Connectivity ALCOSWITCH Switches

Manufacturer Part Number: MRSSH4DR10SMGWT

Manufacturer: ALCOSWITCH Switches / TE Connectivity

Allelco Part Number: 98D-MRSSH4DR10SMGWT

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: MRSSH 1.27 SS SD REA 10 SMT GULL

Package: Tube

Data sheet: 1.MRSSH4DR10SMGWT.pdf ...

Datasheets
MRSS - MINIATURE ROTARY SWITCH SERIES.pdf

3D Drawings
MRSSH4DR10SMGWT.3D.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 5400

Unit Price: $2.331
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$2.331	$2.33
180+	$0.93	$167.40
495+	$0.90	$445.50

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

MRSSH4DR10SMGWT Tech Specifications
TE Connectivity ALCOSWITCH Switches - MRSSH4DR10SMGWT technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity ALCOSWITCH Switches - MRSSH4DR10SMGWT

Product Attribute	Attribute Value
Manufacturer	ALCOSWITCH Switches / TE Connectivity
Washable	No
Voltage Rating	20VAC/DC
Termination Style	Gull Wing
Series	MRSS
Pitch	0.050" (1.27mm), Half
Package	Tube
Operating Temperature	-40°C ~ 85°C
Number of Positions	10
Mounting Type	Surface Mount, Right Angle
Mechanical Life	10,000 Steps

Product Attribute	Attribute Value
Length	0.303" (7.70mm)
Height Above Board	0.303" (7.70mm)
Features	-
Electrical Life	10,000 Steps
Current Rating (Amps)	0.4VA
Contact Material	Copper Alloy
Contact Finish	Gold
Circuit	BCD
Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to TE Connectivity ALCOSWITCH Switches MRSSH4DR10SMGWT

Product Attribute
Part Number	MRSSH4DR10SMGWTR	MRSSH4DG10SMGWT	MRSSH4DR16SMGWTR	MRSSH4DR16SMGWT
Manufacturer	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches
Series	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Body Material	-	-	-	-
Number of Positions	-	-	-	-
Electrical Life	-	-	-	-
Contact Material	-	-	-	-
Termination Style	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Washable	-	-	-	-
Mechanical Life	-	-	-	-
Contact Finish	-	-	-	-
Pitch	-	-	-	-
Voltage Rating	-	-	-	-
Height Above Board	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Length	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Circuit	-	-	-	-
Actuator Type	-	-	-	-
Current Rating (Amps)	-	-	-	-
Actuator Level	-	-	-	-

MRSSH4DR10SMGWT Datasheet PDF

Download MRSSH4DR10SMGWT pdf datasheets and TE Connectivity ALCOSWITCH Switches documentation for MRSSH4DR10SMGWT - TE Connectivity ALCOSWITCH Switches.

Datasheets: MRSS - MINIATURE ROTARY SWITCH SERIES.pdf
3D Drawings: MRSSH4DR10SMGWT.3D.pdf
