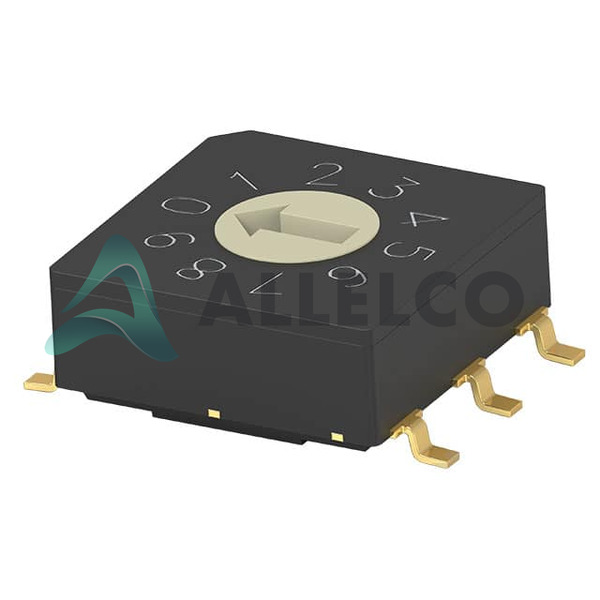

MRSSV1DR10SMGWTR - TE Connectivity ALCOSWITCH Switches

Name: TE Connectivity ALCOSWITCH Switches MRSSV1DR10SMGWTR
Brand: TE Connectivity ALCOSWITCH Switches
SKU: MRSSV1DR10SMGWTR
Price: 1.064 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: MRSSV1DR10SMGWTR

Manufacturer: ALCOSWITCH Switches / TE Connectivity

Allelco Part Number: 98D-MRSSV1DR10SMGWTR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: MRSSV 2.54 BL SD REA 10 SMT GULL

Package: Tape & Reel (TR)

Data sheet: 1.MRSSV1DR10SMGWT.pdf ...

Datasheets
MRSS Datasheet.pdf

3D Drawings
2-2396234-3.pdf.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 41388

Unit Price: $2.755
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$2.755	$2.76
200+	$1.10	$220.00
500+	$1.064	$532.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

MRSSV1DR10SMGWTR Tech Specifications
TE Connectivity ALCOSWITCH Switches - MRSSV1DR10SMGWTR technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity ALCOSWITCH Switches - MRSSV1DR10SMGWTR

Product Attribute	Attribute Value
Manufacturer	ALCOSWITCH Switches / TE Connectivity
Washable	No
Voltage Rating	20VAC/DC
Termination Style	Gull Wing
Series	MRSS
Pitch	0.100" (2.54mm), Full
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Number of Positions	10
Mounting Type	Surface Mount
Mechanical Life	10,000 Steps

Product Attribute	Attribute Value
Length	0.283" (7.20mm)
Height Above Board	0.122" (3.10mm)
Features	-
Electrical Life	10,000 Steps
Current Rating (Amps)	0.4VA
Contact Material	Copper Alloy
Contact Finish	Gold
Circuit	BCD
Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Rotary for Tool
Actuator Level	Flush, Recessed

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to TE Connectivity ALCOSWITCH Switches MRSSV1DR10SMGWTR

Product Attribute
Part Number	MRSSV1DR10SMGWT	MRSSV1DR16SMGWTR	MRSSV1DG10SMGWTR	MRSSV1DR16SMGWT
Manufacturer	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches	TE Connectivity ALCOSWITCH Switches
Contact Finish	-	-	-	-
Body Material	-	-	-	-
Electrical Life	-	-	-	-
Mechanical Life	-	-	-	-
Length	-	-	-	-
Circuit	-	-	-	-
Termination Style	-	-	-	-
Pitch	-	-	-	-
Series	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Features	-	-	-	Simultaneous Sampling
Voltage Rating	-	-	-	-
Actuator Type	-	-	-	-
Contact Material	-	-	-	-
Actuator Level	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Height Above Board	-	-	-	-
Washable	-	-	-	-
Number of Positions	-	-	-	-
Current Rating (Amps)	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C

MRSSV1DR10SMGWTR Datasheet PDF

Download MRSSV1DR10SMGWTR pdf datasheets and TE Connectivity ALCOSWITCH Switches documentation for MRSSV1DR10SMGWTR - TE Connectivity ALCOSWITCH Switches.

Datasheets: MRSS Datasheet.pdf
3D Drawings: 2-2396234-3.pdf.pdf
