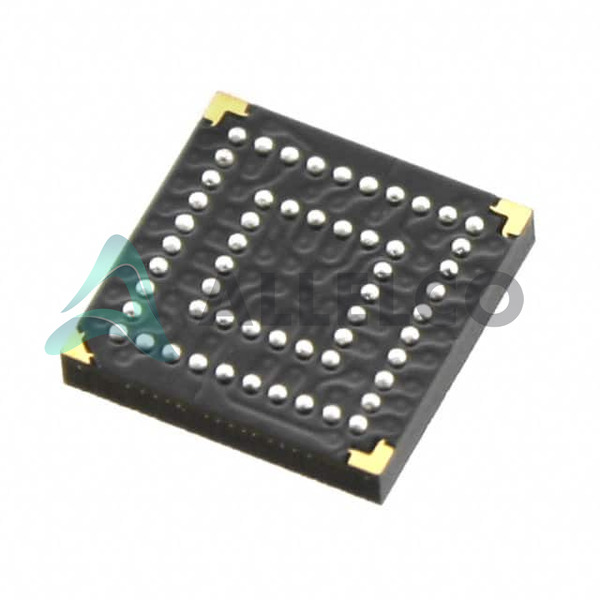

XC2C64A-7CP56C Image
XC2C64A-7CP56C Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

XC2C64A-7CP56C - AMD

Manufacturer Part Number
XC2C64A-7CP56C
Manufacturer
AMD Xilinx
Allelco Part Number
32D-XC2C64A-7CP56C
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
2,658 pcs available, New & Original
Parts Description
IC CPLD 64MC 6.7NS 56CSBGA
Package
56-CSBGA (6x6)
Data sheet
XC2C64A-7CP56C.pdf

HTML Datasheet

XC2C64A Datasheet.pdf

Environmental Information

Xilinx REACH211 Cert.pdf
RoHs Status

Compare
Our certification
In stock: 2658
  • Unit Price: $20.25
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $20.25 $20.25
200+ $8.08 $1,616.00
360+ $7.81 $2,811.60
1080+ $7.68 $8,294.40
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

XC2C64A-7CP56C Tech Specifications
AMD - XC2C64A-7CP56C technical specifications, attributes, parameters and parts with similar specifications to AMD - XC2C64A-7CP56C

Product Attribute Attribute Value
Manufacturer AMD Xilinx
Voltage Supply - Internal 1.7V ~ 1.9V
Supplier Device Package 56-CSBGA (6x6)
Series CoolRunner II
Programmable Type In System Programmable
Package / Case 56-LFBGA, CSPBGA
Package Tray
Operating Temperature 0°C ~ 70°C (TA)
Product Attribute Attribute Value
Number of Macrocells 64
Number of Logic Elements/Blocks 4
Number of I/O 45
Number of Gates 1500
Mounting Type Surface Mount
Delay Time tpd(1) Max 6.7 ns
Base Product Number XC2C64

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

XC2C64A-7CP56C Image
XC2C64A-7CP56C (1)

Manufacturer Part Number

XC2C64A-7CP56C

Manufacturer

Xilinx

Introduction

Xilinx CoolRunner-II CPLD featuring low power consumption and high performance.

Product Features and Performance

In System Programmable CPLD

7 ns pin-to-pin logic delays

7V to 1.9V internal voltage supply

Four logic blocks

64 macrocells and 1500 gates

45 I/O pins

Optimized for high-speed and low-power applications

Product Advantages

Low power advanced system integration

Non-volatile technology

Fast programming and erasability

Security for intellectual property

Key Technical Parameters

Programming Type: In System

Max Delay Time: 6.7 ns

Voltage Supply: 1.7V to 1.9V

Logic Elements/Blocks: 4

Macrocells: 64

Number of Gates: 1500

I/O Count: 45

Operating Temperature Range: 0°C to 70°C

Quality and Safety Features

Strict adherence to industry quality standards

Built for reliability and long-term service

Compatibility

Surface Mount, 56-LFBGA, CSPBGA compatible

Fits 56-CSBGA (6x6) package footprint

Application Areas

Consumer electronics

Automotive systems

Data communication

Industrial controls

Product Lifecycle

Last Time Buy status

Potential for replacement or upgrades based on manufacturer's product roadmap

Reasons to Choose This Product

Low power design ideal for battery-powered and energy-efficient applications

Fast in-circuit programmability

Extensive I/O capabilities supporting diverse design needs

High integration reduces board space and system complexity

Renowned Xilinx quality and technology leadership

Legacy product with proven performance and reliability

Frequently Asked Questions(FAQ)

What are the key timing characteristics of the XC2C64A-7CP56C that impact high-speed digital design applications?
The XC2C64A-7CP56C features a maximum propagation delay (tpd) of 6.7 nanoseconds, which is critical for determining signal integrity and synchronization in time-constrained logic paths. This tight timing enables reliable operation in systems requiring fast state transitions, such as control loops or data acquisition interfaces. However, designers must account for this fixed delay when aligning clock edges across macrocells, especially in synchronous designs where cumulative delays could affect setup and hold margins.
How does the supply voltage range of the XC2C64A-7CP56C influence power budgeting in embedded systems operating near thermal limits?
Operating at 1.7V to 1.9V places the XC2C64A-7CP56C within a low-voltage domain typical of modern power-sensitive applications. While this reduces dynamic power consumption quadratically with voltage, it also constrains noise margins and increases sensitivity to supply droop under transient loads. Engineers should ensure stable power delivery with adequate bypass capacitance, particularly during configuration or reconfiguration events, to avoid functional failures in systems where thermal dissipation is tightly managed.
Can the XC2C64A-7CP56C be used in place of the XC2C64A-7CPG56C without modifying the PCB layout?
No, the XC2C64A-7CP56C uses a 56-ball CBGA package while the PG56 variant employs a different pinout in a 56-pin PQFP. Although both share the same core functionality and electrical specifications, mechanical and routing differences prevent direct substitution without redesigning the printed circuit board. Signal mapping and solder joint reliability considerations further discourage unverified swaps between these package types.
What are the implications of the XC2C64A-7CP56C’s Moisture Sensitivity Level (MSL) rating for manufacturing yield and assembly process planning?
With an MSL of 3 (168 hours), the XC2C64A-7CP56C requires bake-out procedures if exposed to ambient moisture beyond one week before reflow soldering. Failure to adhere to JEDEC J-STD-020 guidelines risks popcorning during thermal cycling, which can compromise intermetallic bonds in the fine-pitch 56-CSBGA package. Assembly houses must track floor life and implement humidity-controlled storage to maintain process integrity.
How does the number of I/O pins on the XC2C64A-7CP56C compare to other members of the CoolRunner II series for peripheral interfacing?
The XC2C64A-7CP56C offers 45 bidirectional I/Os, significantly more than smaller devices like the XC2C32A (24 I/Os) but fewer than higher-density variants such as the XC2C256A (64 I/Os). This balance makes it suitable for moderate-complexity bridging tasks—such as adapting legacy bus protocols—without overprovisioning resources. Designers evaluating alternatives should consider not just I/O count but also macrocell-to-pin ratio and dedicated input thresholds.
Is the XC2C64A-7CP56C suitable for hot-swapping or live-programming scenarios in production environments?
While the device supports in-system programming (ISP), its industrial-grade temperature rating (0°C to 70°C) excludes extended-range environments common in harsh industrial settings. Moreover, hot-swapping without proper ESD protection and power sequencing may trigger latch-up due to the CMOS architecture. Engineers should incorporate current-limiting resistors, TVS diodes, and soft-start circuitry when integrating the XC2C64A-7CP56C into plug-and-play modules.
What architectural constraints limit the maximum combinational logic depth achievable with the XC2C64A-7CP56C?
Despite having 64 macrocells, each macrocell shares global interconnect resources, creating congestion bottlenecks beyond approximately five levels of logic depth in complex feedback paths. The XC2C64A-7CP56C lacks dedicated carry chains found in FPGAs, so arithmetic-intensive functions require macrocell-level pipelining or external logic. Synthesis tools may report high fanout warnings; manual placement efforts often improve timing closure by reducing net lengths.
How do substitute parts like T13Q100F3C3 compare functionally to the XC2C64A-7CP56C for legacy system maintenance?
Substitutes such as the T13Q100F3C3 typically target equivalent gate counts and speed grades but differ in pin compatibility, power characteristics, and availability status. Without full characterization against original design assumptions—including voltage thresholds, slew rates, and configuration memory behavior—using them risks silent failures. Migration to the XC2C64A-7CP56C should involve regression testing under worst-case operating conditions rather than relying solely on parametric similarity.

Parts with Similar Specifications

The three parts on the right have similar specifications to AMD XC2C64A-7CP56C

Product Attribute XC2C64A-7CPG56C XC2C64A-5CP56C XC2C64A-7CPG56I XC2C64A-5CPG56C
Part Number XC2C64A-7CPG56C XC2C64A-5CP56C XC2C64A-7CPG56I XC2C64A-5CPG56C
Manufacturer AMD AMD AMD AMD
Number of Logic Elements/Blocks - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -
Number of Macrocells - - - -
Number of Gates - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Delay Time tpd(1) Max - - - -
Programmable Type - - - -
Number of I/O - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage Supply - Internal - - - -
